Generic Off Road Tire Deflators Instruction Manual

Bubuka

This manual provides instructions for the proper setup, operation, and maintenance of your Generic Off Road Tire Deflators. These deflators are designed to quickly and efficiently reduce tire pressure for off-road driving, featuring an auto-stop mechanism at a preset PSI value. Please read this manual thoroughly before use to ensure safe and effective operation.

Fitur produk

• Modernized Tire Deflation: Rapidly deflates tires with an auto-stop feature at your preset PSI.
• Setup gancang: Each deflator is calibrated with a variance of +/-2 PSI for easy pressure adjustment.
• adjustment fléksibel: Clear graduated display allows precision air pressure adjustment from 30 to 10 PSI. No tools required for adjustment.
• Ringan sareng Portabel: Compact design makes it easy to carry and store.
• Kontrol anu gampang: 4-piece kit with a spin-on tool for accurate deflation on 4x4 vehicles, motorcycles, and other autos.

Eusi pakét

• 4x Generic Off Road Tire Deflators
• 1x Kantong Panyimpenan

Image: The complete kit including four tire deflators and a storage pouch.

spésifikasi

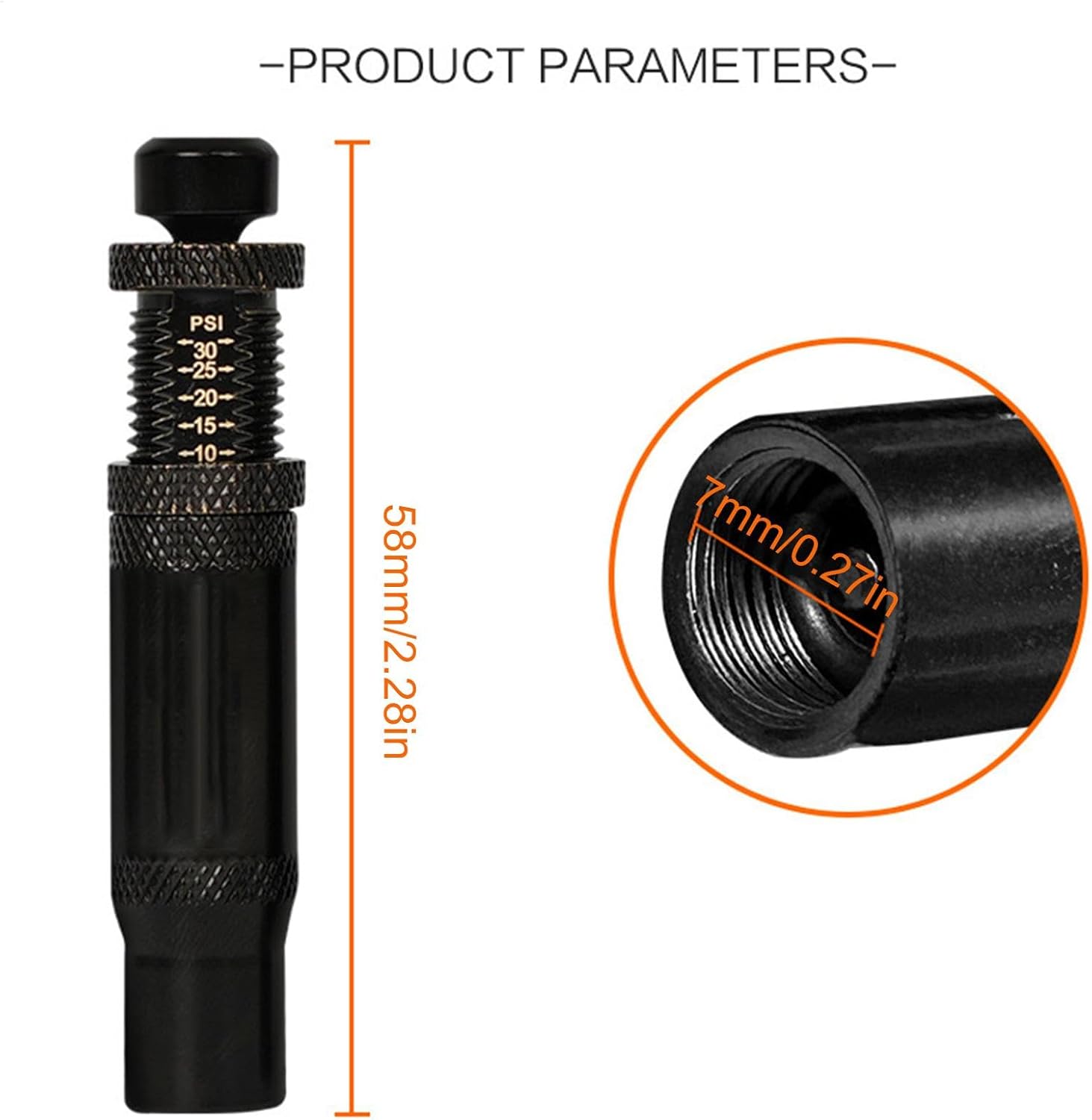

Image: Detailed product dimensions of the tire deflator.

Image: Close-up of the deflator, emphasizing its brass construction and suitability for 4WD vehicles.

Parentah Setup

Before using the tire deflators, you must set your desired tire pressure (PSI) for deflation. The deflators are adjustable from 10 to 30 PSI.

1. Identipikasi komponén: Familiarize yourself with the deflator's parts: the adjusting cap, piston, lock ring, deflator shell, and connector.
2. Rotate Deflator Shell: Hold the adjusting cap and rotate the deflator shell clockwise to loosen the lock ring.
3. Set Desired PSI: Continue rotating the deflator shell until the top edge aligns with your desired PSI value on the graduated scale (e.g., 15 PSI).
4. Setélan konci: Once the desired PSI is set, rotate the lock ring counter-clockwise to tighten it against the deflator shell. This secures your chosen pressure setting.

Image: Diagram showing the deflator components and how to adjust the PSI setting.

Image: Visual guide demonstrating the steps to set the desired PSI on the deflator.

Parentah Operasi

Once the deflators are set to your desired pressure, follow these steps to deflate your tires:

1. Leupaskeun tutup klep: Unscrew and remove the valve stem cap from your tire.
2. Attach Deflator: Screw the tire deflator onto the tire valve stem until it is finger-tight. Do not overtighten.
3. Initiate Deflation: Pull the piston (the small cap at the top) outwards to begin the air release. You will hear air escaping.
4. Eureun Otomatis: The deflator will automatically stop releasing air once the tire pressure reaches the preset PSI value.
5. Remove Deflator: Once deflation is complete, push the piston back in and unscrew the deflator from the valve stem. Replace the valve cap.
6. Repeat for all Tires: Repeat the process for all tires requiring deflation.

Image: A hand pulling the deflator's piston to start the air release process.

Image: The tire deflator actively releasing air from a tire, demonstrating its function.

Gambar: Examples of off-road vehicles benefiting from tire deflation for different terrains.

Pangropéa

• beberesih: After each use, wipe the deflators clean with a dry cloth to remove any dirt or debris. Avoid using harsh chemicals.
• Panyimpenan: Store the deflators in the provided storage pouch in a dry, cool place away from direct sunlight and extreme temperatures.
• Pamariksaan: Periodically inspect the deflators for any signs of damage or wear. Ensure the threads are clean and free of obstructions.

Pamérésan masalah

• Deflator not releasing air:
  • Ensure the piston is fully pulled out.
  • Check if the deflator is securely screwed onto the valve stem.
  • Verify that the tire pressure is above the preset PSI.
• Deflator not stopping at preset PSI:
  • Ensure the lock ring is tightened securely after setting the PSI.
  • Re-check the PSI setting to ensure it is correctly aligned.
• Air leaking from deflator connection:
  • Ensure the deflator is screwed on tightly enough to the valve stem, but do not overtighten.
  • Check the valve stem for any damage or debris that might prevent a proper seal.

Émbaran jaminan

Please refer to the product packaging or retailer's website for specific warranty details. Generally, products are covered against manufacturing defects for a limited period from the date of purchase. Keep your proof of purchase for any warranty claims.

Rojongan Palanggan

For technical assistance, troubleshooting beyond this manual, or inquiries regarding your product, please contact the retailer or manufacturer directly. Contact information can typically be found on the product packaging or the seller's online storefront.
