Generic Platinum 4MP Motorized Dome IP Camera User Manual

1. Bubuka

Welcome to the user manual for the Generic Platinum 4MP Motorized Dome IP Camera, model LTCMIP7243W-SDZ. This document provides essential information for the proper installation, operation, and maintenance of your surveillance camera. Please read this manual thoroughly before using the product and retain it for future reference.

2. Émbaran Kasalametan

Perhatikeun pancegahan kaamanan di handap ieu pikeun nyegah tatu atanapi karusakan produk:

• Sasayogian tanaga: Use only the specified power adapter. Ensure the power voltage stabil sarta minuhan sarat kaméra urang.
• Lingkungan: Do not expose the camera to extreme temperatures, humidity, dust, or corrosive environments. Ensure proper ventilation.
• Pamasangan: Install the camera securely on a stable surface. Avoid placing it in areas prone to vibration or impact.
• beberesih: Disconnect power before cleaning. Use a soft, dry cloth. Do not use strong detergents or solvents.
• Palayanan: Entong nyobian ngabongkar atanapi ngalereskeun kaméra nyalira. Rujuk sadayana jasa ka tanaga anu mumpuni.

3. Eusi Paket

Before installation, verify that all items are present and in good condition:

• Platinum 4MP Motorized Dome IP Camera
• parabot instalasi
• Kotak simpang
• Pituduh Mimitian Gancang (upami aya)

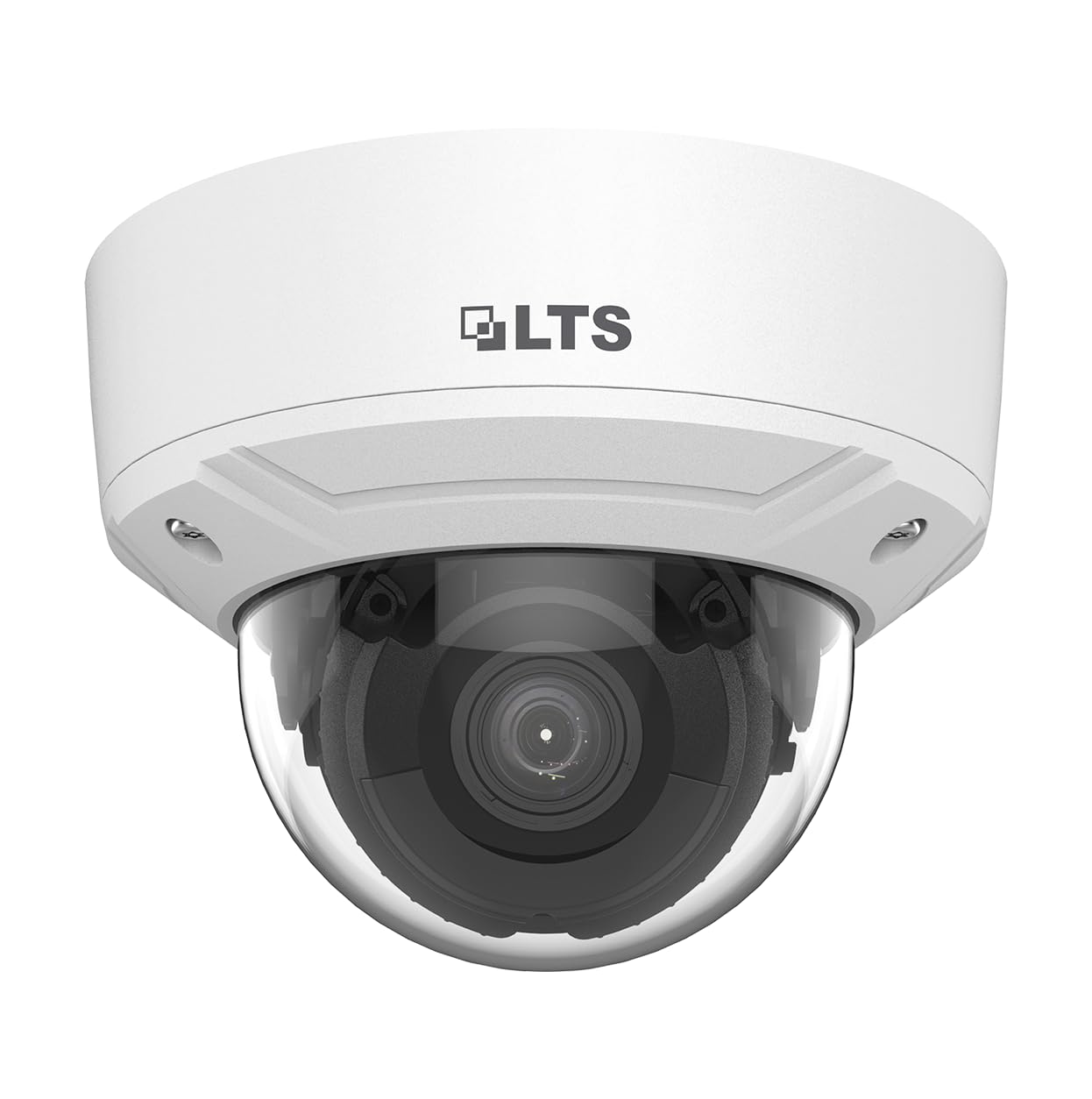

Image: Generic Platinum 4MP Motorized Dome IP Camera. This image displays the dome camera unit, typically white, with its protective dome and mounting base.

4. Produk Langkungview

4.1 Fitur konci

• Imaging kualitas luhur sareng résolusi 4 MP
• Motorized varifocal lens for easy installation and monitoring (2.8-12mm)
• Cekap H.265 + téknologi komprési
• Pencitraan anu jelas ngalawan lampu tukang anu kuat kusabab téknologi WDR leres 120 dB
• Focus on human and vehicle targets classification based on deep learning (MD 2.0)
• Audio sareng interface alarm sayogi
• Tahan cai sareng lebu (IP67) sareng tahan vandal (IK10)
• Junction Box Included

4.2 Komponén

The camera consists of a main dome unit, a motorized lens assembly, and a mounting base. It includes ports for power, Ethernet (PoE capable), audio input/output, and alarm input/output. A MicroSD card slot supports local storage up to 256GB.

5. Setup jeung Instalasi

5.1 Masang kaméra

1. Choose a suitable ceiling or wall location for installation. The camera is designed for both indoor and outdoor use.
2. Anggo témplat pemasangan anu disayogikeun (upami aya) pikeun nandaan liang bor.
3. Bor liang pilot sareng pasang jangkar témbok upami diperyogikeun.
4. Secure the mounting base of the camera to the surface using the screws.
5. Attach the camera body to the mounting base, ensuring it is firmly locked in place.

5.2 Sambungan Wiring

• kakuatan: Connect a 12V DC power adapter (not included) or use Power over Ethernet (PoE) if your network switch supports it.
• Jaringan: Connect an Ethernet cable from the camera to your network switch or router.
• Audio I/O: Connect external microphone to audio input and speaker to audio output if required.
• Alarm I/O: Connect external alarm devices (e.g., sensors, sirens) to the alarm input/output terminals.
• Kartu MicroSD: Insert a MicroSD card (up to 256GB) into the designated slot for local storage.

5.3 Konfigurasi Awal

After physical installation and wiring, access the camera's web interface or connect it to a compatible Digital Video Recorder (DVR) or Network Video Recorder (NVR) for initial setup. Refer to your NVR/DVR manual or the camera's specific software guide for detailed network configuration, IP address assignment, and password setup.

6. Operasi

6.1 Hirup View jeung Rékam

Aksés feed vidéo langsung kaméra ngalangkungan web browser, NVR/DVR interface, or mobile application. Configure recording schedules, motion detection recording, or continuous recording settings as needed. Recorded footage can be stored on an NVR, MicroSD card, or network storage.

6.2 Motorized Lens Control

The motorized varifocal lens allows for remote adjustment of zoom and focus. Use the camera's web interface or NVR/DVR controls to precisely adjust the field of view and image clarity without physically accessing the camera.

6.3 MD 2.0 Human and Vehicle Detection

The MD 2.0 feature utilizes deep learning algorithms to accurately classify human and vehicle targets. Configure detection zones and sensitivity settings in the camera's interface to trigger alarms or recordings only when relevant events occur, reducing false alarms.

6.4 Audio and Alarm Functions

Utilize the audio input/output for two-way audio communication or environmental sound monitoring. Connect external alarm sensors to the alarm input to trigger events, or connect a siren to the alarm output for deterrence.

7. Pangropéa

• beberesih: Periodically clean the camera's dome cover with a soft, damp cloth to ensure clear image quality. Avoid abrasive materials.
• Pembaruan firmware: Pariksa produsén urang website regularly for firmware updates. Updating firmware can improve performance, add features, and enhance security.
• Cék Sistim: Regularly verify that the camera is online, recording, and accessible. Check cable connections for wear or damage.
• Manajemén Panyimpenan: Monitor MicroSD card usage and ensure sufficient storage space is available for recordings.

8. Cara ngungkulan

9. Spésifikasi

10. Garansi jeung Rojongan

This product comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact your retailer. For technical support, troubleshooting assistance, or service inquiries, please contact the product manufacturer or your authorized dealer. Keep your purchase receipt as proof of purchase for warranty claims.
