1. Bubuka
The hysure T8PLUS Compact Dehumidifier is designed to efficiently remove excess moisture from small spaces, improving air quality and preventing issues related to high humidity. Utilizing advanced Peltier technology, this unit operates quietly without a compressor, making it ideal for bedrooms, bathrooms, RVs, dorm rooms, and baby rooms. It effectively extracts moisture from the air and collects it in a convenient, spill-proof water reservoir.
Figure 1: Hysure T8PLUS Compact Dehumidifier, front view.
2. Parentah Kasalametan penting
Please read all instructions carefully before operating the dehumidifier and retain this manual for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Salawasna tempatkeun dehumidifier dina permukaan anu stabil sareng rata.
- Pastikeun kabel listrik henteu ruksak atanapi ciwit.
- Entong neuleumkeun unit, kabel listrik, atanapi nyolok kana cai atanapi cairan sanés.
- Unplug the dehumidifier before cleaning, moving, or emptying the water tank.
- Keep the air inlets and outlets clear of obstructions to ensure proper airflow.
- Do not operate the unit in extremely cold environments (below 41°F / 5°C) as it may affect performance.
- Perkakas ieu kanggo panggunaan jero rohangan wungkul.
- Jauhkeun tina jangkauan barudak sareng piaraan.
3. Produk Langkungview
Familiarize yourself with the main components of your hysure dehumidifier:
- Unit Utama: Houses the dehumidifying components and control panel.
- Tombol Daya/Lampu Indikator: Located on the top, controls power and indicates operational status.
- Inlet Udara: Located on the front, where humid air is drawn in.
- Outlet hawa: Located on the back, where dry air is expelled.
- Tangki cai: Detachable reservoir at the bottom for collecting condensed water.
Gambar 2: Tukangeun view of the dehumidifier showing the air outlet.
4. Setup jeung panempatan
Turutan léngkah-léngkah ieu pikeun nyetél dehumidifier anjeun:
- Ngabongkar: Sacara saksama piceun dehumidifier tina bungkusanna.
- panempatan: Place the unit on a firm, level surface in the desired location. Ensure there is at least 2 inches (5 cm) of space around the air inlets and outlets for optimal performance. The unit is suitable for areas up to 215 sq ft.
- Sambungan Daya: Plug the power adapter into the DC input port on the back of the dehumidifier, then plug the other end into a suitable wall outlet.
Gambar 3: Kelamples of suitable placement in different room types.
For best results, operate the dehumidifier in temperatures between 68°F (20°C) and 86°F (30°C) and relative humidity around 80%.
5. Parentah Operasi
The hysure dehumidifier features simple one-button control:
- Daya Hurung: Press the power button on the top of the unit once. The indicator light will turn hejo, indicating the dehumidifier is operating.
- Pareum listrik: Press the power button again to turn off the unit. The indicator light will turn off.
- Pareuman-Pareuman: The dehumidifier is equipped with an automatic shut-off function. When the water tank is full, the unit will automatically stop operating, and the indicator light will turn koneng. This prevents overflow and ensures safe operation.
Figure 4: Power button and indicator light status.
The unit operates quietly, typically generating a noise level of 20-40dB, comparable to a quiet library environment, ensuring it does not disturb your daily life.
Figure 5: Noise level comparison.
6. Pangropéa
6.1 Ngosongkeun Tangki Cai
The water tank has a capacity of 700ml (approximately 24 oz). When the tank is full, the unit will stop operating and the indicator light will turn yellow.
- Pareuman dehumidifier sareng cabut colokan tina stop kontak listrik.
- Taliti tarik kaluar tank cai ti tukang unit.
- Locate the rubber plug on the water tank. Open the plug to drain the collected water into a sink or drain.
- Once empty, securely close the rubber plug.
- Slide the water tank back into the dehumidifier until it clicks into place.
- Plug the dehumidifier back in and press the power button to resume operation.

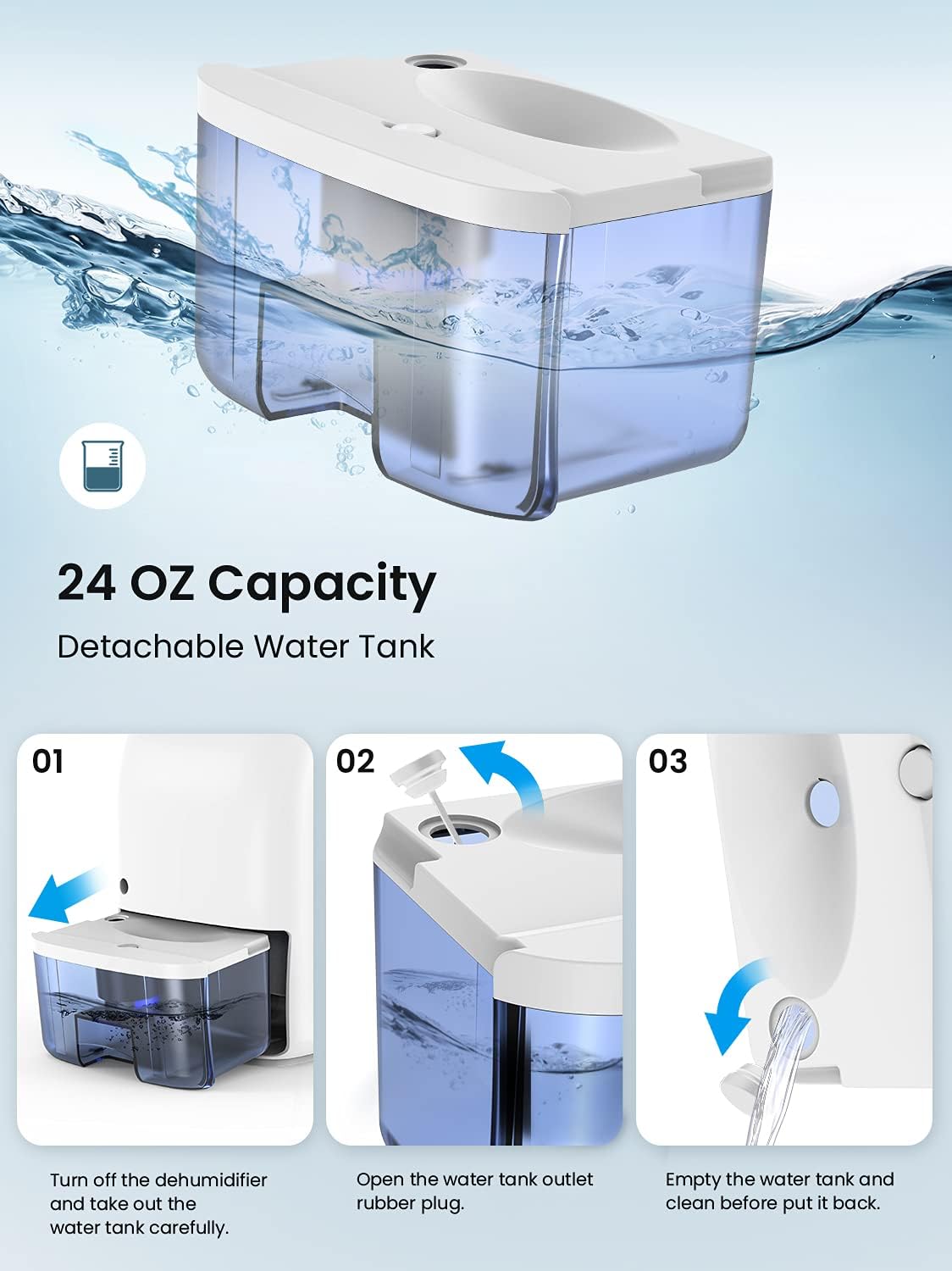

Figure 6: Steps for emptying the water tank.
6.2 Ngabersihkeun Dehumidifier
Regular cleaning helps maintain the efficiency and lifespan of your dehumidifier:
- Bersihan Luar: Ngusap bagian luar unit kalayan lemes, damp lawon. Ulah make cleaners abrasive atawa pangleyur.
- Ngabersihan Tangki Air: Clean the water tank regularly with mild soap and water to prevent mold or mildew buildup. Rinse thoroughly before reinserting.
- Inlet / Outlet Udara: Use a soft brush or vacuum cleaner attachment to gently remove any dust or debris from the air inlets and outlets.
7. Cara ngungkulan
Upami anjeun ngalaman masalah sareng dehumidifier anjeun, mangga tingal masalah sareng solusi umum ieu:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Dehumidifier teu hurung. | No power supply; power button not pressed; water tank not properly inserted. | Check power connection; press power button; ensure water tank is fully inserted. |
| Unit jalan tapi henteu ngumpulkeun cai. | Room temperature too low; humidity level too low; air inlets/outlets blocked. | Ensure room temperature is above 41°F (5°C); unit works best in higher humidity; clear any obstructions. |
| Indicator light is yellow. | Tangki cai pinuh. | Kosongkeun tangki cai teras pasangkeun deui. |
| Unit nyieun sora anu teu biasa. | Unit not on a level surface; internal fan obstruction. | Place on a stable, level surface; contact customer support if noise persists. |
8. Spésifikasi
| Fitur | Rincian |
|---|---|
| merek | hysure |
| Ngaran modél | T8PLUS |
| Kapasitas Tangki Cai | 700 Milliliters (approx. 24 oz) |
| Wewengkon Cakupan | 50-215 sq ft |
| Ukuran produk (D x W x H) | 4.2 "D x 6.4" W x 10.5" H |
| Item Beurat | 2.68 pon |
| Wattage | 23 Watt-jam |
| Modeu Operasi | Terus-terusan |
| Tingkat Noise | 20-40dB (approx. 35dB) |
9. Garansi jeung Rojongan
For warranty information, technical support, or customer service inquiries, please refer to the contact information provided with your product packaging or visit the official hysure website. Please have your model number (T8PLUS) and purchase details ready when contacting support.
Anjeun oge bisa nganjang ka hysure Store on Amazon pikeun inpo nu leuwih lengkep sarta apdet produk.
