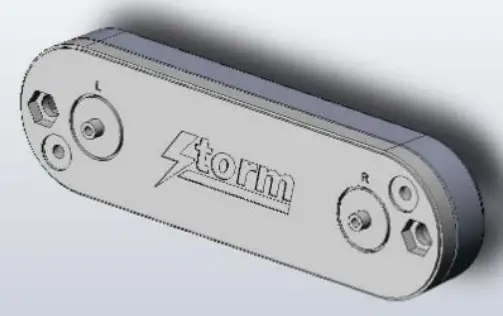

Storm AT00-15001 Microphone Array Module Owner’s Manual
Microphone Array Module Configuration Utility
The content of this communication and / or document, including but not limited to images, specifications, designs, concepts, data and information in any format or medium is confidential and is not to be used for any purpose or disclosed to any third party without the express and
written consent of Keymat Technology Ltd. Copyright Keymat Technology Ltd. 2022 .
Storm, Storm Interface, Storm AXS, Storm ATP, Storm IXP , Storm Touchless-CX, AudioNav, AudioNav-EF and NavBar are trademarks of
Keymat Technology Ltd. All other trademarks are the property of their respective owners
Storm Interface is a trading name of Keymat Technology Ltd
Storm Interface products include technology protected by international patents and design registration. All rights reserved.
System Requirements
The utility will communicate over the same USB connection but via the HID-HID data pipe channel, no special drivers are required.
Compatibility
Windows 10 ü
Windows 11 ü
The utility can be used to configure the product to load firmware updates
Procedure
Download the utility from www.storm-interface.com/downloads,
Create a mic array folder and copy in the following downloaded files :-
- exe
- rtf (SLA software licence agreement)
- sfs (this is the firmware file that will be installed)
- 000-IC-211-MICVXX-DWG.sfs (XX is version number, this is the factory default firmware) Ensure you have signed and returned a copy of the SLA
Locate the firmware update file and then save it in the folder as firmware.sfs
Run the firmware update
Connect the Microphone Array Module to a USB port (CD3 and E00 are the VID and PID) Open a command prompt window
Navigate to the mic array folder
Use the following command : usb_upgrade 0cd3 0e00
When the upgrade is in progress you will see a log file and on completion a success message
Unplug the Microphone Array Module
Make a note of the serial number and the new firmware version for your records
Change History
| Instructions for | Date | Version | Details |
| Config Utility | 29 Apr 22 | 1.0 | First release |
| Configuration Utility | Date | Version | Details |
| 29 Apr 22 | 1.0 | First Release | |
