STIEBEL ELTRON FEB 2.1 Programming Thermostat Installation Guide

The product is a device designed for specific operations and functions related to electrical control and monitoring. It comes with safety features and general guidelines for usage.

Product Usage Instructions

General Information
The appliance is suitable for individuals over 8 years old and those with reduced physical capabilities, under supervision or with proper instructions on safe operation.

Symbols in the Document
References to symbols such as “!” indicate potential risks like electrocution. Users should pay attention to these symbols throughout the manual.

Safety Guidelines
Follow all national and regional regulations while using the product. Ensure proper installation and maintenance to prevent accidents.

Installation
Install the device as an external control unit by breaking the designated points on the wall and disconnecting the power supply by unplugging the power cord from the outlet.

Operation
Read the instructions carefully before using the appliance. Keep the manual for future reference and share it with new users if needed.

Technical Data
Refer to the technical data table for specific details on operating voltage, dimensions, and other relevant specifications of the product.

FAQ

Q: What should I do in case of an electrical fault?
A: In case of any electrical issues, immediately disconnect the power supply by unplugging the device from the outlet and seek professional assistance.

SPECIAL INFORMATION

The appliance may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities or a lack of experience and expertise, provided that they are supervised or they have been instructed on how to use the appliance safe-ly and have understood the potential risks. Children must never play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

OPERATION

General information

The chapters “Special information” and “Operation” are intended for appliance users and qualified contractors.
The chapter “Installation” is intended for qualified contractors.

Note
Read these instructions carefully before using the appliance and retain them for future reference. Pass on these instructions to a new user if required.

Symbols in this document
This symbol is a reference to Fig. A.

Other applicable documents
Operating and installation instructions of the ventilation unit

Safety instructions

Structure of safety instructions
A KEYWORD Type of risk
Here, possible cpnsequences are listed that may result from failure to observe the safety instructions.
Steps to prevent the risk are listed.

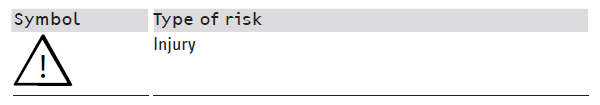

Symbols, type of risk

Keywords

Units of measurement

Note
All measurements are given in mm unless stated otherwise.

Safety

Intended use
The device is a programming unit for ventilation units.
The appliance is intended for domestic use. It can be used safely by untrained persons. The appliance can also be used in non-do-mestic environments, e.g. in small businesses, as long as it is used in the same way.
Any other use beyond that described shall be deemed inappropriate. Observation of these instructions and of the instructions for any accessories used is also part of the correct use of this appliance.

General safety instructions

WARNING Injury
The appliance may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities or a lack of experience and expertise, provided that they are supervised or they have been instructed on how to use the appliance safely and have understood the potential risks. Children must never play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

WARNING Electrocution
Only qualified contractors may carry out the connection in accordance with these instructions. Carry out all electrical connection and installation work in accordance with national and regional regulations.

WARNING Electrocution
Contact with live components presents a threat to life.
Before working on the electrical installation, disconnect the circuit from the power supply. Switch off the fuse/MCB in the distribution board. Secure the power supply against unintentional reconnection.

The qualified contractor is responsible for adherence to all applicable regulations during installation and commissioning.
The appliance should only be operated once it is fully installed and all safety equipment has been fitted.
Protect the appliance from dust and dirt during building work.

Test mark
See type plate on the appliance.

Appliance description

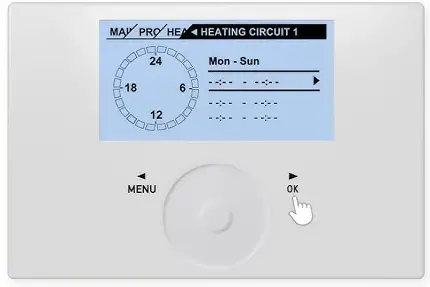

The programming unit enables convenient operation and the display of system parameters from the living space. Communication is via i²C bus. The programming unit is installed on a surface box.

Operation
See the operating instructions for the ventilation unit for information on operation.

INSTALLATION

Safety
Only a qualified contractor should carry out installation, commissioning, maintenance and repair of the appliance.

General safety instructions
We guarantee trouble-free function and operational reliability only if original accessories and spare parts intended for the device are used.

Instructions, standards and regulations

Note
Observe all applicable national and regional regulations and instructions.

Standard delivery

Preparation

Installation site
The length of the bus cable between the programming unit and ventilation unit must not exceed 20 m.
Observe the following installation location requirements to ensure correct function.

F it the appliance to an internal wall, but not in a recess.

Never cover the appliance with curtains, etc.
E nsure the device is not directly exposed to external heat sources (e.g. the sun, central heating or a TV set).
Avoid direct draughts coming from windows and doors.

Installation

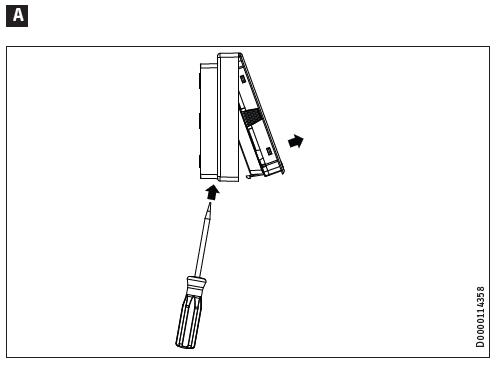

For installation, remove the appliance from the wall mounted enclosure:

Release the locking tab found in the opening on the under-side of the wall mounted enclosure. Press the locking tab with a screwdriver.

Installation as an external programming unit
Route a 4-core bus cable from the ventilation unit to the mounting position of the programming unit. Use a screened electronic cable such as LiYCY 2x2x0.8 mm². Do not route the cable parallel to a three-phase cable.
The BUS cable must protrude 20 to 30 cm out of the wall to allow installation.

Installation with a flush box
For securing to a wall we recommend using a flush box, which can hold the part of the bus cable protruding from the wall.

Make sure that the screws supporting the flush box are arranged either vertically or horizontally opposite one another.
Route the bus cable through the aperture in the wall-mounted enclosure from the back.

Installation without a flush box

To secure the wall-mounted enclosure, drill four holes (Ø 5 mm).
When routing the BUS cable, be careful not to damage the cable when drilling the fixing holes.

In the area around the power cable entry (behind the wall mounting enclosure), a reservoir needs to be made to hold 20 to 30 cm of data cable.

Break out one of the knock-outs in the wall-mounted enclosure.

Route the bus cable through the aperture from the back.

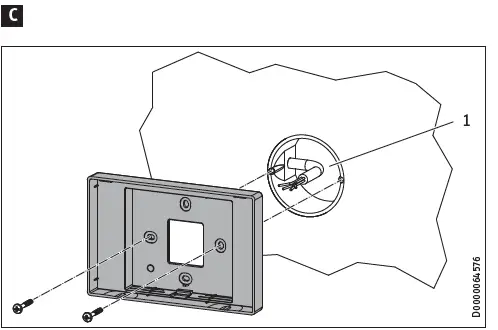

Installing the wall mounted enclosure

Flush box
Secure the wall mounted enclosure to the flush box or to the wall using the screws provided.

Electrical connection

Connect the bus cable to the ventilation unit. See the installa-tion instructions for the ventilation unit.

Commissioning

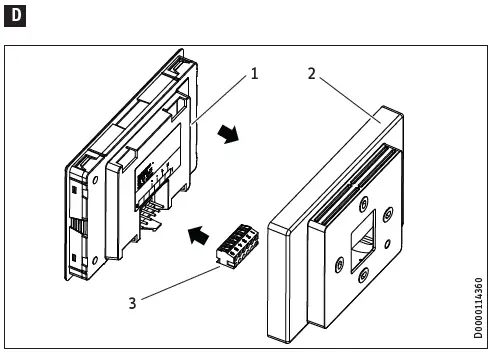

Appliance
Wall mounted enclosure
6-pole socket plug

Connect the bus cable to the female connector.

Comp etingt e Insta atlon
Carefully push the unit into the wall-mounted enclosure until it engages.

Installation as a spare part in the ventilation unit

E
Disconnect the power supply by pulling the power plug from its socket.
To release the filter cover, press the cover fastening on both sides of the appliance.

F
Pull the filter cover forwards to remove it from the appliance.
From above, undo the screws securing the top front panel to the ventilation unit.

G
A cable is connected at the back of the programming unit.
To avoid damaging the cable and programming unit, lift the top front panel carefully off the ventilation unit.

H
Disconnect the cable from the back of the programming unit.

I
At the back of the programming unit, press the side locking tabs inwards and remove the frame from the programming unit.

Place the new programming unit into the top front panel from the front.
Fit the frame on the back of the programming unit.

Press carefully on the programming unit until it clicks into place in the frame.
Insert the cable into the slot at the back of the programming unit.
Fit the top front panel to the ventilation unit.

Commissioning

Appliance handover
Explain the appliance function to users and familiarise them with how it works.

Note
Hand over these operating and installation instructions to users for safekeeping. All information in these instructions must be closely observed. The instructions provide information on safety, operation, installation and maintenance of the appliance.

Specification

Dimensions

Data table

Guarantee

The guarantee conditions of our German companies do not apply to appliances acquired outside of Germany. In countries where our subsidiaries sell our products a guarantee can only be issued by those subsidiaries. Such guarantee is only grant-ed if the subsidiary has issued its own terms of guarantee. No other guarantee will be granted.
We shall not provide any guarantee for appliances acquired in countries where we have no subsidiary to sell our products. This will not affect warranties issued by any importers.

Environment and recycling

Dispose of the appliances and materials after use in accordance with national regulations.

If a crossed-out waste bin is pictured on the appliance, take the appliance to your local waste and recycling centre or nearest retail take-back point for reuse and recycling.

This document is made of recyclable paper.
Dispose of the document at the end of the appliance’s life cycle in accordance with national regulations.

STIEBEL ELTRON GmbH & Co. KG
Dr.-Stiebel-Straße 33 | 37603 Holzminden | Germany info@stiebel-eltron.com | www.stiebel-eltron.com
