Buka ea Mosebetsi ea Li-sensor tsa Photoelectric tse se nang mohala tsa PHOTON

Sehlahisoa se Felletseview

The Centurion PHOTON infrared barrier photoelectric sensors are designed to provide an integral safety element for automated gate systems. The wireless transmitter, powered by two AA alkaline batteries, eliminates the need for extensive trenching and cabling, offering significant installation flexibility and reducing material and labor costs. This system ensures reliable operation and enhanced perimeter security for your property.

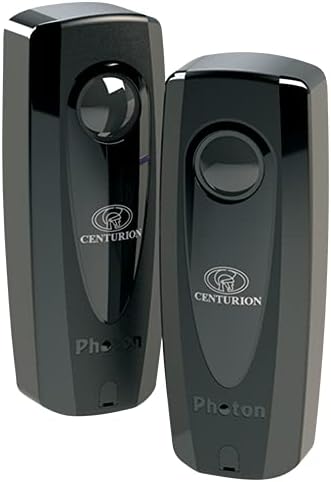

Image: Two Centurion Photon wireless photoelectric sensors, showcasing their sleek black design and compact form factor. These sensors are key components for automated gate safety systems.

Image: The Centurion Photon sensors are depicted in a composite image, highlighting their role in enhancing home security and safety, particularly for families with children, by preventing accidents at automated gates.

Likarolo tsa Bohlokoa

• E fetisang wireless: Battery-operated transmitter saves time and installation costs.
• Bophelo bo Bolelele ba Battery: Approximately 2 years of battery life using two AA alkaline batteries (included).
• Sebaka sa Ts'ebetso se Atolositsoeng: Up to 30 meters (98 feet) operating range, suitable for various gate sizes.
• E tšoarella Casing: Ant-proof and weather-resistant housing ensures reliability in diverse environmental conditions.
• Audible Feedback: Transmitter provides audible feedback for easy setup and low battery indication.
• Tšebeliso e Tlase ea Matla: Designed for energy efficiency across the entire system.
• Installer Mode: Features an installer mode with audible feedback for simplified alignment.
• Moralo oa Compact: Elegant and attractive construction, only 50mm wide.
• Intruder Detection Compatibility: Compatible with intruder detection alarms for enhanced perimeter security.

Ho seta le ho Kenya

Proper installation is crucial for the optimal performance and safety of your PHOTON sensors. Follow these guidelines carefully.

Lethathamo la Tlhokomeliso ea Pele

• Ensure all components are present: Transmitter unit, Receiver unit, mounting hardware, 2 x AA alkaline batteries.
• Verify the gate area is clear of obstructions and suitable for sensor mounting.
• Confirm power supply (12V) is available for the receiver unit.

Ho phahamisa li-Sensors

1. Choose a suitable mounting location on stable, vertical surfaces on either side of the gate opening. The sensors should be mounted at the same height, typically between 0.5m and 1m from the ground.
2. Securely attach the mounting brackets to the chosen surfaces using appropriate fasteners.
3. Mount the receiver unit on one side and the transmitter unit on the opposite side, ensuring they face each other directly.
4. Insert the two AA alkaline batteries into the transmitter unit.
5. Connect the receiver unit to the 12V power supply and the gate automation system's safety input terminals, following the gate system's specific wiring diagram.

Mokhoa oa ho tsamaisana

The PHOTON sensors feature an installer mode with audible feedback to assist with precise alignment.

1. Activate the installer mode on the transmitter (refer to the specific button/switch on the device, usually a small button on the side or back).
2. Adjust the angle of both the transmitter and receiver units until a continuous audible tone is heard from the transmitter. This indicates optimal alignment.
3. Once aligned, secure the sensors firmly in place.
4. Test the alignment by passing an object (e.g., your hand) through the beam path. The audible tone should stop, and the gate system's safety input should register the interruption.

Litaelo tsa Ts'ebetso

Once installed and aligned, the PHOTON sensors operate automatically as a safety device for your automated gate.

Ts'ebetso e Tloaelehileng

• The infrared beam continuously transmits between the receiver and transmitter.
• When the beam is uninterrupted, the gate automation system operates normally.
• If an object or person breaks the infrared beam while the gate is closing, the sensors will signal the gate automation system to stop or reverse, preventing potential injury or damage.
• The sensors are designed for continuous operation and require no user intervention during normal use.

Boemo ba Battery

The transmitter unit provides an audible indication for low battery levels. When you hear intermittent beeps from the transmitter during normal operation, it indicates that the batteries are nearing the end of their life and should be replaced promptly.

Tlhokomelo

Regular maintenance ensures the longevity and reliable operation of your PHOTON sensors.

Ho hloekisa

• Periodically inspect the sensor lenses for dirt, dust, spiderwebs, or other obstructions.
• Clean the lenses gently with a soft, damp lesela. Se ke oa sebelisa li-abrasive cleaners kapa solvents.
• Ensure the area around the sensors is clear of vegetation or debris that could block the beam.

Phetoho ea Battery

• When the transmitter indicates a low battery (audible beeps), replace both AA alkaline batteries immediately.
• Open the battery compartment on the transmitter unit.
• Tlosa libeteri tsa khale 'me u li lahle ho latela melao ea sebaka seo.
• Insert two new AA alkaline batteries, ensuring correct polarity.
• Koala kamore ea betri ka mokhoa o sireletsehileng.
• After battery replacement, it is recommended to re-check the sensor alignment.

Teko ea Ts'ebetso

• Regularly test the sensors by activating the gate and intentionally breaking the beam with an object (e.g., a cardboard box) to ensure the gate stops or reverses as expected.
• Perform this test at least once a month.

Ho batle phoso

If you experience issues with your PHOTON sensors, refer to the following common problems and solutions.

Litlhaloso

Warranty le Tšehetso

For warranty information and technical support, please contact Centurion Systems directly or refer to their official websebaka.

• Moetsi: CENTURION SYSTEMS
• Websebaka: www.centsys.com
• Sehlahisoa ASIN: B09FNTBFCL

When contacting support, please have your product model number (PHOTON1V2) and ASIN (B09FNTBFCL) ready for faster assistance.
