IRIS USA 3-in-1 WOOZOO Portable Air Conditioner and Dehumidifier

Selelekela

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your IRIS USA 3-in-1 WOOZOO Portable Air Conditioner and Dehumidifier. Please read this manual thoroughly before using the appliance and retain it for future reference.

Boitsebiso ba Tšireletseho

Kamehla latela mehato ea ts'ireletso ea mantlha ha u sebelisa lisebelisoa tsa motlakase ho fokotsa kotsi ea mollo, ts'okelo ea motlakase le likotsi ho batho.

• Etsa bonnete ba hore phepelo ea motlakase e lumellana le voltage specified on the unit's rating label.
• Se ke oa sebelisa yuniti ka thapo e senyehileng kapa plug.
• Se ke oa thibela meketjana ea moea.
• Keep children away from the appliance. Activate the child lock function for added safety.
• Do not insert fingers or foreign objects into the air outlet.
• Hlakola yuniti pele o hloekisa kapa o lokisa leha e le efe.
• This unit is UL listed to meet U.S. safety standards.

Sehlahisoa se Felletseview

Familiarize yourself with the components and features of your portable air conditioner.

Setšoantšo sa 1: The IRIS USA WOOZOO Portable Air Conditioner shown with its accompanying remote control. The unit is white with a black top panel and front grille, featuring wheels for easy mobility.

Setšoantšo sa 2: An illustration highlighting the powerful cooling capabilities of the unit, including 10,000 BTU AC cooling power, 3 adjustable fan speeds, and a dehumidifying capacity of 74 pints per day.

Setšoantšo sa 3: A diagram illustrating the detailed dimensions of the portable air conditioner, showing its height (30 inches), depth (16 inches), and width (12 inches). Key specifications like weight (55 lbs), wattage (1010W), cable length (71 inches), and temperature range (61°F - 86°F) are also displayed.

Setšoantšo sa 4: This image shows the full-function remote control with a digital display, allowing easy operation of the unit. Below, a close-up of the built-in casters demonstrates the unit's easy maneuverability.

Ho seta le ho Kenya

Proper installation is crucial for optimal performance. This unit includes a window kit for exhaust ventilation.

1. Ho phutha: Carefully remove the unit and all accessories from the packaging. Check for any damage.
2. Boemo: Place the unit on a flat, stable surface. Ensure there is at least 20 cm (8 inches) of space around the unit for proper airflow. The unit is equipped with wheels for easy movement.
3. Ho kenya Window Kit:

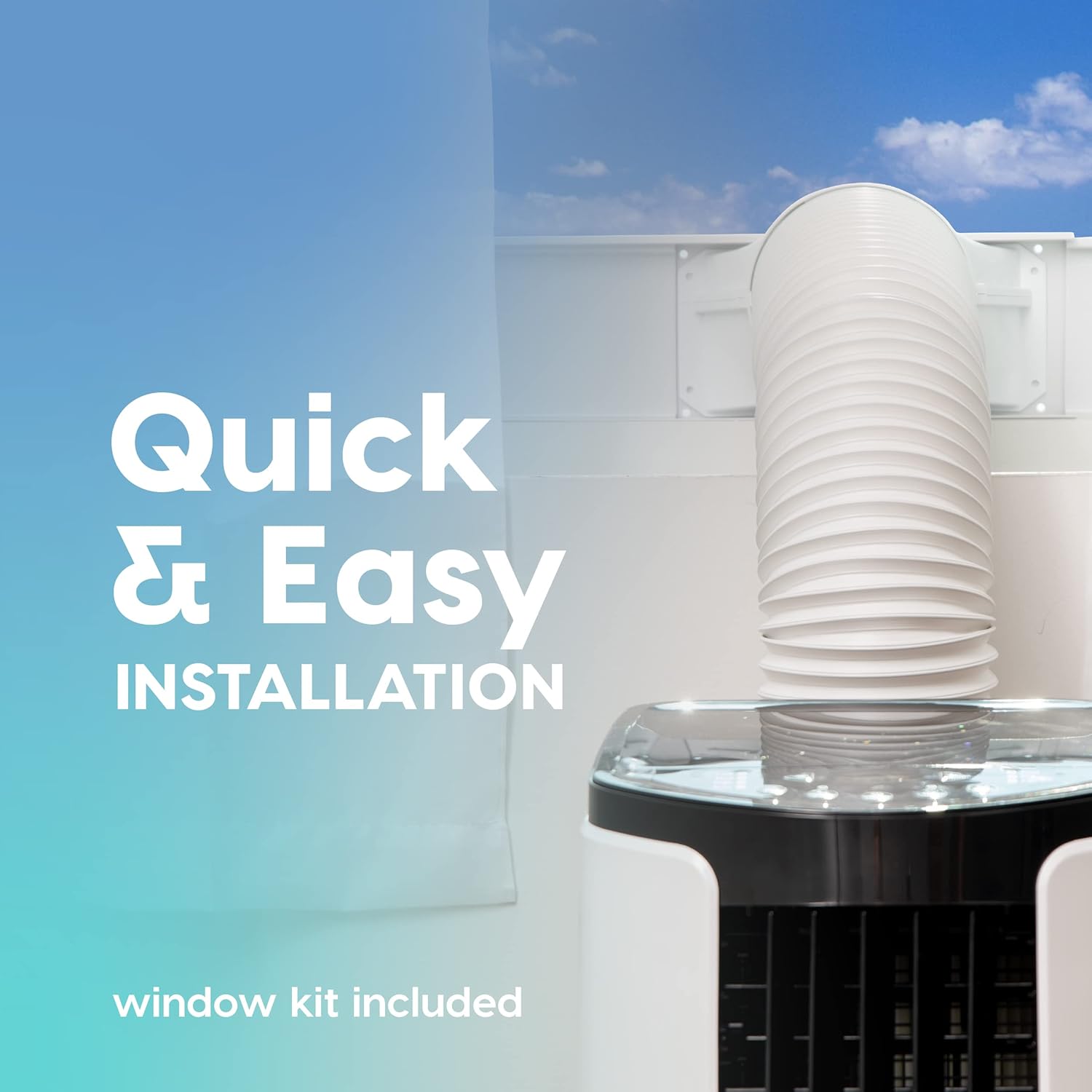

   Setšoantšo sa 5: This image illustrates the quick and easy installation process, showing the exhaust hose connected to the unit and extended through a window using the included window kit.

   • Assemble the window sealing plate kit according to the instructions provided in the separate window kit manual.
   • Connect the exhaust hose to the unit's exhaust outlet and extend it to the window kit.
   • Ensure the hose is not kinked or bent sharply, as this can restrict airflow and reduce efficiency.
4. Khokelo ea Matla: Hokela thapo ea motlakase sebakeng sa motlakase se theohileng fatše.

Litaelo tsa Ts'ebetso

Your portable air conditioner offers multiple modes for customized comfort. All functions can be easily operated with the included remote control.

Control Panel le Remote Control

The unit can be controlled via the top-mounted control panel or the remote control. The remote control features a digital display for easy viewng.

Mekhoa ea ho sebetsa

• Mokhoa oa ho Pholisa: Provides powerful cooling for rooms up to 450 square feet.
  • Tobetsa ea MOKHOA button until the cooling indicator light is on.
  • Adjust the desired temperature using the + or - buttons (range: 61°F / 16°C to 86°F / 30°C).
  • Fetola lebelo la fan ka ho sebelisa Fan button (3 speeds available).
• Mokhoa oa Fan: E potoloha moea ntle le ho tsidifala.
  • Tobetsa ea MOKHOA button until the fan indicator light is on.
  • Fetola lebelo la fan ka ho sebelisa Fan konopo.
• Mokhoa oa Dehumidifier: E tlosa mongobo o feteletseng moeeng.
  • Tobetsa ea MOKHOA button until the dehumidifier indicator light is on.
  • The unit will automatically exhaust condensate in most environments.

Mesebetsi e Eketsehileng

• Mokhoa oa ho robala: Activates quiet operation and gradually adjusts temperature for comfortable sleep. Press the ROBALA konopo.
• Mosebetsi oa Sebali: Set the unit to turn on or off automatically within a 24-hour period. Press the TIMER konopo le tšebeliso + or - ho beha nako e batloang.
• Senotlolo sa Bana: Prevents accidental changes to settings. Refer to the remote control instructions for activation.
• Ho khaotsa: Both vertical and horizontal oscillation can be adjusted manually to direct airflow.

Tlhokomelo

Regular maintenance ensures the longevity and efficiency of your portable air conditioner.

Tlhoekiso ea Sesefa

Setšoantšo sa 6: This image shows the reusable air filter being cleaned under running water, emphasizing the ease of maintenance with simple soap and water.

The unit is equipped with a washable air filter that can be cleaned with simple soap and water. Clean the filter every two weeks or more frequently depending on usage and air quality.

1. Tlosa yuniti ho tsoa mohloling oa motlakase.
2. Fumana le ho tlosa sefe sa moya ka morao kapa ka lehlakoreng la yuniti.
3. Wash the filter under running water with a mild detergent.
4. Hlatsoa hantle 'me u lumelle sefe hore se ome ka botlalo pele u se kenya hape ka har'a sesebelisoa.

Tlhokomelo e Akaretsang

• Hlakola bokantle ba yuniti ka bonolo, damp lesela. U se ke ua sebelisa lik'hemik'hale tse bohale kapa li-abrasive cleaners.
• For long-term storage, drain any accumulated water, clean the filter, and store the unit in a dry place.

Ho batle phoso

Sheba karolo ena bakeng sa lintlha tse tloaelehileng le tharollo ea tsona.

Litlhaloso

Warranty le Tšehetso

For warranty information or technical support, please refer to the warranty card included with your product or contact IRIS USA customer service. Keep your purchase receipt as proof of purchase.

For further assistance, visit the official IRIS USA websebaka kapa ikopanye le mohala oa bona oa tšehetso ea bareki.
