1. Selelekela
This manual provides comprehensive instructions for the LG G7 ThinQ smartphone, covering its features, setup, operation, and maintenance. The LG G7 ThinQ features a 6.1-inch QHD+ FullVision LCD display, powered by a Snapdragon 845 processor, and includes a dual 16MP rear camera system. This device is designed for optimal performance and user experience.
Setšoantšo sa 1.1: Pele view of the LG G7 ThinQ, showcasing its 6.1-inch QHD+ FullVision display.
2. Tlhophiso ea Pele
2.1. Ho kenya SIM Card
The LG G7 ThinQ requires a Nano-size SIM card for network connectivity. A SIM card is not included with the device and must be acquired from your network provider. Ensure the device is powered off before inserting or removing the SIM card.
- Fumana tray ea SIM ka lehlakoreng la sesebelisoa.
- Use the provided SIM tray opener to eject the tray.
- Beha karete ea Nano-SIM ka har'a terei moo likhokahano tsa khauta li shebileng tlase.
- Carefully reinsert the SIM tray into the device.

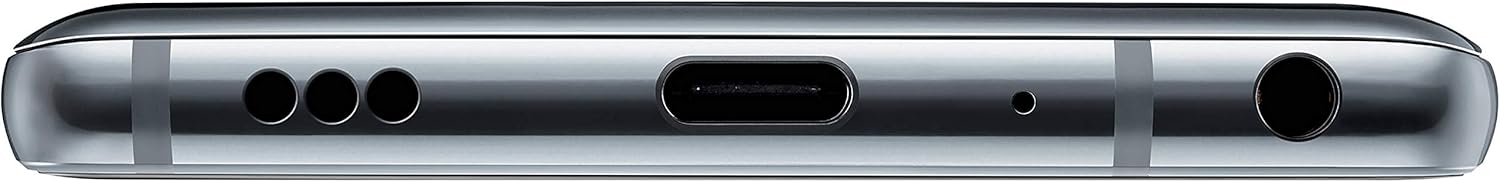

Setšoantšo sa 2.1: Ka tlase view of the LG G7 ThinQ, showing the USB-C port and 3.5mm audio jack, relevant for charging and audio accessories.
2.2. Ho tjhaja Betri
The device is equipped with a non-removable 3,000 mAh Lithium Polymer battery. For optimal performance, fully charge the battery before first use.
- Connect the data cable to the USB-C port at the bottom of the phone.
- Connect the other end of the data cable to the travel adapter.
- Kenya adaptara ea maeto ka har'a sokete ea motlakase.
- Letšoao la ho tjhaja le tla hlaha skrineng.
2.3. Ho tima/Ho tima
- Ho Matlafatsa: Press and hold the Power/Lock key (located on the right side of the device) until the LG logo appears.
- Ho tima: Press and hold the Power/Lock key, then select "Power off" from the options menu.
3. Litaelo tsa Ts'ebetso
3.1. Pontsho le ho Tsamaisa
The LG G7 ThinQ features a 6.1-inch QHD+ FullVision LCD display with a resolution of 3120 x 1440. The display supports a "Super Bright" toggle, which can increase brightness up to 1000 nits for improved visibility in direct sunlight. The device runs on Android 8.0 (Oreo) and utilizes on-screen navigation buttons.
- Skrine sa Lehae: Swaepela ka ho le letšehali kapa ka ho le letona ho tsamaea pakeng tsa li-skrini tsa lapeng.
- Sehlopha sa Litsebiso: Swaepela tlase ho tloha hodimo ho skrini ho fihlella ditsebiso le dipeakanyo tsa kapele.
- App Drawer: Swaepa ho tloha tlase ho skrini ho fihlella lits'ebetso tsohle tse kentsoeng.
3.2. Likarolo tsa Khamera
The LG G7 ThinQ is equipped with a dual 16MP rear camera system, offering both standard and wide-angle lenses. The front camera is also capable of high-quality imaging. The AI Cam feature automatically optimizes camera settings based on scene recognition.
Setšoantšo sa 3.1: Ka morao view of the LG G7 ThinQ, highlighting the dual 16MP camera and fingerprint sensor.
- Mokhoa o Tloaelehileng: For general photography.
- Wide-Angle Mode: Capture more of the scene, ideal for landscapes or group photos.
- AI Cam: Automatically detects subjects and scenes to apply optimal settings.
3.3. Molumo le Multimedia
The device features a 3.5mm audio jack and a dedicated Quad DAC (Digital-to-Analog Converter) for enhanced audio quality when using wired headphones. The integrated speakers provide clear sound for calls and media playback.
- Li-headphone Jack: Connect 3.5mm headphones for high-fidelity audio.
- Boombox Speaker: The internal resonance chamber enhances bass and volume when placed on a flat surface.
4. Tlhokomelo le Tlhokomelo
4.1. Ho Hloekisa Sesebediswa sa Hao
To maintain the appearance and functionality of your LG G7 ThinQ, follow these cleaning guidelines:
- Sebelisa lesela le bonolo, le se nang lint ho hlakola skrine le 'mele.
- Qoba ho sebelisa lik'hemik'hale tse bohale, li-abrasive cleaners, kapa moea o hatelitsoeng.
- Do not expose the device to excessive moisture during cleaning.
4.2. Tlhokomelo ea Battery
To prolong the life of your 3,000 mAh battery:
- Qoba mocheso o feteletseng.
- Se ke oa lumella betri ho tsoa ka botlalo khafetsa.
- Use only LG-approved chargers and cables.
5. Ho rarolla mathata
This section addresses common issues you might encounter with your LG G7 ThinQ.
| Bothata | Seo e ka bang Sesosa / Tharollo |
|---|---|
| Sesebelisoa ha se sebetse. | Battery may be depleted. Connect to charger and try again. |
| No network signal or calls. |
|
| Slow data speeds. | Check network coverage in your area. Ensure your device is compatible with your carrier's specific bands. |
| Betri e tsoa kapele. | Reduce screen brightness, close background apps, disable unnecessary features (GPS, Wi-Fi, Bluetooth when not in use). |
6. Litlhaloso
Key technical specifications for the LG G7 ThinQ (Model: LMG710TM-PLATINUM-GREY):
- Mokhoa oa tšebetso: Android 8.0 (Oreo)
- Motlakase: Qualcomm Snapdragon 845 (Octa-Core, up to 2.8 GHz)
- RAM: 4 GB
- Bobolokelo ba ka Hare 64 GB
- Hlahisa: 6.1-inch QHD+ FullVision LCD (3120 x 1440 resolution)
- Khamera e ka morao: Dual 16.0 MP
- Khamera e ka Pele: (Information not explicitly provided, but typically 8MP or similar for this model)
- Betri: 3000 mAh Lithium Polymer (Non-removable)
- Boholo: 15.32 x 0.79 x 7.19 cm,
- Boima ba 'mele: 161 g
- Jack Audio: 3.5 limilimithara
- Khokahano: GSM, UMTS (B1, B2, B4, B5), LTE (Bands: 2/4/5/12/46/66/71)
- Likarolo tse Khethehileng: AI Cam, Boombox Speaker, IP68 water and dust resistance, Wireless Charging.
7. Tiisetso le Tšehetso
For warranty information and technical support, please refer to the official LG Electronics website or contact their customer service. The device model number is LMG710TM-PLATINUM-GREY.
- Molaodi oa LG Websebaka: www.lg.com
- Tšebeletso ea bareki: Refer to your region's LG support page for contact numbers and service centers.
