1. Selelekela
This manual provides comprehensive instructions for the safe and effective use, assembly, maintenance, and troubleshooting of your MAXXUS RunMaxx 4.2i Treadmill. Please read this manual thoroughly before operating the device and retain it for future reference.
The MAXXUS RunMaxx 4.2i is a compact and foldable electric treadmill designed for home fitness, offering a robust training experience with features like adjustable incline, a powerful motor, and Bluetooth connectivity for app integration.
2. Litaelo tsa Bohlokoa tsa Tšireletso
To reduce the risk of serious injury, always follow basic precautions when using this treadmill, including the following:
- Read all instructions in this manual before using the treadmill.
- Boloka bana le liphoofolo tse ruuoang lapeng hole le treadmill nakong ea ts'ebetso.
- Place the treadmill on a flat, stable surface with adequate clearance around it.
- Ensure the safety key is properly attached before starting the treadmill.
- U se ke ua feta boholo ba boima ba mosebedisi ba 110 lik'hilograma.
- Ikopanye le ngaka pele u qala lenaneo leha e le lefe la ho ikoetlisa.
- Unplug the treadmill from the power outlet when not in use or before cleaning/maintenance.
- O se ke wa sebedisa treadmill haeba e na le thapo kapa polaka e senyehileng, kapa haeba e sa sebetse hantle.
3. Kopano
The MAXXUS RunMaxx 4.2i treadmill is designed for easy assembly. It comes largely pre-assembled. Follow these steps for final setup:
- Ho phutha: Tlosa likarolo tsohle ka hloko sephutheloana. Netefatsa hore likarolo tsohle tse thathamisitsoeng lenaneng la ho paka li teng.
- Motheo oa botsitso: Place the main frame on a level surface.
- Kenyelletso e Otlolohileng: Securely attach the uprights to the main frame using the provided hardware.
- Console Attachment: Mount the control console onto the uprights, ensuring all cables are connected correctly.
- Tlhophiso ea Handlebar: Attach the handlebars to the console or uprights as per the diagram.
- Litlhahlobo tsa ho Qetela: Verify all bolts and screws are tightened. Ensure the treadmill is stable before plugging it in.
Figure 3.1: Fully assembled MAXXUS RunMaxx 4.2i Treadmill.
4. Litaelo tsa Ts'ebetso
4.1. Control Panel Overview
Setšoantšo sa 4.1: Ka botlalo view of the LCD control panel.
The LCD display provides real-time feedback on your workout, including: Heart Rate, Time, Distance, Speed, and Calories Burned. The console also features controls for speed, incline, program selection, and a safety key slot.
4.2. Starting a Workout
- Plug the treadmill into a grounded electrical outlet.
- Attach the safety key to your clothing and insert the other end into the designated slot on the console. The treadmill will not operate without the safety key.
- Step onto the side rails of the treadmill.
- Press the "START" button to begin. The belt will start moving at a low speed.
- Adjust the speed using the "+" and "-" buttons. The treadmill supports speeds from 1 ho ea ho 16 km / h.
- Adjust the incline using the incline buttons.
4.3. Workout Programs
The MAXXUS RunMaxx 4.2i offers 36 pre-set workout programs to diversify your training. Select a program using the "PROGRAM" button and confirm your selection. Each program automatically adjusts speed and incline over time.
4.4. Bluetooth Connectivity (iC+ Training App)
The treadmill is equipped with a Bluetooth receiver for compatibility with the iC+ Training App. Download the app on your smartphone or tablet, enable Bluetooth, and connect to your treadmill to access additional workout options and track your progress.
4.5. Measuring Heart Rate
The treadmill features manual pulse sensors on the handlebars. Grip these sensors firmly during your workout to display your heart rate on the LCD screen. An integrated receiver for an optional radio pulse belt is also available for continuous heart rate monitoring.
5. Tlhokomelo
Tlhokomelo e tloaelehileng e netefatsa hore treadmill ea hau e nka nako e telele le ts'ebetso e ntle ka ho fetisisa.
- Ho hloekisa: Hlakola libaka tsa treadmill ka papatsoamp Lesela ka mora tšebeliso e 'ngoe le e 'ngoe. Qoba li-cleaner tse khorofo.
- Lebanta setlolo sa ho thapisa: Periodically lubricate the running belt according to the manufacturer's recommendations (typically every 3-6 months depending on usage). This prevents friction and extends belt life.
- Khatello le ho Lokisa Lebanta: Check the running belt tension and alignment regularly. Adjust if the belt slips or drifts to one side. Refer to the detailed instructions in the full manual for adjustment procedures.
- Karolo ea Likoloi: Keep the motor compartment clean and free of dust. Unplug the treadmill before opening the motor cover.
6. Storage and Portability
The MAXXUS RunMaxx 4.2i is designed to be foldable for space-saving storage and features integrated transport wheels for easy relocation.
6.1. Folding the Treadmill
- Netefatsa hore treadmill e tingoe ebile ha e poleke.
- Lift the running deck until it locks into the upright position.
- The folded dimensions are approximately L 112 x W 74 x H 130 cm,.
Figure 6.1: Treadmill in folded position, showing compact storage.
6.2. Transporting the Treadmill
Once folded, tilt the treadmill slightly and use the integrated transport wheels to move it to your desired storage location. Exercise caution when moving the unit due to its weight (approximately 65 lik'hilograma).
7. Ho rarolla mathata
| Bothata | Lebaka le ka khonehang | Tharollo |
|---|---|---|
| Treadmill ha e qale. | Power cord unplugged; Safety key not inserted; Circuit breaker tripped. | Netefatsa hore thapo ea motlakase e hoketsoe ka mokhoa o sireletsehileng; Kenya senotlolo sa polokeho ka botlalo; Seta sebaka sa ho qhaqha potoloho bocha. |
| Mabanta a mathang a thella. | Belt tension too loose; Belt worn out. | Adjust belt tension (refer to manual); Contact customer service for belt replacement. |
| Lerata le sa tloaelehang nakong ea ts'ebetso. | Loose components; Lack of lubrication; Motor issue. | Check and tighten all visible bolts; Lubricate running belt; Contact customer service. |
| Pontšo ha e sebetse. | Loose cable connection; Power issue. | Check console cable connections; Verify power supply. |
For issues not listed here or if solutions do not resolve the problem, please contact MAXXUS customer support.
8. Lintlha tsa Setegeniki
- Mohlala: MAXXUS RunMaxx 4.2i
- Nomoro ea Mohlala: 600005-00019-0001
- Litekanyo (tse sa phutholohang): L 165 x W 74 x H 130 cm,
- Litekanyo (tse mennoeng): L 112 x W 74 x H 130 cm,
- Running Surface: 125 x 44 cm,
- Boima ba Sehlahisoa: 63 lik'hilograma
- Boholo ba Boima ba Mosebedisi: 110 lik'hilograma
- Enjene: 1.75 HP DC Motor
- Lebelo la Lebelo: 1 - 16 km/h
- Incline Adjustment: Yes (Adjustable)
- Mofuta oa Pontšo: LCD
- Displayed Metrics: Heart Rate, Time, Distance, Speed, Calories Burned
- Mananeo a Boikoetliso: 36 Mananeo a seng a setiloe
- Khokahano: Bluetooth (for iC+ Training App)
- Shock Absorption: Cushion-Flex System
- Thepa ea Frame: Alloy Steel
- Mohloli oa Matla: Adapter ea AC

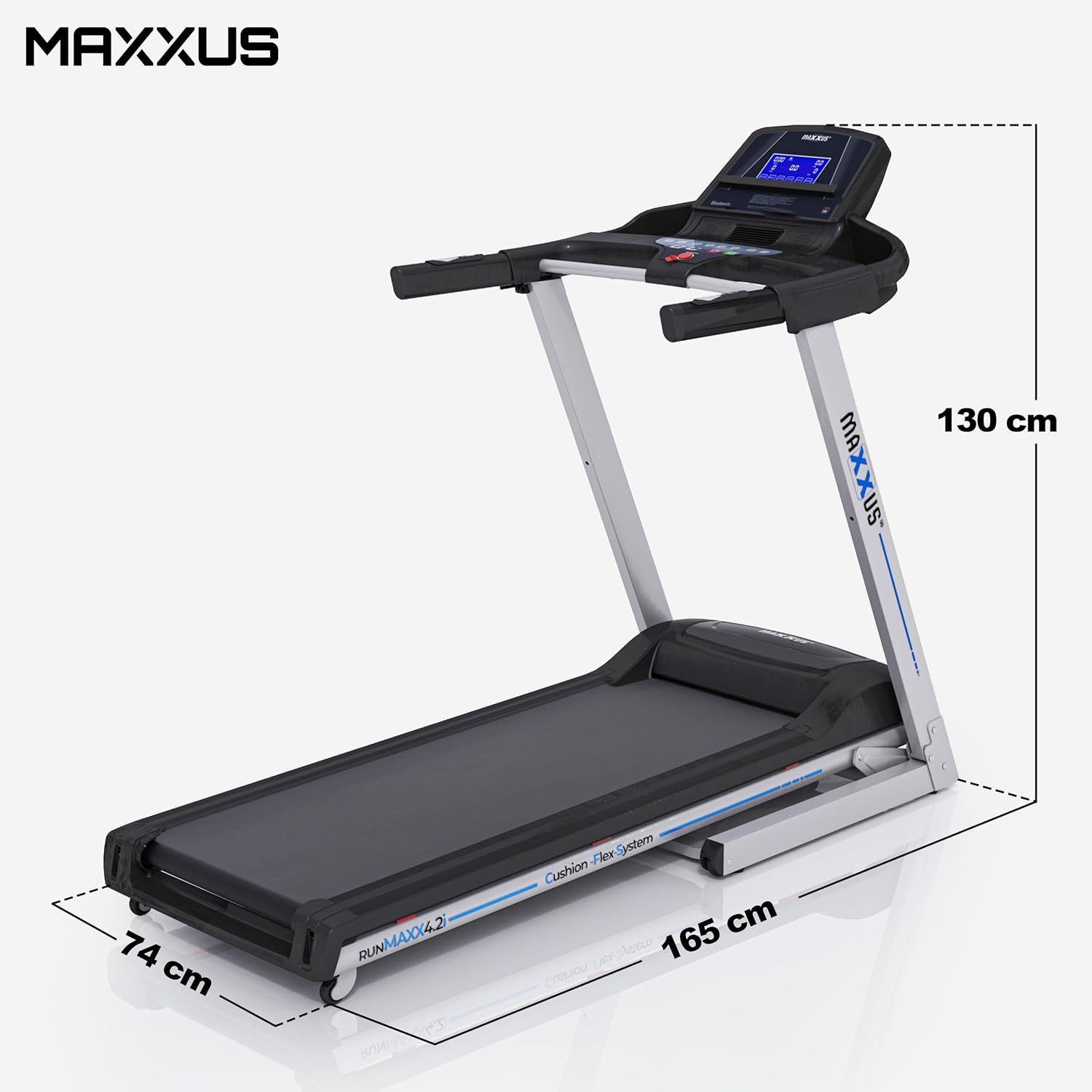

Figure 8.1: Treadmill dimensions (unfolded).
Figure 8.2: Running surface dimensions.

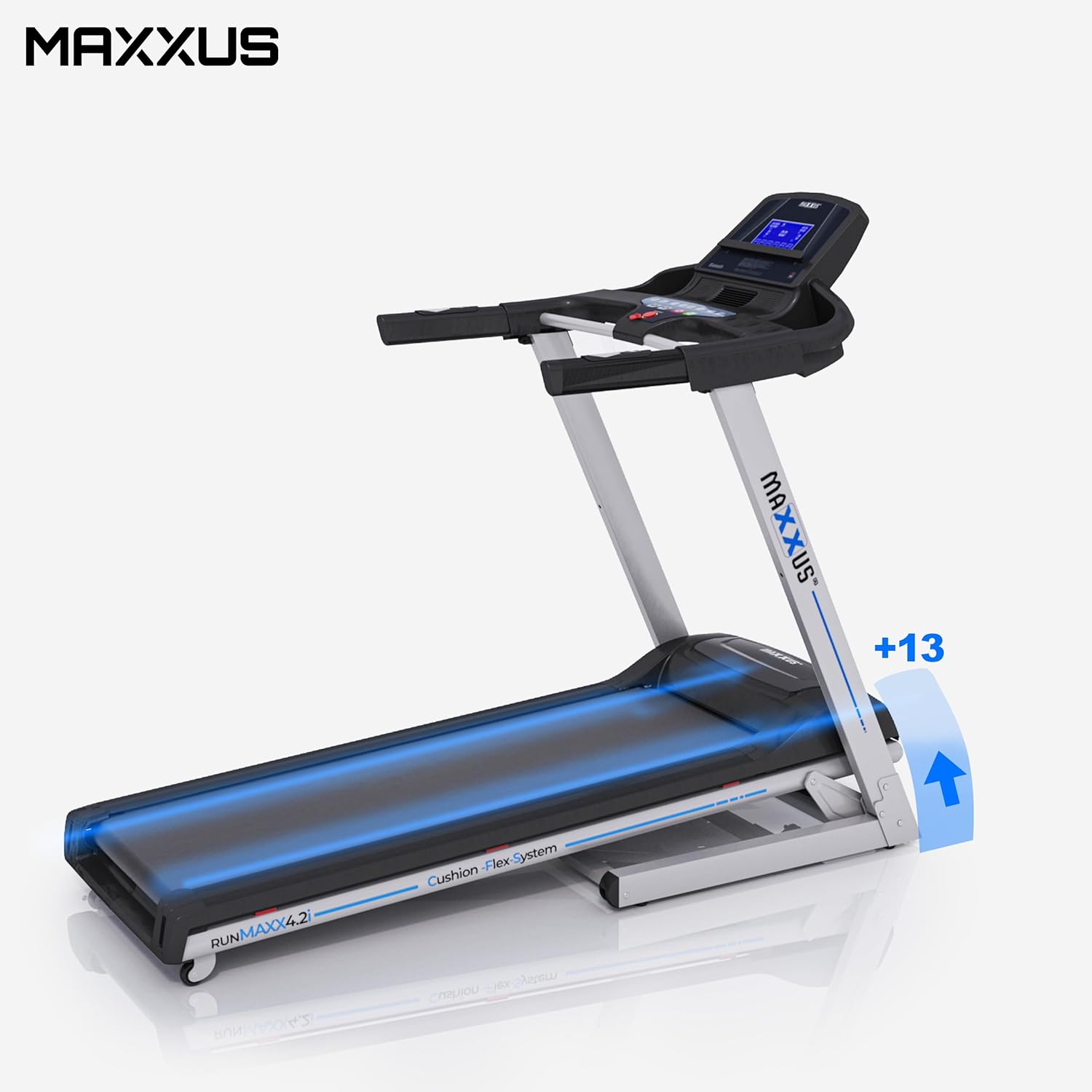

Figure 8.3: Treadmill showing incline capability.

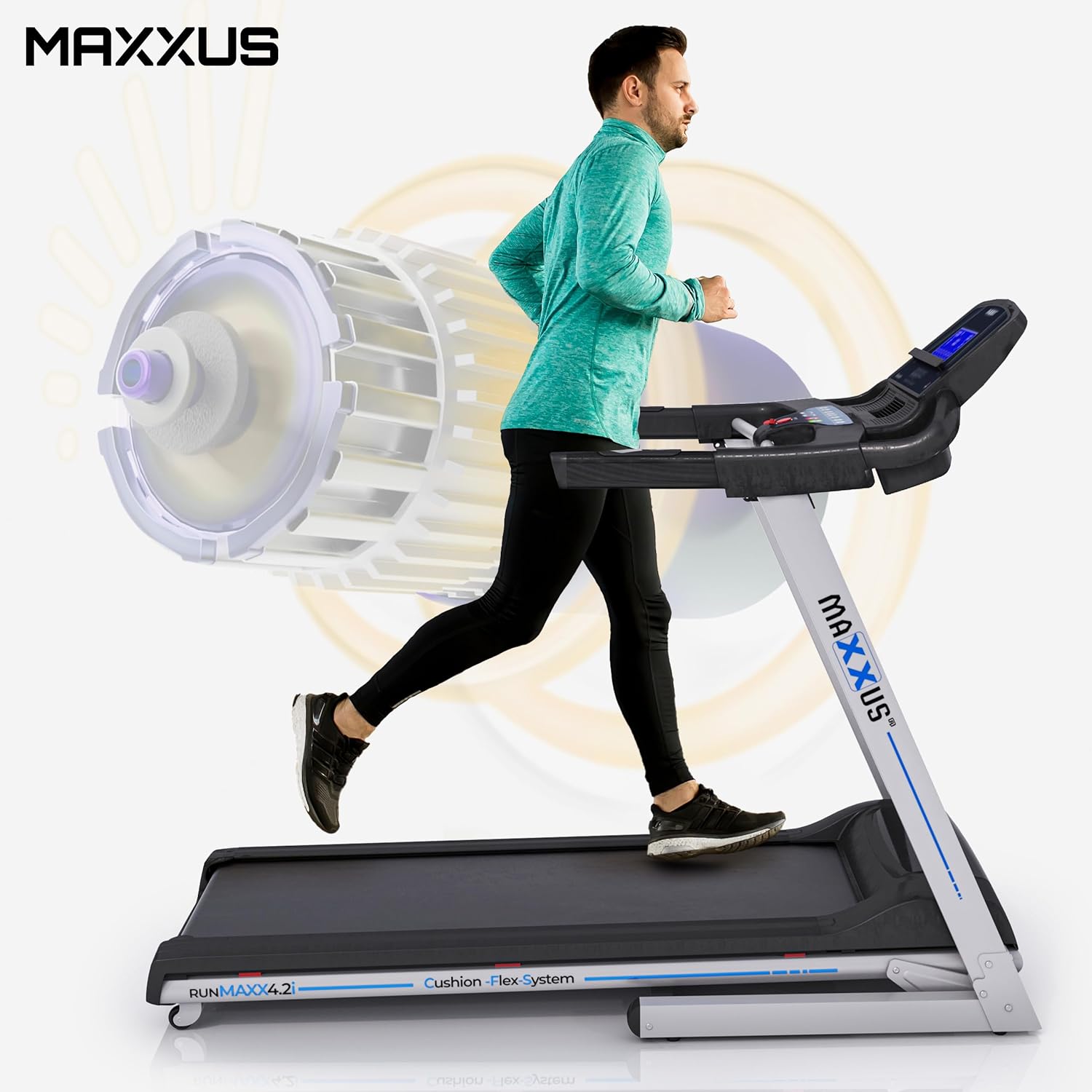

Figure 8.4: Illustration of the powerful motor and user in motion.
9. Tiisetso le Tšehetso
MAXXUS products are known for their quality and durability. For warranty information, service requests, or technical support, please refer to the warranty card included with your product or visit the official MAXXUS websebaka. Boloka rasiti ea hau ea theko e le bopaki ba hore u rekile litseko tsa waranti.
Moetsi: MAXXUS
Letsatsi la Pele la ho Fumaneha: La 23 Hlakubele 2015
