VASAGLE Pantry Cabinet with Lights and Charging Station (Model UBBK391W01)

1. Увод

This manual provides detailed instructions for the assembly, operation, and maintenance of your VASAGLE Pantry Cabinet, Model UBBK391W01. This cabinet is designed to offer organized storage with integrated lighting and a charging station, enhancing functionality in your kitchen, dining area, or living space. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Image 1.1: VASAGLE Pantry Cabinet, Model UBBK391W01, showcasing its design and functionality in a kitchen environment.

2. Безбедносне информације

Придржавање следећих безбедносних упутстава је кључно за спречавање повреда и оштећења производа.

• Комплет против превртања: Always secure the cabinet to the wall using the included anti-tip kit to prevent accidental tipping. Failure to do so can result in serious injury.
• Струјни појас: When the integrated power strip is not in use, turn off its on-off switch to ensure electrical safety.
• Капацитет тежине: Do not exceed the maximum weight capacity of 53 kg (116.8 lbs) for the entire unit. Distribute weight evenly across shelves and drawers.
• Скупштина: Assembly should ideally be performed by two adults. Ensure all parts are correctly aligned and fasteners are tightened securely before use.
• Пласман: Place the cabinet on a flat, stable surface. Avoid placing it in areas with high humidity or direct sunlight to prevent material degradation.

3. Садржај пакета

Before beginning assembly, verify that all components and hardware are present and undamaged. Refer to the included assembly manual for a complete list of parts. In general, your package should contain:

• Cabinet panels (particleboard, MDF, acrylic)
• Hardware kit (screws, dowels, cam locks, etc.)
• Adjustable shelves and shelf pins
• Sliding door mechanisms
• Integrated LED lighting strip
• Integrated charging station with power strip
• Комплет против превртања
• Упутство за монтажу

4. Упутство за монтажу

Assembly of the VASAGLE Pantry Cabinet requires careful attention to detail. Follow the step-by-step instructions provided in the separate assembly manual included with your product. All parts are labeled for easy identification.

1. Распакујте и идентификујте: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Identify each part using the labels and the assembly manual diagram.
2. Склоп оквира: Begin by assembling the main frame of the cabinet, ensuring all connections are secure.
3. Уградња фиоке и врата: Install the drawers and cabinet doors according to the instructions. Ensure smooth operation of sliding doors and drawers.
4. Положај полица: Уметните подесиве полице у жељене положаје.
5. Електричне компоненте: Install the LED lighting strip and charging station. Ensure all electrical connections are properly made and secured.
6. Причврстите за зид: Crucially, attach the anti-tip kit to the top rear of the cabinet and secure it to a wall stud. This step is essential for stability and safety.

While assembly is designed to be straightforward, having a second person can make the process smoother and faster.

5. Упутство за употребу

5.1 Adjustable Lighting

The cabinet features an integrated LED lighting strip with adjustable color hues and dimmable brightness.

• Color Hue Adjustment: Tap the touch control button to cycle through three color hues: 6000K (Cool Light), 4000K (Natural Light), and 3000K (Warm Light).
• Подешавање осветљености: Touch and hold the touch control button to dim or brighten the light to your preferred level.

Image 5.1: Illustration of the adjustable light feature, demonstrating three color temperatures and touch control for brightness and hue.

5.2 Станица за пуњење

The cabinet includes a built-in power strip for convenient access to electrical outlets.

• АЦ утичнице: The charging station provides two 125V/15A AC outlets, suitable for powering kitchen appliances or charging devices.
• Прекидач за укључивање-искључивање: A dedicated on-off switch controls power to the outlets. Always turn this switch off when the charging station is not in use to conserve energy and enhance safety.
• Кабл за напајање: The unit comes with a 6.6 ft (2 m) power cord for connection to a wall outlet.

Слика 5.2: Детаљно view of the integrated charging station, highlighting the on-off switch and two AC outlets.

5.3 Подесиве полице

The cabinet features adjustable shelves to accommodate items of various heights.

• Upper Section: Each middle shelf in the upper section has 3 height settings, allowing for flexible storage between 6.6 inches (16.8 cm) and 9.8 inches (25 cm) in height.
• Доњи ормарићи: Each lower cabinet has an adjustable shelf with 5 height options, providing storage flexibility between 11 inches (28.1 cm) and 16.4 inches (41.6 cm) in height.
• Подешавање: To adjust a shelf, remove any items, lift the shelf, reposition the shelf pins to the desired height, and then place the shelf back onto the pins.

Image 5.3: Visual guide to the adjustable shelves, showing minimum and maximum height settings for both upper and lower compartments.

6. Одржавање

Редовно одржавање ће помоћи у очувању изгледа и функционалности вашег ормарића.

• Чишћење: Обришите површине меком, дamp крпом. Избегавајте јаке хемикалије или абразивна средства за чишћење, која могу оштетити завршну обраду.
• Просипање: Clean spills immediately to prevent staining or moisture damage.
• хардвер: Периодично проверавајте све завртње и причвршћиваче како бисте били сигурни да су чврсто затегнути. По потреби поново затегните.
• Електричне компоненте: Ensure the power cord is not pinched or damaged. Do not attempt to repair the charging station or lighting yourself; contact qualified personnel if issues arise.

КСНУМКС. Решавање проблема

Овај одељак се бави уобичајеним проблемима на које можете наићи са својим ормарићем.

• Тешкоћа склапања: If you encounter difficulty during assembly, double-check the part labels against the assembly manual diagrams. Ensure all pieces are oriented correctly. Do not force parts together. Contact customer support if a part appears defective or missing.
• Светло не ради: Verify that the cabinet is plugged into a functional wall outlet and that the on-off switch for the charging station is in the 'on' position. Check the touch control button for responsiveness. If the issue persists, contact customer support.
• Лепљење фиока или врата: Ensure all hardware for drawers and doors is installed correctly and tightened appropriately. Check for any obstructions in the tracks or hinges.
• Кућни ормарић се љуља: Confirm the cabinet is placed on a level surface. If wobbling persists, ensure all assembly fasteners are tight and that the anti-tip kit is securely installed to the wall.

8. Спецификације

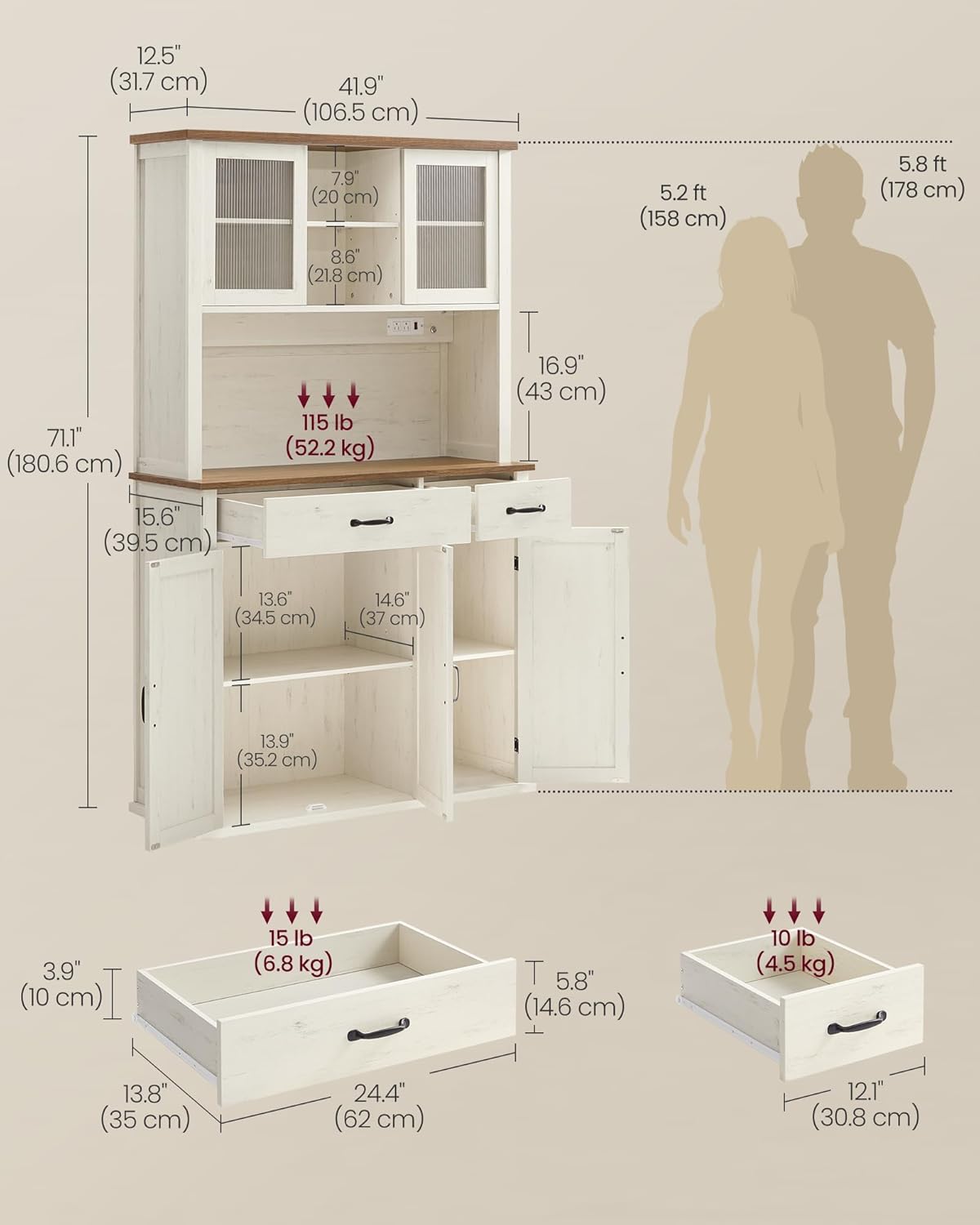

Image 8.1: Comprehensive dimensions of the pantry cabinet, including overall height, width, depth, and internal compartment measurements.

9. Гаранција и подршка

For any questions, missing parts, or issues not covered in this manual, please contact VASAGLE customer support. Your product is eligible for return or refund within 30 days of receipt. Please refer to your purchase documentation for specific warranty details and contact information.

Корисничка подршка: За помоћ, посетите VASAGLE Store on Amazon or refer to the contact details provided with your purchase.
