Mesqool Alarm Clock CR1025 Instruction Manual

Увод

This manual provides detailed instructions for the Mesqool Alarm Clock with Bluetooth Speaker, FM Radio, USB Chargers, Dimmer, Snooze, and Battery Backup (Model CR1025). Please read this manual thoroughly before operating the device to ensure proper use and optimal performance.

The Mesqool CR1025 is a versatile bedside device combining multiple functions:

• Alarm Clock with 2 optional sounds (radio or buzzer) and 9-minute snooze.
• Bluetooth 5.0 Speaker for wireless audio streaming.
• Digital FM Radio (87.5-108MHz) with auto-scan and 20 station presets.
• Adjustable Night Light.
• Dual USB Charging Station (Type-C & USB-A, 5V/1A each).
• Large LED display with 5-level dimmer and 12/24H time format.
• Battery backup for settings retention during power outagес.

Image: The Mesqool Alarm Clock highlighting its five main features: Alarm Clock, Bluetooth V5.0, FM Radio, Night Light, and 2 USB Chargers.

Сетуп

Power Connection and Battery Backup

The Mesqool CR1025 operates on AC power. Connect the provided power adapter to the DC IN port on the back of the unit and plug it into a standard wall outlet. The device also includes a battery backup feature (1 AAA battery included) to retain time and alarm settings during a power interruption. The battery does not power the display or alarm functions during an outage.

Image: The alarm clock connected to power, demonstrating its compact design suitable for a bedside table.

Почетно подешавање времена

1. Притисните тастер Време 12/24 дугме. Цифре за сате ће почети да трепћу.
2. Rotate the right knob (Scan) to adjust the hour.
3. Притисните тастер Време 12/24 поново притисните дугме. Цифре за минуте ће трептати.
4. Rotate the right knob (Scan) to adjust the minute.
5. Притисните тастер Време 12/24 button once more to confirm the time setting.

Video: Demonstrates how to set the time on the Mesqool Alarm Clock by pressing the Time button and rotating the knob to adjust hours and minutes.

Формат времена 12/24 сата

To switch between 12-hour and 24-hour time formats, press and hold the Време 12/24 button for 2 seconds. The display will change between AM/PM indicators for 12-hour format and no indicator for 24-hour format.

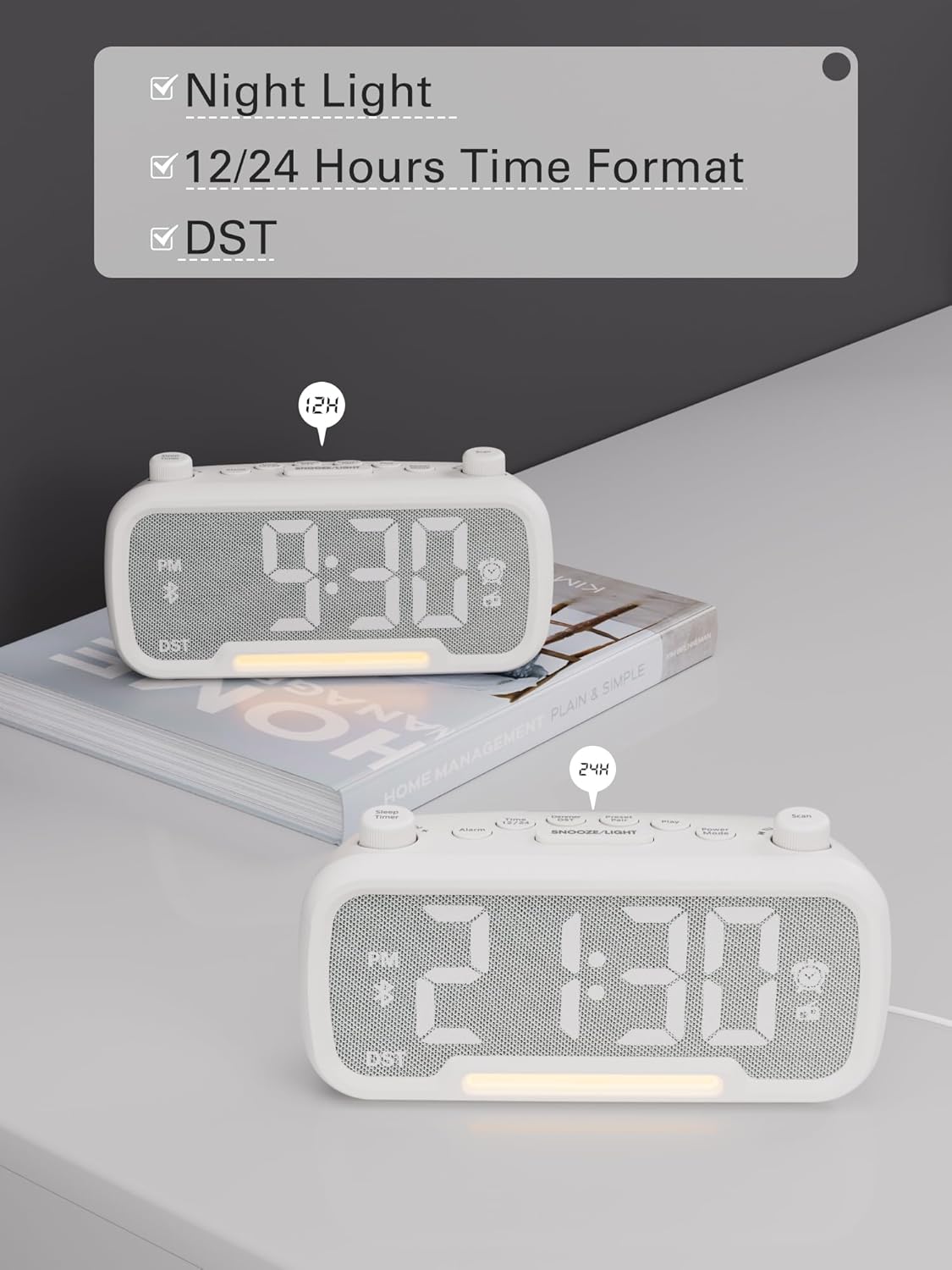

Image: The alarm clock displaying time in both 12-hour (with PM indicator) and 24-hour formats, also showing the DST indicator.

Daylight Saving Time (DST) Mode

To activate or deactivate Daylight Saving Time (DST), press the Dimmer DST button. The time will adjust by one hour forward or backward, and the "DST" indicator will appear or disappear on the display.

Video: Demonstrates how to activate or deactivate DST mode by pressing the DST button, showing the time adjustment.

Упутство за употребу

Подешавање аларма

1. Притисните и држите Аларм button for 2 seconds. The hour digits will flash.
2. Rotate the left knob (Sleep Timer) to adjust the hour.
3. Притисните тастер Аларм поново притисните дугме. Цифре за минуте ће трептати.
4. Rotate the left knob (Sleep Timer) to adjust the minute.
5. Притисните тастер Аларм button again to select the alarm sound: bell or last radio channel.
6. Rotate the left knob (Sleep Timer) to adjust the alarm volume (L01-L16).
7. Притисните тастер Аларм button once more to complete the alarm setting.

Video: Illustrates the steps to set the alarm time, choose the alarm sound (bell or radio), and adjust the alarm volume.

Отказивање аларма

To cancel the alarm, press the Аларм button. The alarm icon on the display will turn off, indicating that the alarm has been canceled.

Функција одлагања

Када се огласи аларм, притисните СНООЗЕ / СВЕТЛО button to activate the snooze function. The alarm will pause for 9 minutes and then sound again.

Image: The alarm clock with the SNOOZE/LIGHT button clearly marked, explaining its 9-minute snooze function.

Рад Блуетоотх звучника

1. Притисните тастер Повер Моде button repeatedly until "bt" appears on the display. The Bluetooth icon will start flashing, indicating it's ready for pairing.
2. On your mobile device, search for Bluetooth devices and select "CR1025" to connect.
3. Once connected, the Bluetooth icon will stop flashing. You can now stream audio from your device.

Video: Shows how to enter Bluetooth mode and pair the alarm clock with a mobile device, indicated by the flashing and solid Bluetooth icon.

Image: The alarm clock wirelessly connected to a smartphone, demonstrating its Bluetooth 5.0 audio streaming capability.

Операција ФМ радија

1. Притисните тастер Повер Моде button repeatedly until the radio icon lights up and a frequency is displayed.
2. Аутоматско скенирање: Притисните тастер Скенирај button to automatically search for and store up to 20 FM stations (P01-P20).
3. Ручна претрага: Rotate the right knob (Scan) to browse frequencies manually.
4. Чување станице: While listening to a desired station, press and hold the Preset Pair button for 2 seconds. Use the right knob (Scan) to select a preset number (P01-P20), then press Preset Pair опет да уштедим.
5. Позивање пресета: Кратко притисните Preset Pair дугме за прелазак кроз сачуване станице.
6. Подесите јачину звука: Rotate the left knob (Sleep Timer) to control the volume (16 levels).

Video: Demonstrates how to operate the FM radio, including auto-scanning, manual tuning, saving presets, and adjusting volume.

Image: The alarm clock showing an FM radio frequency, illustrating its use as a radio.

Подешавање тајмера за искључивање

When using the FM radio or Bluetooth speaker functions, you can set a sleep timer to control playback duration before the device automatically turns off.

1. Притисните тастер Слееп Тимер button on the top left.
2. Rotate the left knob (Sleep Timer) to select the desired duration: 15, 30, 60, 90, or 120 minutes. You can also select "OFF" to disable the sleep timer.

Video: Demonstrates how to set the sleep timer for the FM radio or Bluetooth speaker, showing available duration options.

Дисплаи Диммер

The LED display has 5 levels of brightness. To adjust the brightness, press the Dimmer DST button repeatedly to cycle through the levels (L01-L05).

Image: The alarm clock illustrating the five different brightness levels for its LED display.

Нигхт Лигхт

The alarm clock features a gentle fixed night light. To turn the night light on or off, press the СНООЗЕ / СВЕТЛО button. This light creates a sleep-friendly environment.

Image: The alarm clock's warm night light glowing, positioned next to a teddy bear, suggesting its use in a child's room.

УСБ портови за пуњење

The device includes two USB charging ports: one Type-C and one USB-A. Both ports provide 5V/1A output, allowing you to conveniently charge your smartphone, tablet, or other USB-powered devices simultaneously.

Image: The alarm clock with a smartphone connected to its Type-C port and a smartwatch to its USB-A port, demonstrating simultaneous charging.

Одржавање

• Чишћење: Use a soft, dry cloth to clean the surface of the alarm clock. Do not use liquid cleaners or abrasive materials.
• Складиштење: If storing the device for an extended period, disconnect it from power and remove the backup battery. Store in a cool, dry place.
• Избегавајте влагу: Keep the device away from water, high humidity, and direct sunlight to prevent damage.

Решавање проблема

Спецификације

• Бренд: Мескоол
• Број модела: ЦР1025
• Боја: Бела
• Тип приказа: ЛЕД
• Извор напајања: Corded Electric (AC power)
• Резервна батерија: 1 ААА батерија (укључена)
• Димензије производа: 3.31"W x 2.32"H (Note: Length is 6.61" from feature bullets)
• Тежина артикла: 7.7 унци
• Материјал: Fabric, Acrylonitrile Butadiene Styrene
• ФМ радио фреквенција: 87.5-108МХз
• УСБ излаз: Type-C & USB-A, 5V/1A each
• Звукови аларма: Bell, FM Radio
• Осветљеност екрана: 5 нивоа
• Формат времена: 12Х/24Х
• Посебне карактеристике: Bluetooth 5.0, Night Light, DST adjustment, Snooze

Гаранција и подршка

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Mesqool webсајту. Сачувајте рачун о куповини за гаранције.
