Увод
This manual provides essential information for the safe and efficient operation of your ElectriQ iQool 10,000BTU Smart Wall-Mounted Air Conditioner & Heat Pump. This all-in-one unit is designed for year-round climate control, offering powerful cooling in summer, cost-effective heating in winter, and dehumidification to manage indoor moisture.
Кључне карактеристике укључују:
- 10,000BTU Cooling & 9,000BTU Heating: Ideal for rooms up to 30m².
- All-in-One Design – No Outdoor Unit: Requires only two exterior wall vents, preserving external aesthetics and simplifying installation.
- Ултра-Тхин Проfile (20cm Deep): Comparable in depth to indoor split units but much easier to install.
- Highly Efficient R290 Refrigerant: An eco-friendly refrigerant with zero ozone depletion potential, operating quietly at approximately 58dB(A).
- Smart Features & Scheduling: Wi-Fi enabled for remote control, scheduling, and integration with Alexa or Google Assistant.
- 3-Speed Turbo Fan & Sleep Mode: Adjustable airflow and optimized settings for night-time operation.
Молимо вас да пажљиво прочитате ово упутство пре инсталације и употребе и сачувате га за будуће потребе.
Безбедносне информације
Увек се придржавајте следећих мера предострожности како бисте смањили ризик од пожара, струјног удара или повреде.
- електрична безбедност: Ensure the unit is connected to a properly grounded power outlet with the correct voltage (240 Volts). Do not use extension cords or adapters. Disconnect power before cleaning or servicing.
- Инсталација: Installation must be performed by a qualified person in accordance with all local and national electrical and building codes. Ensure proper ventilation as per installation instructions. The unit uses R290 refrigerant, which is flammable. Do not puncture the refrigerant circuit.
- Операција: Do not insert fingers or objects into the air inlet/outlet. Do not block air vents. Keep children and pets away from the unit during operation.
- Одржавање: Only perform maintenance tasks described in this manual. For repairs or internal servicing, contact qualified service personnel. Do not attempt to disassemble the unit.
- Чишћење: Користите меку, дamp cloth for cleaning the exterior. Do not use abrasive cleaners, waxes, or solvents.
- одлагање: Dispose of the unit and its components, especially the refrigerant, according to local regulations.
Производ је завршенview
The ElectriQ iQool unit is a compact, wall-mounted system designed for efficient climate control.
Слика 1: Предња страна view of the ElectriQ iQool unit, displaying its sleek white design and integrated digital control panel.
Цонтрол Панел
The unit features an intuitive digital control panel for direct operation.
Слика 2: Детаљно view of the control panel, indicating buttons for temperature adjustment, timer, fan speed, operating mode, and power.
Укључене компоненте
The product comes with necessary accessories for installation and operation.
Слика 3: Завршеноview of the ElectriQ iQool unit and its accompanying installation kit, including ducting, covers, remote, and mounting hardware.
Димензије и тежина
Understanding the unit's dimensions is crucial for planning installation.
Figure 4: Dimensional drawing of the unit, indicating its width (100cm), height (58.5cm), depth (20.5cm), and weight (38kg).
Подешавање и инсталација
The ElectriQ iQool is designed as an all-in-one unit, eliminating the need for a bulky outdoor compressor. Installation primarily involves creating two ventilation holes through the wall.
Wall Ventilation Requirements
Слика 5: Прample of the required external wall vents for the unit, demonstrating that no large outdoor compressor is needed.
Опције монтаже
The unit can be wall-mounted or used as a freestanding appliance, offering flexibility for various room layouts.

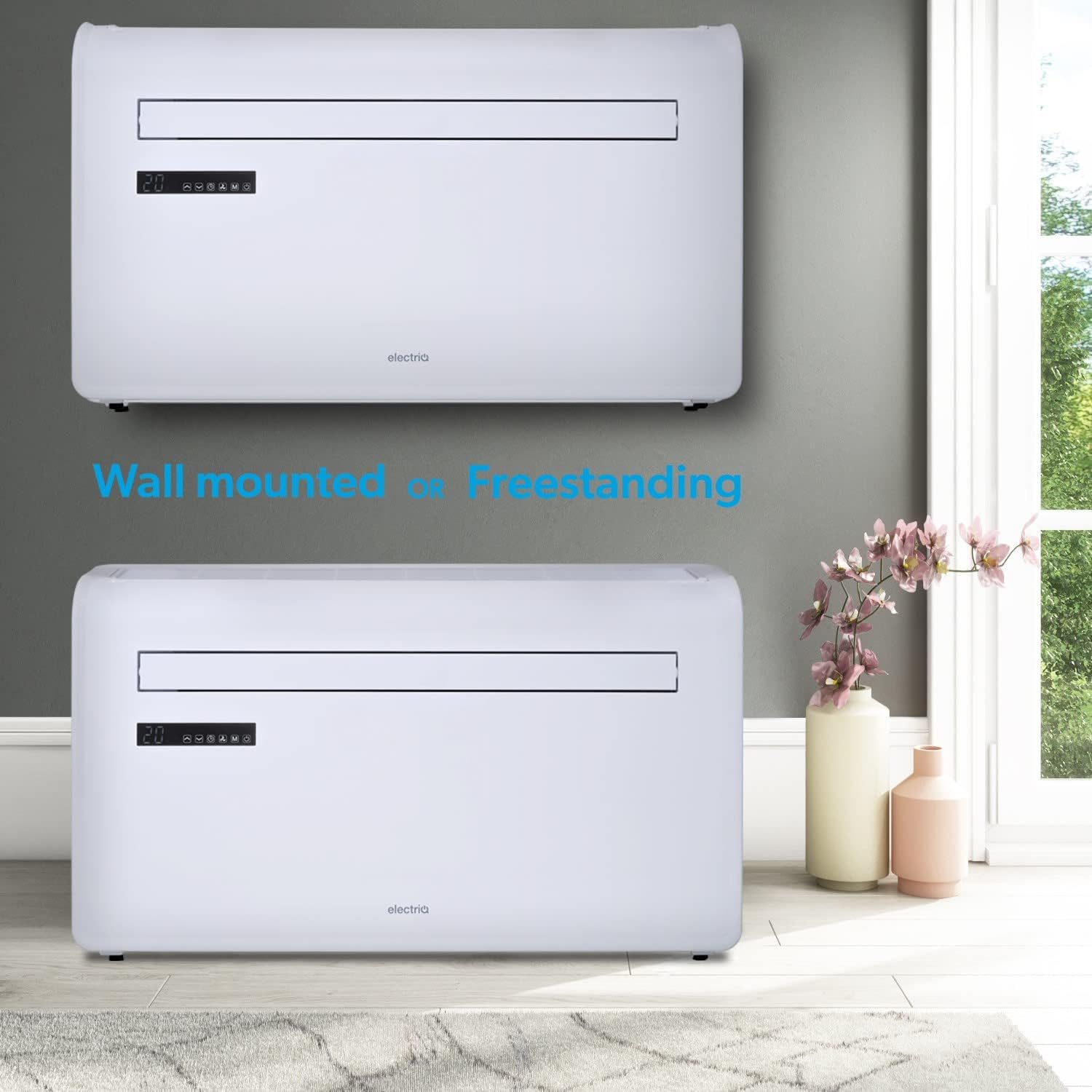

Figure 6: Illustration of the unit's versatility, showing both wall-mounted and freestanding placement options.
Refer to the detailed installation guide included with your product for specific instructions on drilling, mounting, and connecting the unit.
Упутство за употребу
Your ElectriQ iQool unit offers multiple operating modes and smart control features.
Оперативни режими
- Режим хлађења: Provides powerful air conditioning for rooms up to 30m².
- Режим грејања: Functions as a cost-effective heat pump for winter use.
- Режим одвлаживања: Helps reduce humidity levels, preventing dampност и буђ.
- Режим вентилатора: Циркулише ваздух без загревања или хлађења.
- Режим спавања: Optimizes noise and energy consumption for comfortable night-time operation.
Карактеристике паметног управљања
The unit is Wi-Fi enabled, allowing for convenient control via a smartphone app and voice assistants.
- Ви-Фи повезивање: Connect the unit to your home Wi-Fi network to enable remote control. Download the dedicated ElectriQ app on your smartphone.
- Даљинско управљање путем апликације: Manage all functions, set schedules, and monitor the unit from anywhere using your smartphone.
- Интеграција гласовног помоћника: Компатибилно са Amazon Alexa и Google Assistant за контролу без употребе руку.
Слика 7: Прample of voice control using Amazon Alexa to adjust the unit's temperature setting.
Figure 8: Remote control of the unit via a smartphone app, allowing temperature adjustments from any location.
Одржавање
Regular maintenance ensures optimal performance and longevity of your ElectriQ iQool unit.
- Спољно чишћење: Обришите спољашњост цasinг са меким, дamp тканина. Немојте користити јаке хемикалије или абразивне материјале.
- Чишћење ваздушног филтера: The unit is equipped with air filters that should be cleaned regularly (e.g., every 2-4 weeks, depending on usage and air quality). Refer to the full instruction manual for specific filter removal and cleaning procedures. Clean filters improve air quality and unit efficiency.
- Preventing Mold and Odors: To prevent the buildup of mold and unpleasant odors, especially in dehumidify or cooling modes, ensure adequate ventilation in the room. Regularly clean the air filters and ensure the unit is allowed to dry internally by running it in fan-only mode for a short period before extended shutdowns. As this is a sealed unit, internal cleaning beyond user-accessible filters requires professional service.
- Вентилациони отвори: Periodically check the external ventilation holes for any obstructions (e.g., debris, insects) and clear them to ensure proper airflow.
For any internal issues or complex repairs, contact qualified service personnel. Do not attempt to open or repair the sealed refrigerant system yourself.
Решавање проблема
If you encounter issues with your unit, refer to the following common troubleshooting steps before contacting support.
| Проблем | Могући узрок | Решење |
|---|---|---|
| Јединица се не укључује. | Нема напајања; кабл за напајање није укључен; осигурач је искључен. | Check power connection; reset circuit breaker; ensure power outlet is functional. |
| Недовољно хлађење/грејање. | Air filters are dirty; room size exceeds capacity; windows/doors open; air inlet/outlet blocked. | Clean air filters; ensure unit is suitable for room size; close windows/doors; clear obstructions. |
| Необична бука током рада. | Unit not level; foreign object in fan; internal component issue. | Ensure unit is on a stable, level surface; check for visible obstructions (after disconnecting power); if noise persists, contact service. |
| Bad odor from unit. | Mold or mildew buildup; dirty filters. | Clean air filters thoroughly. Run unit in fan-only mode to dry internal components. Ensure proper room ventilation. If odor persists, professional cleaning may be required. |
| Проблеми са повезивањем на Wi-Fi. | Нетачна лозинка за Wi-Fi; проблеми са рутером; уређај је предалеко од рутера. | Verify Wi-Fi password; restart router; move unit closer to router or use a Wi-Fi extender. Refer to app instructions for pairing. |
If the problem persists after attempting these solutions, please contact ElectriQ customer support.
Спецификације
| Атрибут | Валуе |
|---|---|
| Бранд | Елецтрик |
| Модел | ИКООЛ-СМАРТ12ХП |
| Димензије производа (Д x Ш x В) | 20.5 к 100 к 58.5 цм |
| Тежина артикла | 38 кг |
| Енергетска ефикасност | A |
| Капацитет хлађења | 10,000 БТУ |
| Хеатинг Цапацити | 9,000 БТУ |
| Ниво буке | 58 дБ |
| Врста инсталације | Wall Mounted (Split System design, no outdoor unit) |
| Расхладно средство | Р-290 |
| Волtage | 240 Волтс |
| Посебне карактеристике | Slim, Space-Saving Design, Smart Control & Scheduling, Eco Smart R290 Refrigerant, Quiet & Convenient Use, No Outdoor Unit Needed |
Гаранција и подршка
For detailed warranty information, please refer to the warranty card included with your product or visit the official ElectriQ webсајт. Гаранција обично покрива производне недостатке током одређеног периода од датума куповине.
If you require technical assistance, troubleshooting beyond this manual, or warranty service, please contact ElectriQ customer support. Have your model number (IQOOL-SMART12HP) and purchase details ready when contacting support.
ElectriQ Customer Support: Please refer to the contact information provided in your product packaging or on the official ElectriQ webсајт (ввв.елецтрик.цо.ук).
