1. Безбедносне информације
Please read these instructions carefully before installation and use of the appliance. Keep this manual for future reference. Incorrect installation or use may cause injury or damage.
- Уверите се да електрично напајање одговара јачини звукаtagе наведено на натписној плочици.
- Installation must be carried out by a qualified person in accordance with all local regulations and standards.
- Do not operate the hood without filters.
- Редовно чистите филтере за масноћу како бисте спречили опасност од пожара.
- Немојте фламбирати испод хаубе.
- Овај уређај није намењен за употребу од стране особа (укључујући децу) са смањеним физичким, чулним или менталним способностима, или недостатком искуства и знања, осим ако им је дат надзор или упутства о употреби уређаја од стране особе одговорне за њихову безбедност.
- Децу треба надзирати како би се осигурало да се не играју са уређајем.
- Adequate ventilation must be provided in the room when the range hood is used at the same time as appliances burning gas or other fuels.
2. Производ је готовview
The GLOBALO Nowimo 60.1 White is a compact and discreet built-in extractor hood designed for integration into kitchen cabinets. It effectively removes cooking fumes and odors, ensuring clean air in your kitchen. The hood features LED lighting for illuminating your cooking area and offers three power levels for optimal air extraction.

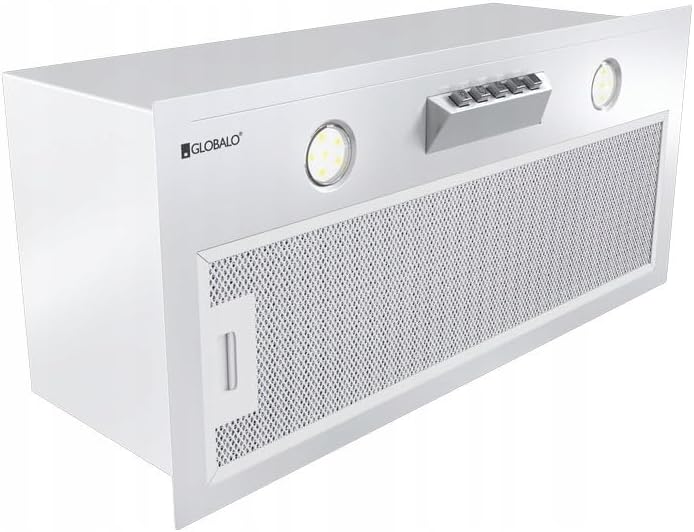

Слика: Фронт view of the GLOBALO Nowimo 60.1 White built-in extractor hood, showing the white lacquered steel finish, control buttons, LED lights, and the aluminum grease filter.

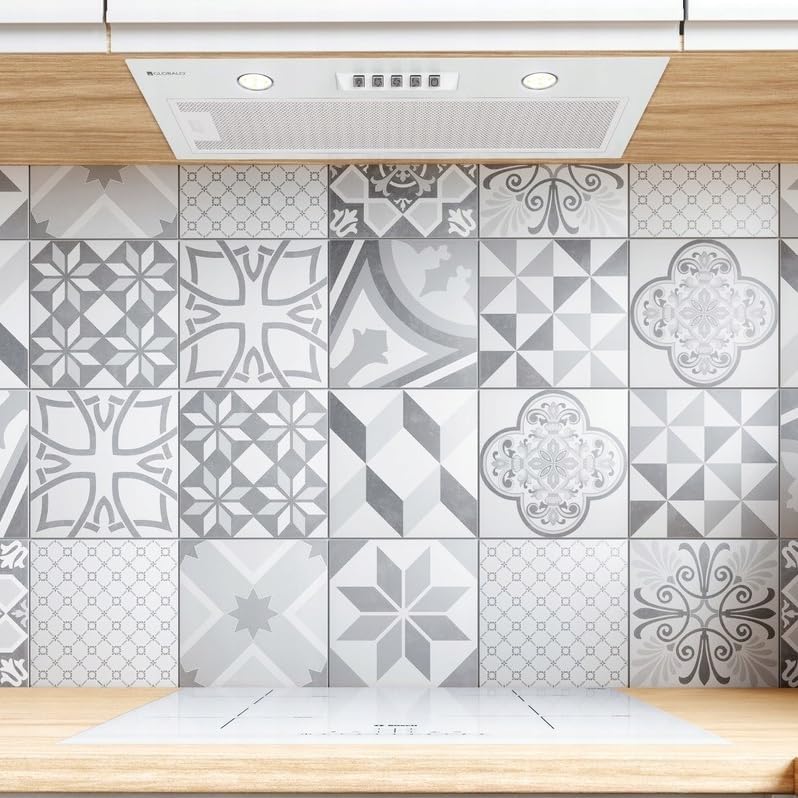

Image: The GLOBALO Nowimo 60.1 White hood seamlessly integrated into a white kitchen cabinet above a stovetop, demonstrating its discreet design and effective lighting.
Кључне карактеристике:
- Компактан дизајн: Ideal for integration into kitchen cabinets, suitable for various kitchen sizes.
- Двоструки режими рада: Can be used in extraction mode (ducted) or recirculation mode (absorber) with an optional charcoal filter.
- Ефикасна филтрација: Equipped with an aluminum grease filter to prevent grease buildup on kitchen surfaces. Optional charcoal filter for odor removal in recirculation mode.
- Три нивоа снаге: Adjustable fan speed to suit different cooking needs.
- ЛЕД осветљење: Two 3W LED strips provide bright illumination for the cooking area.
- Контроле притиском на дугме: Simple and intuitive operation.
3. Подешавање и инсталација
The Nowimo 60.1 White hood is designed for built-in installation within a kitchen cabinet. It can operate in two modes: ducted (extraction) or recirculation (absorber). Ensure proper planning for ducting or charcoal filter installation before proceeding.
Димензије и монтажа:
Refer to the dimension diagram for precise measurements required for cabinet cutout and mounting. The hood's compact size allows for flexible integration.
Image: Technical drawing showing the precise dimensions (in millimeters) of the GLOBALO Nowimo 60.1 White extractor hood, including width, depth, height, and ducting diameter, essential for proper cabinet integration.
Кораци инсталације (опште смернице):
- Припремите кабинет: Create the necessary cutout in your kitchen cabinet according to the provided dimensions.
- Канал (ако је применљиво): Install the ducting system from the hood's outlet to the exterior of your home. Ensure the ducting is rigid and has minimal bends for optimal airflow.
- Charcoal Filter (if recirculation): If operating in recirculation mode, install the optional ASC 450 charcoal filter (sold separately) as per its instructions.
- Mount Hood: Secure the hood within the cabinet using appropriate fasteners.
- Електрични прикључак: Connect the hood to a suitable electrical supply, ensuring all connections are secure and comply with local electrical codes.
- Тест функционалност: Before final closure, test all functions of the hood (fan speeds, lighting) to ensure proper operation.
Note: For detailed installation instructions, refer to the specific installation guide provided with your product packaging. Professional installation is recommended.
4. Упутство за употребу
The GLOBALO Nowimo 60.1 White extractor hood is operated via intuitive push buttons located on the front panel.
Контроле:
- Дугме за укључивање/искључивање: Притисните да бисте укључили или искључили аспиратор.
- Дугмад за брзину вентилатора (1, 2, 3): Изаберите жељену брзину вентилатора.
- Брзина 1: Low setting for light cooking or simmering.
- Брзина 2: Medium setting for general cooking.
- Брзина 3: High setting for heavy cooking, frying, or strong odors.
- Дугме за светло: Press to turn the LED lights on or off.
Савети за употребу:
- Turn on the hood a few minutes before you start cooking to create an air flow.
- Keep the hood running for about 5-10 minutes after cooking to clear any remaining fumes and odors.
- Adjust the fan speed according to the intensity of cooking and the amount of steam/fumes produced.
5. Одржавање
Regular maintenance ensures the optimal performance and longevity of your GLOBALO extractor hood.
Cleaning the Aluminum Grease Filter:
The aluminum grease filter collects grease particles and should be cleaned regularly (approximately every 2-4 weeks, depending on usage) to maintain efficiency and prevent fire hazards.
- Искључити: Ensure the hood is switched off and disconnected from the power supply before cleaning.
- Уклони филтер: Locate the latch or clips holding the aluminum filter in place and carefully remove it.
- Очисти филтер: Wash the filter by hand in hot water with a mild detergent, or in a dishwasher (ensure no other items are washed simultaneously to avoid discoloration).
- Осушите и поново инсталирајте: Allow the filter to dry completely before reinstalling it into the hood.
Replacing the Charcoal Filter (Recirculation Mode Only):
If your hood operates in recirculation mode, it uses an active charcoal filter (model ASC 450, sold separately) to remove odors. This filter cannot be washed and must be replaced periodically (typically every 3-6 months, depending on usage).
- Искључити: Уверите се да је напа искључена и искључена из напајања.
- Филтер приступа: Remove the aluminum grease filter to access the charcoal filter.
- Уклоните стари филтер: Detach the old charcoal filter (it may twist or clip into place).
- Инсталирајте нови филтер: Install a new ASC 450 charcoal filter, ensuring it is securely fitted.
- Reinstall Grease Filter: Замените алуминијумски филтер за масноћу.
Генерално чишћење:
Clean the exterior surfaces of the hood with a soft cloth and a mild, non-abrasive cleaning agent. Do not use corrosive or abrasive cleaners, as they may damage the lacquered steel finish.
КСНУМКС. Решавање проблема
Пре него што контактирате корисничку подршку, погледајте следеће уобичајене проблеме и њихова могућа решења:
| Проблем | Могући узрок | Решење |
|---|---|---|
| Hood not operating. | Нема напајања. | Check if the hood is plugged in and the circuit breaker is on. |
| Слабе перформансе екстракције. | Зачепљени филтери за масноћу. | Clean the aluminum grease filters. |
| Clogged or saturated charcoal filter (recirculation mode). | Replace the charcoal filter (ASC 450). | |
| Improper ducting (extraction mode). | Check for kinks, blockages, or leaks in the ducting. Ensure ducting diameter is correct. | |
| Светла не раде. | LED lights faulty. | Контактирајте корисничку подршку за замену. |
| Прекомерна бука. | Лабаве компоненте или неправилна инсталација. | Ensure all mounting screws are tight. Check for foreign objects in the fan. |
If the problem persists after attempting these solutions, please contact GLOBALO customer support.
7. Спецификације
Technical specifications for the GLOBALO Nowimo 60.1 White extractor hood:
| Бранд | ГЛОБАЛО |
| Број модела | NOWIMO_60_1_WHITE |
| Боја | Бела |
| Материјал | Lacquered Steel (Alloy Steel) |
| Димензије (Д к Ш к В) | 26.6 к 59.6 к 20.5 цм |
| Тежина артикла | 5 килограма |
| Број брзина | 3 |
| Max. Airflow Capacity | 320 м³/х |
| Ниво буке | 45 dB (min) to 61 dB (max) |
| Лигхтинг Типе | ЛЕД (2 x 3 W) |
| Тип филтера | Aluminum (grease), Charcoal (optional, ASC 450) |
| Тип контроле | Притисните дугме |
| Класа енергетске ефикасности | E |
| Годишња потрошња енергије | 61.7 кВх/год |
| Волtage | 240В |
| Тип монтаже | Wall Mount (Built-in) |
8. Гаранција и подршка
For warranty information, please refer to the documentation provided with your purchase or contact your retailer. GLOBALO is committed to providing quality products and customer satisfaction.
If you encounter any issues not covered in the troubleshooting section, require spare parts, or need further assistance, please contact GLOBALO customer support through their official webсајт или контакт информације које су наведене у паковању вашег производа.
Note: Information regarding the availability of spare parts is currently unavailable through general product listings. Please contact the manufacturer directly for specific inquiries.
