Hotpoint HIC 3C41 CW Fully Integrated Dishwasher User Manual

1. Увод

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Hotpoint HIC 3C41 CW fully integrated dishwasher. Please read these instructions carefully before using the appliance and retain them for future reference.

Слика 1.1: Предња страна view of the Hotpoint HIC 3C41 CW dishwasher with the door open, revealing the upper and lower racks and control panel.

2. Безбедносне информације

Увек се придржавајте основних мера предострожности при коришћењу електричних уређаја како бисте смањили ризик од пожара, струјног удара и повреда особа. Овај уређај је намењен само за кућну употребу.

• Уверите се да је уређај правилно уземљен.
• Не користите машину за прање судова ако је оштећена.
• Држите децу даље од машине за прање судова, посебно када је у раду.
• Користите само детерџенте и средства за испирање посебно намењене за машине за прање судова.
• Избегавајте додиривање грејног елемента током или непосредно након циклуса прања.

3. Инсталација и почетно подешавање

3.1 Распакивање и позиционирање

Carefully remove all packaging materials. Position the dishwasher in the desired location, ensuring it is level. This model is a fully integrated appliance, designed to be built into kitchen cabinetry.

3.2 Прикључци за воду и струју

Connect the water inlet hose to a cold water supply and the drain hose to a suitable drain. Ensure all connections are secure to prevent leaks. Connect the power cord to a grounded electrical outlet. Refer to the detailed installation diagram provided with your appliance for specific connection points.

3.3 Salt and Rinse Aid

Before first use, fill the salt dispenser with dishwasher salt and the rinse aid dispenser with rinse aid. These are crucial for optimal washing and drying performance, especially in areas with hard water.

4. Упутство за употребу

4.1 Контролна табла прекоview

The control panel is located on the top edge of the dishwasher door. It features program selection buttons, indicators, and a display.

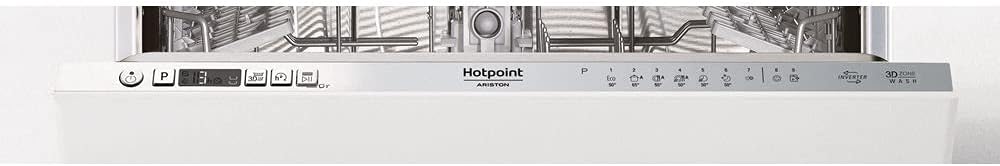

Слика 4.1: Детаљно view of the control panel, showing program selection buttons, delay start, and other function indicators.

4.2 Пуњење машине за прање судова

Proper loading ensures effective cleaning. Scrape off large food particles before loading. Place larger items in the lower basket and delicate items in the upper basket. Ensure spray arms can rotate freely.

Image 4.2: Interior of the dishwasher with dishes loaded, demonstrating the flexible loading options of the Flexiload baskets.

4.3 Избор програма

Your dishwasher offers 8 optional wash cycles. Select the appropriate program based on the type and soil level of your dishes. Consult the program table in the full manual for detailed descriptions of each cycle.

4.4 посебних карактеристика

• Active 3D Zone Wash: This feature allows for concentrated washing power in specific areas, ideal for heavily soiled items.


Image 4.3: Inside the dishwasher, showing water jets from the Active 3D Zone Wash system targeting dishes for intensive cleaning.

• Flexiload Baskets: The adjustable baskets provide flexibility to accommodate various dish sizes and shapes.
• Аутоматско отварање врата: At the end of certain cycles, the dishwasher door may automatically open to facilitate natural drying and improve energy efficiency.

5. Одржавање и њега

5.1 Чишћење филтера

Regularly clean the filter assembly located at the bottom of the dishwasher tub to prevent blockages and ensure optimal cleaning performance. Twist and remove the cylindrical filter, then separate and rinse all components under running water.

5.2 Чишћење прскалица

Periodically check the spray arms for clogged nozzles. If necessary, remove the spray arms and clean the holes with a thin object like a toothpick. Ensure they can rotate freely after reinstallation.

Слика 5.1: View of the lower spray arm, which should be checked for blockages and free rotation.

5.3 Спољашње и унутрашње чишћење

Обришите спољашњост меком, дamp cloth. For the interior, run a dishwasher cleaning cycle periodically or use a specialized dishwasher cleaner.

КСНУМКС. Решавање проблема

Пре него што контактирате сервис, проверите следеће уобичајене проблеме:

• Посуђе није чисто: Ensure dishes are loaded correctly, spray arms are not blocked and can rotate, filters are clean, and sufficient detergent is used. Check water pressure.
• Soap residue remaining: This can occur if too much detergent is used, the rinse aid dispenser is empty, or the water temperature is too low. Try a different program or adjust rinse aid settings.
• Lower spray arm not rotating: Verify that the spray arm is correctly installed and not obstructed by dishes. Clean any clogged nozzles.
• Dishwasher is noisy: Check for items rattling against each other or against the spray arms. Ensure the dishwasher is level.
• Вода не одлази: Check the drain hose for kinks or blockages. Clean the filter assembly.

7. Спецификације

8. Гаранција и подршка

За информације о гаранцији и корисничкој подршци, погледајте документацију која је достављена уз куповину или посетите званични Hotpoint website. General return policies may vary based on the retailer. For specific details regarding product defects or returns, consult your point of purchase or the relevant help pages.
