Midea MWA08CR71-E

Midea 8000 BTU Easycool Window Air Conditioner User Manual

Model: MWA08CR71-E

Увод

This manual provides detailed instructions for the installation, operation, and maintenance of your Midea Easycool 3-in-1 Window Air Conditioner. This unit is designed to cool and dehumidify home or office spaces efficiently. With an 8,000 BTU cooling capacity, it is suitable for rooms up to 340 square feet. Please read this manual thoroughly before using the appliance and retain it for future reference.

Безбедносне информације

УПОЗОРЕЊЕ:

  • Risk of fire or explosion due to flammable refrigerant used. Follow handling instructions carefully in compliance with U.S. Government regulations.
  • Овај производ садржи хемикалије за које је држава Калифорнија позната да узрокују рак и репродуктивну штету. За више информација посетите ввв.П65Варнингс.ца.гов.
  • Always unplug the unit before cleaning or performing any maintenance to prevent electric shock or fire hazards.

Садржај пакета

Проверите да ли су све ставке присутне у пакету:

  • Даљински управљач
  • ААА батерије (2)
  • Упутство за употребу
  • Упутство за инсталацију
  • Регистрациони картон
  • Гарантни лист
  • Installation kits (all mounting accessories)

Подешавање и инсталација

The Midea Easycool window unit is designed for easy installation without modification to the existing window frame. All necessary mounting accessories are included. A screwdriver is required for installation. For certain window frames, pilot holes may be recommended. Refer to the dedicated installation manual for detailed steps.

Midea Easycool Window Air Conditioner installed in a window, showing ideal window width measurements
Ideal Window Width: Image illustrating the recommended window dimensions for installation: 14 inches height and 23-26 inches width.
Midea Easycool Window Air Conditioner with labeled dimensions
Димензије производа: Diagram showing the physical dimensions of the Midea Easycool Window Air Conditioner: Depth 16.02 inches, Width 18.54 inches, Height 13.39 inches.

Choosing the Right Capacity

Selecting the correct BTU capacity for your room size ensures optimal cooling performance and energy efficiency.

Chart showing how to choose the right BTU capacity for room size
Capacity Selection Guide: A guide table indicating recommended BTU capacity based on room area in square feet: 150-250 sq ft for 6000 BTU, 300-350 sq ft for 8000 BTU, 400-450 sq ft for 10000 BTU, and 450-550 sq ft for 12000 BTU.

Упутство за употребу

Your Midea Easycool AC unit offers Cooling, Dehumidifier, and Fan functions, along with various modes for enhanced comfort and energy saving.

Контролна табла и даљински управљач

The unit features a clear LED display on the front panel and comes with an LCD remote control for convenient operation.

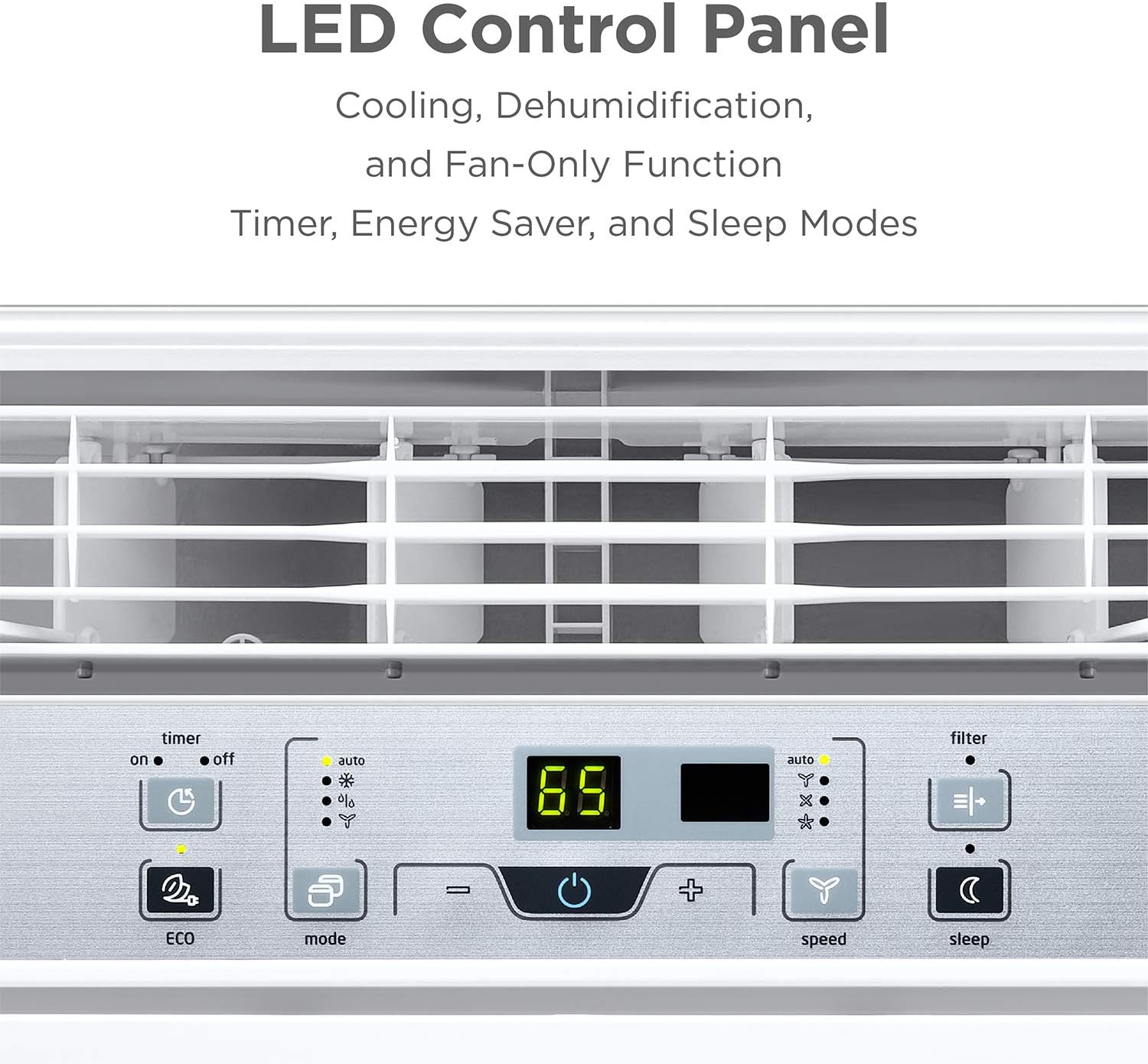

Midea Easycool Window Air Conditioner LED Control Panel
ЛЕД контролна табла: Детаљно view of the LED control panel showing buttons for Timer, ECO, Mode, Power, Speed, Filter, and Sleep functions. The display shows '65'.

Доступни режими:

  • Режим хлађења: Provides powerful cooling to lower room temperature.
  • Режим одвлаживача: Смањује влажност у ваздуху.
  • Режим само вентилатора: Циркулише ваздух без хлађења.
  • Режим тајмера: Allows you to set a specific time for the unit to turn on or off.
  • Energy Saver Mode (ECO): Оптимизује рад како би смањио потрошњу енергије.
  • Режим спавања: Подешава температуру и брзину вентилатора за удобан сан и уштеду енергије.
  • Proximity Sensing Mode: (Available with remote control) Adjusts cooling temperature based on the distance of the remote control from the unit.
Family enjoying a comfortable room with the Midea Easycool Window Air Conditioner installed
Comfortable Environment: A family in a living room, with the Midea window air conditioner visible in the background, illustrating comfortable home environment provided by the unit's air conditioning, dehumidification, and fan-only modes.

Одржавање

Regular cleaning and maintenance will help keep your air conditioner operating efficiently and looking new.

  • Чишћење: Be sure to unplug the unit before cleaning to prevent shock or fire hazards. Wipe the exterior with a soft, damp тканина.
  • Чишћење филтера: The air filter should be cleaned regularly to maintain optimal performance. Refer to the installation manual for instructions on how to remove and clean the filter.

Решавање проблема

If you encounter issues with your Midea Easycool Window Air Conditioner, please refer to the troubleshooting section in the full installation manual for common problems and solutions. For persistent issues, contact customer support.

Спецификације

ФеатуреДетаљ
Број моделаMWA08CR71-E
Димензије производа18.54 к 16.02 к 13.39 инча
Тежина артикла48.9 фунти
Цоолинг Повер8000 британских термалних јединица (BTU)
Покривеност подаДо 340 квадратних стопа
Волtage120 Волтс
Извор напајањаЦордед Елецтриц
Посебна карактеристикаДехумидифиер
Расхладно средствоР 410А
Батерије су потребнеYes (2 AAA batteries, included for remote)
Обавезна монтажаДа

Енерги Информатион

Energy Guide labels for Midea Window Air Conditioners of different BTU capacities
Енергетски водич: Energy Guide labels for Midea window air conditioners, showing estimated yearly energy costs and combined energy efficiency ratios for 6000 BTU, 8000 BTU, 10000 BTU, and 12000 BTU models. The 8000 BTU model has an estimated yearly energy cost of $65 and a combined energy efficiency ratio of 12.0.

Гаранција

Midea stands behind its product with a one-year limited warranty covering parts and labor from the original purchase date. Please refer to the included warranty card for full terms and conditions.

Корисничка подршка

For any further questions or assistance, please contact Midea customer support:
