Winix AW600 Triple Action Humidifier with Plasmawave Instruction Manual

1. Увод

The Winix AW600 Triple Action Humidifier with Plasmawave is designed to simultaneously humidify and purify the air in your home. It features a 3.17 Gallon per day humidification capacity and a 3-stage air purification system. Winix's patented PlasmaWave technology provides an additional layer of air treatment, monitoring room air quality and effectively eliminating a wide range of air pollutants and odors. The HumidiPür is designed for ease of operation, featuring a convenient slide-out water tank and CleanCel anti-bacterial protection throughout the air treatment process.

2. Подешавање

2.1 Распакивање

Carefully remove all packaging materials from the unit. Ensure all components, including the water tank, cleaning discs, and HEPA/Carbon filter, are present and undamaged.

2.2 Постављање

Place the humidifier on a firm, level surface. Ensure there is adequate space around the unit for proper airflow, ideally at least 6 inches (15 cm) from walls or furniture.

2.3 Пуњење резервоара за воду

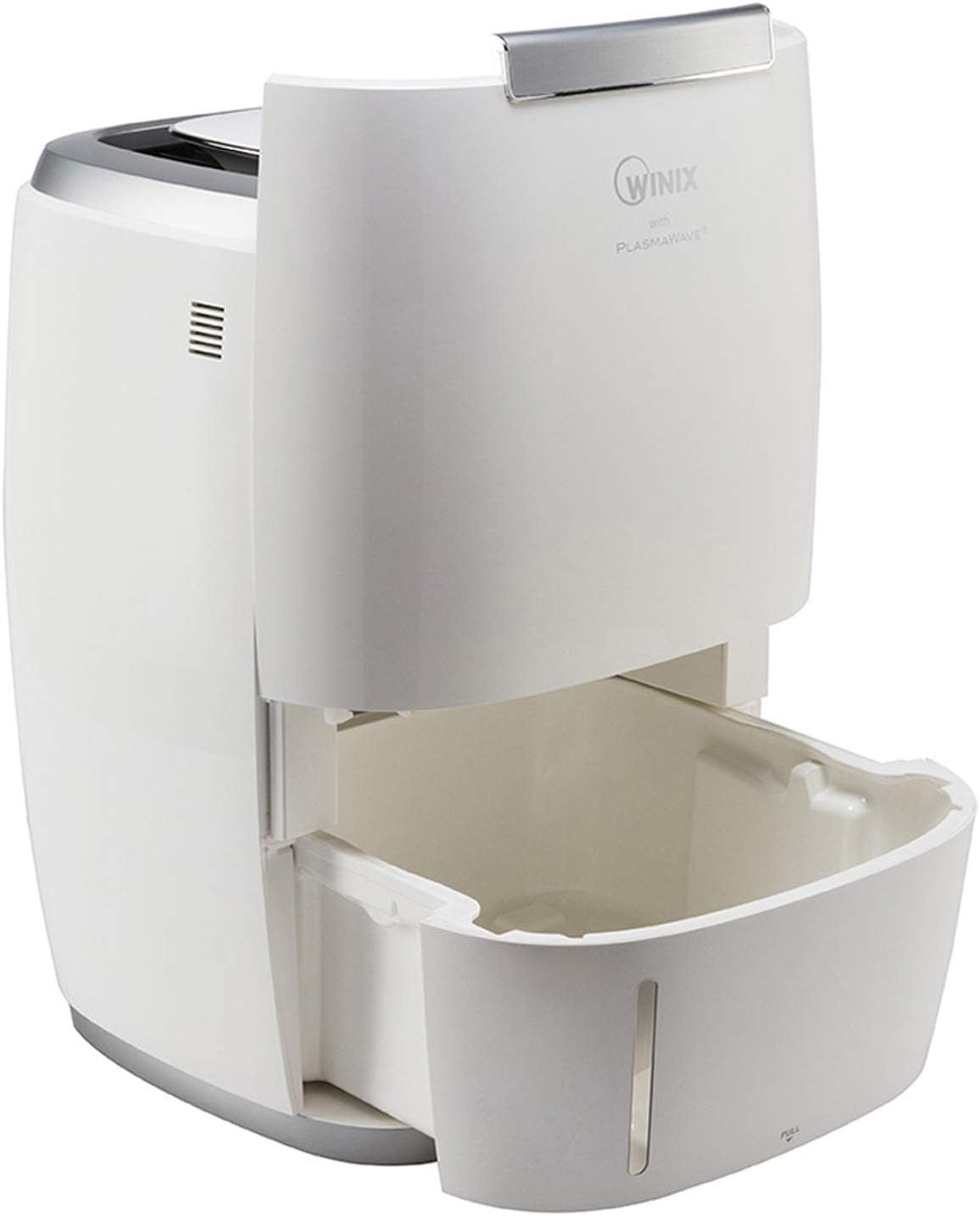

1. Pull out the water tank from the bottom front of the unit.
2. Fill the tank with clean tap water. Distilled water is recommended to prevent mineral buildup.
3. Вратите резервоар за воду у уређај док не кликне чврсто на своје место.

2.4 Инсталација филтера

The HEPA/Carbon combination filter should be installed before first use. Refer to the unit's side panel for filter compartment access. Ensure the filter is correctly oriented as indicated by markings on the filter or unit.

3. Упутство за употребу

3.1 Контролна табла прекоview

The intuitive control panel located on the top of the unit allows for easy management of all functions.

3.2 Укључивање/искључивање

Притисните дугме за напајање (⏻) да бисте укључили или искључили јединицу.

3.3 Аутоматски режим

Select Auto Mode for automatic adjustment of fan speed and humidification based on detected room air quality and humidity levels. The unit aims to maintain a comfortable humidity range (typically 35%-60%).

3.4 Подешавање брзине вентилатора

Manually adjust the fan speed to your preference using the fan speed button. Higher speeds provide faster humidification and air purification.

3.5 Технологија плазма таласа

Activate or deactivate the PlasmaWave function using its dedicated button. PlasmaWave creates positive and negative ions to break apart airborne pollutants at a molecular level.

3.6 Подешавања тајмера

Set the operational timer for specific durations (e.g., 2, 4, 8 hours) after which the unit will automatically turn off.

3.7 Humidity Indicators

LED indicators on the control panel display current humidity levels, typically in increments (e.g., 10%, 20%, 30%, 40%, 50%, 60%).

4. Одржавање

4.1 Cleaning Discs and Water Tank

The CleanCel anti-bacterial discs and water tank should be cleaned regularly to prevent mineral buildup and maintain optimal performance. The discs are dishwasher safe for convenient cleaning. If using tap water, regular cleaning with a descaling solution may be necessary to remove calcium buildup.

4.2 Замена филтера

The HEPA/Carbon combination filter should be replaced approximately once a year, depending on usage and air quality. Refer to the product manual for specific filter replacement instructions and compatible filter models.

4.3 Генерално чишћење

Обришите спољашњост јединице меком крпом, дamp cloth as needed. Do not use abrasive cleaners or solvents.

КСНУМКС. Решавање проблема

• Unit not humidifying or low humidity output:
  Check the water level in the tank. Ensure the water tank is properly seated. Verify that the cleaning discs are spinning correctly and are free from excessive mineral buildup. Clean the discs and tank if necessary. Ensure the unit is not placed in an overly large room or near a strong draft.
• Необични мириси:
  Replace the HEPA/Carbon combination filter if it has been in use for an extended period (over a year). Clean the water tank and discs thoroughly. Ensure fresh water is used daily.
• Unit making unusual noise:
  Check for any obstructions in the fan or around the cleaning discs. Ensure the unit is on a stable, level surface. Clean the discs and water tank to remove any debris that might be causing noise.
• Mineral buildup on components:
  This is common with tap water. Use distilled water to minimize buildup. Regularly clean the water tank and cleaning discs with a descaling solution or a mixture of white vinegar and water.

6. Спецификације

7. Информације о гаранцији

Овај производ је покривен а 2-годишња ограничена гаранција. For detailed terms and conditions, please refer to the warranty card included with your product or contact Winix customer support.

8. Корисничка подршка

For further assistance, technical support, or warranty claims, please contact Winix customer service. Contact information can typically be found on the official Winix webсајту или у материјалима за паковање.
