Manuali i Përdoruesit për Raftin e Hollë prej Çeliku 3-Nivesh SONGMICS

1. Hyrje

Faleminderit për blerjenasing the SONGMICS 3-Tier Slim Steel Rack. This versatile and space-saving storage solution is designed for various uses, including kitchens, bathrooms, and general home organization. Its robust steel construction ensures durability, while the slim design fits perfectly into narrow spaces.

Përmbajtja e paketës:

• Steel Rack Frame Components (Poles, Shelves)
• Këmbë të rregullueshme
• PP Liners for Shelves
• Assembly Hardware (if applicable, usually integrated for this type of rack)
• Manuali i Udhëzimeve

Figura 1: Kryesor view of the SONGMICS 3-Tier Slim Steel Rack.

2. Informacion mbi sigurinë

Please read and understand all safety warnings before assembling and using this product. Failure to follow these instructions may result in injury or damage to the product.

• Maximum Total Load Capacity: The total load capacity for this rack is 65 kg (143 lbs).
• Maximum Shelf Load Capacity: Each individual shelf has a maximum load capacity of 20 kg (44 lbs). Do not exceed this limit per shelf.
• Exercise caution during assembly to prevent pinching fingers or other injuries.
• Ensure the rack is placed on a flat, stable surface. Use the adjustable feet to level the rack and prevent wobbling.
• Mos u ngjitni mbi raft dhe mos lejoni që fëmijët të luajnë mbi ose përreth tij.
• Distribute weight evenly on the shelves to maintain stability.

Figure 2: Load capacities and dimensions of the 3-tier rack. Each shelf supports up to 20kg, with a total rack capacity of 65kg.

3. Udhëzimet e Kuvendit

This rack features a simple, tool-free assembly process. Follow these steps to set up your new storage unit:

1. Shpaketoni komponentët: Carefully remove all parts from the packaging and verify that all components listed in the "Package Contents" section are present.
2. Bashkangjitni këmbët e rregullueshme: Screw the adjustable feet into the bottom of the four vertical poles. Ensure they are securely tightened.
3. Instaloni raftin e poshtëm: Slide the plastic clips onto the vertical poles at the desired height for the bottom shelf. Ensure the clips are at the same height on all four poles. Then, slide the bottom shelf down over the poles until it rests securely on the clips.
4. Install Middle and Top Shelves: Repeat the process for the middle and top shelves. The grooves on the poles are spaced at 2.5cm intervals, allowing for precise height adjustment of each shelf to accommodate items of various sizes.
5. Insert PP Liners: Place the premium PP liners onto each shelf. These liners are waterproof and prevent small items from falling through the wire grid.
6. Niveli i raftit: Once assembled, place the rack in its desired location. Adjust the screw-in feet at the bottom of each pole to ensure the rack is stable and does not wobble on uneven surfaces.

Figure 3: The rack's design allows for flexible shelf height adjustment, enabling efficient use of storage space for various items.

Figure 4: The adjustable feet ensure stability and prevent wobbling on uneven floors.

4. Udhëzimet e funksionimit

The SONGMICS steel rack is designed for versatile storage. Here’s how to maximize its utility:

• Rregullimi i raftit: To adjust shelf height, remove items from the shelf, lift the shelf off its clips, reposition the plastic clips on the poles to the desired height, and then re-seat the shelf. Ensure all four clips for a single shelf are at the same height.
• Shfrytëzimi i hapësirës: The slim design (30cm depth) makes it ideal for narrow spaces, such as gaps between appliances, in small bathrooms, or utility rooms. Organize items by category on different shelves for easy access and a tidy appearance.
• Përdorimi i gjithanshëm: This rack is suitable for storing books, clothing, kitchenware, bathroom essentials, office supplies, and more.

Figure 5: The rack's slim depth (30cm) allows it to fit into tight spaces, offering efficient storage without occupying much floor area.

5. Mirëmbajtja dhe Kujdesi

To ensure the longevity and appearance of your steel rack, follow these maintenance guidelines:

• Pastrimi: Wipe the steel frame and shelves with a soft, damp cloth. For stubborn dirt, a mild soap solution can be used. Dry thoroughly immediately after cleaning to prevent water spots.
• Rezistenca ndaj ndryshkut: The rack is designed to be water and rust resistant, making it suitable for humid environments like bathrooms. However, prolonged exposure to standing water should be avoided.
• PP Liners: The included 0.5mm thick PP liners are waterproof and easy to clean. Simply wipe them down or rinse them with water.
• Ventilimi: The open wire design promotes good ventilation, which helps prevent mold growth, especially in damp zonave.
• Inspektimi: Periodically check all connections and ensure the adjustable feet are still securely tightened and the rack remains level.

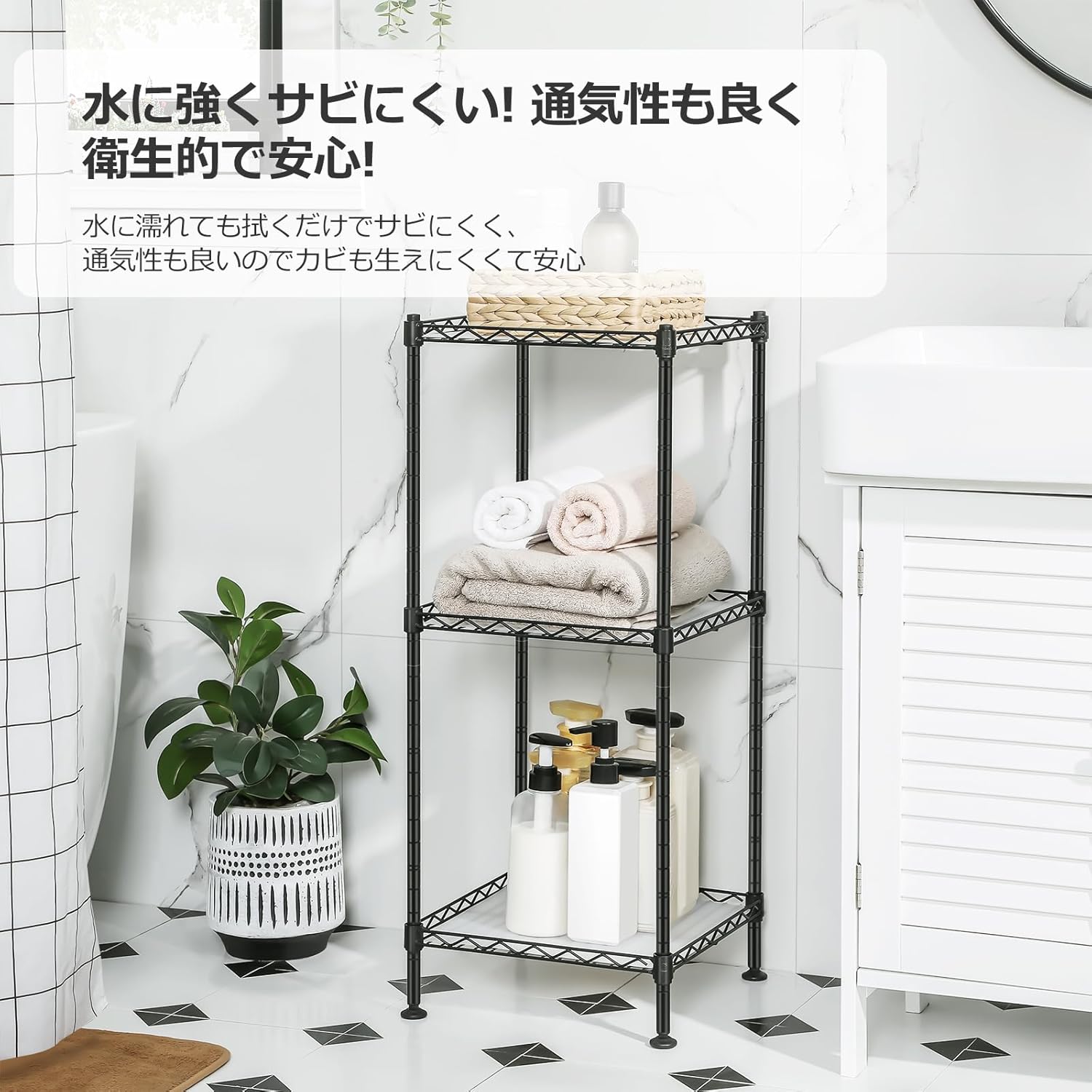

Figure 6: The rack's material is resistant to water and rust, and its open design ensures good ventilation for hygienic storage.

Figure 7: The premium 0.5mm PP liners are waterproof and simplify cleaning, protecting items from the wire grid.

6. Troubleshooting

7. Specifikimet

8. Garancia dhe Mbështetja

For warranty information or technical support, please contact SONGMICS customer service. You can typically find contact details on the product packaging or on the official SONGMICS website. Please have your model number (LGR103B01V1) and purchase date ready when contacting support.

Nuk kishte video zyrtare të produktit nga shitësi për t'u integruar në këtë manual.
