COLOR TREE SKU01741

COLOR TREE Remote Controller User Manual

For Daikin Air Conditioners (Model: SKU01741)

Hyrje

This manual provides instructions for the proper use and maintenance of your COLOR TREE remote controller, designed for various Daikin air conditioner models. Please read this manual thoroughly before operating the device.

Compatible Daikin Air Conditioner Models: BRC4C65, BRC7EB518, BRC7E618, BRC7E619, BRC4C66, BRC7F530W, BRC7FA532F, BRC7C58, BRC7G53, BRC7C52, BRC4C61, BRC4C62, BRC7G53, BRC7C510, BRC7EB530W, BRC7GA53, BRC79A53, BRC79A56, BRC7C59, BRC7C58, BRC7CA52, BRC7EA618, BRC7C62, BRC7E530, BRC7E530W, BRC7C528, BRC7F528, BRC7EA66, BRC7EA63W, BRC7F532F, BRC4C651, BRC1D528, BRC7E531.

Përmbajtja e paketës

  • 1 x COLOR TREE Remote Controller (Model: SKU01741)

Note: 2 AAA batteries are required and are not included in the package.

Konfigurimi

1. Instalimi i baterisë

  1. Gjeni kapakun e ndarjes së baterisë në pjesën e pasme të telekomandës.
  2. Rrëshqisni kapakun poshtë ose shtypni shulën për ta hapur.
  3. Vendosni dy (2) bateri AAA, duke u siguruar që terminalet pozitive (+) dhe negative (-) të jenë në përputhje të saktë me shenjat brenda ndarjes.
  4. Vendoseni kapakun e ndarjes së baterisë përsëri derisa të fiksohet mirë në vendin e tij.

Important: Always use new batteries and replace both batteries at the same time. Do not mix old and new batteries or different types of batteries.

Udhëzimet e funksionimit

This remote controller is pre-programmed for compatible Daikin air conditioner models. No additional setup or pairing is typically required after battery installation.

Remote Controller Layout

Përpara view of the COLOR TREE remote controller showing the LCD screen and main buttons.

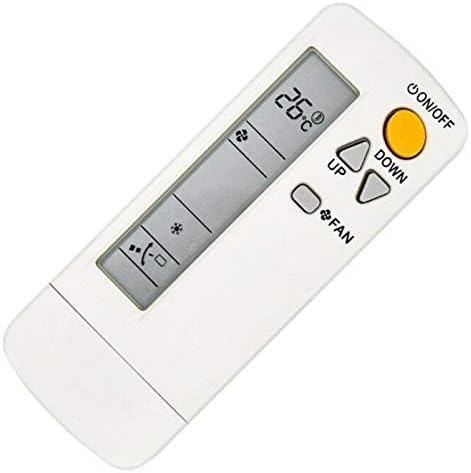

Figura 1: Përpara view of the remote controller. Displays the LCD screen, ON/OFF button, UP/DOWN temperature controls, and FAN button.

The remote controller features an LCD screen displaying current settings and various buttons for controlling your air conditioner. Key buttons include:

  • Butoni ON/OFF: Ndez ose fik kondicionerin.
  • Butonat LARTË/POSHT: Rregulloni cilësimin e temperaturës.
  • Butoni FAN: Cycles through fan speed settings.
  • Butoni MODE: (If present, often under a slide cover) Selects operating modes (e.g., Cool, Heat, Dry, Fan).
  • Butoni SWING: (If present) Controls the louver swing function.
  • Butoni TIMER: (If present) Sets the on/off timer.

Operacioni bazë

  1. Ndezja/Fikja e energjisë: Shtypni ON/FIKUR butonin për të ndezur ose fikur kondicionerin.
  2. Rregullimi i temperaturës: Përdorni UP or POSHTE arrow buttons to set your desired temperature. The current temperature will be displayed on the LCD screen.
  3. Ndryshimi i shpejtësisë së ventilatorit: Shtypni FAN butonin në mënyrë të përsëritur për të kaluar nëpër shpejtësitë e disponueshme të ventilatorit (p.sh., Automatike, E Ulët, Mesatare, E Lartë).
  4. Zgjedhja e mënyrës së funksionimit: If your remote has a MODE button (often under a sliding cover), press it to select the desired operating mode (e.g., Cool, Heat, Dry, Fan).
Anash view of the COLOR TREE remote controller with the sliding cover open, revealing additional buttons like MODE, SWING, and TIMER.
Figure 2: Remote controller with the sliding cover open, showing advanced function buttons and internal labels.

Some models may feature a sliding cover to reveal additional functions such as MODE, SWING, and TIMER settings. Refer to the markings on your specific remote for detailed button functions.

Mirëmbajtja

Cleaning the Remote Controller

  • Wipe the remote controller with a soft, dry cloth.
  • Do not use liquid cleaners, abrasive cleaners, or chemical sprays, as these can damage the surface or internal components.

Kujdesi për baterinë

  • Remove batteries if the remote controller will not be used for an extended period to prevent leakage.
  • Hidhni bateritë e përdorura sipas rregullave lokale.

Zgjidhja e problemeve

ProblemShkaku i mundshëmZgjidhje
Telekomanda nuk përgjigjetBateri të vdekura ose të instaluara gabimisht.Zëvendësoni bateritë me bateri të reja AAA, duke u siguruar që polariteti të jetë i saktë.
Remote not controlling AC unitObstruction between remote and AC unit sensor. Remote is too far from AC unit. AC unit sensor is dirty or blocked.Ensure a clear line of sight to the AC unit. Move closer to the AC unit. Clean the AC unit's infrared receiver.
LCD screen is dim or blankFuqia e ulët e baterisë.Zëvendësoni bateritë.

Specifikimet

  • Marka: COLOR TREE
  • Numri i modelit: SKU01741
  • Pajisjet e përputhshme: Daikin Air Conditioners (Specific models listed in Introduction)
  • Burimi i energjisë: 2 x bateri AAA (nuk përfshihen)
  • Karakteristikat e veçanta: Infrared, Pre-Programmed
  • Ngjyra: Black (Remote body is typically white/light grey with black accents)

Garancia dhe Mbështetja

This product is typically covered by the retailer's standard return policy. For specific warranty information or technical support, please refer to the seller or the original purchase documentation.

For further assistance, please contact your point of purchase.
