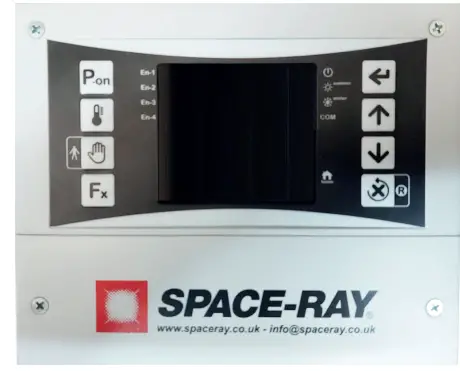

SPACE-RAY SCB30 Time and Temperature Controller
Specifications
- Model: SCB30
- Maximum Zones: 4
- Compatible with: Unitary Radiant Tube, Radiant Plaque & Electric Radiant Heaters
Installation
Follow the installation instructions provided in the manual to set up the SCB30 time and temperature controller.
Setting Up The Controller
- Language: Set the language for the controller interface.
- Temperature Scale: Choose between Celsius or Fahrenheit.
- Number of Heating Zones: Configure the number of zones to be controlled.
- Date & Time: Set the current date and time on the controller.
- Setting The Temperature: Adjust the desired temperature settings for each zone.
- Timer Programs: Create and manage timer programs for heating schedules.
Using The Controller
- Switching Controller On/Off: Power on or off the controller as needed.
- Automatic/Manual Operation: Choose between automatic or manual operation modes.
- Summer/Winter Mode: Switch between summer and winter modes for heating control.
- Override Function: Override preset settings for immediate adjustments.
- Zone Enable/Disable: Enable or disable specific zones for heating control.
Frequently Asked Questions (FAQ)
Q: What is the warranty period for the SCB30 controller?
A: The warranty period for the SCB30 controller is twelve months from the date of shipment.
Q: How many zones can be controlled by a single SCB30 controller?
A: A maximum of four zones can be controlled by a single SCB30 controller.
Documents / Resources
 |
SPACE-RAY SCB30 Time and Temperature Controller [pdf] Instruction Manual SCB30 Time and Temperature Controller, SCB30, Time and Temperature Controller, Temperature Controller, Controller |
