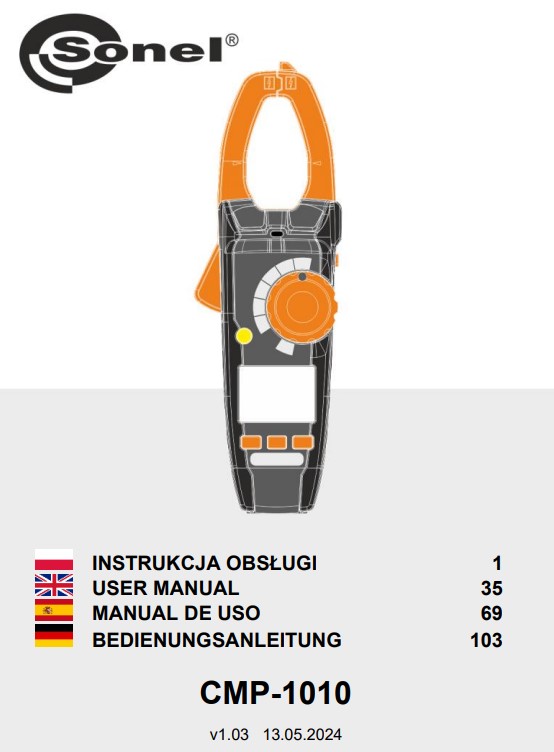

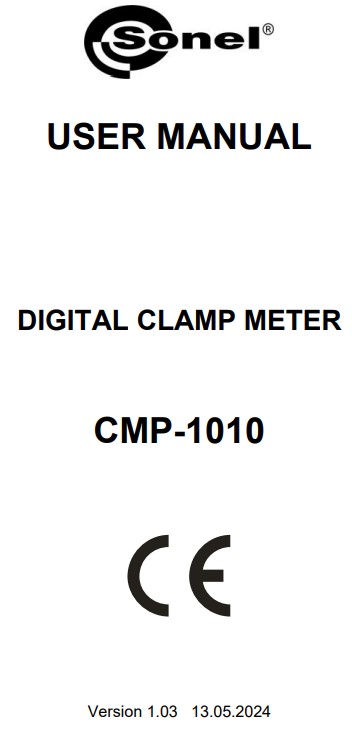

Sonel CMP-1010 Multimeter True RMS User Manual
“`
CMP-1010 True RMS multimeter is intended for measuring direct and alternating voltage, direct and alternating current, resistance, capacitance, frequency, duty cycle (filling) and temperature and for testing diodes and circuit continuity.
The most important features of CMP-1010 include: · possibility of carrying out measurements in the output cir-
cuits of inverters and frequency converters, · non-contact voltage detector, · automatic and manual range setting, · REL function for relative measurements, · PEAK MAX/PEAK MIN function for displaying maximum and min-
imum peak values, · the INRUSH function captures the starting current precisely in the
beginning of 100-millisecond period when the device is just started, · HOLD function used to maintain the read-pot on the me-
ter screen, · backlight of the screen to read the measurement results in
poor light, · built-in flashlight for lighting the measurement location, · sound signal for circuit continuity, · AUTO-OFF function, · 4-digit display (read-out 6000).
1 Introduction
Thank you for purchasing Sonel multimeter. CMP-1010 meter is a modern, easy and safe measuring device. Please acquaint yourself with this manual in order to avoid measuring errors and prevent possible problems in operation of the meter.
This manual contains three types of warnings. They are presented as a framed text describing the possible risks for the user
and the device. Texts WARNING describe situations, which may endanger user’s life or health, when instructions are not fol-
lowed. Texts
CAUTION! begin a description of a situation,
which may result in device damage, when instructions are not fol-
lowed. Indication of possible problems is preceded by symbol .
WARNING · CMP-1010 meter is designed to measure the AC/DC cur-
rent and voltage, frequency, resistance, capacitance, as well as to test the circuit continuity and diodes. Any application that differs from those specified in the present manual may result in a damage to the device and constitute a source of danger for the user. · CMP-1010 meter must be operated only by appropriately qualified personnel with relevant certificates authorising the personnel to perform works on electric systems. Unauthorized use of the meter may result in its damage and may be a source of serious hazard to the user. · Before operating the device, read thoroughly this manual and observe the safety regulations and guidelines provided by the producer. Failure to follow instructions specified in this manual may result in a damage to the device and be a source of serious hazard to the user.
CMP-1010 USER MANUAL
39
2 Safety
2.1 General rules
In order to provide conditions for correct operation and the correctness of the obtained results, the following recommendations must be observed: · before using the meter read carefully this manual, · the meter should be operated only by qualified persons that have
passed health and safety training, · be very careful when measuring voltages exceeding (as per IEC
61010-1:2010/AMD1:2016):
Normal locations 60 V DC 30 V AC RMS 42.4 V AC of peak value
Wet locations 35 V DC 16 V RMS 22.6 V AC of peak value
as they generate a potential risk of electric shock, · do not exceed the maximum limits of the input signal, · during the voltage measurements do not switch the device in the
current or resistance measuring mode and vice versa, · when changing ranges, always disconnect the test leads from the
tested circuit, · hold the measuring probes by the spot provided, restricted by a spe-
cial barrier to avoid accidental contact with exposed metal parts, · If during the measurement symbol OL appears on the screen, it indi-
cates that the measured value exceeds the measurement range, · It is unacceptable to operate:
a damaged meter which is completely or partially out of order, a device with damaged insulation of test leads, a meter stored for an excessive period of time in disadvan-
tageous conditions (e.g. excessive humidity). · repairs may be carried out only by an authorised service point.
40
CMP-1010 USER MANUAL
WARNING
· Never start the measurements if you have wet or damp hands.
· Do not perform measurements in explosive atmosphere (e.g. in the presence of flammable gases, vapours, dusts, etc.). Using the meter in such conditions may result in sparking and cause an explosion.
The limit values of the input signal
Function
The maximum input value
A DC, A AC
1000 A
V DC, V AC
1000 V DC/AC RMS
Voltage frequency, duty cycle 1000 V DC/AC RMS
Resistance, continuity, diode test, capacitance, temperature
300 V DC/AC RMS
2.2 Safety symbols This symbol located near another symbol or terminal, indicates that the user should read the further information contained in the manual.
This symbol located near the terminal, indicates that in normal use there is a possibility of dangerous voltages.
Protection class II double insulation
Terminals with this marking cannot be connected to a circuit where the voltage to ground exceeds the maximum safe voltage of the device.
CMP-1010 USER MANUAL
41
3 Preparing the meter for operation
After purchasing the meter, check whether the content of the package is complete.
Before performing the measurement: · make sure that the battery level is sufficient for measurements, · check whether the meter casing and insulation of the test leads
are not damaged, · to ensure consistent measurement results it is recommended to con-
nect black lead to COM terminal and red lead to other terminals, · when the meter is not in use, set the function switch in OFF position.
The device has the AUTO-OFF function triggered after 30 minutes of user inactivity. To turn the meter on again, set the function switch to OFF position and then set it at the desired function.
WARNING
· Connecting wrong or damaged leads may cause electric shock.
· The meter must not be connected to the voltage source when it is set to current or resistance measurement or to diode test. Failure to observe this precaution may damage the meter!
When using the meter, be sure to: · discharge capacitors in the tested power sources, · disconnect the power supply when measuring the resistance and
diode tests, · turn off the meter and disconnect test leads before removing the
back cover to replace the batteries.
42
CMP-1010 USER MANUAL
WARNING
Do not use the meter if the cover of battery compartment is removed.
It is possible that in certain low ranges of AC or DC voltage, when the meter is not connected to the leads, the screen will show random and variable readings. This is a normal phenomenon, which results from the input sensitivity with high input resistance. When connected to a circuit, the read-out will stabilize and the meter will provide the correct value.
CMP-1010 USER MANUAL
43
4 Functional description 4.1 Measuring terminals and functions
44
CMP-1010 USER MANUAL
Non-contact voltage detector
Current clamp
Flashlight
Indicator light of the non-contact voltage detector
Button HOLD /
· HOLD mode freezing the measurement results on the display (press briefly)
· flashlight mode (press and hold)
Clamp-opening trigger
Rotary switch
Function selection:
· 1000A measurement of direct and alternating current up to
1000 A
· 600A measurement of direct and alternating current up to
600 A
· Temp ºC ºF temperature measurement
·
CAP measurement of resistance, continuity, diode
test, measurement of capacitance
· measurement of direct voltage
· Hz% measurement of alternating voltage, measurement of frequency and duty cycle
· OFF the meter is switched off
· LoZ Hz% low impedance measurement of alternating voltage, measurement of frequency and duty cycle
CMP-1010 USER MANUAL
45
Button REL
o REL mode press briefly:
Reset display (DC current measurement)
Displaying the measurement result related to the reference value (other measuring functions)
o Activating the backlight of the display (press and hold)
LCD display
Function buttons
· MODE / INRUSH button The choice of sub-functions and modes assigned to the selected measurement function
o Changing the measurement mode in functions: A / temperature
measurement / resistance / capacitance / continuity / diode test / V / frequency / duty cycle (press briefly)
o Displays the starting current (press and hold)
· RANGE button Ustawianie zakresu pomiarowego:
o automatic (press and hold) o manual (press briefly)
· PEAK / VFD button
o Displays peak value of the measured signal (press briefly) o Measurement of current and voltage behind the inverter, fre-
quency converter, in the VFD system (press and hold)
COM measuring terminal
Measuring input, common for all measuring functions excluding current.
Measurement terminal VHz%
CAPTemp
Measuring input for measurements other than current measurement.
46
CMP-1010 USER MANUAL
4.2 Display
Auto-off mode
AUTO Automatic range setting
Diode test
Continuity test
P
Peak value
MAX / MIN Maximum / Minimum value
REL Relative measurement
H
HOLD function activated
VFD
Measurement behind the inverter, frequency converter, in the VFD system
INRUSH Inrush current
n / µ / m / k / M The prefix of multiple measurement unit
V
Voltage measurement
A
Current measurement
F
Measurement of capacitance
Measurement of resistance
Hz
Measurement of frequency
%
Duty cycle measurement
°C / °F Temperature measurement in Celsius / Fahrenheit degrees LoZ Low-impedance measurement
DC
Constant signal
AC
Alternating signal
Low battery
Negative read-out value
OL
Exceeded measurement range
CMP-1010 USER MANUAL
47
4.3 Leads The manufacturer guarantees the correctness of read-outs only
when original test leads are used.
WARNING Connecting wrong leads may cause electric shock or measurement errors.
· The probes are equipped with additional removable tip guards.
· The probes must be stored in a designated area.
48
CMP-1010 USER MANUAL
5 Measurements
The content of this chapter should be thoroughly read and understood since it describes methods of measurements and basic principles of interpreting measurement results.
5.1 Current measurement
WARNING Disconnect the test leads before measuring current using clamp.
To perform the current measurement: · set the rotary switch at 600A / 1000A , · press MODE/INRUSH button to display the following symbol:
, if you are measuring alternating current, , if you are measuring direct current, · use the clamp-opening trigger and attach the clamps on the tested conduit. Only one conduit must be within the testing range of the clamps, · read the measurement result on the display.
If DC current is measured and the meter is not attached to the tested circuit, but it still indicates a non-zero value, then you must reset it by pressing and holding REL button.
CMP-1010 USER MANUAL
49
5.2 Non-contact voltage detector
WARNING
· The detector is designed to detect the presence of a voltage, not for determining its absence.
· Electric shock hazard. Before using the tester, check if its operational by testing it on a known AC voltage (i.e. next applicable socket with live voltages).
To activate the detector: · set the rotary switch at any position, · touch the tip of the detector to the tested object. If the AC voltage is present, the indicator light will glow red.
· The wires in the extension cords are often twisted. For best results, move the tip of the detector along the wire to locate the live line.
· The indicator has a high sensitivity. It can be randomly actuated by static electricity or other energy sources. This is normal.
· The type and thickness of the insulation, distance from the power source, shielded cables and other factors may affect the operation of the tester. If you are unsure about the test result, check the presence of voltage in a different way.
50
CMP-1010 USER MANUAL
5.3 Voltage measurement
WARNING · Electric shock hazard. The ends of measuring
probes, due to their length, may not reach the live parts inside some network connections of lowvoltage electrical equipment, because the contacts are arranged inside the sockets. In such a case, the read-out will be 0 V with the simultaneous presence of voltage in the socket. · Before acknowledging the absence of voltage in the socket make sure that the ends of the of the probe touch the metal contacts inside the socket.
CAUTION! Do not measure the voltage when an electric motor located within the circuit is being switched on or off. Resulting voltage spikes may damage the meter.
To perform AC voltage measurement:
· set the rotary switch at (direct voltage) or Hz% (alternating voltage),
· connect black test lead to COM terminal, and red test lead to
VHz%
CAPTemp terminal,
· contact the tips of test probes to the points of measurement, · read the measurement result on the display.
CMP-1010 USER MANUAL
51
5.4 Frequency measurement
To perform frequency measurement:
· set the rotary switch at Hz% or LoZ Hz%,
· press MODE/INRUSH button to display Hz on the screen,
· connect black test lead to COM terminal, and red test lead to
VHz%
CAPTemp terminal,
· contact the tips of test probes to the points of measurement,
· read the measurement result on the display.
5.5 Measurement % of duty cycle (pulse filling indicator)
To perform the measurement:
· set the rotary switch at Hz% or LoZ Hz%,
· press MODE/INRUSH button, until symbol % is shown on the display,
· connect black test lead to COM terminal, and red test lead to
VHz%
CAPTemp terminal,
· contact the tips of test probes to the points of measurement,
· read the measurement result on the display.
52
CMP-1010 USER MANUAL
5.6 LoZ measurement (elimination of interference and induced voltages)
Measurement function in ‘LoZ’ mode eliminates the influence or interference voltages or induced voltages, making the measurement more accurate and reliable. These voltages may occur due to capacitive feedback between the live conductors and the unused conductors located in the vicinity:
· set the rotary switch at LoZ Hz%,
· press MODE/INRUSH button to display the following symbol:
V AC if you are measuring alternating voltage,
Hz if you are measuring frequency,
% if you are measuring duty cycle,
· connect black test lead to COM terminal, and red test lead to
VHz%
CAPTemp,
· contact probe blades to measurement points,
· read the measurement result on the display.
5.7 Measurement of resistance
WARNING
Do not perform measurements on the circuit under the voltage. Before the measurement disconnect the power and discharge capacitors.
To perform measurement of resistance:
· set the rotary switch at
CAP,
· connect black test lead to COM terminal, and red test lead to
VHz%
CAPTemp terminal,
· contact the tips of test probes to the points of measurement; the
best solution is to disconnect one side of the tested element, to
prevent the remaining part of the circuit interfere with the read-out
of the resistance value,
· read the measurement result on the display.
CMP-1010 USER MANUAL
53
5.8 Circuit continuity test
WARNING
Do not perform measurements on the circuit under the voltage. Before the measurement disconnect the power and discharge capacitors.
To perform the continuity test: · set the rotary switch at
CAP,
· press MODE/INRUSH button to display on the screen,
· connect black test lead to COM terminal, and red test lead to
VHz%
CAPTemp terminal,
· contact the tips of test probes to the points of measurement,
· read the measurement result on the display; the beep will be acti-
vated when resistance values are below approx. 50 .
5.9 Diode test
WARNING
Do not perform measurements on the circuit under the voltage. Before the measurement disconnect the power and discharge capacitors. Do not test the diode under voltage.
To perform the diode test: · set the rotary switch at
CAP,
· press MODE/INRUSH button, to display
V on the screen,
· connect black test lead to COM terminal, and red test lead to
VHz%
CAPTemp terminal,
· contact the tips of test probes to the diode. The red test probe
should contact the anode and the black should contact cathode,
· read the test result on the display the forward voltage is displayed.
For a typical silicon rectifier diode, it is approx. 0.7 V, and for
a germanium diode it is approx. 0.3 V
54
CMP-1010 USER MANUAL
For LEDs with a low power, typical voltage value is in the range of 1.2…5.0 V depending on the colour.
If the diode is polarized in the reverse direction, or there is a break in the circuit, the display will show OL.
When the diode is shorted, the meter will show a value near 0 V, · after completing the measurements, remove test leads from the
terminals of the meter.
5.10 Measurement of capacitance
WARNING
Risk of electric shock. Disconnect the power supply from the tested capacitor and discharge all capacitors before any starting capacity measurements.
To perform the measurement: · set the rotary switch at
CAP,
· press MODE/INRUSH button to display nF on the screen,
· connect black test lead to COM terminal, and red test lead to
VHz%
CAPTemp terminal,
· contact the probe tips to the tested capacitor,
· read the measurement result on the display.
CMP-1010 USER MANUAL
55
5.11 Temperature measurement
To perform the measurement:
· set the rotary switch at Temp ºC ºF, · to change the unit, press MODE/INRUSH,
· place the adapter of the temperature probe in COM terminal
(black leg) and VHz%
CAPTemp (red leg):
· place the temperature probe in the adapter, as shown in the
figure:
thin pin of the probe (marked as +) fits to terminal +;
thick pin of the probe (marked as K) fits to terminal ;
reversed connection of the probe is mechanically
impossible,
· contact the head of the temperature probe to the device under
test. Maintain the contact of the probe head with the part of the
device under test, until the reading stabilizes.
· read the measurement result on the display,
· after completing the measurements, disconnect the probe from
the meter.
CAUTION!
Risk of burns. The temperature probe heats up, adapting to the temperature of tested object.
56
CMP-1010 USER MANUAL
6 Special features
6.1 Button REL
6.1.1 REL function This mode enables a measurement relative to a reference value. · To enable the mode, press briefly REL . Then, the displayed
readout value is taken as the reference value, and the readout will be reset. · From this moment, the readings will be presented as the ratio of the measured value to the reference value. · To enable the mode, press REL .
The displayed main result is the difference between the reference value (read-out at the moment of activating REL mode) and the current read-out. Example: if the reference value is 20 A, and the current reading is 12.5 A, then the main result on the display will be -7.5 A. If the new reading is identical to the reference value, then the result will be zero.
· When the function is activated, the automatic adjustment of the measuring range is not available.
· If the reading is outside the measurement range, symbol OL is displayed In this situation, turn off the function and manually switch to a higher range.
· This function is not available for diode test, continuity test and duty cycle.
6.1.2 Display backlight
Pressing and holding REL button for 2 seconds will turn ON/OFF the display backlight function.
CMP-1010 USER MANUAL
57
6.2 RANGE button The button is used to set the measuring range.
To enable the automatic function, press and hold RANGE button longer than 1 second.
To manually toggle through the measuring ranges, press RANGE button.
6.3 Button MODE/INRUSH
6.3.1 Changing the measurement mode Press briefly MODE/INRUSH button to switch between the
available measurement modes.
6.3.2 INRUSH function The INRUSH function captures the starting current precisely in
the beginning of 100-millisecond period when the device is just started. To perform the measurement: · activate the AC measurement, · press and hold MODE/INRUSH button, · fasten the clamp on the cord supplying power to the tested object, · turn ON the tested object, · read the results.
To disable the mode, press and hold the MODE/INRUSH button.
· This function is available only when measuring AC current. · While INRUSH is active, autoranging is disabled, therfore it is advised
to start the function after connecting test leads to the measurement point. Running INRUSH before that may cause overrange symbols to appear.
58
CMP-1010 USER MANUAL
6.4 PEAK/VFD button
6.4.1 PEAK MAX/PEAK MIN function PEAK function allows user to record very short alternating volt-
age surges. The meter will update the display each time a lower negative, or
higher positive peak occurs. Auto Power Off feature will be disabled automatically in this mode.
To activate the mode, press briefly the PEAK/VFD button. To disable the mode, press and hold the PEAK/VFD button.
· This function is available only when measuring AC voltage. · While PEAK is active, autoranging is disabled, therfore it is advised to
start the function after connecting test leads to the measurement point. Running PEAK before that may cause overrange symbols to appear.
6.4.2 VFD function To measure the AC voltage behind the inverter, frequency con-
verter or in the VFD system: · set the rotary switch to the voltage or current measurement posi-
tion, · press and hold the PEAK/VFD button until the “VFD” symbol ap-
pears. To disable the mode, press and hold the PEAK/VFD button.
CMP-1010 USER MANUAL
59
6.5 Button HOLD
6.5.1 HOLD function
This function is used to ‘freeze’ the measurement result on the
display. To do this, briefly press HOLD
button. When the func-
tion is enabled, the display shows symbol H.
To return to the normal operation mode of the device, press
HOLD button again.
6.5.2 Flashlight function Briefly press HOLD , to turn on or off the flashlight mode.
6.6 Auto-Off
The meter automatically shuts off after 30 minutes of user inactivity. Symbol in the display indicates activated function.
Auto-off function may be temporarily disabled. For this purpose: · set the rotary switch at OFF position, · press and hold MODE/INRUSH button, · set the rotary switch at the desired measuring function, · wait until the meter reaches the measurement readiness, · release MODE/INRUSH button. When the automatic shutdown is
deactivated, the display does not show .
Each pass of the rotary switch through “OFF” position with non-pressed MODE/INRUSH button, will activate again the Auto-Off function.
60
CMP-1010 USER MANUAL
7 Replacing the batteries
WARNING To avoid electric shock, do not use the meter if the battery compartment cover is not in place or is not properly fastened.
CMP-1010 is powered by by three LR03 AAA 1.5 V batteries. It is recommended to use alkaline batteries.
To replace the batteries: · set the rotational function selector at OFF, · remove test leads from the terminals of the meter. · turn the fixing screw of the compartment cover to the position:
· remove the cover, · remove the batteries and insert a new ones, observing the polarity, · put on the cover and turn the fixing screw to the position:
· While performing the measurements with the low battery symbol displayed, the user must be aware of additional measurement uncertainties or unstable operation of the device.
· If the meter does not work properly, check the batteries in order to ensure that they are in proper condition and properly installed in the device.
CMP-1010 USER MANUAL
61
8 Maintenance and care
The digital multimeter has been designed for many years of reliable use, provided that the following recommendations are observed for its maintenance and care:
1. THE METER MUST BE DRY. Wipe the dampened meter.
2. THE METER MUST BE USED AND STORED IN NORMAL TEMPERATURES. Extreme temperatures may shorten the life of electronic components and distort or melt plastic parts.
3. THE METER MUST BE HANDLED CAREFULLY AND GENTLY. Dropping the meter may damage its electronic elements or the housing.
4. THE METER MUST BE KEPT CLEAN. From time to time wipe the housing with a damp cloth. DO NOT use chemicals, solvents or detergents.
5. USE ONLY NEW BATTERIES OF RECOMMENDED SIZE AND TYPE. Remove the old or discharged batteries from the meter to avoid leakage and damage.
6. IF THE METER IS TO BE STORED FOR LONGER THAN 60 DAYS, remove the batteries and keep them separately.
The electronic system of the meter does not require maintenance.
62
CMP-1010 USER MANUAL
9 Storage
During the storage of the device, the following recommendations must be observed: · disconnect the test leads from the meter, · make sure that the meter and accessories are dry, · when the device is to be stored for longer time, remove the batteries.
10 Dismantling and disposal
Worn-out electric and electronic equipment should be gathered selectively, i.e. it must not be placed with waste of another kind.
Worn-out electronic equipment should be sent to a collection point in accordance with the law of waste electrical and electronic equipment.
Before the equipment is sent to a collection point, do not dismantle any elements.
Observe local regulations concerning disposal of packages, waste batteries and accumulators.
CMP-1010 USER MANUAL
63
11 Specifications
11.1 Technical data “m.v.” means a standard measured value.
True RMS measurement for AC current
Range
Resolution
Accuracy
600.0 A
0.1 A
(2.5% m.v. + 8 digits)
1000 A
1 A
(2.8% m.v. + 8 digits)
· All AC current ranges are specified from 10% to 100% of range
· Frequency range: 50 Hz…60 Hz · Overload protection: 1000 A
DC current measurement
Range
Resolution
600.0 A
0.1 A
1000 A
1 A
· Overload protection: 1000 A
Accuracy (2.5% m.v. + 5 digits) (2.8% m.v. + 5 digits)
True RMS voltage measurement
Range
Resolution
Accuracy for f = 50 Hz…40 kHz
4.000 V
0.001 V
40.00 V 400.0 V
0.01 V 0.1 V
(1.5% m.v. + 5 digits)
1000 V
1 V
· All AC voltage ranges are specified from 10% to 100% of range
· Input impedance: 8.5 M · Frequency range: 50 Hz…1000 Hz · Overload protection: 1000 V DC/AC RMS
64
CMP-1010 USER MANUAL
DC voltage measurement
Range
Resolution
Accuracy
600.0 mV
0.1 mV
(0.5% m.v. + 5 digits)
6.000 V
0.001 V
60.00 V 600.0 V
0.01 V 0.1 V
(1.5% m.v. + 2 digits)
1000 V
1 V
· Input impedance: 10 M · Overload protection: 1000 V DC/AC RMS
LoZ measurement
Range
Resolution
Accuracy
6.000 V
0.001 V
60.00 V
0.01 V
(3.0% m.v. + 40 digits)
300.0 V
0.1 V
· All AC voltage ranges are specified from 10% to 100% of range
· Input impedance: 300 k · Overload protection: 1000 V DC/AC RMS
Resistance measurement
Range
Resolution
Accuracy
600.0 6.000 k 60.00 k 600.0 k 6.000 M 60.00 M
0.1 0.001 k 0.01 k 0.1 k 0.001 M 0.01 M
(1.0% m.v. + 4 digits)
(1.5% m.v. + 2 digits)
(2.5% m.v. + 3 digits) (3.5% m.v. + 5 digits)
· Overload protection: 300 V DC/AC RMS
CMP-1010 USER MANUAL
65
Capacitance measurement
Range
Resolution
Accuracy
60.00 nF
0.01 nF
(4.0% m.v. + 20 digits)
600.0 nF
0.1 nF
6.000 µF 60.00 µF
0.001 µF 0.01 µF
(3.0% m.v. + 5 digits)
600.0 µF
0.1 µF
6.000 mF
0.001 mF
(5.0% m.v. + 5 digits)
60.00 mF
0.01 mF
(5.0% m.v. + 8 digits)
100.0 mF
0.1 mF
(5.0% m.v. + 15 digits)
· Overload protection: 300 V DC/AC RMS
Frequency measurement
Range
Resolution
Accuracy
9.999 Hz
0.001 Hz
99.99 Hz
0.01 Hz
999.9 Hz
0.1 Hz
(1.2% m.v. + 5 digits)
9.999 kHz
0.001 kHz
99.99 kHz
0.01 kHz
· Sensitivity: >5 V RMS for 20…80% of duty cycle and <100 kHz · Frequency measured starting from 1 Hz
· Overload protection: 1000 V DC/AC RMS
Duty cycle measurement
Range
Resolution
10.0…90.0%
0.1%
· Pulse amplitude: 5 V · Pulse width: 0.1 ms…100 ms · Frequency: 40 Hz…10 kHz
Accuracy (1.2% m.v. + 2 digits)
Temperature measurement
Range
Resolution
Accuracy
-20.0…+1000C 0.1 or 1C
± (3% m.v. + 5C)
-4.0…+1832F 0.1 or 1F
± (3% m.v. + 9F)
· The accuracy of the temperature probe is not taken into account · Overload protection: 300 V DC/AC RMS
66
CMP-1010 USER MANUAL
11.2 Operating data
a) measurement category according to IEC 61010-1……………………………………….. CAT IV 600 V (III 1000 V) b) type of insulation ……………………………………………………………………………………………………..double, Class II c) housing type ………………………………………………………………………………………………………… double-composite d) degree of housing protection acc. to EN 60529 …………………………………………………………………………..IP30 e) pollution degree……………………………………………………………………………………………………………………………. 2 f) opening of measurement clamp ……………………………………………………………………………………. 35 mm (1.4″) g) power supply of the meter ………………………………………………………………………………..3 x AAA 1.5 V battery h) diode test …………………………………………………………………………………………………I = 0.3 mA, U0 < 3.2 V DC i) continuity test ……………………………………………….acoustic signal for R < 50 , measuring current <0.5 mA j) indication for range exceeding ………………………………………………………………………………………….OL symbol k) low battery indication ………………………………………………………………………………………………….symbol
l) measurement rate ……………………………………………………………………………….. 2 measurements per second m) INRUSH function
sampling time…………………………………………………………………………………… 48 Hz (RMS), 400 kHz (clock) integration time …………………………………………………………………………………………………………………. 100 ms sensitivity………………………………………………………………………………………………………………………….>3 A AC n) crest factor for 50/60 Hz and indications in the range of 5…100% range of 300 A ………………………………………………………………………………………………………………………… 3.0 range of 450 A ………………………………………………………………………………………………………………………… 2.0 range of 1000 A ………………………………………………………………………………………………………………………. 1.0 range of 300 V ………………………………………………………………………………………………………………………… 3.0 range of 600 V ………………………………………………………………………………………………………………………… 1.5 range of 1000 V ………………………………………………………………………………………………………………………. 1.0 o) range of the non-contact voltage detector ………………………………………………. 100…1000 V AC (50/60 Hz) p) response time for PEAK function …………………………………………………………………………………………….. 1 ms q) temperature sensor ………………………………………………………………………………………….. type K thermocouple r) input impedance V AC ……………………………………………………………………………………………………………………………….8.5 M V DC………………………………………………………………………………………………………………………………..10 M LoZ ……………………………………………………………………………………………………………………………………300 k s) compatibility with HVDC adapters ………………………………………………………………………………………………. yes t) AC read-out ………………………………………………………………………………………….. True RMS (A AC and V AC) u) AC bandwidth ………………………………………………………………………………………………………………..50…400 Hz v) display…………………………………………………….4 digit LCD with backlit, 6000 counts with function indicators w) dimensions……………………………………………………………………………………………………………250 x 90 x 40 mm x) meter weight ………………………………………………………………………………………………………………………….. 329 g y) meter weight (without batteries) ………………………………………………………………………………………………. 293 g
z) operating temperature……………………………………………………………………………………………………… +5..+40C
aa) operating humidity…………………………..< 80% for temp. 31C decreasing linearly to 50% at temp. 40C bb) storage temperature……………………………………………………………………………………………………….. -20..+60C
cc) storage humidity…………………………………………………………………………………………………………………….< 80% dd) drop test…………………………………………………………………………………………………………………………………… 2 m ee) maximum operating altitude………………………………………………………………………………………………….. 2000 m ff) Auto-Off function …………………………………………………………………………………………………………………. 30 min gg) compliance with the requirements of the following standards
…………………………………………………………………. EN 61326-1, EN 61326-2, EN 301 489-1, EN 301 489-17 ……………………………………………………………………………IEC 61010-1, EN 61010-02-032, EN 61010-02-033 ………………………………………………….RoHS 2011/65/EU, (EU) 2015/863, EN 62479:2010, EN 50663:2017 hh) quality standard ………………………………………………………………………………………………………………..ISO 9001
CMP-1010 USER MANUAL
67
12 Manufacturer
The provider of guarantee and post-guarantee services is:
SONEL S.A. Wokulskiego 11 58-100 widnica
Poland tel. +48 74 884 10 53 (Customer Service)
e-mail: customerservice@sonel.com web page: www.sonel.com
CAUTION!
Service repairs must be performed only by the manufacturer.
Documents / Resources
 |
Sonel CMP-1010 Multimeter True RMS [pdf] User Manual CMP-1010 Multimeter True RMS, CMP-1010, Multimeter True RMS, True RMS, RMS |
