WO8001 | WO8002
LED lighting with remote control Grey
Dear customer, thank you for purchasing our product. Please read the following instructions carefully and follow them to serve you safely and to your full satisfaction. This will prevent misuse or damage. Avoid unprofessional handling of this appliance and always observe the electrical appliance usage guidelines. Do not hang or cover the luminaire with anything. Keep the instruction manual carefully. Installation must only be carried out by qualified personnel.
TECHNICAL PARAM ETERS
| WO8001 | WO8002 | |
| Voltage | 220-240V AC | 220-240V AC |
| Consumption | 48W for 4000K, 24W for 3000K and 6000K | 60W for 4000K, 32W for 3000K and 6000K |
| Luminous flux | 3360lm for 4000K, 1700lm for 3000K and 6000K | 4200lm for 4000K, 2100lm for 3000K and 6000K |
| Chromaticity | 3000K, 4000K, 6000K | 3000K, 4000K, 6000K |
| Coverage | IP20 | IP20 |
| LED lifetime | 20.000 hours | 20.000 hours |
| Dimensions | 380 x 80 mm | 490 x 80 mm |
| Operating temperature | -20°C to 50°C | -20°C to 50°C |
INSTALLATION
Switch off the power supply before installation!
- Insert the dowels into the pre-drilled holes.
- Remove the rear of the luminaire by turning it and thread the supply cable through the hole in the rear of the luminaire.
- Screw on the back of the luminaire.
- Connect the supply cable to the terminal block and make sure that the connection is correct.
- Rotate to attach the front of the luminaire to the rear.
- Switch on the power supply.

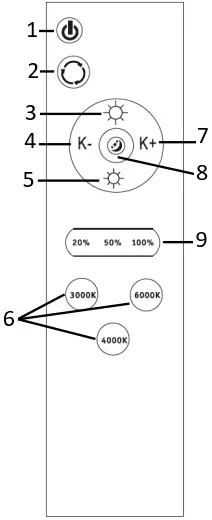

REMOTE CONTROL
- On/Off
- 3000K – 6000K
- Brightness +
- Chromaticity –
- Brightness –
- Chromaticity 3000K, 4000K, 6000K
- Chromaticity +
- Night lighting
- Brightness 20%/50%/100%
The light source of this luminaire is non-replaceable, at the end of its service life the entire luminaire must be replaced and disposed of in a designated place. This product contains a light source that for design reasons cannot be removed for verification and therefore the entire product is considered a light source. The manufacturer is not liable for any damage caused by improper use.
The product has been issued with a CE declaration of conformity in accordance with the applicable regulations. On request from the manufacturer: info@solight.cz, or downloadable from www.solight.cz/en.
Solight Holding, s.r.o., Na Brn 1972, Hradec Králové 500 06, Czech Republic.
