Nhanganyaya
The OUPES Mega 3 Portable Power Station, combined with the 2048Wh B2 Extra Battery, provides a robust and expandable power solution for various applications, from home backup to outdoor adventures. This system features a 3600W output, 5120Wh total capacity (with B2 battery), and utilizes durable LiFePO4 battery technology. It is designed for fast recharging and smart control via a dedicated mobile application.
Image: The OUPES Mega 3 Portable Power Station shown alongside its B2 Extra Battery, highlighting the core components of the system.
Mufananidzo: Kupfuuraview of the OUPES Mega 3's key features, including 3600W rated power, 3072Wh capacity, 0.8-hour charging time, RV/EV compatibility, portability, LiFePO4 battery, and smart app control.
Gadzirira
Package Zviri mukati
Usati watanga, iva nechokwadi chekuti zvese zviri mupakeji:
- 1x OUPES MEGA 3 3600W Power Station
- 1x B2 Extra Battery
- 1x AC Kuchaja Cable
- 1x Anderson to Anderson Cable
- 1x 7909 to Anderson Charging Cable
- 1x Car to Anderson Charging Cable
- 1x MC4 to Anderson Charging Cable
- 1x Chinyorwa cheMushandisi
- 1x Warranty Card
Kutanga Kuchaja
It is recommended to fully charge the OUPES Mega 3 before first use. The unit supports multiple charging methods:
- AC Wall Outlet (1800W): Fully recharges in approximately 1.8 hours.
- Solar Charging (up to 2100W): Fully recharges in approximately 2.5 hours with optimal solar input.
- AC + Solar Dual Charging (up to 3900W): Achieves full charge in approximately 0.8 hours.
Image: A visual comparison demonstrating the OUPES Mega 3's rapid charging capability, achieving full charge in 0.8 hours with AC + Solar Dual Charging, which is 53% faster than typical alternatives.
Image: A person connecting the OUPES Mega 3 to a wall outlet for fast AC charging, illustrating the ease of recharging the unit at home.
Image: The OUPES Mega 3 power station being charged by solar panels in an outdoor, natural environment, demonstrating its solar input capability.
Connecting the B2 Extra Battery
The B2 Extra Battery expands the total capacity of the Mega 3. Connect the B2 battery to the Mega 3 using the provided connection cable. Ensure a secure connection for optimal performance and capacity expansion.
Image: A visual representation of the OUPES Mega 3's expandable capacity, showing how additional B2 batteries can increase the total energy storage from 3.07kWh up to 15.36kWh.
Image: The OUPES Mega 3 power station with a B2 extra battery stacked on top and connected, illustrating the modular design for increased power capacity.
Operation
Understanding the Outlets
The OUPES Mega 3 offers 16 versatile outlets to power a wide range of devices:
- 5x AC Outlets (120V/3600W)
- 1x Car Output (12V/10A)
- 2x USB-A Outputs (QC 3.0)
- 1x AC TT-30 Output (120V/3600W)
- 2x USB-C Outputs (PD 100W)
- 1x Anderson Port (12V/50A)
- 2x DC Ports (2.5mm, 12V/10A)
Image: The OUPES Mega 3 power station in an outdoor setting, highlighting its array of 16 versatile outlets, including AC, USB-A, USB-C, Car, TT-30, Anderson, and DC ports.
Image: A detailed diagram illustrating the various input and output ports on the OUPES Mega 3 power station, including AC charge port, PV (Anderson) input, overload protection switch, extra battery port, and all output types.
Powering Appliances
The Mega 3 can power a wide range of household and outdoor appliances simultaneously. Its 3600W output is suitable for high-demand devices such as coffee machines, kettles, refrigerators, hairdryers, and air conditioners.
Image: A graphic illustrating the OUPES Mega 3's capability to power various household appliances, including microwave, washer, hair dryer, heater, coffee maker, upright freezer, air conditioner, and lawn mower, with estimated run times.
Image: The OUPES Mega 3 power station being used to power a laptop, projector, kettle, ice maker, and air fryer during a camping trip, demonstrating its utility for outdoor activities.
Image: The OUPES Mega 3 power station providing power to a light, blender, rice cooker, WiFi router, and TV in a home kitchen setting, showcasing its use as a home backup solution.
Image: The OUPES Mega 3 power station being used to power electric drills, cutting machines, electric hammers, lawn mowers, and air pumps in an outdoor work environment, demonstrating its utility for power tools.
Smart App Control
Monitor and control your OUPES Mega 3 using the dedicated OUPES app via Wi-Fi or Bluetooth. The app allows you to check real-time status, including remaining battery level, estimated running time, and input/output wattages, and customize settings as needed.

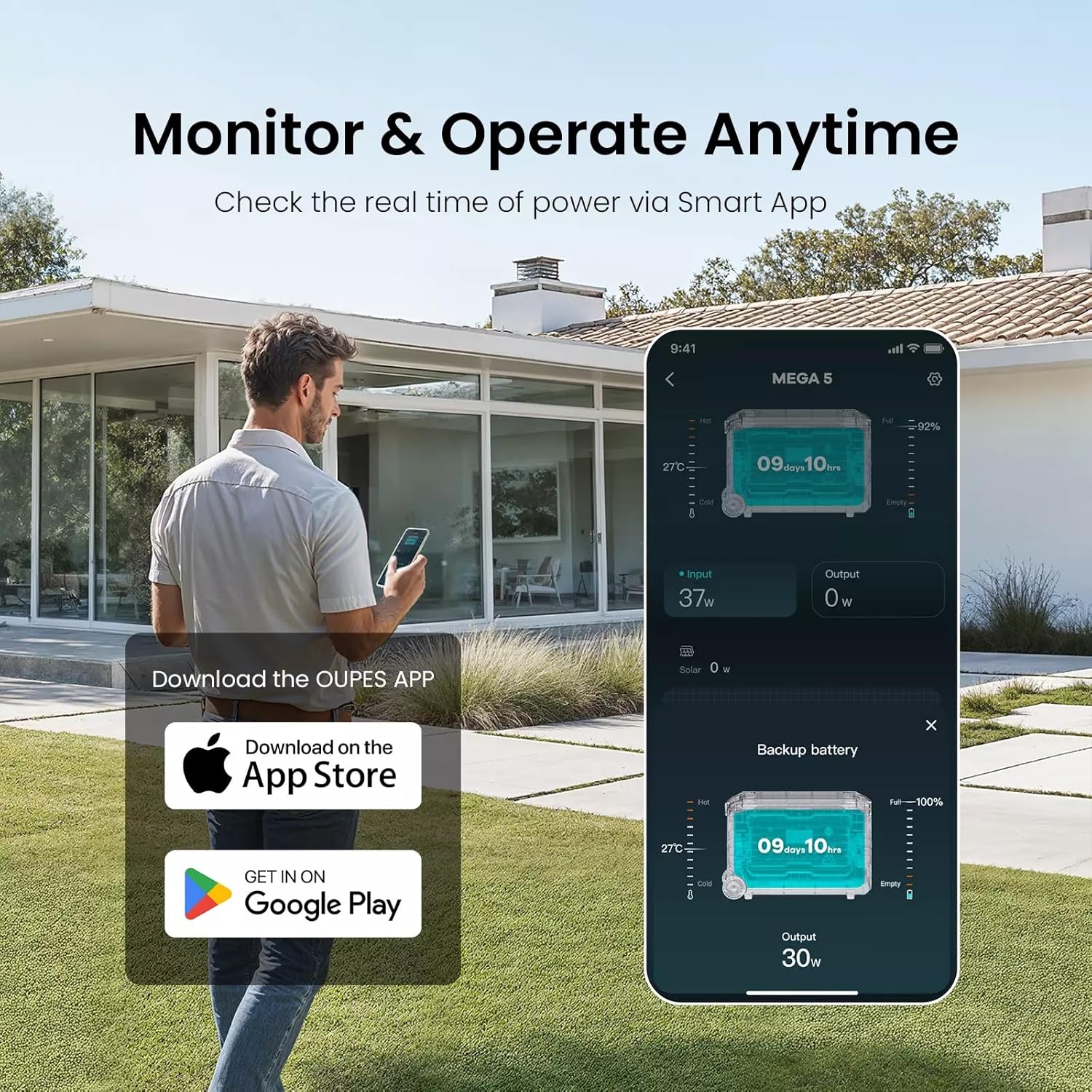

Image: A person using the OUPES mobile app to monitor the power station's status, with screenshots of the app interface showing battery level, estimated running time, and input/output details.
Image: Screenshots of the OUPES mobile application interface, demonstrating its capabilities for connecting via Wi-Fi or Bluetooth, adding equipment, and monitoring real-time power status and backup battery information.
Unterruptible Power Supply (UPS) Basa
The Mega 3 can function as an Uninterruptible Power Supply (UPS), automatically switching to battery power within 20ms in the event of a power outage, ensuring your connected devices remain powered without interruption.
Image: The OUPES Mega 3 power station connected to a desktop computer setup, illustrating its ability to provide uninterrupted power during outages by automatically switching to battery mode within 20ms.
Integration with Home Circuits
For more comprehensive home backup, the OUPES Mega 3 can be integrated with your home's electrical circuits using a Reliance Controls Pro/Tran 2 Transfer Switch Kit (sold separately). This allows you to power essential home appliances directly from the power station during outages.
Image: A diagram showing how the OUPES Mega 3 can be integrated with a home's main electrical panel via a transfer switch kit to provide backup power to household appliances like a microwave, washing machine, and refrigerator.
Maintenance
Battery Care
The OUPES Mega 3 uses an EV-grade LiFePO4 battery, known for its longevity and safety. To maximize battery lifespan:
- Avoid extreme temperatures. Store the unit in a cool, dry place.
- For long-term storage, discharge the battery to about 50% and recharge every 3-6 months.
- The LiFePO4 battery is rated for 3500+ cycles at 80% depth of discharge, designed to maintain good health for at least 10 years with proper care.
Image: A visual representation of the stable LiFePO4 battery technology used in the OUPES Mega 3, highlighting its 3500+ charge cycles and expected lifespan of at least 10 years.
Kuchenesa uye Kuchengeta
Keep the unit clean and free from dust and debris. Use a dry, soft cloth for cleaning. Ensure all ports are free from obstructions. When not in use, store the power station in a secure location away from direct sunlight and moisture.
Kugadzirisa matambudziko
This section addresses common issues you might encounter with your OUPES Mega 3 Power Station. For more detailed troubleshooting or issues not listed here, please refer to the full user manual or contact customer support.
- Chikamu Haibatiki: Ensure the power button is pressed and held for a few seconds. Check if the battery is completely depleted and try connecting to an AC power source.
- Hapana Zvinobuda Kubva KumaPorts: Verify that the specific output (AC, DC, USB) is enabled on the unit. Check the display for any error codes. Ensure the connected device's power consumption does not exceed the port's or the unit's maximum output.
- Slow Charging: Confirm that the charging cable is securely connected. If using solar, ensure panels are in direct sunlight and free from obstructions. Check the solar input voltage and current on the display to ensure it's within the specified range.
- Matambudziko eApp Connectivity: Ensure Bluetooth and/or Wi-Fi are enabled on your mobile device. Try restarting the OUPES app and the power station. Ensure the power station is within range of your Wi-Fi network or Bluetooth connection.
- Kudzivirirwa Kwekuwedzeredza Kwakashandiswa: If the unit shuts down or an overload warning appears, disconnect some devices. The unit's output capacity has been exceeded. Restart the unit after reducing the load.
Zvinotsanangurwa
| Feature | Tsanangudzo |
|---|---|
| Brand | OUPES |
| Model Name | S3 |
| Wattage (Unit) | 3072 Watt-maawa |
| Wattage (with B2 Battery) | 5120 Watt-maawa |
| Output Wattage (Kumhanya) | 3600 Watts |
| Output Wattage (Kutanga) | 3600 Watts |
| Voltage | 120 Volts (AC) |
| Fuel Type | Electric |
| Simba Source | Battery Powered |
| Item Weight | 88 Pondo |
| Product Dimensions | 25.2"L x 11.9"W x 17.2"H |
| Total Power Outlets | 13 (Note: Marketing states 16, likely including specific port types) |
| Bhatiri Type | LiFePO4 |
| MaBhatiri Ekutenderera | 3500+ cycles (to 80% DoD) |
| Charging Time (AC + Solar 3900W) | 0.8 Maawa |
| Max Solar Inzwa Zvinotaurwa | 2100W |
| Special Features | Electric Start, Portable, USB Port, UPS Function |
Warranty & Support
Warranty Information
The OUPES Mega 3 Portable Power Station comes with a 3-Yegore Warranty. OUPES offers a 5-year premium warranty, which is longer than the industry standard of 1-2 years, providing extended protection for your investment.
Image: A graphic highlighting OUPES's 5-Year Premium Warranty, emphasizing it as 5X longer protection compared to the industry standard of 1-2 years.
Mutengi Support
For any questions, technical assistance, or warranty claims, please contact OUPES customer support. Refer to the contact information provided in your product packaging or visit the official OUPES webnzvimbo yekutsigira zviwanikwa.
OUPES also offers a 30-day easy return policy for eligible purchases.
