Nhanganyaya
This manual provides essential instructions for the safe and efficient operation, assembly, and maintenance of your Yard Force GM B46E self-propelled lawn mower. Please read this manual thoroughly before using the product and keep it for future reference. The Yard Force GM B46E is a powerful and robust 46cm self-propelled thermal lawn mower, suitable for gardens up to 750m². It features a Briggs & Stratton 475IS Series 140cc engine with an electric Lithium-ion battery start system and a durable steel chassis.
Safety Information
YAMBIRO: Kukundikana kutevera iyi mirairo yekuchengetedza kunogona kukonzera kukuvara kwakakomba kana kufa.
- Pfekai zvinhu zvekudzivirira zvakakodzera nguva dzose, zvinosanganisira kudzivirira maziso, kudzivirira kunzwa, uye shangu dzakasimba.
- Chengetedza maoko nemakumbo kure nezvikamu zvinotenderera.
- Ensure the area is clear of other people, especially children and pets, before starting the mower.
- Usamboshandisa muchina wekucheka huswa hwakanyorova kana mvura ichinaya.
- Dzima injini uye bvisa waya yespark plug usati waita chero kugadzirisa, kuchenesa, kana kubvisa zvivhariso.
- Do not operate the mower if any guards or safety devices are damaged or missing.
- Dzorera mafuta munzvimbo ine mhepo yakanaka injini yadzima uye inotonhorera.
- Chengetedza mafuta mumudziyo unotenderwa munzvimbo inotonhorera, yakaoma.
- Be aware of the terrain; avoid steep slopes and uneven ground.
Gadzirira
1. Kuburitsa zvinhu uye Kubatanidza Kwekutanga
Carefully remove all components from the packaging. Assembly is required. Ensure all parts are present before proceeding.
Image: The Yard Force GM B46E self-propelled lawn mower, fully assembled with its orange grass collection bag. This image provides an overview chitarisiko chechigadzirwa.
2. Handlebar Assembly
Attach the handlebar to the mower body. Secure it using the provided quick clamps. Ensure the clamps dzakasimbiswa zvakasimba kudzivirira kufamba panguva yekushanda. Note: Some users have reported issues with plastic clamp durability; ensure proper alignment and avoid over-tightening. The ergonomic handlebar is fully foldable for easy storage.
3. Battery Installation and Charging (for Electric Start)
The Briggs & Stratton 475IS Series engine features an electric start system powered by a Lithium-ion battery. Locate the battery compartment and insert the fully charged battery. Ensure the battery is charged before first use. Refer to the separate battery charger manual for charging instructions.
Mufananidzo: Kuvhara view of the orange electric start button located on the mower's engine housing, indicating the "START" function.
4. Fuel and Oil Filling
Fill the fuel tank with fresh, unleaded gasoline. Check the engine oil level and fill with the recommended engine oil (refer to the engine manual for specific oil type and capacity). Do not overfill.
5. Kugadzirisa Kucheka Kureba
The cutting height is centrally adjustable with a single lever, offering 7 positions from 25mm to 75mm. Select the desired cutting height by moving the lever. For best results, avoid cutting more than one-third of the grass blade length at a time.
Image: A hand demonstrating the adjustment of the central cutting height lever, located near the rear wheel of the lawn mower.
6. Attaching the Grass Collection Bag
Attach the 55-liter hybrid grass collection bag to the rear of the mower. Ensure it is securely fitted. The bag features a fill indicator. The front comb allows for better airflow and grass collection.
Image: A person's hands are shown attaching the orange grass collection bag to the rear of the lawn mower, demonstrating the installation process.
Kushanda
1. Kutanga Injini
Ensure the fuel tank is filled and the oil level is correct. Press the electric start button to engage the engine. If the engine does not start immediately, wait a few seconds and try again. For cold starts, it may require 2-3 attempts.
2. Engaging Self-Propelled Drive
To engage the self-propelled function, squeeze the drive lever on the handlebar. Release the lever to disengage the drive.
3. Nzira dzekuchera
Mow in overlapping rows for an even cut. For best results, mow when the grass is dry. Avoid sudden turns and maintain a steady pace. The mower is designed for efficient grass collection and mulching.

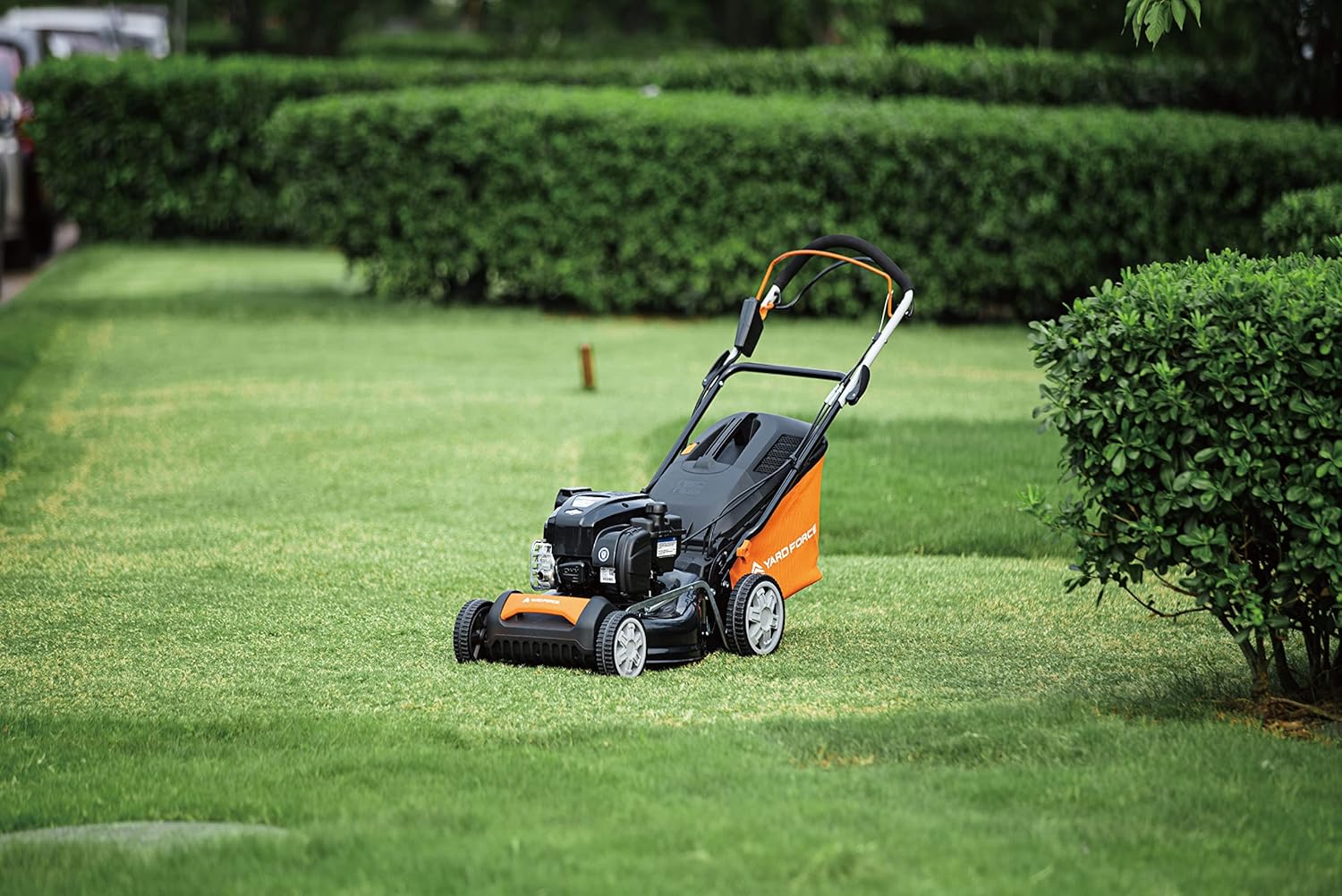

Image: The Yard Force lawn mower is shown in operation on a well-maintained green lawn, demonstrating its use in a garden setting.
4. Mulching Function
The mulching kit allows you to finely cut grass clippings and redistribute them onto the lawn. This returns nutrients to the soil, promoting healthier grass. To activate mulching, ensure the grass collection bag is removed and the mulching plug (if separate) is installed.
5. Kumisa Injini
Release the engine brake lever (typically located on the handlebar) to stop the engine. Wait for all moving parts to come to a complete stop before approaching the mower.
Maintenance
Kugadzirisa nguva dzose kunoita kuti muchina wako wekucheka uswa ushande zvakanaka uye kunoita kuti nguva yekushanda iwedzere. Gara uchibvisa waya yespark plug usati wagadzirisa.
- Kuchenesa: After each use, clean the underside of the mower deck to prevent grass buildup. Clean the exterior with a damp cloth. Do not use a high-pressure washer directly on the engine or electrical components.
- Blade Care: Ongorora blade nguva nenguva kuona kupinza uye kukanganisa. Chipande chakagomara chinogona kubvarura uswa, zvichitungamirira kune lawn isina kunaka. Rodza kana kutsiva blade sezvinodiwa.
- Kugadzirisa Injini:
- Kuchinja Oiri: Change the engine oil according to the schedule in the Briggs & Stratton engine manual.
- Mhepo Sefa: Clean or replace the air filter regularly to ensure proper engine breathing.
- Dzomoto Plug: Inspect and clean the spark plug periodically. Replace if worn.
- Grass Bag: Empty the grass bag frequently, especially when the fill indicator shows it's full, to maintain efficient collection and prevent clogging.
- Kuchengeta: Before storing for extended periods, ensure the fuel tank is empty or treated with a fuel stabilizer. Clean the mower thoroughly. Store in a dry, protected area with the handlebar folded for compactness.
Image: A detailed close-up of the Briggs & Stratton 475IS engine, highlighting its design and components on the lawn mower.
Kugadzirisa matambudziko
| Dambudziko | Zvinogona Kukonzera | Solution |
|---|---|---|
| Engine does not start or starts with difficulty. |
|
|
| Kuita kusina kunaka kwekucheka. |
|
|
| Kudedera kwakanyanyisa. |
|
|
Zvinotsanangurwa
| Feature | Detail |
|---|---|
| Model Number | GM B46E |
| Injini | Briggs & Stratton 475IS Series, 140cc |
| Kutanga Sisitimu | Electric (Lithium-ion battery) |
| Cutting Width | 46 cm |
| Kucheka Urefu Kugadziriswa | Central lever, 7 positions (25mm - 75mm) |
| Grass Collection Bag Capacity | 55 Liters (Hybrid type with fill indicator) |
| Mulching Basa | Yes (Mulching kit included) |
| Chassis Material | Alloy Steel |
| Recommended Lawn Size | Kusvika ku750 m² |
| Zviyero zveChigadzirwa (L x W x H) | 82.5 x 55 x 48 cm |
| Item Weight | 31 kg |
| Simba Source | Gas Powered |
| Operation Mode | Automatic (Self-propelled) |
| Gungano Rinodiwa | Ehe |
Warranty uye Support
Your Yard Force GM B46E lawn mower comes with a 2+1 year manufacturer's warranty. Iyi waranti inovhara kukanganisa mune zvigadzirwa uye magadzirirwo pasi pekushandiswa kwakajairwa. Ndapota chengetedza humbowo hwako hwekutenga kwezvichemo zvewaranti.
For technical support, spare parts, or warranty inquiries, please contact Yard Force customer service. Contact details can typically be found on the manufacturer's websaiti kana pane chigadzirwa kurongedza.
- Rutsigiro rwepamhepo: Visit the official Yard Force websaiti ye FAQ uye zviwanikwa zvekutsigira.
- Mabatiro evatengi: Refer to your product documentation for regional contact numbers or email addresses.
