SmartGen SGUE485 Communication Interface Conversion Module
OVERVIEW
SGUE485 Communication Interface Conversion Module can convert the communication interface from USB (SmartGen special) to isolated standard RS485. The module integrated RS485 interface chip which enable it to connect to RS-485 network.
PRODUCT FEATURES
- RS485 network can connect to maximum 32 nodes;
- Isolation Voltage: reach up to DC1000V;
- 35mm DIN-Rail Mounting;
- Modular design with pluggable terminals, compact structure, and easy to installation.
TECHNICAL PARAMETERS
| Item | Content |
| Operation Voltage | Controller USB port (5.0 V) continuous power supply |
|
RS485 Port |
Baud Rate：9600bps Stop Bit：1bit
Parity Bit：none |
| Case Dimension | 89.7*35.6*60.7mm(L*W*H) |
| Working Condition | Temperature：(-25~+70)°C Relative Humidity：(20~93)% |
| Storage Condition | Temperature：(-25~+70)°C |
| Weight | 0.072kg |

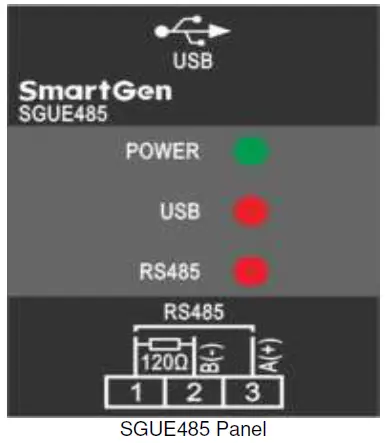

TERMINALS DESCRIPTION
| Terminal | Function | Cable Size | Remark | ||
| 1. |
RS485 |
COM |
0.5mm2 |
Communicate with host controller’s
RS485 port, baud rate: 9600bps. When communication is normal, RS485 indicator flashes. |
|
| 2. | B(-) | ||||
|
3. |
A(+) |
||||
| The USB port, communicate with | |||||
| controller, is used for power supply | |||||
|
USB |
Communication
power supply |
and |
USB Type B |
and data changing between module
and controller. POWER indicator is |
|
| normally light and USB indicator | |||||
| flashes. | |||||
TYPICAL APPLICATION
Single Unite Networking Connection:
Multi-controller Networking Connection:

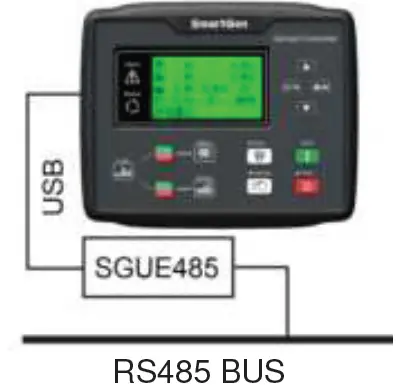

RS485 Communication Bus Connection:
Remark:
- Please make sure the USB indicator is under flash status before the SGUE485 module communicates with the controller; if not, SGUE485 is powered again.
- Please set each controller’s communication address (different from each other) before networking.
CASE DIMENSIONS AND INSTALLATION
