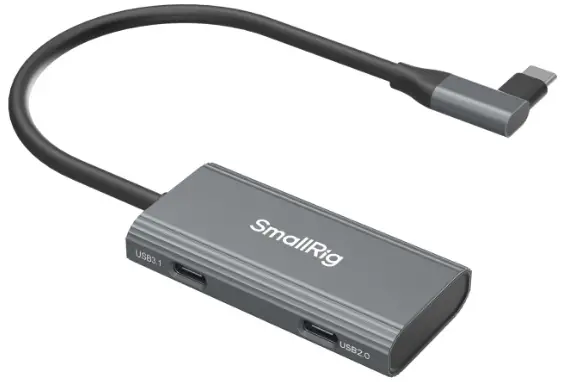

SmallRig PD/USB-C 3.1 USB-C 2.0 USB-C Hub 4-in-1 with Audio Adapter USB-C
Thank you for choosing SmallRig products.
Important Reminder
- Please keep the product dry and avoid contact with water or other liquids.
- Do not use the product in high-temperature, humid, or dusty environments.
- Keep the product away from flammable materials and avoid prolonged use.
- If any damage is found on the product, please stop using it immediately and contact the after-sales service department for repair or replacement.
In the Box
- 4-in-1 USB-C PD/ USB-C 3.1 / USB-C 2.0 Hub: X 1
- Operating Instruction: X 1
- Guarantee Card: X 1

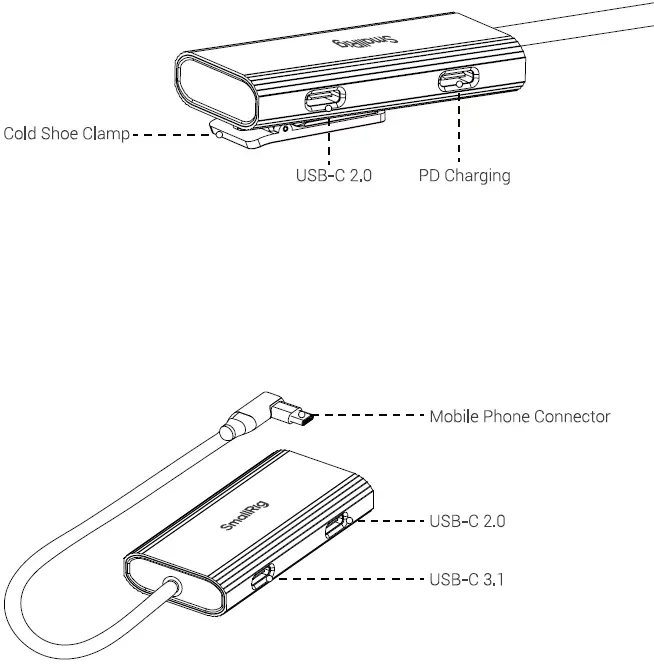

Product Details

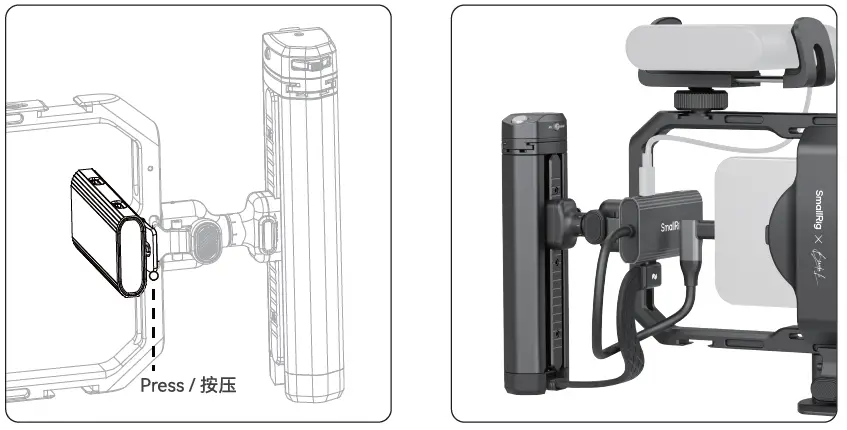

Installation Instructions
Installation Steps
- Hub Fixing: the cold shoe clamp at the bottom can be fixed on the cold shoe mount of the device.
- Hub Connection: connect the hub to the Type-C interface of the mobile phone, connect the external power supply to the PD interface, connect the portable SSD or SSD enclosure to the USB-C 3.1 interface, and connect the microphone or earphone to the USB-C 2.0 interface. Please make sure that the external device interface corresponds to the hub interface one by one, otherwise, the external device will not be available.
Note: When the SSD is connected to the mobile phone through the hub, the external power supply must be used to power the mobile phone and the SSD through the hub, because the mobile phone cannot directly drive the SSD together with the hub.
Specification
Specification of 4-in-1 Docking Station
- Standby Power Consumption: <0.2W
- USB-C Ports: PD Charging Port, USB-C 3.1, USB-C 2.0 x 2
- PD Charging: 20V
5A - USB-C 3.1: 5V2A, USB-C 3.110Gbps, ≥750MB/s : USB-C 3.0 5Gbps,≥350MB/s
- USB-C 2.0: 5V2A, 480Mbps, ≥35MB/s
- Operating Temperature: -20°Cto50°C/-4°Fto122°F
