Uvod
Hvala za nakupasing the BLNAN Dimmable LED Flush Mount Ceiling Light Fixture. This manual provides detailed instructions for the safe installation, operation, and maintenance of your new lighting product. Please read this manual thoroughly before installation and retain it for future reference.
This 9-inch square LED ceiling light offers versatile lighting options, including adjustable color temperature (3000K-6500K), dimmable brightness (10%-100%), and a dedicated 2000K warm nightlight mode. It is designed for low-profile installation and comes with a convenient remote control for easy operation.
Varnostne informacije
Da bi zmanjšali tveganje smrti, telesnih poškodb ali materialne škode zaradi požara, električnega udara, padajočih delov, ureznin/odrgnin in drugih nevarnosti, preberite vsa opozorila in navodila, ki so priložena škatli svetilke in na njej, ter vse nalepke na svetilki.
- Always turn off the power supply at the circuit breaker before beginning installation or performing any maintenance.
- Če niste prepričani o postopku namestitve, se posvetujte s kvalificiranim električarjem.
- Ensure all electrical connections are made in accordance with local codes and ordinances, and the National Electric Code (NEC).
- Do not install this fixture in wet locations or where it may be directly exposed to water. This product is rated for indoor use only.
- Ne poskušajte spreminjati svetilke. Kakršne koli spremembe lahko razveljavijo garancijo in povzročijo varnostne nevarnosti.
- Z napravo ravnajte previdno, da preprečite poškodbe LED komponent.
- Embalažni material hranite izven dosega otrok.
Vsebina paketa
Carefully unpack your fixture and inspect for any damage. Ensure all components are present before discarding packaging materials.
- BLNAN LED Flush Mount Ceiling Light Fixture (1 unit)
- Daljinski upravljalnik (1 enota)
- Mounting Hardware (screws, wire nuts, wire rope)
- Uporabniški priročnik (ta dokument)
Image: The BLNAN 9-inch square LED flush mount ceiling light fixture, shown with its remote control, illustrating the main components included in the package.
Nastavitev in namestitev
This fixture is designed for quick and easy installation. Follow these steps carefully.
Koraki montaže:
- Izklopite napajanje: Pred začetkom se prepričajte, da je napajanje območja namestitve izklopljeno z odklopnikom.
- Pripravite montažno površino: Remove your existing light fixture if applicable. Ensure the junction box is securely mounted and ready for wiring.
- Pritrdite montažni nosilec: Secure the provided mounting bracket to the junction box using the screws.
- Povežite ožičenje: Using the provided wire nuts, connect the fixture's wires to the corresponding house wires (Black to Black, White to White, Ground to Ground). Ensure connections are secure. Use the included wire rope to temporarily hang the fixture during wiring for ease of installation.
- Varna naprava: Carefully push the wired fixture up to the mounting bracket and secure it with the provided screws. Ensure the fixture is flush with the ceiling.
- Obnovi moč: Ko je napeljava varno nameščena, ponovno vklopite napajanje na odklopniku.

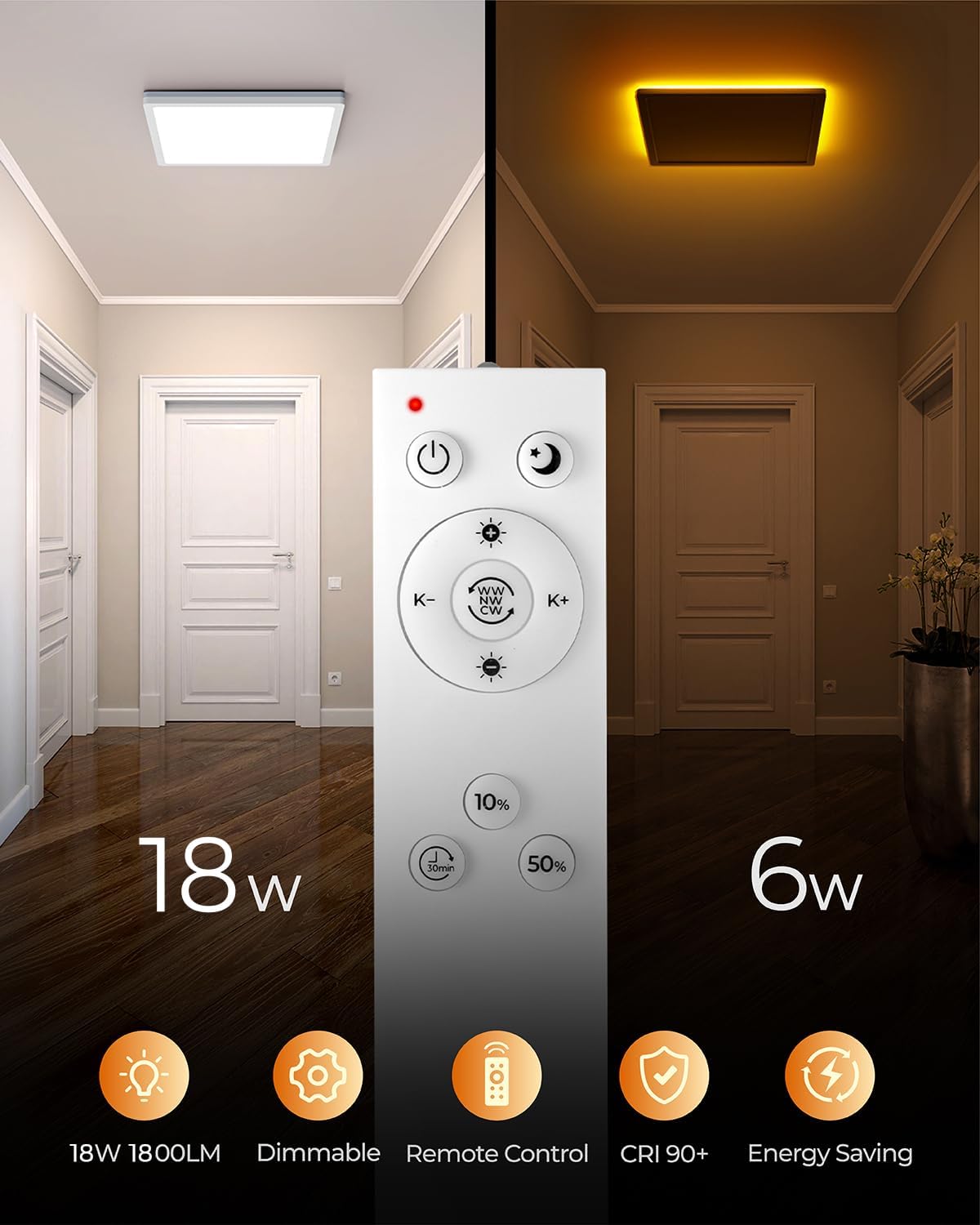

Image: The BLNAN ceiling light with its remote, illustrating the range of adjustable color temperatures from warm to cool, a key feature after installation.
Navodila za uporabo
Your BLNAN ceiling light fixture comes with a user-friendly remote control for convenient operation of all its features.
Daljinski upravljalnik končanview:
Image: The remote control for the BLNAN ceiling light, displaying its various buttons for power, dimming, color temperature adjustment, and nightlight activation.
- Gumb za vklop: Turns the light fixture ON or OFF.
- Prilagoditev svetlosti (10 %–100 %): Use the dedicated buttons or slider on the remote to increase or decrease the main light's brightness.
- Color Temperature Adjustment (3000K-6500K): Adjust the light from warm white (3000K) to cool white (6500K) using the 'K-' and 'K+' buttons.
- Nightlight Mode (2000K): Activate the soft, warm 2000K nightlight with a dedicated button. This mode consumes only 6W.
- 30-minutni časovnik: Press the timer button to set the light to automatically turn off after 30 minutes.
- Funkcija pomnilnika: The remote control remembers your last brightness and color temperature settings for the main light.
Light Modes and Features:
Image: Visual comparison showing the brightness difference between the 18W main light and the 6W nightlight mode.
Image: The BLNAN ceiling light operating in its 2000K warm nightlight mode, ideal for creating a relaxing atmosphere.
Image: The BLNAN ceiling light showcasing its ability to adjust color temperature from warm (3000K) to cool (6500K) and its dimmable brightness feature.
Image: An illustration emphasizing the BLNAN ceiling light's high Color Rendering Index (CRI 90+) and flicker-free illumination for comfortable viewing.
- Dimmable Main Light: The main light can be smoothly dimmed from 10% to 100% brightness, providing flexibility for various activities and moods.
- Nastavljiva barvna temperatura: Transition seamlessly between 3000K (warm white) for a cozy ambiance and 6500K (cool white) for bright, task-oriented lighting.
- 2000K Nightlight: A dedicated low-power (6W) nightlight feature provides a soft, warm glow, perfect for bedrooms or hallways at night.
- 30-minutni časovnik samodejnega izklopa: Convenient for bedtime routines, allowing the light to turn off automatically after 30 minutes.
- Visok CRI 90+: Ensures accurate and vibrant color rendering, making objects appear more natural.
- Osvetlitev brez utripanja: Designed to provide stable, flicker-free illumination, reducing eye strain.
Vzdrževanje
Proper maintenance ensures the longevity and optimal performance of your BLNAN ceiling light fixture.
- Čiščenje: Disconnect power before cleaning. Use a soft, dry or slightly damp krpo za brisanje površine svetilke. Ne uporabljajte abrazivnih čistil, topil ali loščil, saj lahko poškodujejo površino ali električne komponente.
- LED: The integrated LED components are designed for long life and do not require replacement.
- Daljinski upravljalnik: Keep the remote control dry and clean. Replace batteries as needed (battery type not specified, assume common AAA or button cell).
Odpravljanje težav
If you encounter any issues with your light fixture, refer to the following common problems and solutions:
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Luč se ne vklopi. | No power supply; loose wiring; remote control battery low/dead. | Preverite odklopnik. Prepričajte se, da so vse žične povezave varne. Zamenjajte baterije daljinskega upravljalnika. |
| Daljinski upravljalnik se ne odziva. | Remote control battery low/dead; remote not pointed at fixture; interference. | Replace remote control batteries. Ensure direct line of sight to the fixture. Remove any potential sources of interference. |
| Luč nepričakovano utripa ali se zatemni. | Nestabilno napajanje; ohlapna ožičenje. | Check power supply stability. Verify all wiring connections are tight. |
| Nightlight mode not working. | Incorrect remote button pressed; internal fault. | Ensure the correct nightlight button on the remote is pressed. If issue persists, contact customer support. |
If the problem persists after trying these solutions, please contact BLNAN customer support for assistance.
Specifikacije
| Funkcija | Podrobnost |
|---|---|
| Znamka | BLNAN |
| Ime modela | Ceiling Light (LS-CL-I18W-Dim-YKBK/N) |
| Dimenzije izdelka | 9 cm D x 9 cm Š x 1 cm V |
| Teža predmeta | 1.39 funtov |
| barva | Bela |
| Material | Plastika |
| Slog | Moderno |
| Vrsta svetlobnega vira | LED |
| Wattage | 18 vatov |
| Svetlost | 1800 lumnov |
| Učinkovitost | 100 lumnov na vat |
| Color Temperature (Main Light) | 3000K-6500K Adjustable |
| Color Temperature (Nightlight) | 2000K |
| Nadzorna metoda | Daljinski upravljalnik |
| Vrsta namestitve | Flush Mount |
| voltage | 120 volta |
| CRI | 90+ |
| Notranja/zunanja uporaba | Notranja |
Garancija in podpora
BLNAN products are manufactured to high-quality standards. For warranty information or technical support, please refer to the contact details provided on the product packaging or visit the official BLNAN webmesto.
Prosimo, shranite račun kot dokazilo o nakupu za morebitne garancijske zahtevke.
