Uvod
Thank you for choosing the Geshowit S1 Pro Portable Air Conditioner. This manual provides essential information for the safe and efficient operation of your new device. Please read it thoroughly before use and retain it for future reference.
Pomembne varnostne informacije
Da bi zmanjšali tveganje požara, električnega udara ali poškodb, vedno upoštevajte te osnovne varnostne ukrepe:
- Električna varnost: Prepričajte se, da vir napajanja ustreza voltage requirements of the unit. Do not use damaged power cords or plugs. Avoid operating the unit with wet hands.
- Umestitev: Place the unit on a stable, level surface. Ensure adequate ventilation around the unit, keeping at least 12 inches (30 cm) clear from walls or other objects. Do not block air inlets or outlets.
- Voda in vlaga: Do not expose the unit to rain or excessive moisture. If using in high humidity, ensure the drain hose is properly connected to prevent water overflow.
- Otroci in hišni ljubljenčki: Keep the unit out of reach of children and pets. Do not allow them to play with or operate the appliance.
- Vzdrževanje: Always unplug the unit before cleaning or performing any maintenance. Do not attempt to repair or modify the unit yourself. Contact qualified service personnel for assistance.
- Namen uporabe: This appliance is designed for cooling and dehumidifying purposes in various environments such as rooms, tents, RVs, cars, and trucks. Do not use it for any other purpose.
Konec izdelkaview
Vsebina paketa
The Geshowit S1 Pro Portable Air Conditioner package includes the following items:
- Geshowit S1 Pro Portable Air Conditioner Unit
- Sprednji zračni pokrov
- Zadnji zračni pokrov
- Drain Pipe (D: 1.6cm, L: 100cm)
- Air Duct (D: 10cm, L: 120cm)
- Air Duct (D: 13cm, L: 120cm)
- Uporabniški priročnik
- Note: Remote Control and Storage Bag are sold separately.

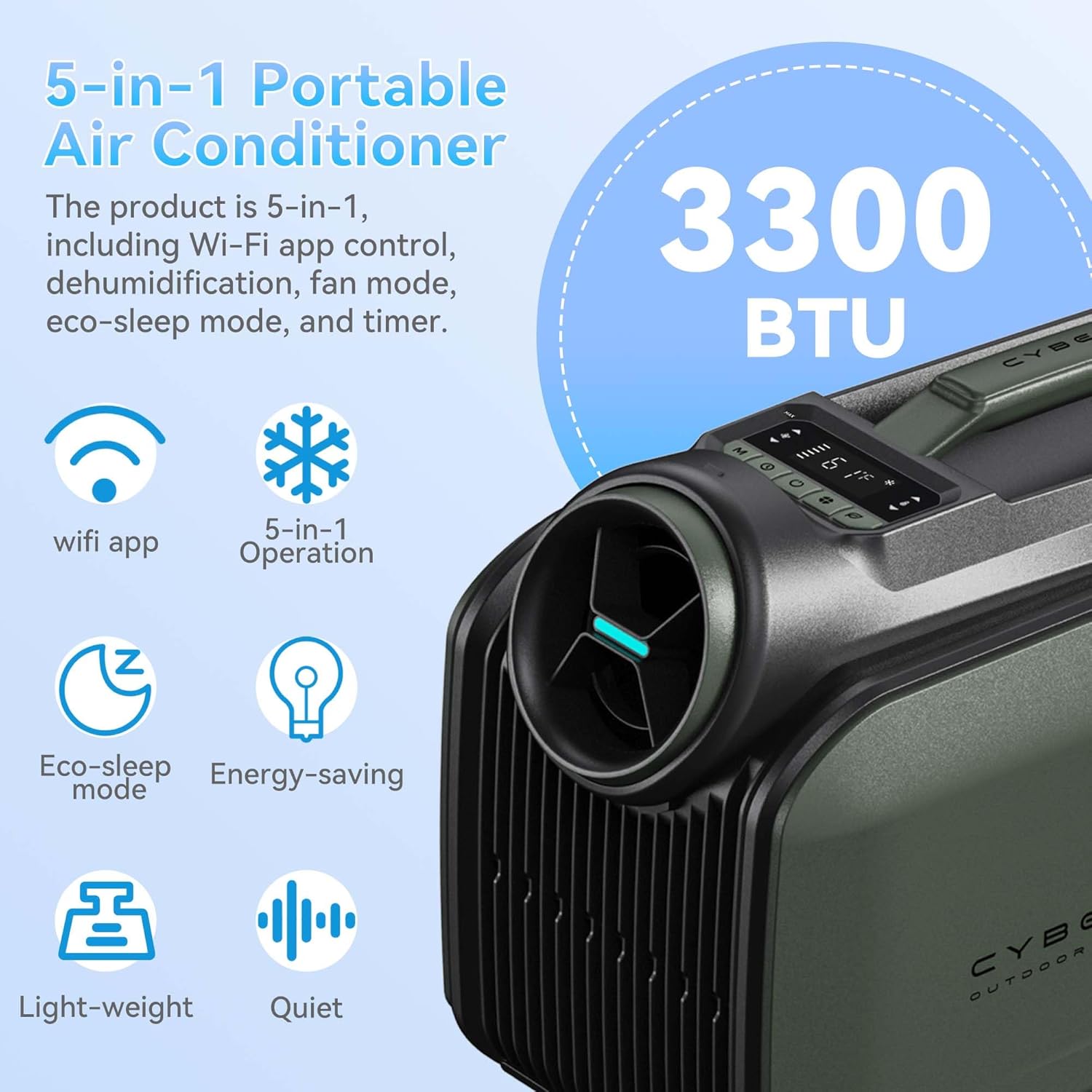

Ključne značilnosti
- Zmogljivo hlajenje: Rapidly cools spaces by 18°F (10°C) in approximately 5 minutes with 3300 BTU cooling capacity.
- Energijska učinkovitost: Features a high-efficiency 48V DC system and smart 3.0 inverter algorithm, consuming only 100W per hour in sleep mode.
- Več možnosti napajanja: Supports AC power, DC battery, portable power stations (with solar panels), and car chargers.
- Tiho delovanje: Ultra-quiet 38 dB Sleep Mode for undisturbed comfort.
- Funkcija brez praznjenja: Operates without drainage in cooling mode when humidity is below 70%. A drain hose can be connected for high humidity conditions.
- Kompakten in prenosen: Weighs 21.6 lbs (9.8 kg) with an aluminum alloy frame and ergonomic handle for easy transport.
- Vsestranskost 5 v 1: Offers Cooling, Dehumidifier, Fan, Eco-Sleep Mode, and a 24-hour Timer.
- Pametno upravljanje: WiFi App Control and a top-mounted control panel with LED display.
Nastavitev in namestitev
1. Namestitev cevi
Follow these steps to properly install the air ducts:
- Priključite cev: Attach the air duct to the tube connector by twisting it clockwise.
- Insert Cold Air Outlet: Insert the tube connector into the cold air outlet on the unit.
- Insert Air Inlet: Insert the other end of the tube connector into the air inlet on the unit.
2. Namestitev enote
The Geshowit S1 Pro offers flexible placement options depending on your cooling needs:
- Outside the Tent: For optimal cooling and reduced noise inside, place the AC unit outside the tent and direct the cold air in.
- Inside the Tent/Room: The unit can also be placed inside the tent or room, ensuring proper ventilation for the exhaust.
- Under a Canopy/Awning: Position the unit under a canopy or awning to provide cooling for outdoor seating areas.
Navodila za uporabo
Nadzorna plošča
The unit features a top-mounted control panel with an LED display for easy operation. Refer to the diagram below for button functions:
- Gumb za vklop: Vklopi/izklopi enoto.
- Gumb za način: Cycles through Cooling, Dehumidifier, Fan, and Eco-Sleep modes.
- Gumbi za nastavitev temperature: Zvišajte ali znižajte ciljno temperaturo.
- Gumb časovnika: Nastavi 24-urni časovnik za samodejno delovanje.
- LED zaslon: Shows current temperature, mode, and timer settings.
Načini delovanja
- Način hlajenja: Provides powerful cooling to lower ambient temperature.
- Način razvlaževanja: Reduces humidity in the air. In high humidity, connect the drain hose.
- Način ventilatorja: Kroži zrak brez hlajenja.
- Eco-Sleep Mode: Operates quietly and efficiently, consuming only 100W per hour. Ideal for overnight use.
- Način časovnika: Set the unit to turn on or off automatically after a specified duration (up to 24 hours).
Nadzor aplikacije WiFi
The Geshowit S1 Pro can be controlled via a dedicated WiFi application. Download the app from your device's app store and follow the in-app instructions for pairing and control.
Izbirni daljinski nadzor
An optional remote control (sold separately) can be used to operate the unit. This remote also functions as a temperature and humidity display.
Vzdrževanje
Redno vzdrževanje zagotavlja optimalno delovanje in podaljšuje življenjsko dobo vaše klimatske naprave.
- Čiščenje zračnega filtra: Zračni filter je treba čistiti vsaka dva tedna ali pogosteje, odvisno od uporabe.
- Odklopite enoto iz vira napajanja.
- Odstranite pokrov zračnega filtra.
- Nežno odstranite filter.
- Filter operite s toplo milnico. Preden ga ponovno vstavite, ga temeljito sperite in pustite, da se popolnoma posuši na zraku.
- Reattach the filter cover.
- Draining Water (High Humidity): If operating in high humidity, water may accumulate.
- Prepričajte se, da je enota izklopljena in izklopljena iz električnega omrežja.
- Connect the drain pipe to the drainage outlet.
- Direct the other end of the drain pipe into a suitable container or drain.
- Monitor the water level in the container and empty as needed.
- Čiščenje zunanjosti: Obrišite zunanjost enote z mehko damp krpo. Ne uporabljajte močnih kemikalij ali abrazivnih čistil.
- Shranjevanje: When not in use for extended periods, unplug the unit, clean it thoroughly, and store it in a cool, dry place.
Odpravljanje težav
Preden se obrnete na podporo strankam, si oglejte naslednjo tabelo s pogostimi težavami in njihovimi rešitvami:
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Enota se ne vklopi. | No power supply; power cord not properly connected; power outlet faulty. | Check power connection; try a different outlet; ensure battery is charged if using DC power. |
| Nezadostno hlajenje. | Air filter is dirty; air inlets/outlets blocked; room/area too large; doors/windows open. | Clean the air filter; ensure clear airflow; close doors/windows; consider unit capacity for the space. |
| Enota je hrupna. | Unit not on a level surface; internal components vibrating. | Place unit on a stable, level surface; ensure no loose parts. |
| Puščanje vode. | Drain pipe not connected or blocked (in high humidity); unit tilted. | Ensure drain pipe is properly connected and clear; place unit on a level surface. |
| Daljinski upravljalnik ne deluje. | Batteries dead; remote out of range; obstruction between remote and unit. | Replace batteries; ensure remote is within range and pointed at the unit; remove obstructions. |
Tehnične specifikacije
| Funkcija | Specifikacija |
|---|---|
| Znamka | Geshowit |
| Ime modela | S1 Pro |
| Moč hlajenja | 3300 britanskih toplotnih enot (BTU) |
| Teža predmeta | 21.6 lbs (9.8 kg) |
| Dimenzije izdelka | 18.1" G x 9.4" Š x 13" V (46 x 24 x 33 cm) |
| Nivo hrupa | 48 dB (as low as 38 dB in Sleep Mode) |
| voltage | 110 volta |
| Wattage | 400 Watt-hours (100W/hour in Sleep Mode) |
| Hladilno sredstvo | R-290 |
| Vrsta namestitve | Installation free |
| Posebne lastnosti | Fast Cooling, No Drainage Required (under 70% humidity), Sleep saving energy mode, Timer Mode, WiFi App Control |
Garancija in podpora
For information regarding product warranty, please refer to the warranty card included with your purchase or contact Geshowit customer support directly. Protection plans are available for purchase separately to extend coverage.
If you encounter any issues not covered in the troubleshooting section, or require further assistance, please contact Geshowit customer service through the official webspletnega mesta ali kontaktnih podatkov, navedenih v dokumentaciji izdelka.
