1. Uvod
This user manual provides comprehensive instructions for the setup, operation, and maintenance of your IPEVO VC-Z4K UHD 4K PTZ Camera. The VC-Z4K is designed to enhance educational and worship spaces with its 4K UHD resolution and 8.29-MP Sony CMOS sensor. It features advanced pan-tilt-zoom capabilities, AI auto-tracking, and a powerful 12X Optical + 15X Digital Zoom, making it ideal for capturing detailed and engaging remote sessions. Its AI functionality helps minimize the need for additional personnel, and its easy setup allows seamless integration with popular platforms like YouTube, OBS, and Zoom.
2. Varnostne informacije
Please read and understand all safety instructions before using the IPEVO VC-Z4K camera to prevent injury or damage to the device. Keep this manual for future reference.
- vir energije: Use only the provided power adapter. Ensure the power outlet meets the camera's voltage zahteve.
- Prezračevanje: Do not block ventilation openings. Ensure adequate airflow around the camera to prevent overheating.
- Okolje: Avoid exposing the camera to water, moisture, extreme temperatures, or direct sunlight. Operate in a clean, dry environment.
- Ravnanje: Handle the camera with care. Do not drop or subject it to strong vibrations.
- Čiščenje: Pred čiščenjem izklopite napajanje. Uporabite mehko, suho krpo. Ne uporabljajte tekočih ali aerosolnih čistil.
- Servisiranje: Ne poskušajte sami razstavljati ali popravljati fotoaparata. Vsa servisna dela prepustite usposobljenemu osebju.
3. Vsebina paketa
Preverite, ali so v vašem paketu priloženi vsi spodaj navedeni elementi:
- IPEVO VC-Z4K Camera
- Power adapter (8.2 ft / 2.5 m)
- USB 3.0 cable (4.9 ft / 1.5 m)
- RS232 cable (6.5 ft / 2 m)
- Daljinski upravljalnik (baterija ni priložena)
- Uporabniški priročnik (ta dokument)

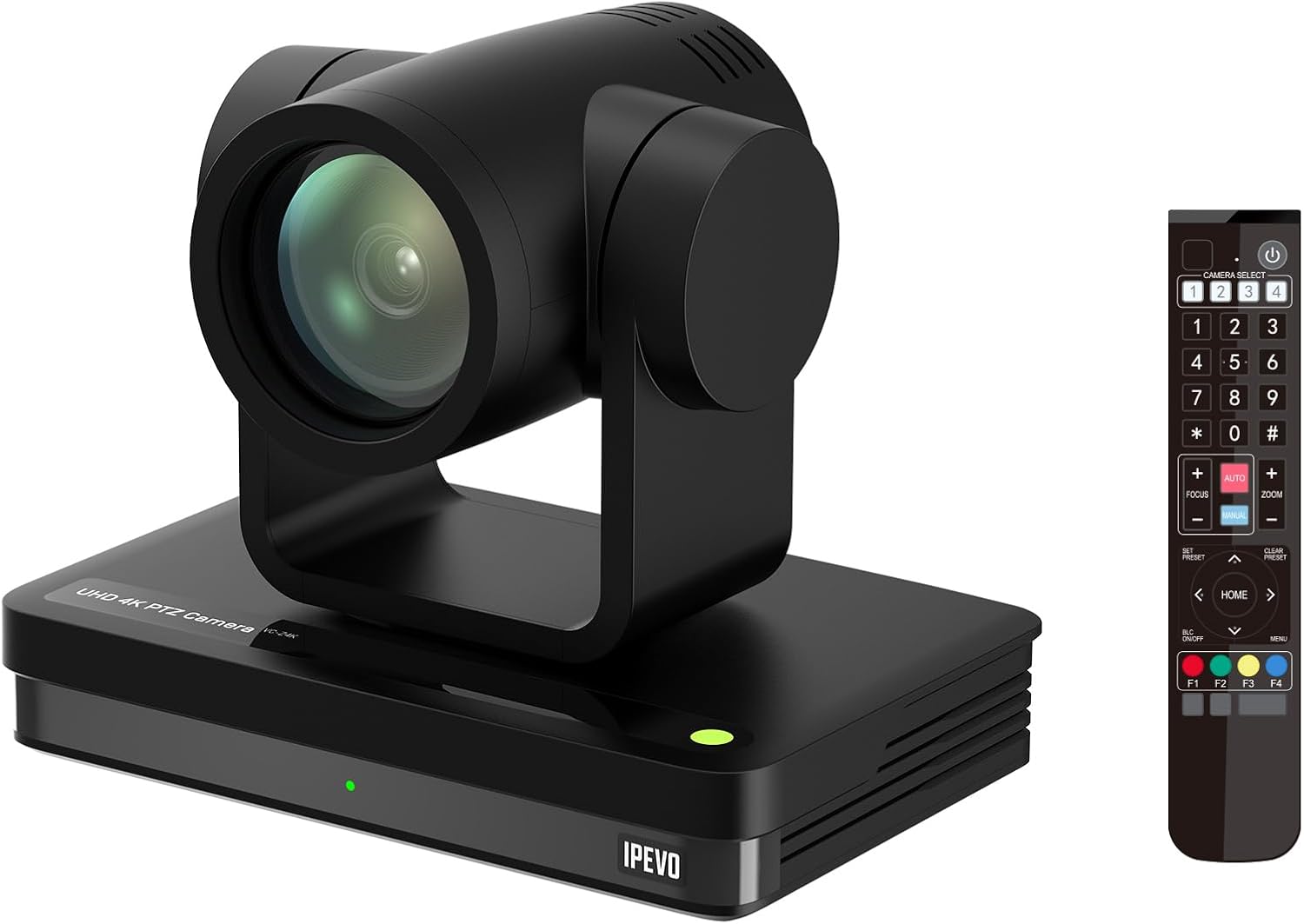

Image: The IPEVO VC-Z4K camera unit shown alongside its remote control, illustrating the main components included in the package.
4. Izdelek je končanview
4.1 Ključne lastnosti
- 4K Ultra HD ločljivost: Equipped with a 1/2.8" HD CMOS sensor for stunning 4K video output.
- 12-kratni optični zoom: Provides clear, detailed close-ups without loss of quality.
- Samodejno sledenje z umetno inteligenco: Automatically follows speakers or presenters, ensuring they remain in frame.
- Prilagodljiva povezljivost: Features HDMI, USB-C, LAN (PoE), and SDI outputs for versatile integration.
- Wide Pan and Tilt Range: Offers 340° pan and 120° tilt for comprehensive room coverage.
- Napredno zmanjšanje šuma: 2D/3D noise reduction ensures clear video in various lighting conditions.
4.2 Camera Components and Ports
Slika: Zadaj view of the IPEVO VC-Z4K camera showing its various connectivity ports including USB 3.0, HDMI, SDI, LAN (PoE), and power input.
The VC-Z4K camera features a range of ports for diverse connectivity options:
- HDMI izhod: For high-definition video output to displays or capture devices.
- Vrata USB-C: For direct connection to computers for video and control.
- LAN (PoE) Port: For network connectivity and Power over Ethernet, simplifying installation.
- SDI izhod: For professional video workflows requiring longer cable runs.
- Vrata RS232: For serial control via external control systems.
- Vhodna moč: For connecting the included power adapter.

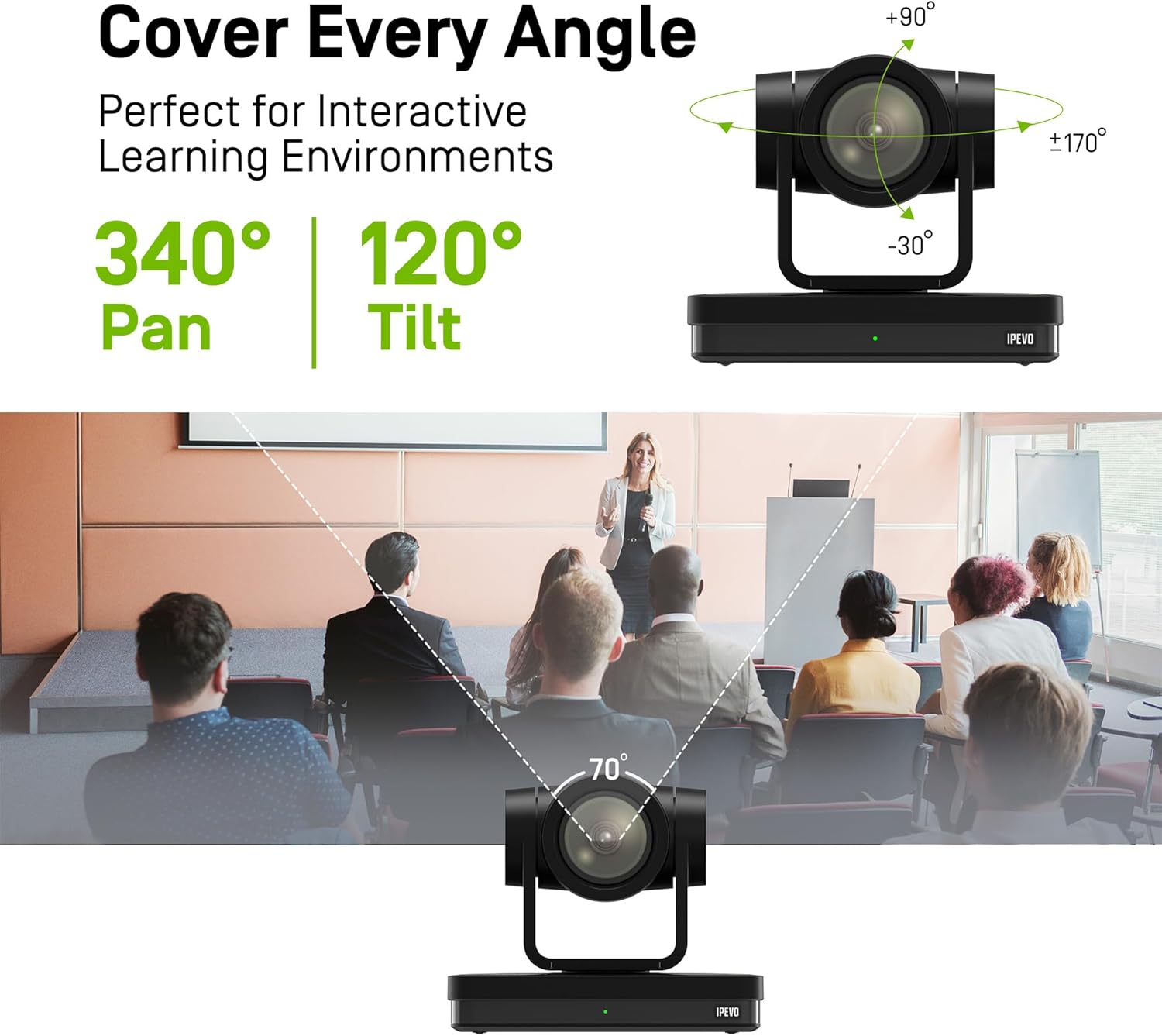

Image: Diagram illustrating the IPEVO VC-Z4K camera's pan (340°) and tilt (120°) ranges, highlighting its ability to cover a wide area.
The camera's motorized head allows for precise pan and tilt movements, enabling comprehensive coverage of your space. The pan range is 340 degrees, and the tilt range is 120 degrees (-30° to +90°).
5. Nastavitev
Follow these steps for the initial setup of your IPEVO VC-Z4K camera:
- Umestitev: Choose a stable surface or mount the camera securely in your desired location. Ensure it has a clear line of sight to the area you wish to capture.
- Napajalni priključek:
- Uporaba napajalnika: Connect the provided power adapter to the camera's power input port and then plug it into a wall outlet.
- Uporaba PoE (napajanje prek Etherneta): If your network switch supports PoE, connect an Ethernet cable from the PoE-enabled switch to the camera's LAN (PoE) port. This will provide both power and network connectivity.
- Video Output Connection (Choose one or more):
- HDMI: Connect an HDMI cable from the camera's HDMI output to a display, projector, or video capture card.
- USB-C: Connect the USB 3.0 cable from the camera's USB-C port to a USB 3.0 port on your computer. This enables the camera as a webcam za aplikacije za videokonference.
- LAN: Connect an Ethernet cable from the camera's LAN port to your network router or switch for IP streaming and control.
- SDI: Connect an SDI cable from the camera's SDI output to a professional video switcher or recorder.
- Nastavitev daljinskega upravljalnika: Insert two AAA batteries (not included) into the remote control. The remote control is essential for initial configuration and operation.
- Vklop: Once all connections are secure, power on the camera. The indicator light will illuminate.
6. Navodila za uporabo
6.1 Basic Camera Control (via Remote Control)
- Pan/nagib: Use the directional arrows on the remote control to move the camera horizontally (pan) and vertically (tilt).
- Zoom: Use the 'ZOOM +' and 'ZOOM -' buttons to adjust the optical zoom.
- Fokus: Press 'AUTO FOCUS' for automatic focus. Use 'FOCUS +' and 'FOCUS -' for manual adjustment if needed.
- Prednastavitve: The camera supports up to 255 presets. You can save and recall up to 10 presets directly from the remote control using the number buttons (0-9). To save a preset, position the camera, then press 'PRESET' followed by a number (e.g., '1'). To recall, press the number button.
Image: The IPEVO VC-Z4K camera demonstrating its 12X optical zoom capability, highlighting its 8.29-MP Sony CMOS sensor for high-quality video.
6.2 AI Auto Tracking
The VC-Z4K features advanced AI auto-tracking to keep a presenter or subject automatically in frame.
- Enabling Tracking: Refer to the remote control or camera's web interface for specific buttons or settings to activate AI tracking.
- Zone Tracking: Konfigurirajte določena območja znotraj kamere view where tracking should occur.
- Sledenje predstavitelju: The camera can identify and follow a designated presenter as they move within the defined area.
Image: A visual representation of the IPEVO VC-Z4K's AI auto-tracking and auto-focus features, showing how it maintains focus on a moving subject in a classroom setting.
6.3 Integration with Platforms
The VC-Z4K seamlessly integrates with various video conferencing and streaming platforms:
- USB povezava: When connected via USB-C, the camera will be recognized as a standard webcam by applications like Zoom, OBS Studio, Microsoft Teams, Google Meet, GoTo Meeting, and Skype. Select "IPEVO VC-Z4K" as your video input device within the application settings.
- LAN/IP Streaming: For advanced streaming setups, use the LAN connection to stream video via RTSP/RTMP protocols to platforms like YouTube Live or OBS Studio. Refer to the camera's web interface for IP configuration and streaming settings.
7. Vzdrževanje
Proper maintenance ensures the longevity and optimal performance of your IPEVO VC-Z4K camera.
- Čiščenje leče: Use a soft, lint-free cloth specifically designed for optical lenses. Gently wipe the lens to remove dust or smudges. Avoid using abrasive materials or harsh chemicals.
- Čiščenje telesa: Ohišje fotoaparata obrišite z mehko, suho krpo. Za trdovratno umazanijo rahloampen the cloth with water, then wipe dry immediately. Do not allow liquids to enter the camera.
- Shranjevanje: Ko fotoaparata dlje časa ne uporabljate, ga shranite na hladnem in suhem mestu, stran od neposredne sončne svetlobe in ekstremnih temperatur.
- Posodobitve vdelane programske opreme: Periodically check the IPEVO official website for firmware updates. Keeping your camera's firmware up-to-date can improve performance and add new features.
8. Odpravljanje težav
If you encounter issues with your IPEVO VC-Z4K camera, refer to the following common problems and solutions:
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Ni napajanja/Kamera se ne vklopi | Power adapter not connected or faulty; no PoE connection. | Ensure power adapter is securely connected and plugged into a working outlet. If using PoE, verify the network switch is PoE-enabled and the Ethernet cable is functional. |
| Ni video izhoda | Incorrect cable connection; wrong input selected on display; software issue. | Check HDMI, USB-C, LAN, or SDI cable connections. Ensure the display is set to the correct input source. Restart the computer/application if connected via USB. |
| Daljinski upravljalnik ne deluje | Baterije so prazne ali nepravilno vstavljene; IR senzor je blokiran. | Replace batteries (AAA). Ensure batteries are inserted with correct polarity. Point the remote directly at the camera's IR receiver. |
| AI tracking not functioning | Tracking feature not enabled; subject out of tracking range; poor lighting. | Activate AI tracking via remote or web interface. Ensure the subject is within the optimal tracking area. Improve lighting conditions if too dark. |
| Poor video quality (blurry, noisy) | Lens is dirty; focus issue; low light conditions; network bandwidth. | Clean the lens. Adjust focus manually or use auto-focus. Ensure adequate lighting. For IP streaming, check network bandwidth and camera's streaming settings. |
9. Specifikacije
Detailed technical specifications for the IPEVO VC-Z4K UHD 4K PTZ Camera:
| Dimenzije izdelka | 7.1 x 5.9 x 4.5 palcev |
| Teža predmeta | 2.64 funtov |
| Številka modela artikla | CDCU-06IP |
| Tehnologija foto senzorja | CMOS (1/2.8" HD CMOS Sensor) |
| Ločljivost zajema videa | 4K UHD |
| Optični zoom | 12X |
| Digitalni zoom | 15X |
| Največja zaslonka | 2.8 milimetrov |
| Tehnologija povezljivosti | USB, HDMI, LAN (PoE), SDI, RS232 |
| Posebne lastnosti | AI Tracking and Auto Focus, Low Noise and High SNR, Multiple Presets (up to 255) |
| barva | Črna |
| Proizvajalec | IPEVO |
10. Garancija in podpora
IPEVO products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please visit the official IPEVO webspletno mesto ali se obrnite neposredno na njihovo podporo strankam. Račun shranite kot dokazilo o nakupu za uveljavljanje garancije.
Za dodatno pomoč obiščite: www.ipevo.com
