Skyrc B6neo Smart Charger DC/USB PD Dual Input Instruction Manual
Introduction
Congratulations on your choice of SkyRC B6neo smart charger.
B6neo features a stylish and ultra-compact design. It may be simple to use, but the operation requires some knowledge. And the purpose of these operating instructions is to help you quickly become familiar with its functions. Therefore, it is extremely important that you read the Operating Instructions, Warnings and Safety Notes thoroughly before using B6neo. It is our hope that B6neo will give you many years of pleasure and success.
B6neo is a DC smart charger with a maximum output of 200W. It is capable of charging batteries of varying chemistries (LiPo/LiFe/Lilon/LiHV/NiMH/NiCd/Pb) and operating as a power supply, making it useful for hobbyists who need to power their DC equipment. With its unprecedented function of voltage measurement without power on, it becomes easy to measure battery voltage without hurdles.
Please BE SURE to read these INSTRUCTIONS, WARNINGS, and SAFETY NOTES prior to using for the first time.
It can be dangerous to mishandle batteries and battery chargers, as batteries always risk catching fire and exploding.
Mishandling batteries and battery chargers are hazardous and may cause fire and explosion.
Chart
- LCD Display
- scroll up, increase the current, etc.
- confirm the choice, terminate the current program, enter into the setting, etc.
- scroll down, decrease the current, etc.
- Balance port
- main port, DC output port, etc.
- DC Input, 10.0-28.0V/12A
- PD Input, must comply with PD3.0 specification
Package
1*SkyRC B6neo Charger
1*Quick Start Guide
Specifications
Warning
B6neo is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the charger by a person responsible for their safety.
Failure to exercise caution while using this product and comply with the following warnings could result in a product malfunction, electrical issues, excessive heat, FIRE, and ultimately injury and property damage.
Never leave charging batteries unattended during use.
Never charge batteries overnight.
Never attempt to charge dead, damaged, or wet battery packs.
Never attempt to charge a battery pack containing different types of batteries.
Never charge batteries in extremely hot or cold places or place in direct sunlight.
Never charge a battery if the cable has been pinched or shorted.
Never connect the charger if the power cord has been pinched or shorted.
Never attempt to dismantle the charger or use a damaged charger.
Always use the charger with the correct charging and discharging program.
Always use only rechargeable batteries designed for use with this type of charger.
Never use the charger on car seats, carpets, or similar surfaces.
Always operate the charger away from flammable and explosive materials.
Standard Battery Parameters
Select the correct operating procedure in accordance with the battery parameters. Incorrect settings may cause the battery to burn or even explode.
Go through the menus and increase the parameter value.
Enter the setting, confirm the choice, terminate the progress, or go back to the previous screen.
Go through the menus and decrease the parameter value.
- Connecting to a power source
There are two options of inputs for SkyRC B6neo, DC 10.0-28.0V and PD3.0 12.0-20.0V
- Connecting the battery
TO AVOID SHORT CIRCUITS, ALWAYS CONNECT THE CHARGE LEADS TO THE CHARGER FIRST, AND THEN TO THE BATTERY. REVERSE THE SEQUENCE WHEN DISCONNECTING THE PACK
- Lithium Battery Connection with Balance Adapter
For safety reasons, it is highly recommended to charge Lithium batteries (LiPo, Lilon, LiFe and LiHV) using Balance CHG mode, unless the battery comes without a balance wire.
The balance wire attached to the battery must be connected to the charger with the black wire aligned with the negative marking. Ensure correct polarity!
- NiMH/NiCd or Pb Battery Connection
Specifications
In this chart, you can see which operations B6neo is capable of performing based on the type of battery.

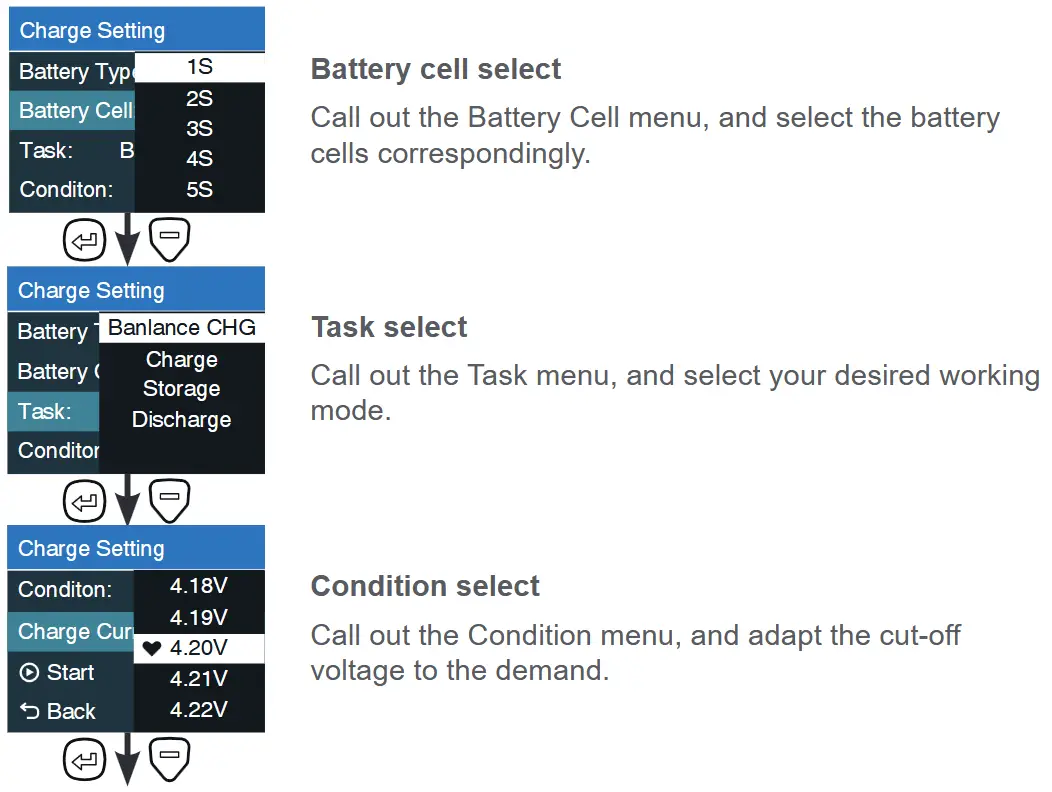

Lithium Battery Program(LiPo/LiFe/Lilon/LiHV)
Here is a flowchart to guide you to set up the program.
Do not connect the battery before turning on the charger!
NiMH/NiCd Battery Program
Here is a flowchart to guide you to set up the program.
Do not connect the battery before turning on the charger!
Pb Lead-Acid Battery Program
Here is a flowchart to guide you to set up the program.
Do not connect the battery before turning on the charger!
DC Power
Voltage Calibration
- On the main interface, press + twice to enter the interface of battery resistance.
- Connect the 6S battery to B6neo.
- Hold the ENTER and + buttons together to enter the calibration interface.
- Press + button to go through the voltage of each cell.
- Press ENTER button to choose the voltage, the value of which will turn blue.
- Press + or – to adjust the values.
Errors and Warnings
In the event of a fault, B6neo will display an error message.

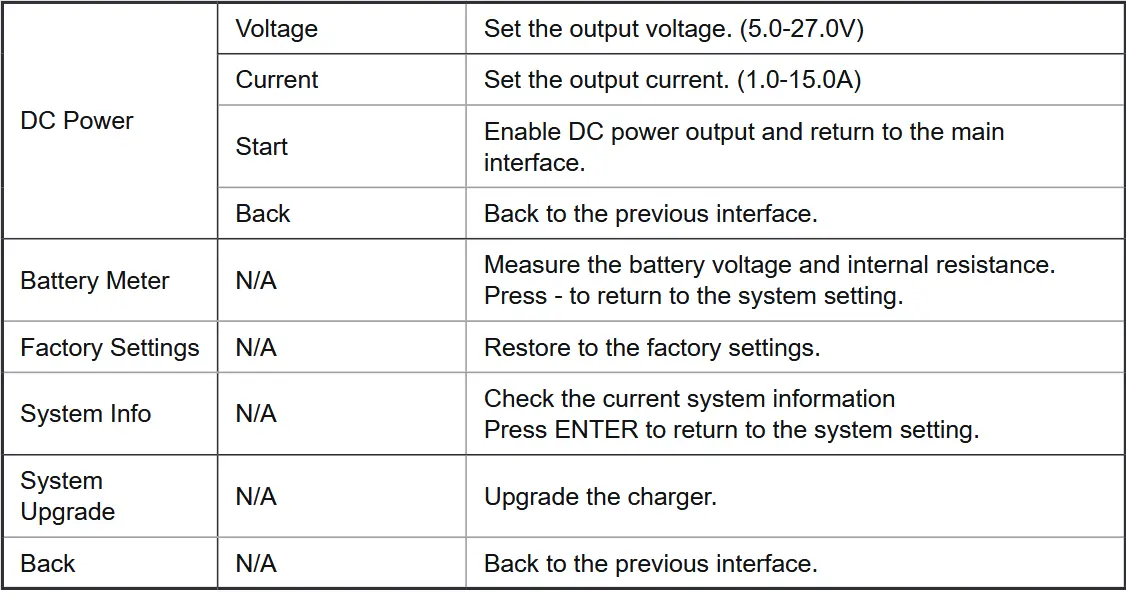

System Setting
On the main interface, hold the Start button for seconds to enter the system setting.
Conformity Declaration
SkyRC B6neo satisfies all relevant and mandatory CE directives and FCC Part 15 Subpart B.
Warranty and Service
Liability Exclusion
This charger is designed and approved exclusively for use with the types of battery stated in this Instruction Manual. SkyRC accepts no liability of any kind if the charger is used for any purpose other than that stated. We are unable to ensure that you follow the instructions supplied with the charger, and we have no control over the methods you employ for using, operating, and maintaining the device. For this reason, we are obliged to deny all liability for loss, damage, or costs that are incurred due to the incompetent or incorrect use and operation of our products, or which are connected with such operation in any way. Unless otherwise prescribed by law, our obligation to pay compensation, regardless of the legal argument employed, is limited to the invoice value of those SkyRC products which were immediately and directly involved in the event in which the damage occurred.
Warranty and Service
We guarantee this product to be free of manufacturing and assembly defects for a period of one year from the time of purchase. The warranty only applies to material or operational defects, which are present at the time of purchase. During that period, we will repair or replace free of service charge for products deemed defective due to those causes.
This warranty is not valid for any damage or subsequent damage arising as a result of misuse, modification, or as a result of failure to observe the procedures outlined in this manual.
Note:
- The warranty service is valid in China only.
- If you need warranty service overseas, please contact your dealer in the first instance, who is responsible for processing guarantee claims overseas. Due to high shipping costs, and complicated custom clearance procedures to send back to China, please understand that SkyRC can’t provide warranty service to overseas end users directly.
- If you have any questions which are not mentioned in the manual, please feel free to send an email to info@skyrc.com
