Skydance CV1 RF+Sensor Synchronous DIM 6 CH LED Control Box
Features
- Dimming interface: RF Wireless, Sensor
- Match with RF 2.4G single zone or multiple zone dimming remote control
- Match with a variety of induction sensor head
- 12VDC Input
- 6 channel synchronous constant voltage output, Max. total output power 60W
- Ultra-thin design, light weight and high ef
- Light on/off fade time 3s selectable
- Suitable for indoor LED lighting application
- 5 Year, 50,000hr warranty
Applications
- Suitable for cabinet LED strip.
Mechanical Structures and Installations
Wiring Diagram
- Use alone, powered by switching power supply
- Matching hutch ark LED driver use
Available sensor head
|
Model and Product name |
Features | Product pictrue | Size |
Sensor data |

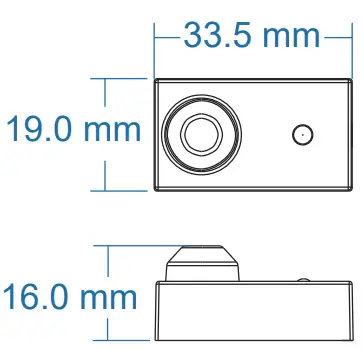

| ER PIR Motion Sensor |
When people or objects light turn on; when these light turn off after 30 seconds. |
 |
 |
≤3m Sensitivity angle: 120 |

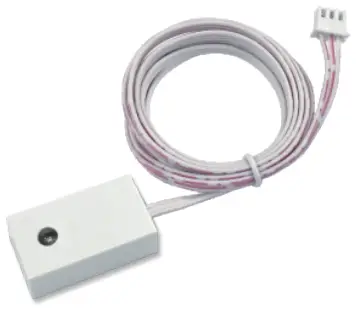

| EW Wood Touch Sensor |
The medium can be wood, glass or plastic. Short touch the sensing area to turn on or turn off light; long touch the sensing area to dimming up or down. |
 |
 |
Dimming range: 0 -100% PWM Frequency: 2KHz Detective distance: ≤5cm |
| EC Touch Sensor |
Short touch the LED to turn on or turn off light; long touch the LED to dimming up or down. |  |
 |
Dimming range: 0 -100% PWM Frequency: 128Hz |
| ED ED(C) Door Sensor |
When the door open, or no obstacle ahead, the light turn on gradually; when the door close, or obstacle ahead, the light turn off gradually. |  |
 |
Detective distance: ≤10cm Detevtive angle: 15-30 |
| EB EB(C) Hand Sweep Sensor |
When hand sweep, the light turn on gradually; when hand sweep again, the light turn off gradually. |
|
 |
Detective distance: ≤8cm Detevtive angle: 15-30 |

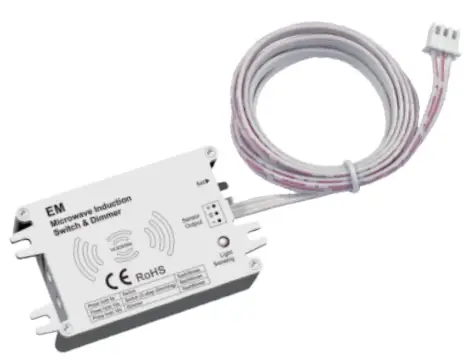

| EM Microwave motion Sensor |
Turns on the light upon detection of motion, and turns off after a pre-selected hold time when there is no movement. |  |
 |
Detection zone: Max.(DxH) 20 x 15m Detection angle: 150°(wall installation), 360°(ceilling installation) Hold time: 10s/30s/90s/3min/ 10min/20min/30min |
Light on/off fade time
Long press match key 5s, then short press match key 3 times, the light on/off time will be set to 3s, the indicator light blink 3 times.
Long press match key 10s, restore factory default parameter, the light on/off time also restore to 0.5s.
Match Remote Control
The control box can match with RF 2.4G dimming remote control optional, except PIR motion sensor input.
For PIR motion sensor input, please long press the MATCH key 10s to disable the RF remote match function. For other sensor input, please long press the Match key 5s to enable the RF remote match function. The user can choose the suitable match/delete ways. Two options are offered for selection:
Use Match key
Match:
Short press match key, immediately press on/off key (single zone remote) or zone key (multiple zone remote) of the remote.
Delete:
Press and hold match key for 5s to delete all match, The light blinks 5 times means all matched remotes were deleted.
Use Power Restart
Match:
Switch off the power, then switch on power, repeat again.
Immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 3 times on the remote.
The light blinks 3 times means match is successful.
.
Delete:
Switch off the power, then switch on power, repeat again.
Immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.
Installation precautions
Please do not stack the products.
The distance between two products should be ≥0.5m, so as not to affect heat dissipation and lifespan of the products.
Dimming Curve
Failure analysis and troubleshooting
| fault | cause | solution |
| The light can not be turned on |
|
|
| Remote control nonresponse |
|
|
| Hiccup flaming | Overload | Check the power of the light |
| Controlled by other remote | Wrong pairing | Delete all pairing and pair with remote again |
| Multiple LED drivers are out of sync | Inconsistent fade on/off time | Set the same fade on/off time |
