1. හැඳින්වීම
This manual provides detailed instructions for the proper installation, operation, and maintenance of the GODIYMODULES High Voltage DC Converter Module Board. This module is designed to provide stable high voltage DC and filament voltage, suitable for applications such as powering Nixie tubes and Magic Eye tubes.
රූපය 1.1: ඉහළ-පහළ view of the GODIYMODULES High Voltage DC Converter Module Board. This image shows the overall layout of the components, including capacitors, inductors, the DC input jack, and the terminal blocks for input and output connections.
2 ආරක්ෂිත තොරතුරු
WARNING: This module generates high voltage. Improper handling can result in electric shock, injury, or damage to equipment. Always exercise extreme caution when working with high voltagඊ පරිපථ.
- Ensure the power supply is disconnected before making any connections or adjustments.
- Do not touch any components on the board when power is applied.
- Use appropriate insulation and safety equipment.
- Verify all connections are correct before applying power.
- This module is intended for experienced electronics hobbyists and professionals.
3. විශේෂාංග
- Designed for Nixie and Magic Eye Tube anode and filament power supply.
- වෙනස් කළ හැකි ඉහළ පරිමාවtage DC output.
- Dedicated 6.3V filament voltagඊ ප්රතිදානය.
- Compact board design.
4. පිරිවිතර
| පරාමිතිය | වටිනාකම |
|---|---|
| ආදාන වෙළුමtage | DC 9V-12V |
| DC Socket Specification | 5.5*2.1 mm (Inner Positive, Outer Negative) |
| ඉහළ වෙළුමtagඊ ප්රතිදානය | DC 150V-280V / 15mA (Adjustable) |
| සූතිකා පරිමාවtagඊ ප්රතිදානය | DC 6.3V / 1500mA |
| මානයන් | ආසන්න වශයෙන් 5.24 x 3.82 x 1.34 අඟල් (පැකේජය) |
| බර | ආසන්න වශයෙන් 0.634 අවුන්ස |
| ද්රව්ය | ලෝහ, ප්ලාස්ටික් |
5. සැකසුම සහ සම්බන්ධතා
Follow these steps to correctly connect the High Voltage DC Converter Module Board to your system. Ensure all power is disconnected before proceeding.
5.1 ආදාන බල සම්බන්ධතාවය
The module accepts a DC input voltage between 9V and 12V. There are two methods for providing input power:
- DC පවර් ජැක්: Use a DC power adapter with a 5.5*2.1 mm plug. The plug must be inner positive and outer negative.
- ටර්මිනල් බ්ලොක්: Connect your DC 9V-12V power supply to the designated input terminals on the green screw terminal block. Observe correct polarity.

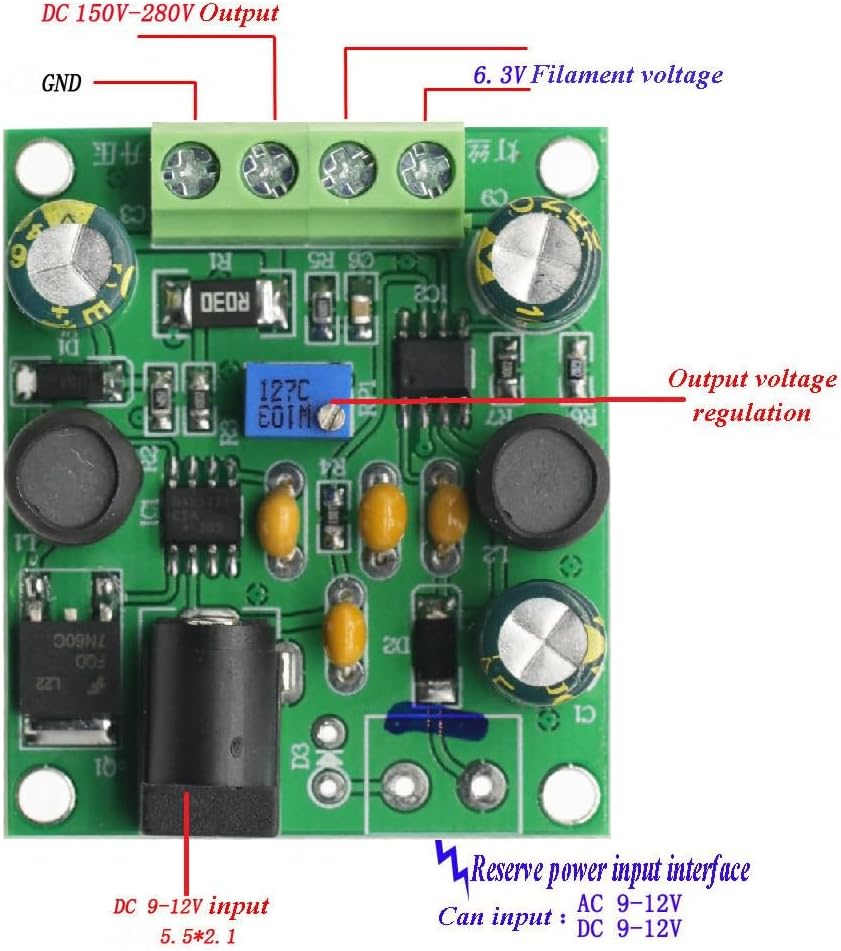

Image 5.1: Connection diagram showing input and output terminals. The DC 9-12V input can be connected via the barrel jack (5.5*2.1mm, inner positive, outer negative) or the screw terminal block. The image also indicates the output voltage regulation potentiometer.
Image 5.2: Detailed connection diagram illustrating the input power options (DC 9-12V via barrel jack or screw terminals) and the output connections for 6.3V filament voltage, GND, and adjustable DC 150-280V. The output voltage adjustment potentiometer is also clearly marked.
5.2 ප්රතිදාන සම්බන්ධතා
The module provides two main outputs via the green screw terminal block:
- DC 150V-280V Output: මේක තමයි high vol එකtage output, adjustable via the onboard potentiometer. Connect the anode of your Nixie or Magic Eye tube to this output.
- DC 6.3V ප්රතිදානය: This output provides 6.3V for tube filaments. Connect the filament of your tube to this output.
- ජීඑන්ඩී: Common ground connection for both outputs.
Ensure all connections are secure and correctly polarized before applying power.
6. මෙහෙයුම් උපදෙස්
6.1 බල ගැන්වීම
Once all connections are verified and secure, connect the DC 9V-12V power supply to the module. The module will immediately begin generating the output voltages.
6.2 Adjusting High Voltagඊ ප්රතිදානය
ඉහළ පරිමාවtage output (DC 150V-280V) is adjustable using the blue potentiometer located on the board. Use a small screwdriver to carefully turn the potentiometer:
- හැරෙනවා දක්ෂිණාවර්තව කැමැත්ත වැඩි කරන්න ප්රතිදාන පරිමාවtage.
- හැරෙනවා වාමාවර්තව කැමැත්ත අඩු වීම ප්රතිදාන පරිමාවtage.
Always use a multimeter to measure the output voltage while adjusting to prevent over-voltage damage to your connected components.
රූපය 6.1: ඉහළට view of the module, clearly showing the blue potentiometer used for adjusting the high voltagඊ ප්රතිදානය.
7. නඩත්තු කිරීම
The GODIYMODULES High Voltage DC Converter Module Board is designed for reliable operation and requires minimal maintenance.
- මොඩියුලය පිරිසිදුව හා දූවිලි හා සුන්බුන් වලින් තොරව තබා ගන්න.
- Ensure adequate ventilation around the module to prevent overheating.
- මොඩියුලය තෙතමනය හෝ අධික උෂ්ණත්වයන්ට නිරාවරණය වීමෙන් වළකින්න.
- Regularly inspect connections for looseness or corrosion.
8. දෝශ නිරාකරණය
- ප්රතිදාන වෙළුම නැතtage:
- Verify the input power supply is connected and providing 9V-12V DC.
- Check the polarity of the input DC power plug (inner positive, outer negative).
- Ensure all output connections are secure.
- වැරදි ප්රතිදාන පරිමාවtage:
- ඉහළ පරිමාව සඳහාtage output, adjust the potentiometer as described in Section 6.2.
- Use a multimeter to accurately measure the output voltages.
- ආදාන පරිමාව සහතික කරන්නtage is stable and within the specified range.
- මොඩියුලය අධික ලෙස රත් වීම:
- Ensure adequate airflow around the module.
- Verify that the load connected to the outputs does not exceed the specified current limits (15mA for HV, 1500mA for 6.3V).
9. සහාය
For further assistance or technical inquiries, please refer to the seller's contact information on the product purchase page or visit the GODIYMODULES official support channels.
