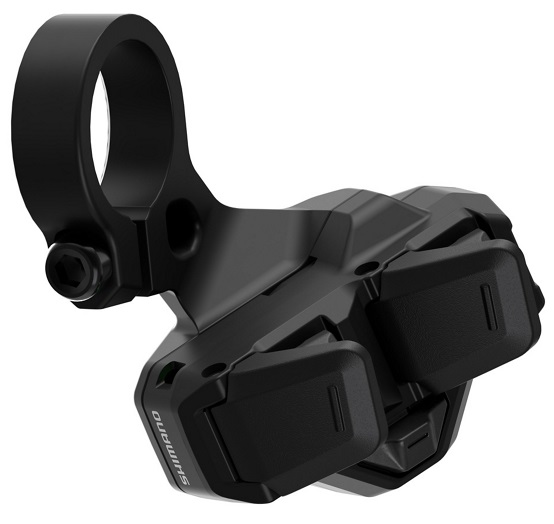

SHIMANO SW-EN605-R Shifting Switch
Product Usage Instructions
- Europe:
- For users in Europe, ensure compliance with Directive 2014/53/EU. Full text of the EU declaration of conformity is available at the following internet address: http://si.shimano.com
- UK (Great Britain):
- Compliant with The Radio Equipment Regulations 2017. Full text of the UK declaration of conformity is available at the following internet address: http://si.shimano.com
- USA:
- Compliant with FCC Rules part 15. Follow the FCC guidelines for operation to prevent harmful interference. Do not co-locate this transmitter with other antennas or transmitters. Ensure compliance with FCC RF radiation exposure limits. For assistance, consult a dealer or an experienced radio/TV technician.
- Canada:
- Complies with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). This device must not cause interference and should accept any interference received. Follow Canadian regulations for usage.
OVERVIEW
Specifications
| Series |
SHIMANO
|
||
|---|---|---|---|
| Model no. |
SW-EN605-R
|
||
| Switch type |
Fixed button position
|
||
| Position |
Clamp band
|
||
| Di2 connectivity wired | Di2 shifting |
–
|
|
| Di2 connectivity wireless | Di2 shifting |
✔
|
|
| Button numbers (pcs) |
3
|
||
| Master unit |
–
|
||
| Firmware update by E-TUBE PROJECT |
–
|
||
| SD50 port (pcs) |
0
|
||
| SD300 port (pcs) |
0
|
||
| SD50 connector (pcs) |
0
|
||
| SD300 connector (pcs) |
0
|
||
| Switch1 | Default function |
RD outward
|
|
| Multiple input | 2 step |
–
|
|
| Hold |
✔
|
||
| Adjustable lever position |
–
|
||
| Switch2 | Default function |
RD inward
|
|
| Multiple input | 2 step |
–
|
|
| Hold |
✔
|
||
| Adjustable lever position |
–
|
||
| Switch3 | Default function |
Shifting mode
|
|
| Multiple input | 2 step |
–
|
|
| Hold |
✔
|
||
| Suspension switch |
–
|
||
| Battery |
CR1632 x 2
|
||
| LED | Shimano system status |
✔
|
|
| Average weight (g) | |||
| Note |
–
|
||
FAQs
- What should I do if I experience interference with the device?
- If you experience interference, try the following:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a different circuit from the receiver.
- Consult the dealer or a radio/TV technician for assistance.
- If you experience interference, try the following:
