1. تعارف
This manual provides essential information for setting up, operating, maintaining, and troubleshooting your Thunderobot Storm 17 Gaming Laptop. Please read this manual thoroughly before using your device to ensure optimal performance and longevity.
2. پيڪيج مواد
Upon unboxing, verify that the following items are included:
- Thunderobot Storm 17 Laptop
- پاور اڊاپٽر ۽ ڪيبل
- استعمال ڪندڙ جو دستياب (ھي دستاويز)
جيڪڏهن ڪا به شيءِ غائب يا خراب آهي، مهرباني ڪري ڪسٽمر سپورٽ سان رابطو ڪريو.
3. پراڊڪٽ ختمview
The Thunderobot Storm 17 is a high-performance gaming laptop designed for immersive gaming and demanding tasks. It features a 17.3-inch FHD 144Hz display, an Intel Core i5-12450H processor, and an NVIDIA GeForce RTX 3050 graphics card.
3.1. ٻاهرين جزا

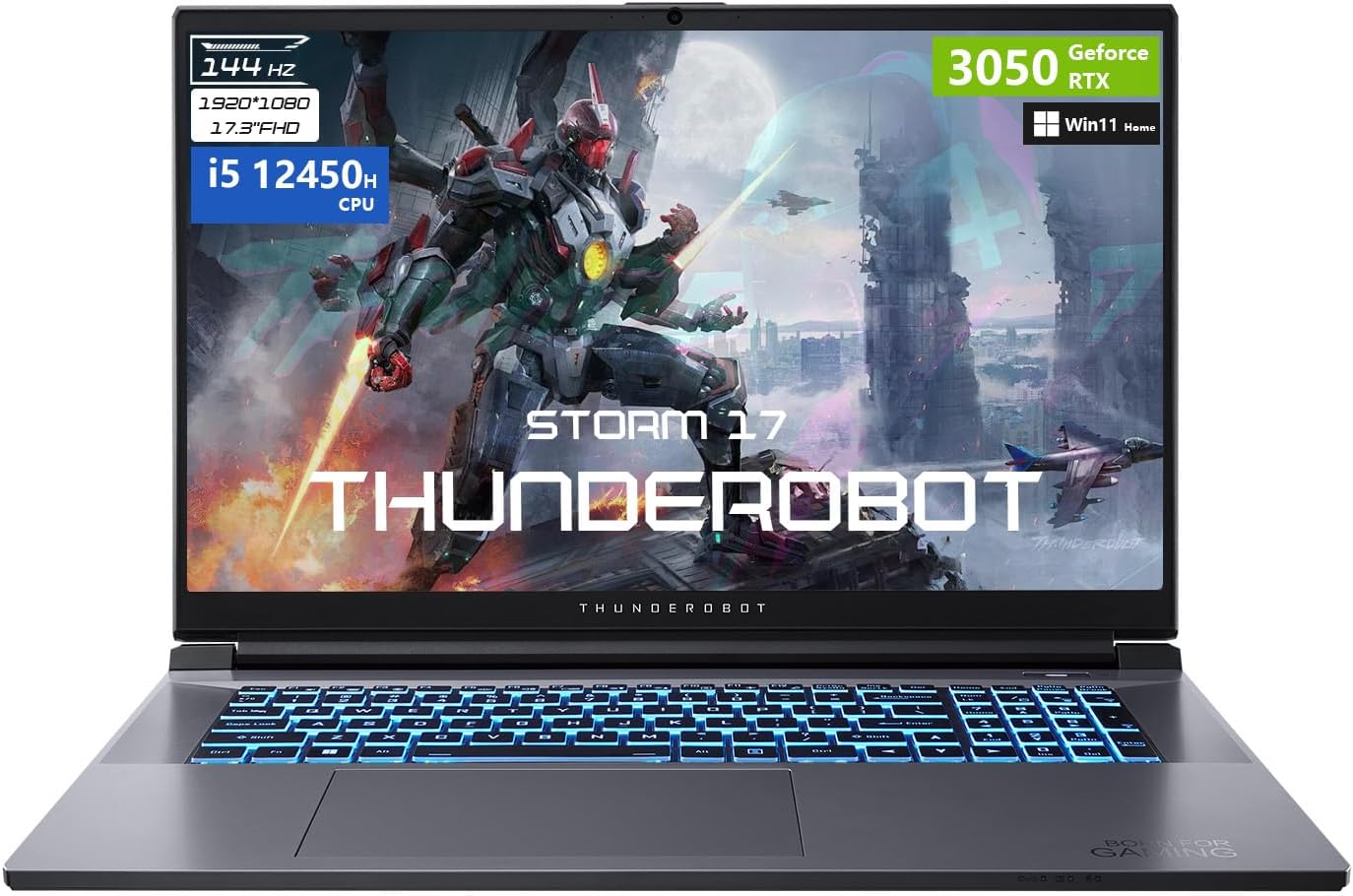

شڪل 3.1: سامهون view of the Thunderobot Storm 17 Gaming Laptop, showcasing the display and RGB backlit keyboard.
Figure 3.2: Diagram illustrating the various ports and slots on the Thunderobot Storm 17 Gaming Laptop.
- ڏيکاريو: 17.3" FHD (1920x1080) 144Hz
- ڪي بورڊ: RGB Backlit Keyboard with Numeric Keypad
- بندرگاهن: 3x USB 3.2 Gen 1 Type-A, 1x USB Type-C, 1x HDMI, 1x RJ-45 Ethernet, 1x Audio Port, 1x Mini DisplayPort, 1x Kensington Lock Slot, 1x DC-in Jack.
4. سيٽ اپ
4.1. شروعاتي پاور آن
- Connect the power adapter to the DC-in jack on the laptop and then to a power outlet.
- ليپ ٽاپ جي لڪير کي کوليو.
- ليپ ٽاپ کي چالو ڪرڻ لاء پاور بٽڻ کي دٻايو.
- ونڊوز 11 هوم سيٽ اپ مڪمل ڪرڻ لاءِ اسڪرين تي ڏنل هدايتن تي عمل ڪريو.
4.2. پردي کي ڳنڍڻ
Utilize the available ports to connect external devices such as a mouse, keyboard, external monitor, or headset.
- USB ڊوائيسز: Use the USB Type-A or Type-C ports.
- Disاهرين ڊسپلي: Connect via the HDMI or Mini DisplayPort.
- آڊيو: Use the 3.5mm combo jack for headphones or a headset.
- نيٽ ورڪ: وائرڊ انٽرنيٽ ڪنيڪشن لاءِ ايٿرنيٽ ڪيبل کي RJ-45 پورٽ سان ڳنڍيو.
5. آپريٽنگ هدايتون
5.1. ڪي بورڊ جا ڪم
Figure 5.1: Close-up of the RGB backlit keyboard on the Thunderobot Storm 17.
The keyboard features RGB backlighting and a full numeric keypad. Function keys (F1-F12) often have secondary functions when pressed in combination with the Fn key. Refer to the keycap icons for specific functions (e.g., volume control, brightness adjustment, Wi-Fi toggle).
5.2. ڊسپلي سيٽنگون

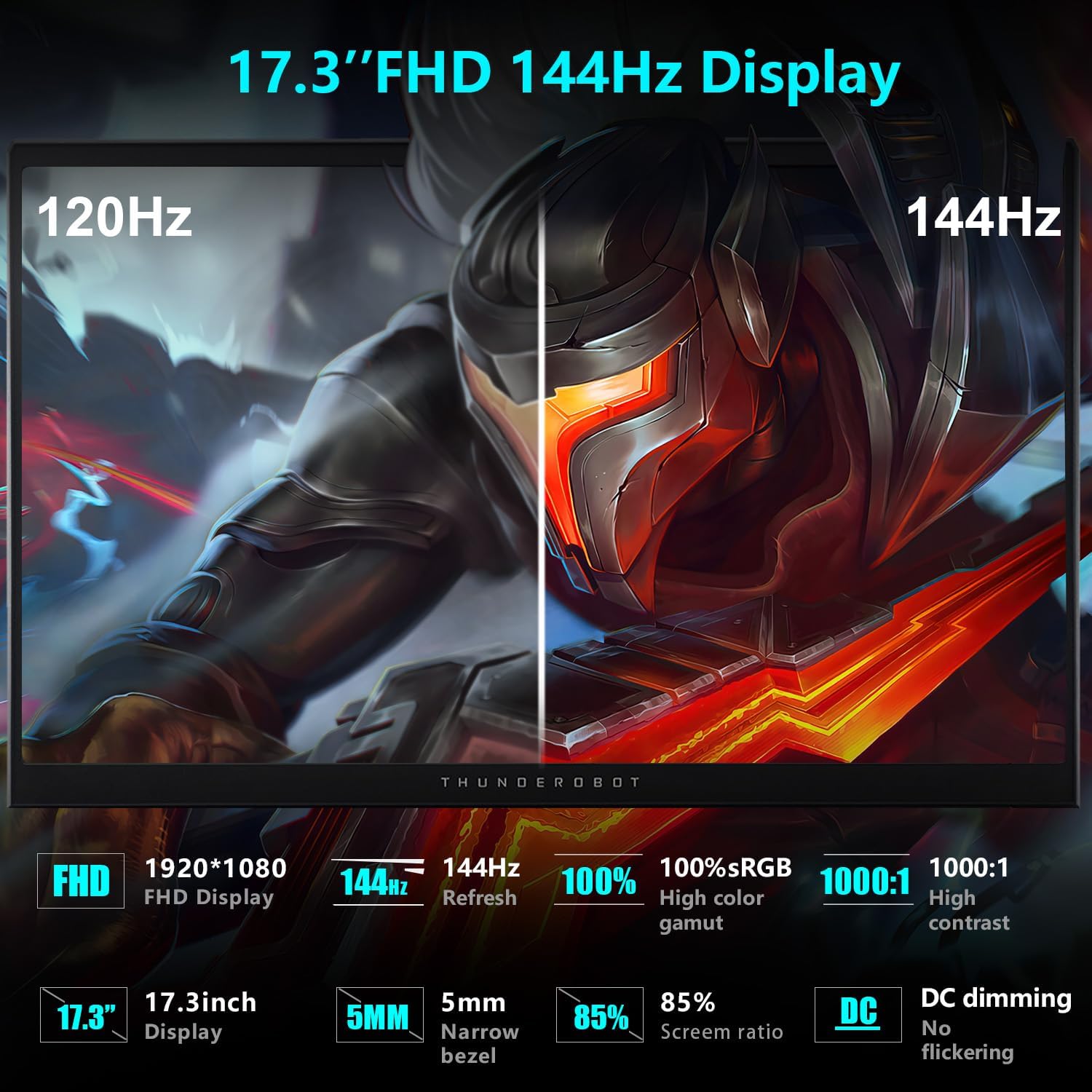

Figure 5.2: Visual comparison demonstrating the smoothness of a 144Hz display versus a lower refresh rate.
Your laptop features a 17.3" FHD 144Hz display. To ensure the 144Hz refresh rate is active:
- Right-click on the desktop and select "Display settings".
- Scroll down and click "Advanced display settings".
- Under "Choose a refresh rate", select "144 Hz".
5.3. Performance Modes (Control Center)
Figure 5.3: Screenshot of the Control Center software, showing various performance and fan adjustment options.
The Thunderobot Control Center software allows you to switch between different performance modes to optimize your laptop for various tasks. These modes typically include:
- Berserk Mode: Full performance release for demanding applications and gaming.
- راند جو طريقو: Optimized for smooth gaming experience.
- Audio and Video Office Mode: Prioritizes battery life and quiet operation for productivity.
To access the Control Center, search for "Control Center" in the Windows search bar. Note that system mode switching in Control Center requires the device to be connected to a power source.
6. سار سنڀال
6.1. کولنگ سسٽم

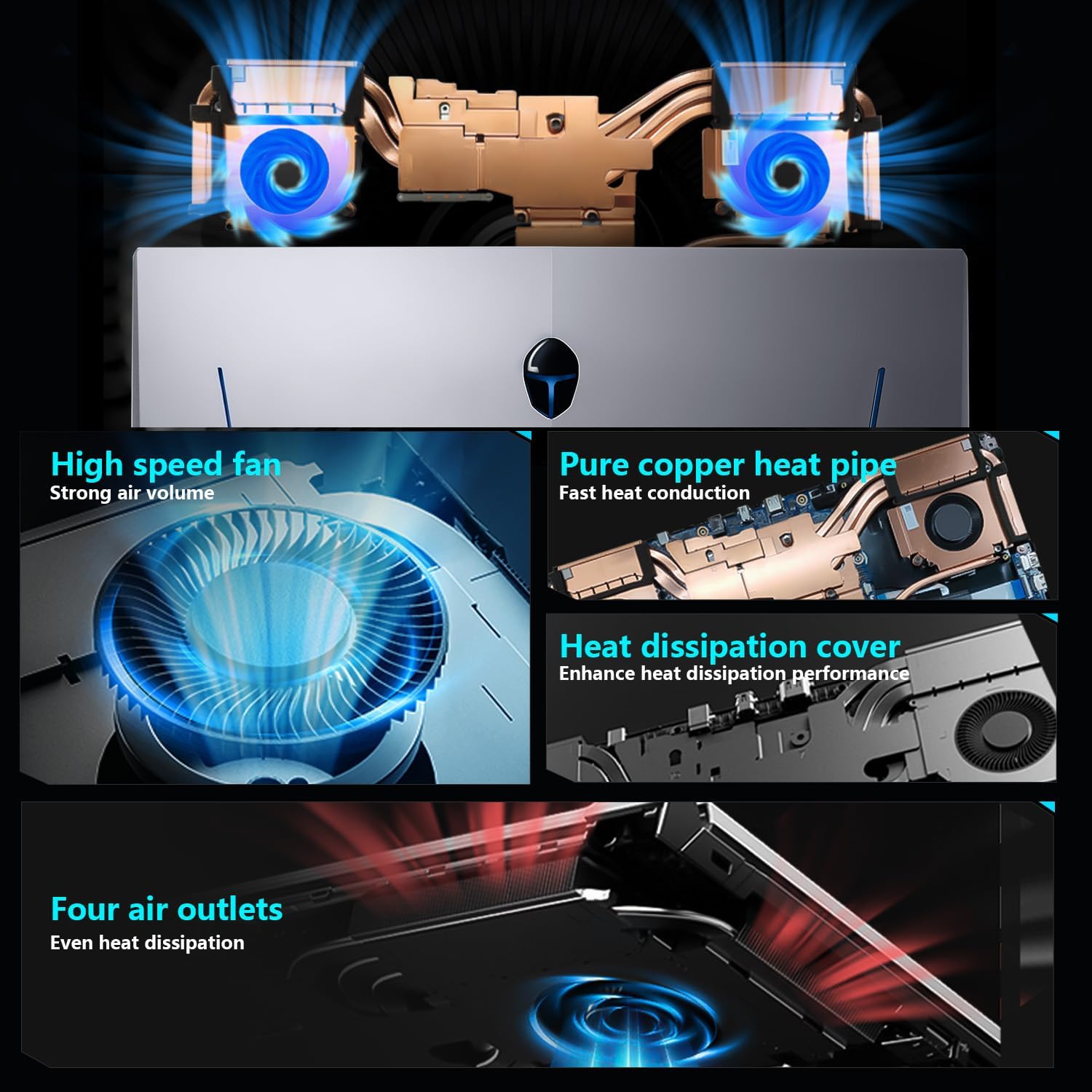

Figure 6.1: Diagram illustrating the internal cooling system with dual fans and heat pipes.
The Storm 17 features an efficient cooling system with dual turbofans and copper heat pipes. To maintain optimal cooling performance:
- Ensure the air vents (located on the sides and rear) are not obstructed.
- ليپ ٽاپ کي سخت، هموار مٿاڇري تي استعمال ڪريو ته جيئن هوا جو مناسب وهڪرو رهي سگهي.
- Periodically clean dust from the vents using compressed air. Do not open the laptop chassis for cleaning unless you are a qualified technician.
6.2. عام سنڀال
- ليپ ٽاپ کي مائع ۽ انتهائي گرمي پد کان پري رکو.
- Clean the screen with a soft, lint-free cloth specifically designed for electronics.
- ليپ ٽاپ تي ڳري شيون رکڻ کان پاسو ڪريو.
- نقصان کان بچڻ لاءِ باقاعدي طور تي پنهنجي ڊيٽا جو بيڪ اپ وٺو.
7. مسئلا حل ڪرڻ
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| ليپ ٽاپ آن نٿو ٿئي. | No power, battery drained, power adapter issue. | پڪ ڪريو ته پاور اڊاپٽر محفوظ طور تي ڳنڍيل آهي ۽ آئوٽ ليٽ ڪم ڪري رهيو آهي. ٻيهر پاور آن ڪرڻ جي ڪوشش ڪرڻ کان پهريان گهٽ ۾ گهٽ 30 منٽن لاءِ بيٽري چارج ڪريو. |
| اسڪرين خالي يا ڪاري آهي. | Display settings, external monitor connected, system crash. | دٻايو Fn + F1 (or corresponding display toggle key). Disconnect any external monitors. Restart the laptop. |
| Poor gaming performance. | Incorrect power mode, outdated drivers, overheating. | Ensure laptop is plugged in and set to "Berserk Mode" in Control Center. Update graphics drivers. Check cooling vents for obstructions. |
| وائي فائي ڳنڍي نه ٿو. | Wi-Fi disabled, driver issue, router problem. | Check Wi-Fi toggle (Fn + Fx). Restart router. Update Wi-Fi drivers. |
If the issue persists after attempting these solutions, please contact Thunderobot customer support.
8. وضاحتون
| خاصيت | تفصيل |
|---|---|
| برانڊ | ٿنڊر بوٽ |
| ماڊل نالو | طوفان 17 |
| اسڪرين جي ماپ | 17.3 انچ |
| اسڪرين جي قرارداد | 1920 x 1080 پڪسل (ايف ايڇ ڊي) |
| ريفريش جي شرح | 144Hz |
| پروسيسر | انٽيل ڪور i5-12450H (8 ڪور، 12 موضوع، 4.4 GHz تائين) |
| رام | 16 جي بي ڊي ڊي آر 4 (3200 ميگا هرٽز) |
| هارڊ ڊرائيو | 512 GB PCIe M.2 SSD |
| گرافڪس ڪوپروسيسر | NVIDIA GeForce RTX 3050 (6 GB GDDR6) |
| آپريٽنگ سسٽم | ونڊوز 11 گهر |
| وائرليس جو قسم | 802.11ac وائي فائي، بلوٽوٿ |
| بندرگاهن | 3x USB 3.2 Gen 1 Type-A, 1x USB Type-C, 1x HDMI, 1x RJ-45, 1x Audio Port, 1x Mini DisplayPort, 1x Kensington Lock Slot, 1x DC-in Jack |
| ڪي بورڊ | آر جي بي بيڪ لِٽ ڪي بورڊ، عددي ڪي پيڊ |
| طول و عرض (LxWxH) | 15.62 x 10.35 x 1.01 انچ |
| شيءِ جو وزن | 11 پائونڊ |
9. وارنٽي ۽ سپورٽ
هر ٿنڊروبوٽ ليپ ٽاپ ۾ شامل آهي هڪ 12-مهيني وارنٽي, offering expert support, thorough diagnostics, and genuine parts if a repair is needed. We also provide a 90 ڏينهن وارنٽي on all warranty replacement parts, ensuring hassle-free repairs. Your complete satisfaction is our commitment.
For technical support, warranty claims, or service inquiries, please visit the official Thunderobot webسائيٽ يا انهن جي ڪسٽمر سروس کاتي سان رابطو ڪريو.
10. اضافي وسيلا
10.1. پراڊڪٽ وڊيوز
وڊيو 10.1: هڪ اوورview of the Thunderobot Series Display, highlighting visual features and performance.
Video 10.2: A video demonstrating various Thunderobot gaming products and their design principles, including the Storm series.
