1. پراڊڪٽ ختمview
The Motorola Solutions T802 Talkabout FRS Two-Way Radios are designed for reliable communication in various outdoor and off-grid environments. These radios offer advanced features including Bluetooth connectivity for app integration, NOAA weather alerts, and a durable, weather-resistant design. They are ideal for staying connected with travel companions when cell service is unavailable.

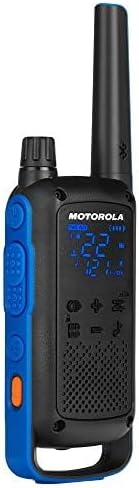

تصوير: سامهون view of two Motorola T802 radios, highlighting their compact design and digital display.
2. پيڪيج مواد
Your Motorola Solutions T802 package includes the following items:
- 2 ريڊيو
- 2 USB-C to USB-A cables
- 2 Battery Packs (rechargeable)
- 2 بيلٽ ڪلپس
- 16 پرسنلائزيشن اسٽيڪرز
3. اهم خاصيتون
- 22 Channels & 121 Privacy Codes: Offers 2,662 combinations for finding available channels.
- بلوٽوت ڪنيڪشن: Connects to the TALKABOUT app and compatible audio accessories.
- Weather Proof (IP54): Designed to withstand splashes and light rain.
- ٻٽي طاقت: Operates with rechargeable NiMH battery packs (included) or 3 AA alkaline batteries (not included).
- NOAA Weather Radio & Alerts: Provides real-time weather updates and alerts.
- Off-Grid Group Messaging/Broadcast: Utilize the TALKABOUT app for communication without cell service.
- انٽيگريٽيڊ ٽارچ: Built-in LED flashlight for convenience in low-light conditions.
- ڪال جي خبرداري: Notifies you of incoming transmissions.
- وائبريشن الرٽ: Provides discreet notification of incoming calls.
4. شروع ڪرڻ
4.1 بيٽري لڳائڻ ۽ چارج ڪرڻ
- پڪ ڪريو ته ريڊيو بند آهي.
- ريڊيو جي پوئين پاسي بيٽري جي ڪمپارٽمينٽ جو ڍڪ کوليو.
- Insert the provided rechargeable NiMH battery pack, ensuring correct polarity. Alternatively, insert 3 AA alkaline batteries.
- بيٽري جي ڪمري واري ڍڪ کي محفوظ طور تي بند ڪريو.
- To charge, connect one of the provided USB-C to USB-A cables to the USB-C port on the radio and the other end to a compatible USB power source. Both radios can be charged simultaneously using the two cables.
4.2 پاور آن/آف
Rotate the On/Off/Volume knob clockwise to power on the radio. Rotate it counter-clockwise until a 'click' is heard to power off.
4.3 Attaching Belt Clip
Align the belt clip with the slots on the back of the radio and slide it down until it clicks into place. To remove, lift the tab on the belt clip and slide it upwards.
5. بنيادي آپريشن
5.1 Channel and Privacy Code Selection
Use the Up/Down buttons to select one of the 22 available channels. To set a privacy code, enter the menu and navigate to the privacy code setting, then use the Up/Down buttons to select one of the 121 codes. Ensure all radios in your group are on the same channel and privacy code for communication.
5.2 Push-to-Talk (PTT)
Press and hold the large PTT button on the side of the radio to transmit your voice. Release the button to listen for incoming transmissions.
5.3 ڪال الرٽ
Press the Call button to send an audible alert tone to other radios on the same channel and privacy code.
5.4 Integrated Flashlight
Image: The integrated flashlight on top of the Motorola T802 radio.
To activate the integrated flashlight, press the dedicated flashlight button (refer to your radio's button layout for exact location). Press again to turn off.
6. ترقي يافته خاصيتون
6.1 NOAA Weather Radio & Alerts
The T802 radios include NOAA Weather Radio and Alert functionality. This feature allows you to receive real-time weather broadcasts and emergency alerts, keeping you informed of changing conditions, especially useful in remote areas.
6.2 Bluetooth Connectivity & TALKABOUT App
Image: User interacting with the TALKABOUT app on a smartphone, connected to the radio via Bluetooth.
The TALKABOUT T802 radios can connect to your smartphone via Bluetooth. Download the TALKABOUT app to access advanced off-grid features:
- جڳھ جي ٽريڪنگ: Locate friends' campsites, share your location, and track routes.
- Off-Grid Messaging: Send messages to other app users even without cell service.
- ريڊيو ڪنٽرول: Adjust radio settings directly from the app.
- What3words Addresses: Communicate exact locations to other FRS users without the app.
7. Range Information
Image: Visual representation of radio range in various environments.
The communication range of the T802 radios is quoted as up to 35 miles. Actual range can vary significantly depending on terrain, weather conditions, electromagnetic interference, and obstructions. Optimal range is achieved in open, unobstructed areas. Typical ranges are:
- جبل کان وادي تائين: 35 ميلن تائين
- Open Water: 6 ميلن تائين
- Neighborhood/Urban: 2 ميلن تائين
8. سنڀال ۽ سار سنڀال
8.1 صفائي
ريڊيو کي نرم، ڊي سان صاف ڪريوamp cloth. Do not use abrasive cleaners or solvents. Ensure all port covers are securely closed before cleaning.
8.2 پاڻي جي مزاحمت
The T802 radios are rated IP54 weather-proof, meaning they are protected against dust and splashing water from any direction. They are not designed to be submerged in water. Always ensure the USB-C port cover and battery compartment are securely sealed to maintain water resistance.
8.3 بيٽري جي سنڀال
To maximize battery life, fully charge the NiMH battery packs before initial use and after extended storage. Store batteries in a cool, dry place. If using AA alkaline batteries, replace them when power is low.
9. مسئلا حل ڪرڻ
- طاقت ناهي: Check if the battery pack is correctly installed and charged. If using AA batteries, ensure they are fresh and correctly inserted.
- منتقل/وصول نٿو ڪري سگهجي: Verify that both radios are on the same channel and privacy code. Check battery levels. Ensure you are within range.
- خراب آڊيو معيار: Move closer to the other radio. Check for obstructions. Ensure the volume is adjusted appropriately.
- بلوٽوٿ ڪنيڪشن جا مسئلا: Ensure Bluetooth is enabled on both the radio and your smartphone. Try restarting both devices.
10. ٽيڪنيڪل وضاحتون
- ماڊل نمبر: تي802
- پيداوار جي ماپ: 1.28 x 2.2 x 7.52 انچ
- شيء جو وزن: 7.2 اونس
- چينلن جو تعداد: 22
- رازداري ڪوڊ: 121
- تعدد جي حد: 400-470 MHz
- وڌ ۾ وڌ ڳالهائڻ جي حد: 35 Miles (terrain dependent)
- پاڻي جي مزاحمت جي سطح: IP54 موسم مزاحمتي
- طاقت جو ذريعو: Rechargeable NiMH Battery Pack (included) or 3 AA batteries (not included)
- چارج ڪرڻ: USB-C
- خاص خاصيتون: Call Alert, Integrated Flashlight, Rechargeable, Weather Alert, Bluetooth Connectivity
11. وارنٽي ۽ سپورٽ
Motorola Solutions typically offers a 2-year warranty on their two-way radios. For detailed warranty information, technical support, or service inquiries, please refer to the official Motorola Solutions webسائيٽ تي وڃو يا سڌو سنئون انهن جي ڪسٽمر سروس سان رابطو ڪريو. وارنٽي دعوائن لاءِ خريداري جو ثبوت رکو.
