Crown Electric Spray Gun 500W CT31004 User Manual

1. پراڊڪٽ ختمview

The Crown Electric Spray Gun 500W CT31004 is designed for efficient application of various coatings. This manual provides essential information for safe operation, proper maintenance, and effective troubleshooting to ensure optimal performance and longevity of your device.

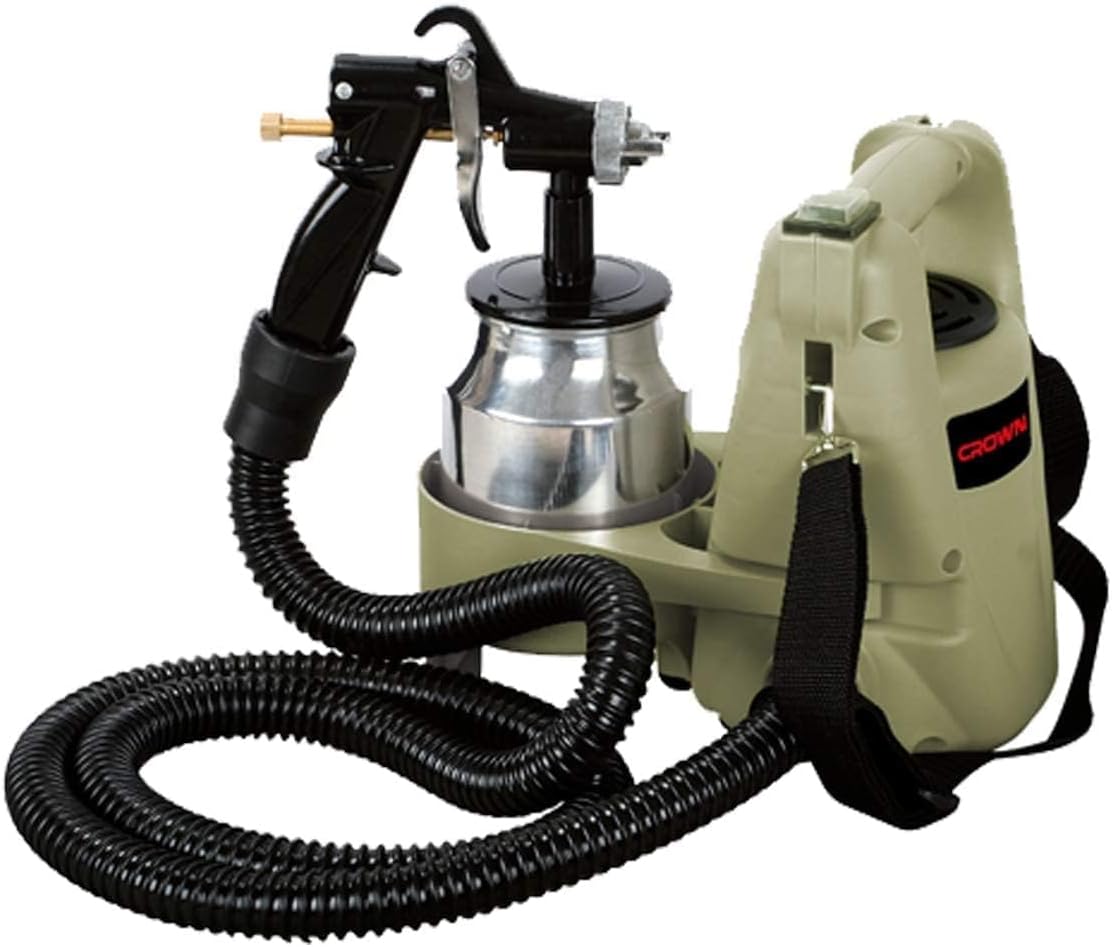

شڪل 1: The Crown Electric Spray Gun 500W CT31004, showing the spray gun, paint container, air hose, and main compressor unit with a shoulder strap.

اهم خاصيتون:

• ان پٽ پاور: 500W
• Nozzle سائيز: 1.0 ملي ميٽر
• وڌ ۾ وڌ Viscosity: 40 DIN-s
• Maximum Back Air Pressure: 0.1-0.2 بار
• Maximum Air Volume Flow: 1000 ايل / منٽ
• هوا جي منتقلي: 1.8 ايم
• ڪنٽينر جي گنجائش: 1000 مليل

2. حفاظتي هدايتون

Always adhere to the following safety guidelines to prevent electric shock, fire, or serious injury.

• Read all instructions before operating the spray gun.
• Wear appropriate personal protective equipment (PPE), including safety glasses, a respirator mask, gloves, and protective clothing.
• Ensure the work area is well-ventilated to prevent the accumulation of flammable vapors.
• ٻارن ۽ مسافرن کي آپريٽنگ ايريا کان پري رکو.
• کليل باهه، پائلٽ لائيٽ، يا ٻين اگنيشن ذريعن جي ويجهو اسپري نه ڪريو.
• صفائي، ترتيب ڏيڻ، يا سار سنڀال ڪرڻ کان اڳ هميشه بجلي جي فراهمي کي ڊسڪنيڪٽ ڪريو.
• موٽر يونٽ کي پاڻي يا ٻين مائع ۾ ڪڏهن به نه وسايو.
• Use only recommended thinning agents for your specific paint type.
• Store the spray gun and materials in a secure, dry place away from extreme temperatures.

3. پيڪيج مواد

پڪ ڪريو ته پيڪنگ ڪرڻ وقت سڀئي جزا موجود آهن:

• Electric Spray Gun Unit (Motor/Compressor)
• Spray Gun with Nozzle
• Paint Container (1000 ml)
• هوائي حوض
• ويسڪوسيٽي ماپڻ وارو ڪپ
• Cleaning Needle/Brush
• ڪلهي جي پٽي
• استعمال ڪندڙ دستي

4. سيٽ اپ

4.1 اسيمبلي

1. Attach the air hose to the air outlet on the motor unit and the air inlet on the spray gun handle. Ensure connections are secure.
2. Screw the paint container firmly onto the spray gun assembly.
3. If desired, attach the shoulder strap to the motor unit for easier portability during use.

شڪل 2: The Crown Electric Spray Gun disassembled, showing the main unit, hose, and spray gun with container, illustrating the components for assembly.

4.2 Preparing the Coating Material

Proper thinning of your paint or coating material is crucial for optimal spray performance and finish quality. Refer to the paint manufacturer's instructions for recommended thinning ratios.

1. Stir the paint thoroughly.
2. Pour a small amount of paint into the provided viscosity measuring cup.
3. Measure the time it takes for the paint to flow completely out of the cup. Compare this time to the paint manufacturer's recommendations or the spray gun's maximum viscosity of 40 DIN-s.
4. If the flow time is too long, add the appropriate thinner (e.g., water for latex, mineral spirits for oil-based paints) in small increments, stirring well after each addition, and re-test the viscosity until it falls within the recommended range.
5. Strain the thinned paint through a paint strainer or cheesecloth to remove any lumps or debris that could clog the nozzle.

4.3 Filling the Container

Once the paint is properly thinned and strained, carefully pour it into the 1000 ml paint container. Do not overfill.

5. آپريٽنگ هدايتون

5.1 پاور آن

Connect the power cord to a suitable electrical outlet. The unit is now ready for operation.

5.2 اسپري ڪرڻ جي ٽيڪنڪ

1. ٽيسٽ اسپري: Before spraying your actual project, perform a test spray on a piece of scrap material (cardboard, wood) to check the spray pattern and adjust the flow control knob on the spray gun.
2. فاصلو: Maintain a consistent distance of approximately 6-10 inches (15-25 cm) from the surface being sprayed.
3. تحريڪ: Move the spray gun in smooth, even strokes, overlapping each pass by about 50%. Avoid tilting the gun excessively, as this can lead to an uneven finish or paint starvation.
4. ٽرگر ڪنٽرول: Press the trigger fully to start spraying and release it fully to stop. Do not feather the trigger.
5. ڪيترائي ڪوٽ: Apply multiple thin coats rather than one thick coat to achieve a smoother finish and prevent drips. Allow adequate drying time between coats as recommended by the paint manufacturer.

5.3 Adjusting the Spray Pattern

The nozzle can typically be adjusted to produce different spray patterns (e.g., horizontal, vertical, circular) by rotating the air cap. Consult the spray gun diagram for specific adjustment points.

6. سار سنڀال

Thorough cleaning after each use is essential to prevent clogging and ensure the longevity of your spray gun.

6.1 استعمال کان پوء صفائي

1. بجلي بند ڪريو: Always unplug the spray gun from the power source before cleaning.
2. خالي ڪنٽينر: Empty any remaining paint from the container back into its original can or a waste container.
3. ڪنٽينر ڌوئڻ: Pour a small amount of appropriate cleaning solution (water for latex, mineral spirits for oil-based) into the container. Reattach the container to the gun.
4. فلش سسٽم: Plug in the unit and spray the cleaning solution through the gun into a waste container until the spray runs clear.
5. جدا ڪرڻ ۽ صاف ڪرڻ: Disconnect power again. Disassemble the spray gun components (nozzle, air cap, fluid needle, container). Clean all parts thoroughly with the appropriate cleaning solution and the provided cleaning brush/needle. Pay special attention to the nozzle and fluid tip to remove all paint residue.
6. صاف ڪريو: Wipe the exterior of the spray gun and motor unit with a damp cloth. Do not allow liquids to enter the motor housing.
7. سڪايو ۽ ٻيهر گڏ ڪريو: Allow all parts to dry completely before reassembling the spray gun.

6.2 اسٽوريج

Store the clean and dry spray gun in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the power cord is neatly coiled and not kinked.

7. مسئلا حل ڪرڻ

عام مسئلن ۽ انهن جي حل لاءِ هيٺ ڏنل جدول جو حوالو ڏيو.

8. وضاحتون

9. وارنٽي ۽ سپورٽ

This Crown Electric Spray Gun CT31004 comes with a standard manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions. For technical support, spare parts, or warranty claims, please contact your local Crown authorized service center or the retailer where the product was purchased.

وارنٽي جي مقصدن لاءِ خريداري جي ثبوت طور پنهنجي خريداري جي رسيد رکو.
