Electric Universal Circuit Directory Kit
Instruction Manual
Universal Circuit Directory Kit
A perfect kit for replacing an old or mislabeled circuit directory, but also suitable for new installations
UCD42CP
Universal Circuit Directory Kit
Having a replacement directory will allow you to have a clean, more organized and updated electrical panel.
Compatible with all brands!
Square D™ by Schneider Electric™ offers a unique replacement kit designed to adapt to all brands, different use case scenarios and load type devices such as Load Centers and CSEDs.

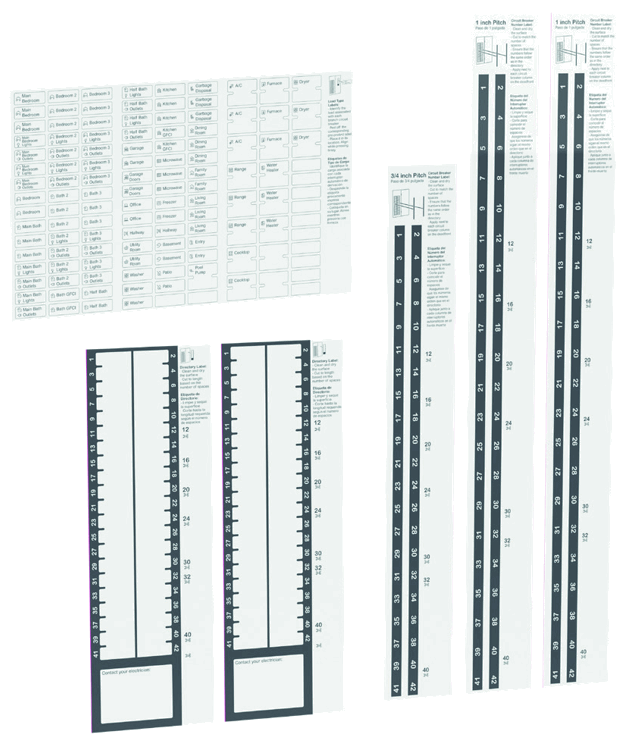

Everything you need in one package
- Truly universal — Two 42-space circuit directory labels (2.9” x 12”) that also include a designated space (2.3” x 1.7”) for contacting your electrician. Directories are suitable for indoor and outdoor devices and can be cut to different lengths to match the number of spaces.
- Improved legibility — Two 1-inch and one 3/4-inch numbered circuit breaker labels to reinforce the alignment of the circuit breakers to the directory. Choose according to the type of circuit breaker format your panel uses and cut to its desired length.
- Simplicity of use — The kit comes with one sheet of 80% pre-labeled generic circuit names and 20% of blanks for more personalized names. Regardless of skill or language barrier, the standardized, self-adhesive circuit labels are quick to apply and make it easy to read and use for anyone.
Installed Kit
Installs in any brand!
A wide variety of circuit names to choose from!
Schneider Electric USA
800 Federal Street
Andover, MA 01810
Phone: 978-794-0800
© 2021 Schneider Electric. All Rights Reserved. Schneider Electric, Homeline, Square D, QO, and Life Is On
Schneider Electric are trademarks and the property of Schneider Electric,
its subsidiaries, and affiliated companies. All other trademarks are the property of their respective owners
• 998-21728950_GMA
se.com/us/digestplus
