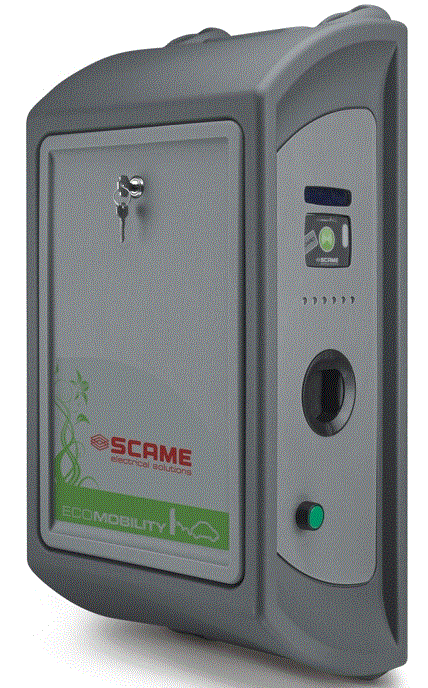

SCAME 204-CA23B-T2T2E Columns CA 2 Sockets with Lock

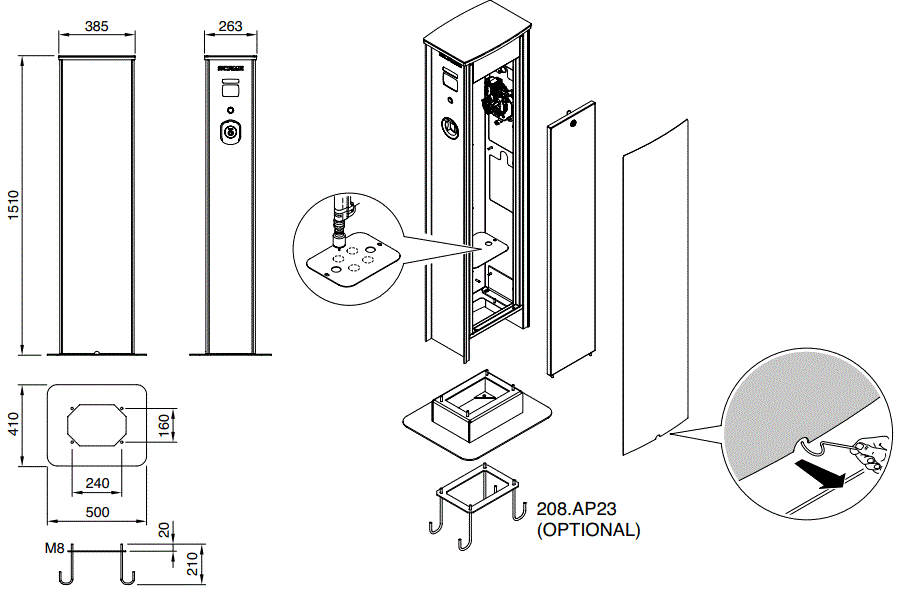

MOUNTING

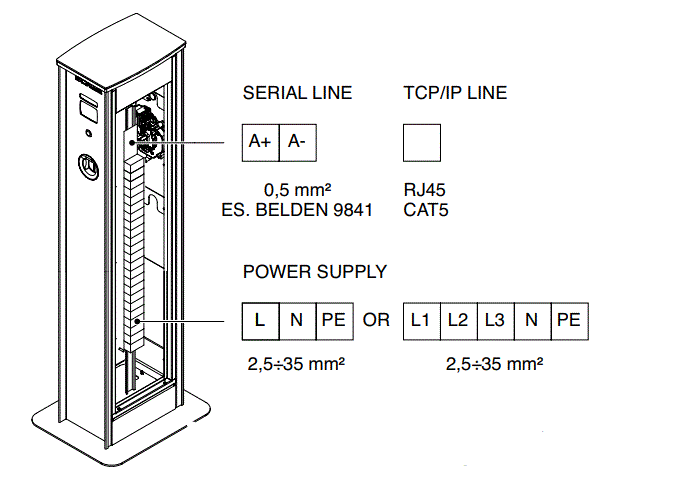

WIRING
- L-L: 380 ÷ 400 Vac
- L-N: 220 ÷ 230 Vac
- N-PE: < 5 Vac
- f: 50/60 Hz
- Rt: < 150 S
- THD: < 8%
- Activation
- General: ON
- Deactivation
- General: OFF
- dimensions in mm
WORKING
PERSONAL
- G: GREEN
- B: BLUE
- Free Personal
- With the button pressed down, switch the master card on the reader.
NOTES
- This device shall be installed and maintained by qualified personnel
- The manufacturer can not be held responsible for any failure to comply with these instructions.
- To download the user manual of charging stations visit our website:
- https://www.emobility-scame.com/web/ita/download
- WORLDWIDE
- ScameOnLine
- www.scame.com
- e-mobility@scame.com
