SAVI Controls TOUCHPAD Security Bracket Kit User Guide

SAVI Controls TOUCHPAD Security Bracket Kit - front page

Install your Security Bracket Kit with this step-by-step quick guide.

  1. Installation
    a. Attach the bracket with provided screws.
    SAVI Controls TOUCHPAD Security Bracket Kit - Attach the bracket with provided screws
    b. Attach metal brackets to the TOUCHPAD.One.
    SAVI Controls TOUCHPAD Security Bracket Kit - Attach metal brackets to the TOUCHPAD.One
    c. Plug the Ethernet cable into the TOUCHPAD.One.
    SAVI Controls TOUCHPAD Security Bracket Kit - Plug the Ethernet cable into the TOUCHPAD.One

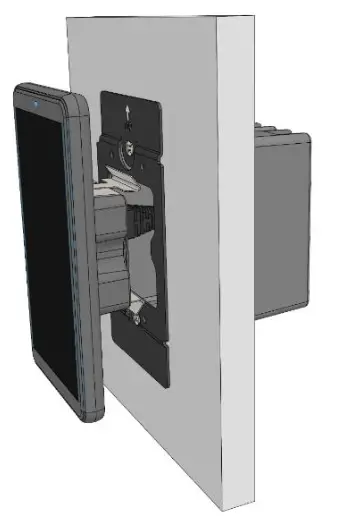

    d. Push the TOUCHPAD.One into the mounted bracket until tabs click.
    Note: The bracket is magnetized and should hold the TOUCHPAD.One flush to the wall.
    SAVI Controls TOUCHPAD Security Bracket Kit - Push the TOUCHPAD.One into the mounted bracket until tabs click

www.savicontrols.com
Support: 214-785-6510 (Option 2)
