Saramonic GamesMonic Bluetooth 5.0 Wireless TWS Earbuds with Built-in Mic, Charging Case
Introduction
SR-BH60-B by Saramonic High-performance Bluetooth 5.0 in-ear headphones designed for mobile devices are the GamesMonic TWS Wireless Earbuds. providing the finest possible gaming, music, and video or movie-watching experiences. They are made to provide an immersive experience when gaming, full-frequency sound with improved bass while listening to music, and theater-level sound when viewing movies. They also have a professional sound quality and incredibly low latency. Additionally, they have an integrated microphone for in-game communication and noise-canceling active DSP for crystal-clear phone calls, as well as a portable charging case with an internal battery. True Wireless Stereo (TWS) Earbuds produce lifelike sound thanks to TWS technology. With a full charge, the battery lasts for 7 hours in music playback and 6 hours in games.
The charging case offers defense and power. allowing for up to an extra 17 hours of play on two additional batteries. Technology 5.0 Bluetooth With BT 5.0 technology, consumers have an instant, impenetrable connection, four times the range, and eight times the data speed of BT 4. Additionally, Bluetooth 5.0 allows for the sharing of the experience via multiple audio streams. Great Performance and Extremely Low Latency for Gaming Gaming Mode offers high performance and extremely low latency. Users can react more quickly and play with greater precision since they can hear the sound as it happens. Features and an Ergonomic Fit for All-Day Use The SR-BH60-B has been ergonomically designed with simple functionality and an IPX5 waterproof rating.

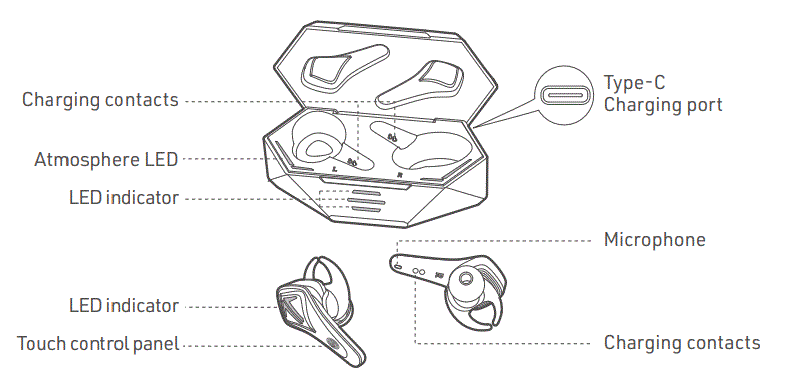

Product Overview

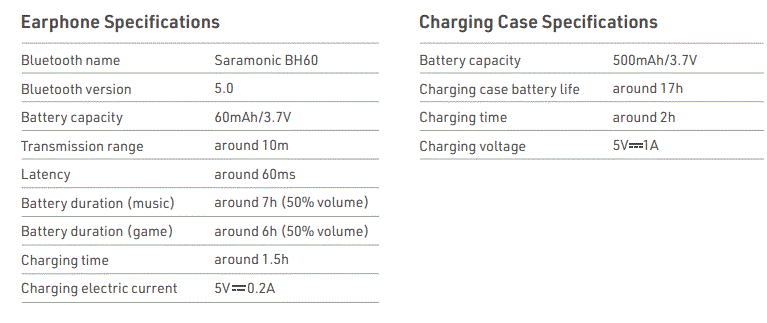

Earphone Specifications

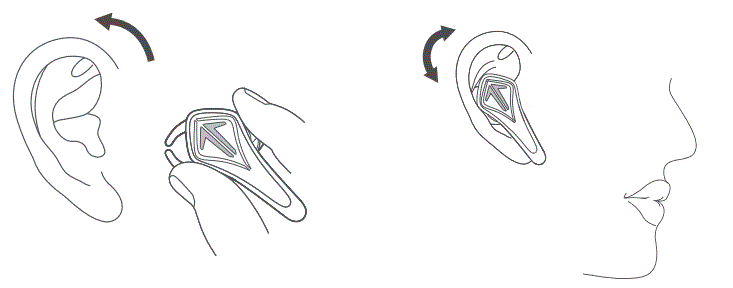

How to wear

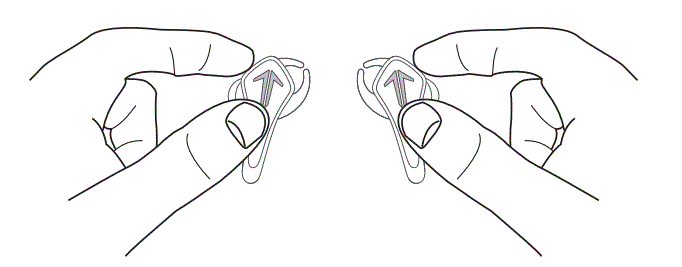

Choose suitable ear tips, put the earbuds in your ears, and rotate them as shown in the picture below until the earbuds fit your ears and make sure that the microphone points to your mouth.
Power On/ Of
Power On
- With charging case: when opening the charging case, the earbuds will power on automatically with the voice prompts “Power on”.
- Without charging case: when earbuds are powered off, touch the touch panel and hold for about 2 seconds, earbuds will be powered on with voice prompts “Power on”.
Power Of
- With charging case: put the earbuds into the charging case and close the lid, the earbuds will be powered off with voice prompts “Power off “.
- Without charging case: when the earbuds are on, touch the touch panel and hold for about 8 seconds, the earbuds will powered off with voice prompts “Power off “.
Pairing and connecting
- Open the charging case, the two earbuds will be automatically powered on and paired with each other within 5 seconds with the voice prompt “Pairing”. (Blue indicators and white indicators flash alternately).
- Turn on the Bluetooth list of devices, select “Saramonic BH60” and complete the pair and connection. If connected, the blue indicator will be on for 1s and off with voice prompts “Connected”.
- If the connection fails, put the earbuds into the charging case and close the lid, then take out and repeat the above operations.
- After the first connection, the earbuds will automatically connect to the last paired device. (Bluetooth of the device needs to be turned on).
- If the distance between earbuds and the device is beyond transmission distance, they will be disconnected with voice prompts “far away from devices”, and the earbuds will try re-connect.
- The earbuds will be powered off automatically if not connected with any devices for 5 mins.
Restore
Turn off both earbuds, touch the control panel and hold for around 14 seconds. Voice prompts changed from “Power on” to “Pairing” and then “Dudududu”. The Indicators changed from”blue indicators flash “to” white & blue indicators flash alternately” and “white indicators turn on for 1 second then turn off”. After the pairing record is cleared, the earbuds will power off automatically.
Gaming mode

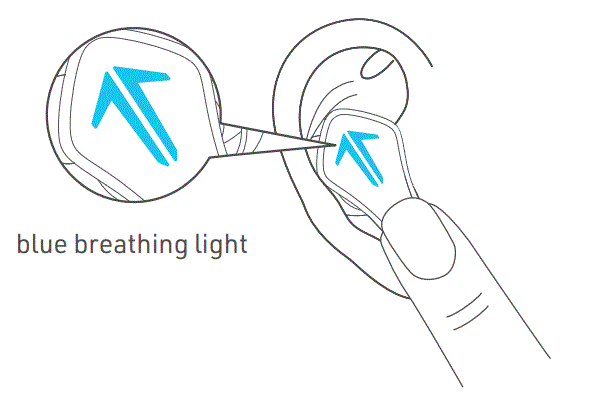

When the earbuds are connected, tap the right earbud touch panel 3 times to enter the low-latency mode, tap 3 times more to switch to Music Mode Indicators Light of Gaming Mode: blue breathing light.

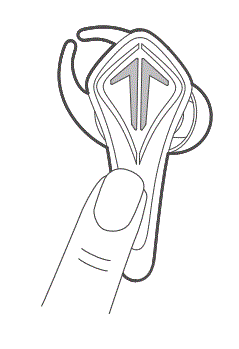

Touch control
- Play/ Pause
Tap the L/R earbud 1 time - Next
Tap the Left earbud 2 times - Previous
Tap the right earbud 2 times - Answer/ Reject a call
Tap the L/R earbud 1 time - Reject a call
Touch the L/R earbud and hold for 2 seconds - Enter/ Exit gaming mode
Tap the L/R earbud 3 times
Charging status of charging case
Charging & Battery Level of Charging Case

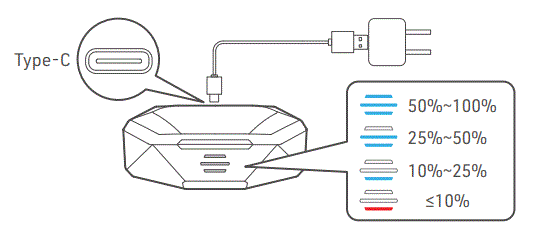

Battery level indicator: open the charging case, three blue LED indicators will be on simultaneously, and then will be off accordingly to show the current battery level of the charging case. When the battery level is less than 10%, the shortest LED indicator will be solid red.
Charging Status
Connect USB Type-C charging cable to the charging port, the three blue LED indicators will show the current battery level. When the charging case is fully charged, all three blue Indicators will be on. Remove the charging cable, and all the indicators will be off.

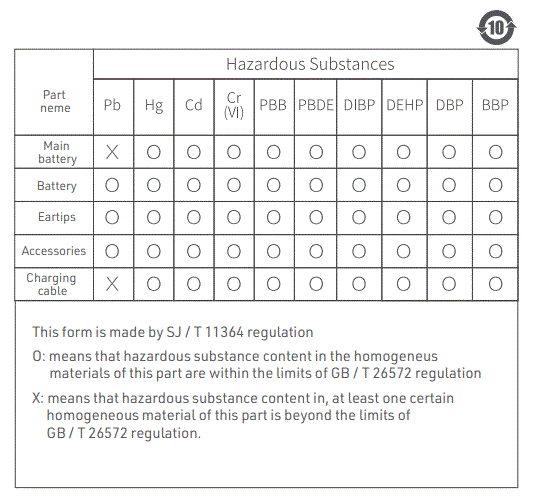

Hazardous substances and their contents in the item
Service life
As described in this manual, under normal use conditions, the environmental protection service life of this product is 10 years. During this period, the product will not leak any dangerous substances. This product can be recycled and must be disposed of according to local regulations.
After-sales and Supports
According to the relevant laws and regulations of consumer electronic products and the actual situation of the industry, the following after-sales service regulations are formulated to provide consumers with satisfactory after-sales services:
Warranty certificate mainly includes
a warranty card and sales certificate.
After-sales service scope:
- During the warranty period of the product, the company will be responsible for providing free maintenance for any failure caused by the quality problem of the product itself under normal use without disassembly and repair;
- For products beyond the warranty period, the warranty certificate shall be issued and the maintenance fee shall be paid. If any spare parts are needed for the repair cost for the spare parts would be born by the purchaser; please avoid repair and replace when the product is not tested by Saramonic after-sales department
- Once the warranty certificate is altered, the warranty will become invalid immediately;
- The warranty certificate of the product shall be properly kept by the consumer and shall not be supplemented if lost.
Warranty Period
- Within one year after purchasing this product, there are quality problems in normal use (non-human damage)without disassembly and repair;
- Consumers who have quality problems in normal use (non-human damage) within 7 days from the date of purchase, without repair, can enjoy the replacement service; 1-year warranty (including all accessories) from the date of issuing the sales certificate;
Regulations on invalidation of the warranty during the warranty period
In the following cases, the warranty is invalid, but the maintenance service is provided, and the labor fee and parts fee are charged:
- any damage to accessories caused by improper use, maintenance, and storage of consumers;
- damage caused by force majeure, such as natural disasters
In the following cases, the company will refuse to provide maintenance services or provide charged maintenance services
- fail to provide holograms on product packaging box;
- the contents of the holograms are altered or illegible;
- It is unable to provide the product warranty card or the content recorded in the warranty card is inconsistent with the product, or the content is altered or illegible;
- earbuds that have been removed by any unauthorized person of Shengyang acoustics Co., Ltd. (such as changing wires, removing voice coils, etc.);
- there is no sales voucher or the content of the sales voucher is inconsistent with the product.
We will not provide warranty service in the following cases
After our inquiry, if we find that your repair products are not our products, we will refuse to provide warranty service or double the maintenance fee. Please attach the warranty certificate when you send the earbuds to our company for repair. If you don’t have any certificate, our company will handle it as parallel imports.
Safety instruction
- Please use the original or with a safety certification wire harness for charging.
- When using earbuds, please adjust the volume appropriately to avoid damaging the hearing.
- Please use the product correctly to avoid falling or heavy extrusion.
- Children should be accompanied by adults to avoid eating by mistake.
- Keep away from extreme environments such as high temperatures or humidity.
- Please do not disassemble this product.
Packing list
- Charging case
- Saramonic BH60
- Eartips (small size)× 1 pair
- Type-C charging cable
- Storage bag
- Manual (including warranty card)
