safetrust  logoSABRE IoT Sensor
User Guide

Specifications

Part NumberDescriptionVoltageCurrent (12vDC)Operating Temperatu
Avg.Peak
8845-000Mini Mullion7 – 16 vDC



75mA100mA-35C to 65C
8845-100Mullion75mA100mA
8845-200Wall Mount90mA115mA(-30F to 150F)
8845-300Keypad115mA130mA

Parts List

IoT Reader

Mullion / Mini Mullion
Screws (SMF #6-32×3/8″ SS)
– 1 casing to back plate mounting screw
– 2 Junction
Nylon anchor plug -4 Nos

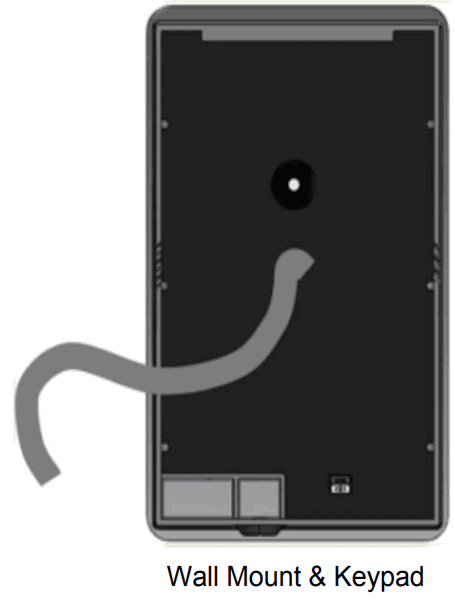

Wall Mount / Keypad
4Nos – Back Plate mounting screws for Wall
Screws (SMF #6-32×3/8″ SS)
– 1 casing to back plate mounting screw
– 2 Junction
Nylon anchor plug -4 Nos
safetrust SABRE IoT Sensorsafetrust SABRE IoT Sensor - fig
  1. Connect IoT Sensor per the wiring diagram above. Select corresponding wiring for Wiegand or OSDP output. Optional electronic relay output for signaling.

Wiring

PigtailDescription PigtailDescription
BlackGroundRed+VDC
WhiteWiegand Data (D1)AquaRS-485 A
GreenWiegand Data (DO)PinkRS-485 B
YellowBeeper InputBrownLED Input (RED)
GreyRelay InOrangeLED Input (GREEN)
BlueRelay OutPurpleTamper Out

safetrust SABRE IoT Sensor - fig 1

Once the IoT Sensor has been wired to the controller lines, its time to mount the reader. (A) Once the reader mounting plate is secured in place or Mullion reader mounted  to the wall, its time to place the cover and secure with a screw at the bottom. (B) Finally, power the reader and test with a RFID card to make the reader was wired correctly  and powered. (C) If wired correctly, the beeper will sound and LEDs flash.

safetrust SABRE IoT Sensor - fig 2

Open the Safetrust Wallet APP and select Admin Installer tab. Make sure your system admin has set you up with this role). safetrust SABRE IoT Sensor - fig 3

With the Admin Installer tab open from the App, bring the phone in range of the IoT Sensor and once visible from the App, highlight and select “Configure”.safetrust SABRE IoT Sensor - fig 4

Select the corresponding IDENTITY SYSTEM from the drop down box. Assign a short “Name” and “Description” using alphanumeric characters.
Enable the slider for “Self Enrollment” if you intend to allow your users to enroll mobile credential using their existing legacy cards from this reader. Click ‘Save’ to  successfully complete reader configuration. safetrust SABRE IoT Sensor - fig 5

When the IoT Sensor information is successfully saved to the Credential Manager, and assigned to the Identity System, the new description will appear in the Admin Installer  with a unique serial number assigned.safetrust SABRE IoT Sensor - fig 6

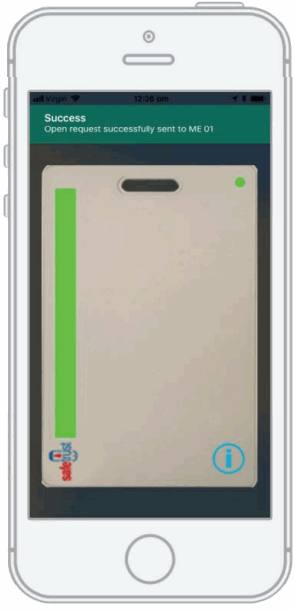

To open the door, simply present your mobile device running the Safetrust Wallet application to the IoT Sensor reader. When the phone is within the configured activation  range, the LED within the assigned credential for this identity system will be green in color. If “Auto Authenticate” is enabled for the mobile credential, the credential will be  sent to the IoT Sensor reader whenever the mobile device is within the activation zone.safetrust SABRE IoT Sensor - fig 7

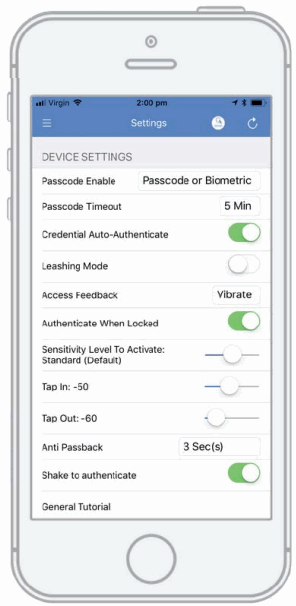

The two main configuration options for this are the “Sensitivity Level to Activate” slider, which determines how easily your mobile device with pick up the activation zone,  and the “Anti Passback” setting, which defines the number of seconds between each attempt to resend a mobile credential.
To adjust these settings, select the ‘Settings’ tab from the left navigation panel.

FCC
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to  provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not  installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not  occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off  and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

This device complied with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this  device must accept any interference receiver, including interference that may cause undesired operation.
Change or modifications that are not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
RF Exposure: Mobile RF exposure device, there shall be a minimum separation of 20 cm between the device and any users or installers.

Canada Radio Certification
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference,  and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

safetrust SABRE IoT Sensor - iconwww.Safetrust.com
sales@Safetrust.com
+1 510 9 SAFE 09
MODEL SA530
FCC ID: 2ANI55A530
IC ID: 23133-SA530
SN: 1000000 MADE
IN USA
