1.1 Introduction
The Ruijie Product Authorization (RG-PA) system provides functions for applying, generating, and querying Ruijie product authorization certificates, as well as managing hardware replacement. The system supports the license authorization for application  software, switches, and wireless products, which is independently launched by Ruijie Networks (Ruijie for short hereafter). License authorization allows customers who purchase the specified software license to obtain the use right of the corresponding software by installing the license file on the specified device. The license file is available only on the specified device.
A license must be obtained from Ruijie’s official website or through their marketing channels. The license is specific to each device. Log in to the website indicated on the purchase credential. Provide the product authorization code and host ID as prompted to obtain the license by downloading it from the authorization system or receiving it via email. Afterwards, install the license file and then you will have access to licensed features.
RGOS licenses include official license and temporary license. When you enable a temporary license for a feature, the validity period of the license starts, and after the period expires, the feature will be unavailable. To continue using this feature, you need to purchase an additional license, either official or temporary, from Ruijie’s official website or through their marketing channels.
1.2 Concepts
Log in to https://pa.ruijie.com.cn/main_wireless.jsf to bind the license with the device and generate a license file.http://pa.ruijie.com.cn:8001/main_wireless.jsf
1.2.1 License Compatibility
There are two types of licenses:

1. The old license developed for the RGOS 10.x version, which is sold in the form of a CD.
2. The new license developed for the modular RGOS 11.x version, which is sold with a paper license.

The old license can be installed on a wireless access controller (AC) running RGOS 10.x or 11.x, whereas the new license can be installed only on an AC running RGOS 11.x. You should meet the following guidelines when installing the license:

• The AC running RGOS 10.x can be installed with only the old license.
• The AC running RGOS 10.x can be upgraded to RGOS 11.x without losing the license.
• The AC running RGOS 11.x can be installed with both new and old licenses.

1.2.2 License Uninstallation
The old license cannot be uninstalled, whereas the new license can be uninstalled using the license uninstall command.
1.2.3 License Query

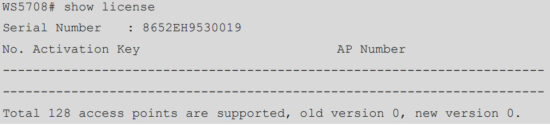

Run the show license all-license command to display details about the installed old and new licenses. On later versions than RGOS11.1(5)B8, the show license command is also supported. The last row in the command output displays the expanded capacity of the old and new licenses respectively.
The command output also includes the details of the old license, the same as that on RGOS 10.x.

Official License

2.1 Registering with a CD License
2.1.1 Obtaining the Authorization Code and Serial Number

1. Open the PDF file named Certification.pdf in the purchased CD and obtain the 12-digit authorization code.
2. Note the serial number (SN) of the AC to be registered and run the show version command to check whether the SN in the command output is consistent with the SN on the AC. The SN is a string of 13 characters.

2.1.2 Binding a License
A product can be authorized only after an authorization code is bound to the product.

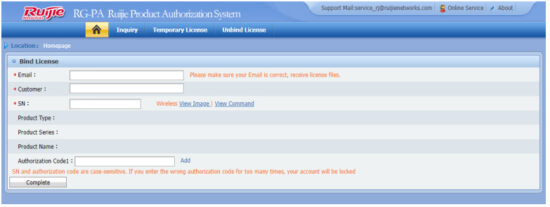

1. Log in to product authorization system https://pa.ruijie.com.cn/main_wireless.jsf and bind the authorization code to the product.http://pa.ruijie.com.cn:8001/main_wireless.jsf

Caution

• The email address must be real because the account needs to be activated by email. An email address cannot be used repeatedly.
• The device SN is interconnected with Ruijie’s inventory management system. A device not from Ruijie’s inventory management system is not produced by Ruijie by default, and the license binding will fail.

Configuration Item	Description
Email	The email address must be real because the account needs to be activated by email. An email address cannot be used repeatedly.
Customer	Your real name
SN	Serial number of the AC
Authorization Code	Registration code contained in the PDF file in the CD

(2) To bind multiple authorization codes, click Add.(3) Click Complete. Upon successful binding, a license will be available for download and an activation code will be sent to your maibox.
2.1.3 Registering a License
Copy the activation code from the Email sent to your mailbox and register it to the AC by using either of the following two methods:

1. Running CLI Commands
Run the set license command to register a license. Run the show license command to display the added license. Run the show ac-config command to display the maximum number of AP connections. max_wtp indicates the maximum number of APs supported by the AC. license wtp max indicates the license capacity. The smaller value takes precedence. If you want to change the maximum number of AP connections after the AC running RGOS 10.x is registered with a license, run the following commands: 2. Using the Web UI (Taking Version RGOS11.9(6)W3B1 as an Example)
On the AC’s Web UI, choose Maintenance > AC > License, select Activation Code, enter the 32-bit authorization code, and click Add. Upon successful addition, a success message will appear, and an activation code will be displayed.

2.2 Registering with a Paper License
2.2.1 Obtaining the Authorization Code and Serial Number

1. Obtain the authorization code from the purchased paper license.
2. Note the SN of the AC to be registered and run the show version command to check whether the SN in the command output is consistent with the SN on the AC. The SN is a string of 13 characters.

2.2.2 Binding a License

1. Log in to product authorization system https://pa.ruijie.com.cn/main_wireless.jsf and bind the authorization code to the product. http://pa.ruijie.com.cn:8001/main_wireless.jsf
   Caution
   ● The email address must be real because the account needs to be activated by email. An email address cannot be used repeatedly.
   ● The device SN is interconnected with Ruijie’s inventory management system. A device not from Ruijie’s inventory management system is not produced by Ruijie by default, and the license binding will fail.

   Configuration Item	Description
   Email	The email address must be real because the account needs to be activated by email. An email address cannot be used repeatedly.
   Customer	Your real name
   SN	Serial number of the AC
   Authorization Code	Registration code contained in the paper license

2. To bind multiple authorization codes, click Add.

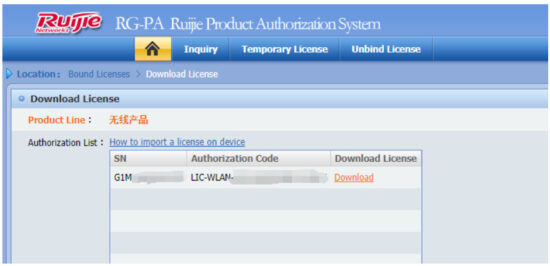

3. Click Complete to redirect to the license download page. Then click Download to download the license file your local PC. The file is with the .lic extension.

2.2.3 Registering a License
A product is officially authorized only after the license file is installed and the license function is enabled. Install the license file on the AC by using either of the following two methods:

1. Running CLI Commands
   (1) Upload the license file from your local PC (with IP address 192.168.64.2 for example) to the AC.(2) Install the license file.(3) Check the installed license file.
2. Using the Web UI (Taking Version RGOS11.9(6)W3B1 as an Example)
   (1) On the AC’s Web UI, choose Maintenance > AC > License, select License SN, and click Browse. Select the downloaded license file.(2) Click Install.(3) Once the installation is successful, the license code will be displayed.

Temporary License

In some cases, the purchased license has not arrived or the device has insufficient license capacity for spare parts, you can apply for a temporary license to temporarily solve the problem. Then register with the formal license after it is purchased. Each serial number can be used for application for a temporary license up to three times by default. The application for a temporary license beyond three times will be rejected.
You can apply for a temporary license only after registering an account on RG-PA system.

3.1 Registering an Account

1. Log in to product authorization system https://pa.ruijie.com.cn/main_wireless.jsf and click Temporary License. http://pa.ruijie.com.cn:8001/main_wireless.jsf
2. Click OK. The following page will appear. If you have not registered an account, click Register.
3. Enter the following information.


   Configuration Item	Description
   Username	User name or account
   Real Name	Your real name
   Password	User password
   Email	The email address must be real because the account needs to be activated by email. An email address cannot be used repeatedly.
   Contact Number	Your phone number
   Industry	Industry of your business
   Country/Region	Country or region where you are located
   Work Place	Company or organization name and address. When the license is lost, the address is mandatory.

4. After filling in the information, click Complete. A pop-up window will be displayed, indicating that the registration is successful. Activate the account as prompted. After the account is activated, you can log in to the system using the account.

3.2 Applying for a Temporary License

1. Log in with the activated account. Select Wireless Temporary License to bind a temporary license for wireless products.


   Configuration Item	Description
   SN	SN of the AC
   Validity	Validity period of the temporary license
   Product Code	Number of manageable APs supported by the temporary license
   Application Reason	Reason for applying for the temporary license

2. Click Complete. In the confirmation dialog box that pops up, click Complete again.
3. Choose Temporary License > Wireless to view the review status of the license application.
4. When the application is approved, the temporary license is sent to the corresponding mailbox. Log in to the email account to obtain the temporary license file.

3.3 Installing a License File
This step is described in detail in 2.2.3 Registering a License.
3.4 Other Actions

• Choose Temporary License > Wireless to view all temporary license applications for wireless products.
• Click Details in the Action column to view the details of a temporary license application.
• You can filter the temporary license application entries by setting the device SN, authorization code, or application review status, and clicking Search.
• Click Reset to display all application entries.
• Click Temporary License to redirect to the temporary license application page. For details about how to apply for a temporary license, see 3.2 Applying for a Temporary License.

Unbinding a License

An authorization code can be used on only one device. If you want to use the authorization code on another device due to incorrect license binding or hardware replacement, it is necessary to unbind the license from the original device first. In other cases, the binding cannot be removed by default. There are two types of license unbinding according to the forms of the license: CD license and paper license.
4.1 Unbinding a CD License

1. Log in to product license system https://pa.ruijie.com.cn/main_wireless.jsf and click Unbind License. http://pa.ruijie.com.cn:8001/main_wireless.jsf
2. Click OK. The license unbinding page will be displayed.


   Configuration Item	Description
   Email	The email address must be real because the account needs to be activated by email. An email address cannot be used repeatedly.
   Customer	Your real name
   Contact Number	To protect the rights and security of customers, you cannot bind or unbind a license at will. The contact number is required for verification.
   CD Authorization	Check this option when you use a CD license.
   SN	Serial number of the AC
   Authorization Code	Registration code contained in the PDF file in the CD
   Verification Code	When multiple verification codes are entered, they must be in the same order as the selected authorization codes. Enter one verification code in each row. Before unbinding the license, upgrade the device to RGOS 11.1(5)B9 or later versions. Commands for unbinding a CD license: In the global configuration mode, run the no set license activation-key command (activation-key refers to the corresponding 32-bit activation code), and run the show apmg debug unbind command to obtain the verification code. In a VAC scenario, run the license auto-uninstall command to unbind the activation code, and run the show devices cmd apmg debug unbind command to obtain the verification code.
   Application Reason	The reason is required. If the verification code is blank, the reason for unbinding the license will be verified.

3. Click Complete. In the confirmation dialog box that pops up, click Complete to submit the application.
4. Wait for approval.
   Caution
   If you enter the verification code, the system automatically unbinds the license. If you leave the verification code blank, you need to wait for manual review.
   After receiving your application for unbinding the license, we will complete the information review and reply within 48 hours. Please check your mailbox for the reply. If you need to use the license immediately, apply for a temporary license.
5. View the application review result by checking your mailbox for the email. The result can be Pass or Refuse, as shown in the following figure.
6. After your application is approved, you can bind the authorization code to another device.

4.2 Unbinding a Paper License

1. Log in to product license system https://pa.ruijie.com.cn/main_wireless.jsf and click Unbind License. http://pa.ruijie.com.cn:8001/main_wireless.jsf

2. Click OK. The license unbinding page will be displayed.


   Configuration Item	Note
   Email	The email address must be real because the account needs to be activated by email. An email address cannot be used repeatedly.
   Customer	Your real name
   Contact Number	To protect the rights and security of customers, you cannot bind or unbind a license at will. The contact number is required for verification.
   CD Authorization	Do not check this option when you use a paper license.
   SN	Serial number of the AC
   Authorization Code	Registration code contained in the PDF file in the CD
   Verification Code	When multiple verification codes are entered, they must be in the same order as the selected authorization codes. Enter one verification code in each row. Before unbinding the license, upgrade the device to RGOS 11.1(5)B9 or later versions. Commands for unbinding a paper license: In the global configuration mode, run the license unbind pak command (pak refers to the authorization code), and run the show license unbind-code command to obtain the verification code. In a VAC scenario, run the license auto-unbind command to unbind the license file, and run the show devices cmd license unbind-code command to obtain the verification code.
   Application Reason	The reason is required. If the verification code is blank, the reason for unbinding the license will be verified.

3. Click Complete. In the confirmation dialog box that pops up, click Complete to submit the application.
4. Wait for approval.
   Caution
   If you enter the verification code, the system automatically unbinds the license. If you leave the verification code blank, you need to wait for manual review.
   After receiving your application for unbinding the license, we will complete the information review and reply within 48 hours. Please check your mailbox for the reply. If you need to use the license immediately, apply for a temporary license.
5. View the application review result by checking your mailbox for the email. The result can be Pass or Refuse, as shown in the following figure.
6. After your application is approved, you can bind the authorization code to another device.

4.3 Other Actions

• Click Unbind License > Wireless to view all license unbinding applications for wireless products.
• Click Details in the Action column to view the details of a license unbinding application.
• You can filter the license unbinding application entries by setting the device SN, authorization code, or application review status, and clicking Search.
• Click Reset to display all application entries.
• Click Unbind License to redirect to the Unbind License page. For details about license unbinding, see 4.1 Unbinding a CD License and 4.2 Unbinding a

Other Actions

5.1 My License
Log in to the system with the registered account. Choose My License > Wireless to view all licenses available,including official and temporary licenses.

• Set the device SN, authorization code, or license type and click Search to filter the temporary license application entries.
• Click Reset to display all application entries.
• Select an item and click Download to download the authorization code or license file to your local PC.
• Click Batch Download to download the authorization codes or license files in batches to your local PC.

5.2 My Info
Log in to the system with the registered account. Click My Info to view and modify the information of the account.

FAQs

6.1 License Usage for RGOS 11.X (Meanings of Four, Normal, Half, and Zero)

 four: An AP occupies four licenses. Only the RG-AM5528 and RG-AM5528 (ES) occupy four licenses respectively, and the RG-AM5514 occupies two licenses.  normal: A general AP occupies only one license. The AP220-E, AP320-I, and AP520 occupy only one license respectively.  half: A wall-plate AP occupies only 0.5 licenses from RGOS 11.x versions.  zero: An AP does not occupy the license. The MAP552(SR) and APD-M do not occupy the license.  Micro APs of the RG-AM5528/14 function as radio cards. To display the number of micro APs, run the show ap-config sum slot command. For the number of MAP552(SR), run the show ap-sr sum command.

6.3 How to Troubleshoot the Failure to Register the License to a RGM18000-WS-ED?

(1) Check whether the serial number registered for the license is consistent with the serial number of the target device. If not, the license binding is incorrect. It is necessary to unbind the license and then bind it again. (2) If the binding is correct, check whether the license is used up. You can run the show ac-c command to display the usage of the current license. (3) If the license is not used up, check whether the AC is running RGOS11.1(2)B1 or earlier versions. If yes,upgrade the AC to the latest version.

6.4 How Many APs that an AC can Manage?
Versions earlier than RGOS10.4 (1B19) (excluding 1B19):

Model	Default Number of Manageable Aps	Maximum Number of Manageable APs
RG-WS3302	12	12
RG-WS5302 v1.X	16	64
RG-WS5302 v2.03	16	212
RG-WS5504	64	512
RG-WS5708	128	1,024
RG-M8600-WS	128	1,024
RG-M12000-WS	128	1,024
RG-WS6008	32	200 (RGOS11.1(5)b8 and earlier versions) 224 (versions later than RGOS11.1(5)b8)
RG-WS6108	32	320
RG-WS6024	24	24
RG-WS6812	128	1,024 (RGOS11.1(5)b9p11 and earlier versions) 1,600 (RGOS11.9(0)b1) 2,176 (up to 4,352 wall-plate APs) (RGOS11.9(0)b7 and later versions)
RG-WS6816	128	2,560 (Up to 4,000 wall-plate APs) (versions earlier than RGOS11.9(0)b7) 3,200 (Up to 6,400 wall-plate APs) (RGOS11.9(0)b7 and later versions)
RG-M8600-WS-ED	128	2,560 (Up to 4,000 wall-plate APs)
RG-M18000-WS-ED	128	2,560 (Up to 4,000 wall-plate APs)
RG-M6000-WS	32	128
RG-WS7880	128	8,192 (Up to 8,192 wall-plate APs)
RG-WS6512	128	1,152

Note: The number of APs that can be managed by an AC of other models after it is upgraded to RGOS 11.x remains unchanged by default. On RGOS 11.x, a wall-plate AP occupies only 0.5 licenses.

"text-align: justify">

6.5 How to Troubleshoot the Failure to Register the License to the AC?

(1) If a prompt appears indicating that the serial number is invalid, run the show version command on the device to check whether the serial number is correct and note that the SN is case-sensitive. (2) If a prompt appears indicating that the license SN is invalid, check whether the registration code contained in the PDF file in the CD is the same as the entered one. If the fault persists, collect the following information and contact Ruijie technical support team: the show version command output, the PDF file in the CD, the screenshot of registration result, the screenshot of the license binding failure prompt. Note: If the CD is damaged or lost, contact the supply chain personnel.

6.6 How to Transfer a License to Another Device?

(1) Upgrade the device to RGOS 11.1(5)B9 or later versions. To unbind a CD license, run the no set license activation-key command (activation-key refers to the corresponding 32-bit activation code). To unbind a paper license, run the license unbind license name command. You can view the verification code by running the show apmg debug unbind command for a CD license or the show license unbind-code command for a paper license. Note: After the license is unbound, the license activation code will be deleted from the device and cannot be registered to the device again. (2) Perform license unbinding on the authorization system. Submit the SN of the original AC, activation code, and verification code for approval. After the license binding is removed, you will obtain an authorization code. (3) Perform license binding on the authorization system. Submit the SN of the new AC and authorization code to register a license. Then, obtain a new activation code. (4) Register the new activation code to the new AC.

6.7 Can I Register Several Temporary Licenses to a Device at the Same Time?

An AC can be used for application for a temporary license up to three times. The application is automatically approved. An AC is allowed to be installed with only one temporary license with the same capacity or with multiple temporary licenses with different capacities. For example, an AC cannot be installed with two temporary licenses for 32 APs, whereas it can be installed with a temporary license for 32 APs and another for 128 APs.

6.8 How to Register a License in VAC Scenarios?

(1) Before the Virtual AC (VAC) is deployed, the registration procedure is the same as that for the standalone AC running RGOS 11.x. (2) Before the VAC is set up, bind the active AC to one license and the standby AC to another on RG-PA system. After the VAC is set up, register the license to the VAC (Perform configuration on the active AP). When using a CD license, run the set license command on the active AC to identify the authorization code contained in the PDF file in the CD automatically. AC(config)#set license xxxx-xxxx-xxxx-xxxx-xxxx-xxxx-xxxx-xxxx When using a paper license, import the license file to the active AC, and run the license auto-install flash: command to register the license automatically. AC#license auto-install flash: xxxxxx .lic If you run this command on the standby AC, the following notification will be displayed: % Can’t execute this command in redundancy slave. (3) The license install command can be used to install a license only on the local device.

6.9 Will the AP be Disconnected Immediately After Unbinding the License Using the no set license command?

No. Instead, it will stay online unless the AP is disconnected or the AC is restarted.

6.10 Will the AP be Disconnected Immediately If the Temporary License is Used Up?

No. No matter whether the temporary or formal license is unbound, the AP will not go offline immediately. The license capacity is evaluated only when APs go online. Therefore, an AP is not allowed to go online again if it is disconnected after the temporary license expires.

6.11 Is the License Specific to the Product Type?

(1) The license for enterprise-class ACs is also applicable to SMB-class ACs. (2) The RAC license is specific to SMB-class ACs. The RG-WS6812 which runs a SMB software version and manages SMB-class APs can use only the license for enterprise-class ACs. (3) The RAC license for SMB-class ACs is not applicable to enterprise-class ACs. (4) The gateway devices use the license for enterprise-class ACs.

6.12 Which ACs is the Temporary License with a Capacity of 8192 Applicable to?

You can specify the product code in the temporary license application to select the number of manageable APs allowed. LIC-WLAN-AP-8192 indicates that up to 8192 APs are supported. The enterprise-class AC running RGOS 11.9 or later versions can use this license.

6.13 How Do the A series and Enterprise-Class ACs Manage APs?

Differences between the A series and enterprise-class ACs:  The A series ACs can manage the A series APs.  The A series ACs can manage the non-A series APs.  The non-A series ACs running versions earlier than RGOS 11.9(2)B2P4 cannot manage the A series APs. There is no limitation for non-A series ACs running RGOS 11.9(2)B2P4 or later versions.  The RG-WS7216 running RGOS 11.9(2)B2 or later versions can manage the A series APs.  The RG-WS6008(C7) running 11.9(2)B2P3 or later versions can manage the A series APs.

6.14 Which ACs is the License with a Capacity of 1 Applicable to?

The license with a capacity of 1 is used to manage the A series and industry-class APs. However, the AC model and version must meet the following requirements:  The license with a capacity of 1 is supported by the A series ACs without version restrictions: RG-WS7204A and RG-WS7208-A. It is not supported by the RG-WS2000-A.  The license with a capacity of 1 is supported by the RG-WS7216 running RGOS 11.9(2)B2 or later versions.  The license with a capacity of 1 is supported by the RG-WS6008(C7) running RGOS 11.9(2)B2P3 or later versions.  The license with a capacity of 1 is not supported by the ACs of other models.

ng="lazy" class="alignnone wp-image-14457436 aligncenter" src="https://manuals.plus/wp-content/uploads/2024/09/Ruijie-logo.jpg" alt="Ruijie logo" width="238" height="83">

Documents / Resources

Ruijie Wireless Product Authorization System [pdf] User Manual Wireless Product Authorization System, Product Authorization System, Authorization System, System

References

• User Manual
