1. Введение

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your ARIEL Hepburn 30-Inch Bathroom Vanity. Please read this manual thoroughly before beginning installation or use to ensure proper function and longevity of your product.

Предупреждение о безопасности:

• Always use proper lifting techniques when handling this heavy product to avoid injury.
• Be cautious of sharp edges, especially the 1.5-inch miter edge on the countertop.
• Данный продукт предназначен только для использования внутри помещений.

2. Включенные компоненты

The ARIEL Hepburn 30-Inch Bathroom Vanity includes the following components:

• Fully assembled vanity base cabinet
• Carrara White Quartz countertop (1.5-inch thick miter edge)
• Прямоугольная мойка
• Hardware (Matte Black handles)
• Фартук
• Руководство по установке

Note: Faucets, drain, vanity mirror, and vanity lights are not included.

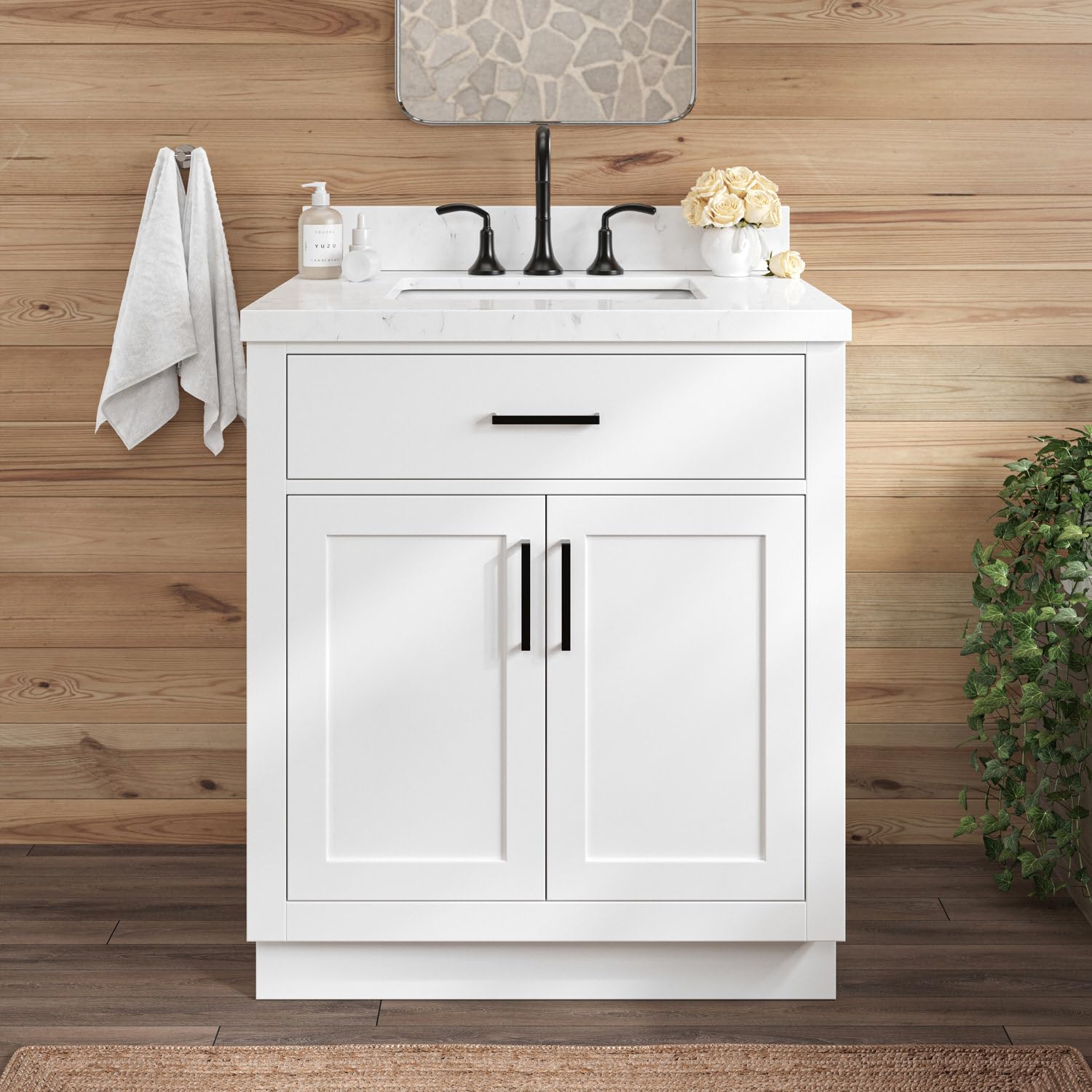

Рисунок 2.1: Передняя часть view of the ARIEL Hepburn 30-Inch Bathroom Vanity with sink, countertop, and hardware.

Figure 2.2: Detailed dimensions of the ARIEL Hepburn 30-Inch Bathroom Vanity, showing width, depth, and height measurements.

3. Настройка и установка

The vanity base cabinet arrives fully assembled. The countertop and sink are not attached and require installation. Installation is designed to be completed in 9 steps, taking 30 minutes or less.

3.1 Контрольный список перед установкой

• Убедитесь, что все компоненты, перечисленные в Разделе 2, присутствуют и не повреждены.
• Verify plumbing rough-ins are correctly positioned for the vanity's open back design.
• Confirm adequate space for door and drawer operation.
• Gather necessary tools: pencil, silicone gun, towel, screwdriver.

3.2 Countertop and Sink Installation

1. Поместите basin on the bottom of the countertop.
2. Use a pencil to mark the position of the basin.
3. Apply silicone on the top edge of the basin.
4. Flip the basin and place it onto the marked position on the countertop. Allow 12 to 24 hours for drying.
5. Attach undermount clips to secure the basin to the countertop.
6. Apply silicone around the top perimeter of the base cabinet where the countertop will rest.
7. Carefully set the countertop in place on the base cabinet.
8. Set the backsplash. Apply silicone on the countertop and behind the backsplash for a secure seal.
9. Wipe away any excess silicone immediately with a clean towel.

Figure 3.1: Illustration showing pre-drilled faucet holes and the open back design for plumbing access.

4. Операция

Your ARIEL Hepburn vanity is designed for ease of use and durability.

4.1 Soft-Closing Doors and Drawer

The vanity features two soft-closing doors and one soft-closing tip-out drawer. These mechanisms ensure quiet operation and prevent slamming, extending the lifespan of the cabinet.

Рисунок 4.1: Крупный план view of the soft-closing doors and the tip-out drawer, highlighting their smooth operation.

4.2 Регулируемые петли

The doors are equipped with adjustable hinges to ensure perfect alignment. Refer to the troubleshooting section for hinge adjustment instructions if needed.

5. Техническое обслуживание

Proper care and maintenance will preserve the beauty and functionality of your ARIEL Hepburn vanity.

5.1 Cleaning the Countertop

The Carrara White Quartz countertop is easy to clean and resistant to scratches and stains. Use a soft cloth with mild soap and water for daily cleaning. Avoid abrasive cleaners or harsh chemicals that could damage the surface.

5.2 Уход за шкафчиком

The solid hardwood base cabinet features a premium Sherwin Williams PU paint finish for lasting color retention. Wipe down the cabinet surfaces with a soft, damp cloth. Avoid excessive moisture and promptly clean any spills.

5.3 Обслуживание оборудования

The Matte Black hardware can be cleaned with a soft, dry cloth. Avoid using chemical cleaners that may strip the finish.

6. Поиск Неисправностей

6.1 Проблемы с выравниванием дверей

If doors are not aligned correctly, adjust the concealed hinges:

• Gap between door and cabinet: Adjusted via an eccentric screw. Turn the screw to move the door closer or further from the cabinet frame.
• Door overlay alignment: Adjusted by turning the front screw on the hinge. This moves the door left or right.
• Door height adjustment: Adjusted by releasing the mounting plate screws, moving the door up or down, and then re-tightening the screws.

7. Технические характеристики

8. Гарантия и поддержка

This product comes with a 3-year limited warranty. For customer after-sales support, please refer to the contact information provided with your purchase documentation or visit the ARIEL webсайт.

Figure 8.1: Visual representation of included items and warranty details.
