ARIEL Hepburn 54-inch White Bathroom Vanity Instruction Manual

1 Важная информация по безопасности

Always use appropriate safety gear when handling and installing the vanity. Be aware of sharp edges and heavy weight to prevent injuries. Follow the installation manual for proper assembly and mounting. Professional installation is recommended for optimal safety and performance.

2. Продукт закончилсяview

The ARIEL Hepburn 54-inch Bathroom Vanity is crafted from solid hardwood with plywood panels, ensuring durability and resistance to moisture and temperature changes. It features a 1.5-inch edge Carrara Quartz countertop, a single oval under-mount sink, and soft-closing doors and drawers for quiet operation. The design includes nine full-extension dovetail drawers, with one 45-degree open tilt drawer, and a toe kick for convenience.

2.1.Основные характеристики

• Материал: Solid hardwood construction with plywood panels.
• Прилавок: 1.5-inch edge Carrara Quartz, pre-drilled for an 8-inch widespread 3-hole faucet.
• Раковина: One ceramic oval UPC certified under-mount sink.
• Хранилище: Two soft-closing doors and nine full-extension dovetail drawers, including one tilt-out drawer.
• Дизайн: Plinth base for a floating effect and toe kick for easy cleaning.
• Аппаратное обеспечение: Матово-черная отделка.

2.2. Размеры

Габариты изделия: 22"Г x 54"Ш x 36"В

This diagram illustrates the precise measurements of the vanity, including its width, depth, and height, crucial for planning your bathroom space.

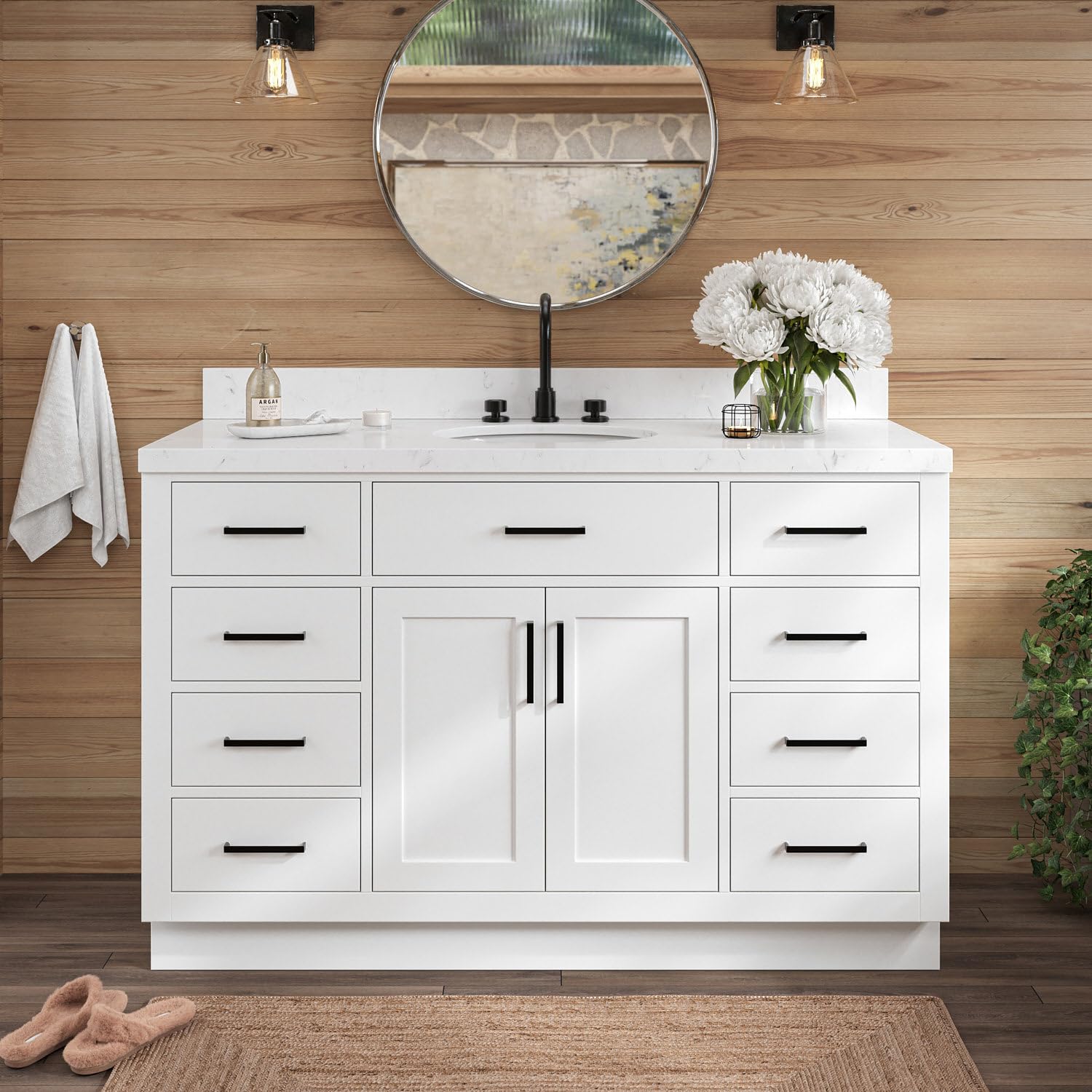

полный фронт view тщеславия, демонстрацияasing its white finish, Carrara Quartz countertop, and matte black hardware.

2.3. Включенные компоненты

• Vanity base cabinet (fully assembled)
• Carrara Quartz countertop
• Ceramic oval under-mount sink
• Hardware (Matte Black)
• Фартук

2.4. Items Not Included

• Кран
• Зеркало

This image provides a clear overview of what comes with your vanity purchase and what items, such as the faucet and mirror, need to be acquired separately.

3. Настройка и установка

The vanity cabinet arrives fully assembled. The countertop and sink need to be attached following the provided installation instructions. The countertop is pre-drilled for an 8-inch widespread 3-hole faucet. DIY or professional installation is an option.

3.1. Контрольный список перед установкой

• Убедитесь, что все компоненты присутствуют и не повреждены.
• Verify plumbing rough-ins are correctly positioned for the vanity size.
• Gather necessary tools: silicone gun, pencil, towel, and appropriate safety gear.

3.2. Этапы установки

1. Подготовьте Б.asin: Поместите basin on the bottom of the countertop. Use a pencil to mark the position of the basin.
2. Apply Silicone to Basin: Apply a bead of silicone sealant around the top edge of the basin.
3. Attach Basin to Countertop: Flip the basin and carefully place it onto the marked position on the underside of the countertop. Allow 12 to 24 hours for the silicone to dry.
4. Secure Basin with Clips: Attach the provided under-mount clips to secure the basin firmly to the countertop.
5. Подготовить кабинет: Apply a bead of silicone sealant around the top perimeter of the vanity base cabinet where the countertop will rest.
6. Set Countertop: With assistance, carefully lift and set the countertop with the attached basin onto the vanity base cabinet, aligning it properly.
7. Install Backsplash: Apply silicone to the back edge of the countertop and the back of the backsplash. Carefully set the backsplash in place against the wall and countertop.
8. Wipe Excess Silicone: Immediately wipe away any excess silicone with a damp cloth or towel for a clean finish.
9. Подключение сантехники: Connect the faucet and drain according to manufacturer instructions and local plumbing codes. The vanity features an open back for easier plumbing access.

This diagram highlights features designed to simplify installation, such as pre-drilled faucet holes, a pre-assembled cabinet, hidden leveling feet for uneven surfaces, and an open back for plumbing access.

3.3 Видеоруководство по установке

For a visual guide on installing a vanity, please refer to the video below. While the vanity shown may vary slightly, the installation principles remain consistent.

4. Инструкция по эксплуатации

The ARIEL Hepburn vanity is designed for ease of use and long-lasting functionality. Its primary operational features involve the soft-closing doors and full-extension drawers.

4.1. Soft-Closing Doors and Drawers

• The vanity is equipped with soft-closing hinges and drawer slides. This feature prevents slamming, reducing noise and extending the lifespan of the cabinet components.
• To close, gently push the door or drawer. The soft-close mechanism will engage, slowly and quietly pulling it shut.

4.2. Full-Extension Dovetail Drawers

• The drawers feature full-extension slides, allowing complete access to the entire drawer space.
• One top drawer is a 45-degree open tilt drawer, ideal for small items and quick access.

This image displays the vanity with all its drawers and cabinet doors open, highlighting the extensive storage capacity and the quality of the dovetail drawer construction.

A top-down perspective of the vanity with all storage compartments open, providing a clear view of the oval sink and the organized interior space.

This close-up shot emphasizes the robust dovetail joint construction of the drawers, a hallmark of quality craftsmanship.

5. Техническое обслуживание

Proper care and maintenance will ensure the longevity and beauty of your ARIEL Hepburn vanity.

5.1. Countertop Care (Carrara Quartz)

• Ежедневная уборка: Wipe the surface with a soft cloth and warm, soapy water. Rinse thoroughly and dry to prevent water spots.
• Предотвращение пятен: Quartz is highly stain-resistant, but it is best to wipe up spills immediately, especially acidic liquids like lemon juice or wine.
• Избегайте едких химикатов: Do not use abrasive cleaners, strong acids, alkalis, or harsh chemicals like oven cleaner, paint remover, or drain cleaner, as these can damage the surface.
• Тепловая защита: While quartz is heat-resistant, always use trivets or hot pads under hot pots, pans, or heat-generating appliances to prevent potential damage.

5.2. Cabinet Care (Painted Wood)

• Уборка: Используйте мягкий, damp cloth with a mild, non-abrasive cleaner. Wipe dry immediately to prevent moisture damage.
• Избегайте избыточной влажности: Do not allow water to sit on the cabinet surfaces for extended periods.
• Защитите от царапин: Use felt pads under items placed on the vanity surface to prevent scratches.

5.3. Hardware Care (Matte Black)

• Протирайте мягкой тряпкой.amp cloth. Avoid abrasive cleaners or harsh chemicals that can strip the finish.

6. Поиск Неисправностей

Вот некоторые распространенные проблемы и их возможные решения:

7. Технические характеристики

8. Информация о гарантии

This product may be eligible for a 3-Year Protection Plan. Please refer to your purchase documentation or contact the retailer for specific details regarding warranty coverage and terms.

9. Поддержка клиентов

For further assistance, technical support, or to inquire about replacement parts, please contact ARIEL customer service or the retailer from whom you purchased the product. Have your model number (HBT-054SCQOVOWHT) and purchase date ready for efficient service.

10. Продукт закончилсяview Видео

Explore the ARIEL Hepburn Bathroom Vanity Collection in more detail with this overview видео, шоуasinг его дизайн и особенности.
