Введение
Thank you for choosing the TOWER Duo Electric Salt/Pepper Mill. This elegantly designed mill provides effortless seasoning for your culinary needs. Its dual-chamber design allows for both salt and pepper grinding from a single unit, offering convenience and style to your kitchen or dining table. Please read this manual thoroughly before use to ensure proper operation and maintenance.
Информация по безопасности
- Хранить в недоступном для детей месте.
- Не погружайте устройство в воду или любую другую жидкость.
- Do not use abrasive cleaners or scouring pads to clean the unit.
- Ensure hands are dry when handling batteries.
- Не смешивайте старые и новые батареи или батареи разных типов.
- Извлекайте батарейки, если устройство не используется в течение длительного времени.
- Данный прибор предназначен только для бытового использования.
Продукт болееview
The TOWER Duo Electric Salt/Pepper Mill features a durable ABS body with clear acrylic chambers for easy viewing of contents. It is designed for convenient, one-handed operation.
Рисунок 1: Передняя часть view of the TOWER Duo Electric Salt/Pepper Mill.

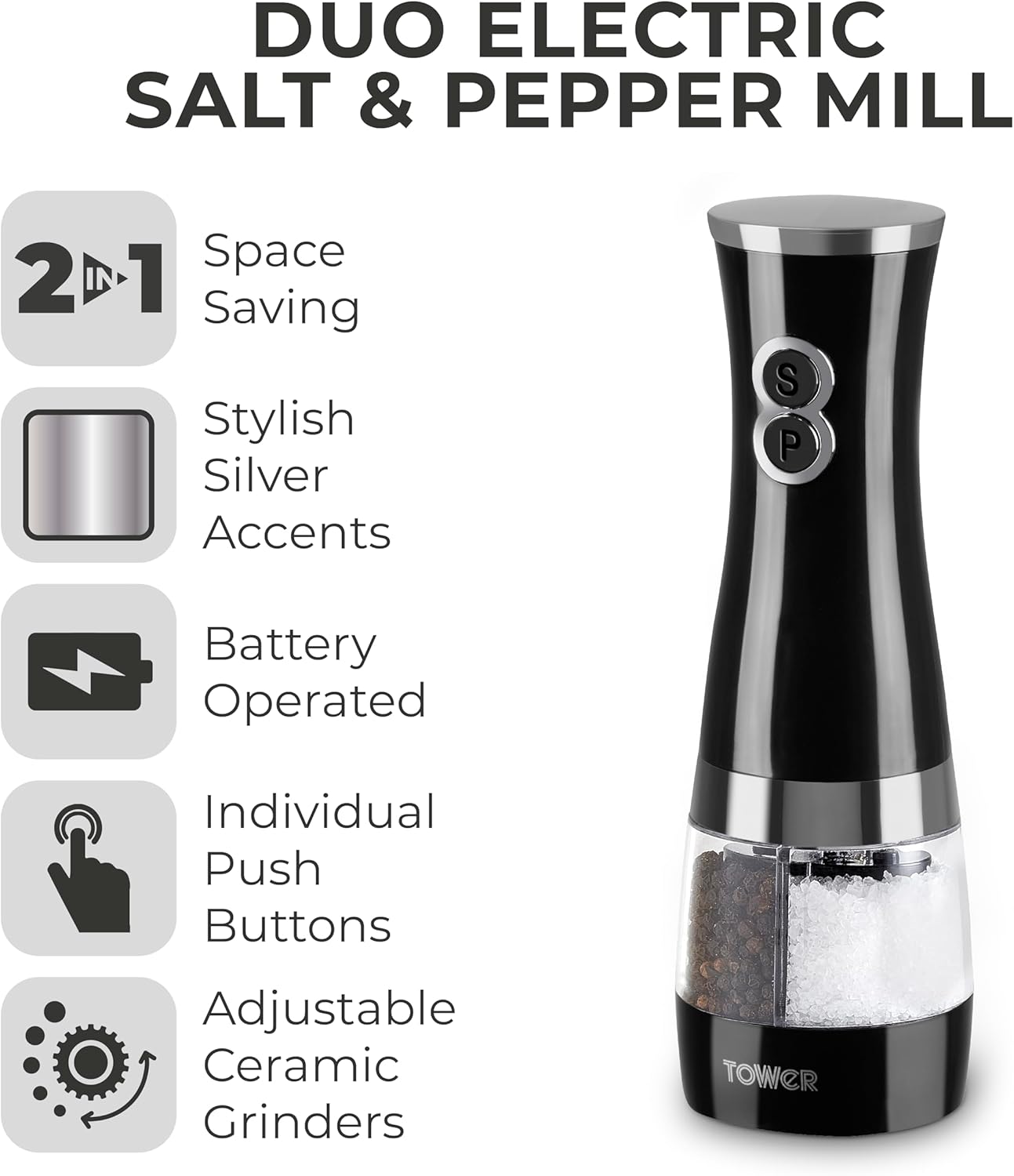

Figure 2: Key features including 2-in-1 design, stylish accents, battery operation, individual buttons, and adjustable ceramic grinders.
Рисунок 3: Габариты изделия для размещения и хранения.
Настраивать
1. Установка аккумулятора
- Twist the top section of the mill counter-clockwise to separate it from the clear acrylic chambers.
- Locate the battery compartment. The mill requires 6 x AA batteries (not included).
- Вставьте батарейки в отсек, соблюдая полярность (+/-).
- Align the top section with the clear chambers and twist clockwise to secure.
Рисунок 4: View of the battery compartment and the adjustable ceramic grinders.
2. Filling the Chambers
- With the top section removed, you will see two separate clear acrylic chambers.
- Fill one chamber with salt (e.g., coarse sea salt or Himalayan salt) and the other with whole peppercorns.
- Avoid overfilling to prevent spillage when reattaching the top section.
- Carefully reattach the top section by aligning and twisting clockwise until secure.
Figure 5: The clear acrylic chambers are easy to fill with salt and pepper.
Инструкция по эксплуатации
1. Grinding Salt or Pepper
- Identify the 'S' button for salt and the 'P' button for pepper on the side of the mill.
- Поднесите мельницу к еде или блюду.
- Press and hold the desired button ('S' or 'P') to activate the grinding mechanism. Release the button to stop grinding.
Figure 6: The mill features individual push buttons for effortless salt or pepper seasoning.
2. Регулировка размера помола
- The mill features an adjustable ceramic grinder.
- To adjust the grind size (fine to coarse), locate the adjustment mechanism at the bottom of the mill (underneath the clear chambers).
- Turn the adjustment knob or ring to your desired setting. Turning clockwise typically results in a finer grind, while counter-clockwise results in a coarser grind.
Обслуживание
Уборка
- The TOWER Duo Electric Salt/Pepper Mill is НЕТ можно мыть в посудомоечной машине.
- Чтобы очистить, протрите снаружи рекламойamp ткань.
- For the grinding mechanism, use a small brush to remove any residual salt or pepper.
- Перед повторной сборкой или хранением убедитесь, что все детали полностью высохли.
Поиск неисправностей
| Проблема | Возможная причина | Решение |
|---|---|---|
| Mill not grinding. | Батарейки разряжены или неправильно установлены. | Replace batteries with 6 new AA batteries, ensuring correct polarity. |
| Mill not grinding. | Chambers are empty. | Refill salt or pepper chambers. |
| Mill not grinding. | Grinding mechanism is jammed. | Carefully clear any blockages from the grinding mechanism using a small brush. |
| Mess during refilling. | Chambers overfilled or not properly aligned. | Do not overfill chambers. Ensure the top section is securely twisted onto the base after refilling. |
| Grind size is inconsistent. | Grind adjustment needs fine-tuning. | Adjust the ceramic grinder setting at the bottom of the mill until desired consistency is achieved. |
Технические характеристики
- Бренд: БАШНЯ
- Модель: Т847004Б
- Материал: Пластик (корпус из АБС-пластика)
- Цвет: Черный
- Режим работы: Автоматический
- Размеры продукта: 2.72 дюймов (Ш) x 8.46 дюйма (В)
- Вес товара: 10.8 унции
- Требуемые батареи: 6 х АА (не входят в комплект)
- Инструкции по уходу: Только ручная мойка (не подходит для посудомоечной машины).
Гарантия и поддержка
The TOWER Duo Electric Salt/Pepper Mill comes with a standard 1-year manufacturer's guarantee. An optional 2-year extension is available upon product registration online, providing a total of 3 years of coverage.
For further support, please refer to the contact information provided with your purchase or visit the official TOWER webсайт.
Figure 7: Information regarding the 3-year guarantee.
