VDO 333707 Cockpit Royale Style Electronic Tachometer Gauge User Manual

1. Введение

Thank you for choosing the VDO 333707 Cockpit Royale Style Electronic Tachometer Gauge. This manual provides detailed instructions for the proper installation, operation, and maintenance of your new tachometer. Please read this manual thoroughly before installation and keep it for future reference. This electronic tachometer is designed for precise engine RPM measurement in various automotive and marine applications.

2. Информация по технике безопасности

• Перед началом любых электромонтажных работ всегда отключайте аккумулятор автомобиля, чтобы предотвратить поражение электрическим током или повреждение электрической системы автомобиля.
• Убедитесь, что все соединения проводки надежны и надлежащим образом изолированы, чтобы предотвратить короткое замыкание.
• Mount the gauge securely to prevent it from becoming a projectile during sudden stops or impacts.
• Do not operate the vehicle while distracted by gauge installation or adjustments.
• Если у вас возникли сомнения по какому-либо этапу процесса установки, обратитесь к квалифицированному автомеханику.

3. Содержимое упаковки

Перед началом установки убедитесь, что все компоненты присутствуют:

• VDO 333707 Electronic Tachometer Gauge (3 1/8" Diameter)
• Монтажный кронштейн и оборудование
• Wiring Harness/Connector
• Руководство по эксплуатации (данный документ)

4. Настройка и установка

The VDO 333707 tachometer is designed for a standard 3 1/8" (approximately 80mm) mounting hole. Ensure you have adequate space behind the mounting surface for the gauge body and wiring connections.

4.1 Установка манометра

1. Select a suitable location on your dashboard or panel that provides clear visibility and does not obstruct other controls.
2. Cut a 3 1/8" (80mm) diameter hole using an appropriate hole saw. Deburr the edges of the hole.
3. Insert the tachometer into the mounting hole from the front.
4. From the rear of the panel, slide the mounting bracket over the threaded studs on the back of the gauge.
5. Thread the retaining nuts onto the studs and tighten them evenly until the gauge is secure. Do not overtighten.

4.2 Подключение проводки

Refer to the wiring diagram provided with your specific gauge or consult the VDO official website for detailed diagrams. General wiring connections are as follows:

• Red Wire (+12V Switched Power): Connect to a switched 12-volt power source that is active when the ignition is on. This can typically be found at the fuse box or an accessory circuit.
• Черный провод (заземление): Connect to a good chassis ground point. Ensure the connection is clean and secure.
• Green/Blue Wire (Ignition Signal): Connect to the negative side of the ignition coil (for conventional ignition systems) or the tachometer output signal wire from the ECU/ignition module (for electronic ignition systems). Consult your vehicle's service manual for the correct tachometer signal wire location.
• White/Orange Wire (Illumination): Connect to the vehicle's dashboard lighting circuit. This will illuminate the gauge when your headlights are on.

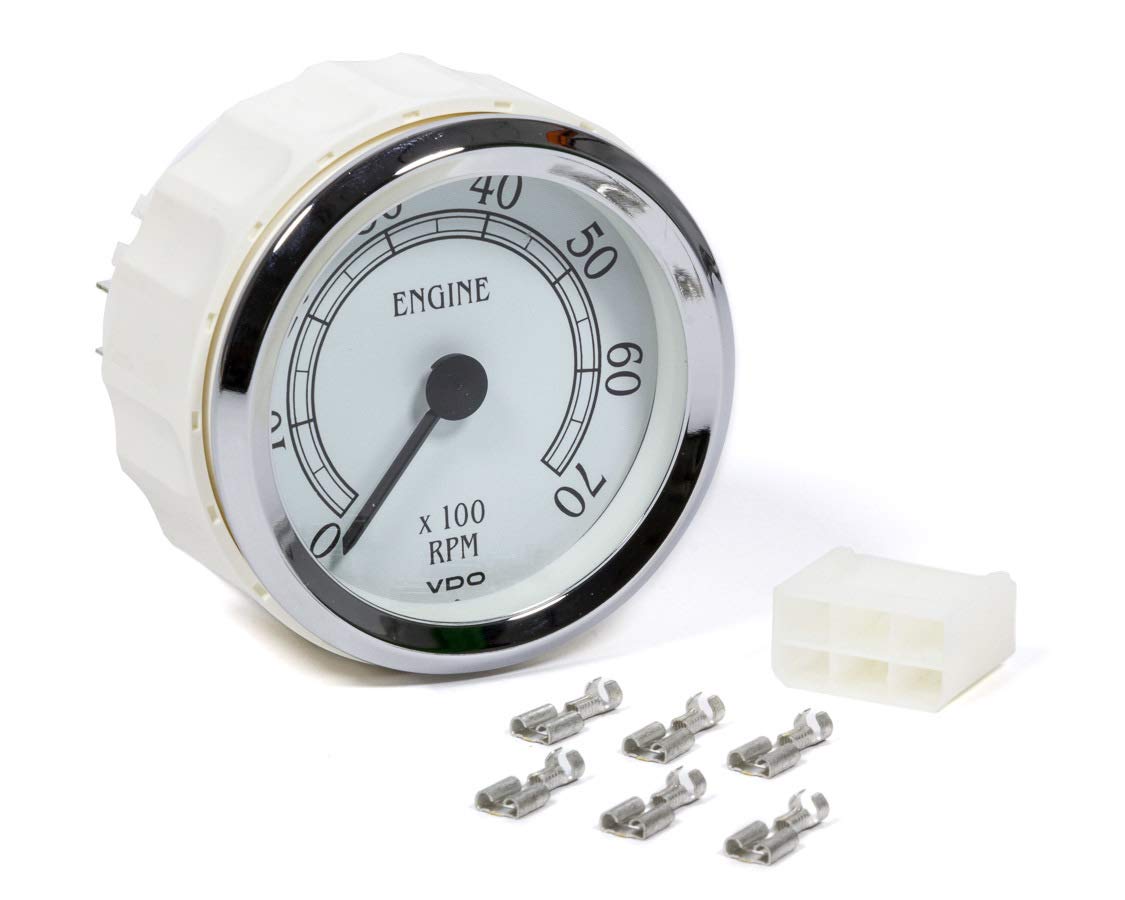

Image: VDO 333707 Cockpit Royale Style Electronic Tachometer Gauge. This image displays the front face of the gauge, featuring the RPM scale, needle, and classic VDO Cockpit Royale styling.

5. Инструкция по эксплуатации

Once properly installed and wired, the VDO 333707 tachometer operates automatically. When the vehicle's ignition is turned on, the gauge will power up. As the engine runs, the needle will indicate the engine's revolutions per minute (RPM). The gauge is designed to provide accurate and stable readings across its specified RPM range.

• Понимание показаний прибора: The main scale indicates RPM in thousands. For example, '2' represents 2,000 RPM, '4' represents 4,000 RPM, and so on.
• Освещение: The gauge's backlight will activate when the vehicle's dashboard lights are turned on, providing clear visibility in low-light conditions.

6. Техническое обслуживание

The VDO 333707 tachometer is designed for long-term reliability with minimal maintenance. Follow these guidelines to ensure optimal performance and longevity:

• Уборка: Протрите циферблат прибора мягкой тряпкой.amp cloth. Do not use abrasive cleaners or solvents, as these can damage the lens or finish.
• Инспекция: Periodically check all wiring connections to ensure they remain secure and free from corrosion. Inspect the mounting hardware for tightness.
• Охрана окружающей среды: While designed for automotive environments, avoid exposing the gauge to extreme moisture or direct water spray.

7. Поиск Неисправностей

If you experience issues with your VDO 333707 tachometer, refer to the following troubleshooting steps:

• Gauge Not Powering On/No Illumination:
  • Check the +12V switched power (red wire) connection and ensure it has power when the ignition is on.
  • Verify the ground (black wire) connection is secure and making good contact with the chassis.
  • For illumination issues, check the illumination (white/orange wire) connection and the vehicle's dashboard lighting circuit.
• Tachometer Not Reading/Erratic Reading:
  • Ensure the ignition signal (green/blue wire) is correctly connected to the appropriate signal source (ignition coil negative or ECU tach output).
  • Check for loose or corroded connections in the signal wire.
  • Verify the signal source is functioning correctly.
  • Ensure the gauge is compatible with your vehicle's ignition system (e.g., 4, 6, 8 cylinder settings if applicable, though this model is typically self-adjusting or pre-set).
• Неверное прочтение:
  • Confirm the signal wire is connected to the correct source and not picking up interference.
  • Compare the reading with another known accurate tachometer if possible.

If these steps do not resolve the issue, contact VDO customer support for further assistance.

8. Технические характеристики

9. Информация о гарантии

VDO products are manufactured to high-quality standards and are typically covered by a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and product. Please retain your proof of purchase. For detailed warranty information, including terms, conditions, and how to make a claim, please visit the official VDO website or contact VDO customer support directly.

10 Поддержка

For technical assistance, troubleshooting beyond the scope of this manual, or warranty inquiries, please contact VDO customer support. You can typically find contact information, including phone numbers and email addresses, on the official VDO webсайт (www.vdo-gauges.com or relevant regional VDO sites). When contacting support, please have your product model number (333-707D) and proof of purchase readily available.
