Roth Touchline® SL Installation

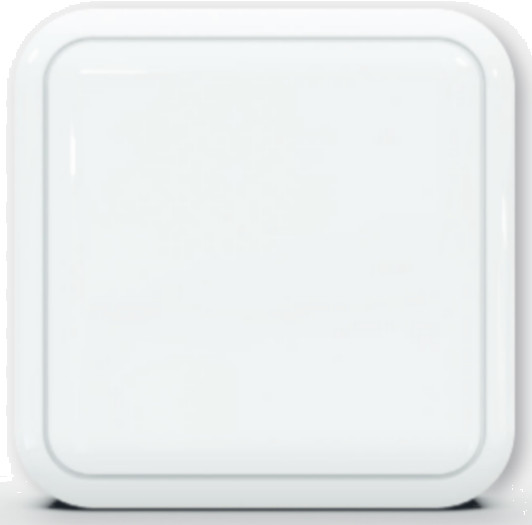

Roth Touchlines SL Room sensor Mini
Living full of energy
Energylogic Projectline Wireless Control
Roth Touchlines SL Room sensor Mini
The sensor can be connected to all Controllers in the Touchline SI series. Pairing/registering is made the same way on all Controllers using the same buttons. On the pictures the panel of the Touchline* a Controller, master Is shown.
Insert battery (CR2032 Included) as shown on the thawing.
Pairing/registering the sensor to a zone (channel). Follow step 2 to 7 and press pairing button as shown on step 8. Finish with Menu and after that press several times on Exit until standard view. All connections must be made to the Controller (pump, actuators and optionally potential free relay) before start-up. Please see controller manual for details.
Once the sensor is connected to the Zone/Channel, the overview shows: – Temperatures on the thermostat (setpoint 22,0°C, actual 25,0°C) , battery (99%), signal strenght (100% – must be at least 10%) and mode of operation (CON = continously). For more info on the display, see controller manual. Repeat registration for other sensors, by choosing one of the other zones (2 to 8) until required number of sensors are connected. ]
Attention! If a sensor is paired to the wrong zone, do not delete the sensor. Pair the sensor to the correct/new zone and the old pairing will be deleted.
Mount the lid and turn lightly (2 -3 mm) with a screwdriver or coin.
First apply the self-adhesive tape (included) on the sensor, then the sensor on the wall. The ventilation grooves must point downwards.
Settings for temperature and mode must be done on the controller’s display. For constant temperature settings follow the steps 13 – 19 below.
If a different mode than constant temperature is wanted, for example time schedule or time limitation, then follow the below steps below 20 – 26 below. For more information about time schedules, we refer to the online manual for Roth Touchline® SL Controller — Master.
Picture 26, now shows the new setpoint 22,0°C and the remaining time for this temperature (01:59). When the time expires the system auto-matically returns to the original selected constant temperature (19°C).
