BEYOU 10.7 Cu. Ft. Commercial Upright Freezer (Model XB-XF-400)

1. Introducere

Thank you for choosing the BEYOU 10.7 Cu. Ft. Commercial Upright Freezer. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read these instructions thoroughly before use and retain them for future reference.

This commercial upright freezer is designed for optimal frozen food storage, featuring a generous 10.7 cubic feet capacity, precise temperature control, and a durable design suitable for various commercial environments.

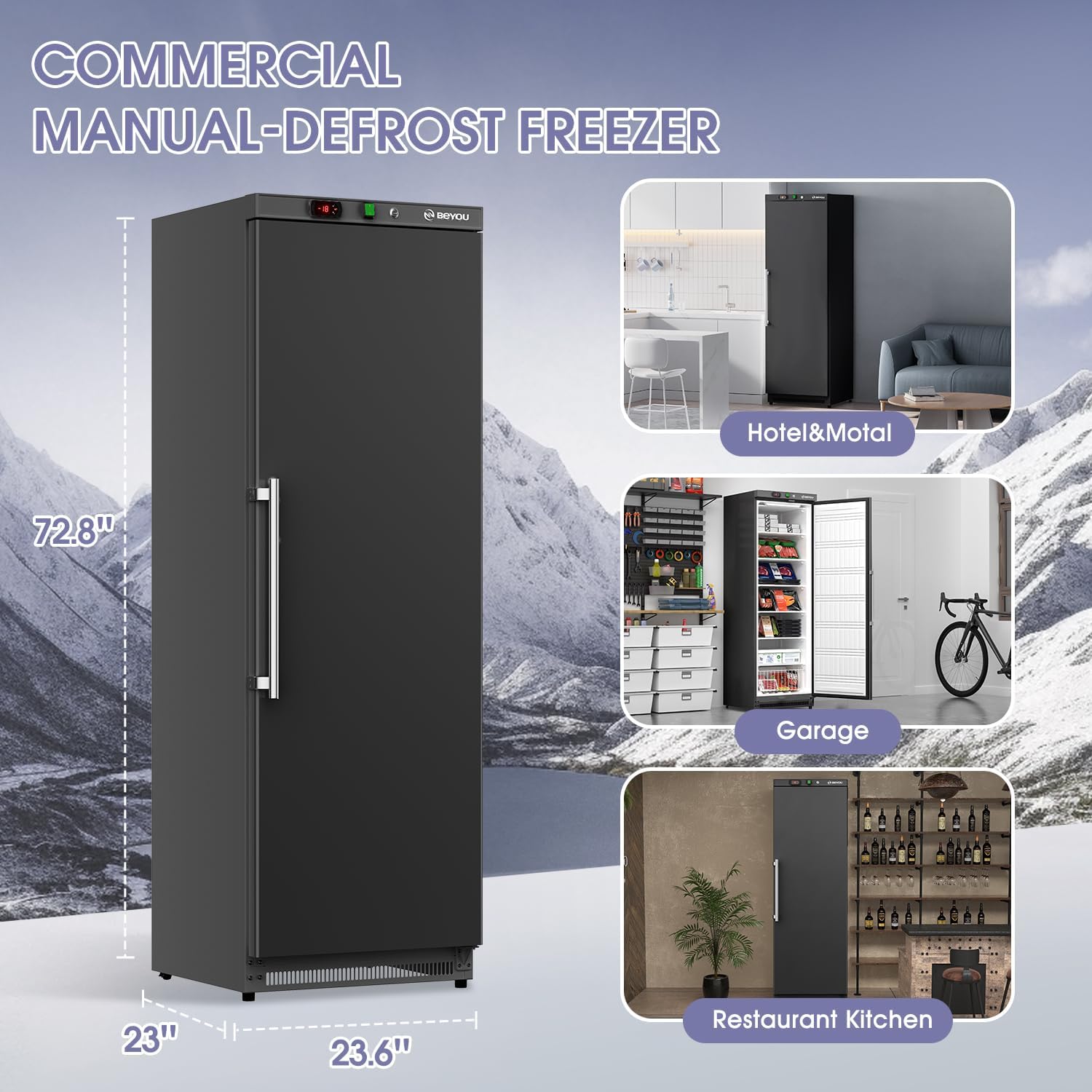

Figure 1: BEYOU Commercial Upright Freezer with key dimensions and suggested usage environments.

2. Informații de siguranță

AVERTISMENT: Pentru a reduce riscul de incendiu, electrocutare sau vătămare corporală, urmați aceste măsuri de precauție de bază:

• Citiți toate instrucțiunile înainte de a utiliza congelatorul.
• Nu depozitați substanțe explozive, cum ar fi cutii de aerosoli cu un propulsor inflamabil, în acest aparat.
• Asigurați-vă că congelatorul este împământat corespunzător.
• Deconectați congelatorul de la priză înainte de curățare sau de efectuarea oricărei operațiuni de întreținere.
• Păstrați orificiile de ventilație fără obstacole.
• Nu deteriorați circuitul de agent frigorific.
• Acest aparat nu este destinat utilizării de către persoane (inclusiv copii) cu capacități fizice, senzoriale sau mentale reduse sau cu lipsă de experiență și cunoștințe, cu excepția cazului în care acestea au fost supravegheate sau instruite cu privire la utilizarea aparatului de către o persoană responsabilă pentru siguranța lor.
• Copiii trebuie supravegheați pentru a se asigura că nu se joacă cu aparatul.

3. Conținutul pachetului

Verificați dacă toate articolele sunt incluse în pachetul dvs.:

• BEYOU 10.7 Cu. Ft. Commercial Upright Freezer Unit
• Mâner(e) de ușă
• Elemente de instalare (șuruburi, șaibe etc.)
• Wire Shelves (7 fixed-position)
• Mesh Basket (1 customized large capacity)
• Keys for Door Lock
• Manual de instrucțiuni (acest document)

4. Configurare

4.1 Despachetarea

Carefully remove all packaging materials, including foam and adhesive tape. Inspect the freezer for any damage during transit. Keep packaging materials out of reach of children.

4.2 Plasarea

• Place the freezer on a firm, level floor capable of supporting its weight when fully loaded.
• Ensure adequate ventilation around the unit. Allow at least 4 inches (10 cm) of space on the sides and back, and 12 inches (30 cm) on top for proper air circulation.
• Avoid direct sunlight or placing the freezer near heat sources such as stoves, heaters, or radiators.
• Do not install in areas where the temperature is likely to drop below 50°F (10°C) or rise above 90°F (32°C).

4.3 Instalarea mânerului

The door handle needs to be installed by yourself. Follow these steps:

1. Locate the pre-drilled holes on the freezer door.
2. Align the handle brackets with the holes.
3. Secure the handle to the door using the provided screws and a screwdriver. Ensure it is firmly attached.
4. For models with a top hinge cover that needs to be removed and reattached, carefully detach it, connect any necessary wiring (if applicable, as shown in the video), and then re-secure the cover after the handle is installed.

Video 1: Detailed instructions for installing the freezer door handle, including wiring connections for the top hinge cover.

4.4 Nivelarea congelatorului

Your freezer is equipped with rear roller wheels for easy movement and adjustable leveling feet at the front. To level the freezer:

• Mutați congelatorul în locația sa finală.
• Turn the leveling feet clockwise to raise the freezer or counter-clockwise to lower it.
• Use a level to ensure the freezer is perfectly level from front to back and side to side. Proper leveling is crucial for efficient operation and to prevent the door from swinging open or closing improperly.

4.5 Pornirea inițială

After placing and leveling the freezer, wait at least 2-4 hours before plugging it into a power outlet. This allows the refrigerant to settle, preventing potential damage to the cooling system.

5. Instrucțiuni de utilizare

5.1 Controlul temperaturii

The freezer features a digital LED display for precise temperature control. The recommended temperature range for optimal frozen food storage is -13°F to -0.4°F (-25°C to -18°C).

• Use the control panel to set your desired temperature. Refer to the specific controls on your unit for adjustment buttons (e.g., SET, UP, DOWN).
• Afișajul digital va afișa temperatura internă curentă.

Figure 2: Digital temperature control panel and interior features.

5.2 Depozitarea alimentelor

The freezer is equipped with 7 fixed-position wire shelves and 1 customized large capacity mesh basket to optimize storage space and allow for easy access to items.

• Arrange food items to allow for proper air circulation, which helps maintain consistent temperatures.
• Utilize the mesh basket for frequently accessed items or those that benefit from being easily removable.
• The quick-freezing function helps rapidly freeze fresh items, preserving their quality.

Figure 3: Interior organization with wire shelves and LED lighting.

5.3 Door Features

The freezer features a solid hinged door with a lock to secure contents. Always ensure the door is properly closed to maintain internal temperature and energy efficiency.

Figure 4: Key features including the solid door and stainless steel handle.

6. Întreținere

6.1 Dezghețare manuală

This freezer features manual defrost. Frost buildup can reduce cooling efficiency. Defrost the unit when frost on the interior walls reaches approximately 1/4 inch (6 mm) thick.

1. Deconectați congelatorul de la priză.
2. Scoateți toate alimentele și depozitați-le într-un alt congelator sau ladă frigorifică.
3. Lăsați ușa congelatorului deschisă pentru a permite gheții să se topească în mod natural. Puteți așeza prosoape pe fund pentru a absorbi apa.
4. După ce s-a topit toată gheața, curățați și uscați bine interiorul.
5. Plug the freezer back in and allow it to cool down before returning food items.

6.2 Curățare

• Deconectați întotdeauna congelatorul înainte de curățare.
• Clean the interior with a solution of mild soap and warm water. Rinse thoroughly and dry completely.
• Wipe the exterior with a soft cloth and mild detergent. Avoid abrasive cleaners or solvents.
• Periodically clean the condenser coils at the back of the unit with a soft brush or vacuum cleaner to ensure efficient operation.

7. Depanare

Înainte de a contacta serviciul clienți, verificați următoarele probleme și soluții frecvente:

8. Specificații

9. Garanție și asistență

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact the manufacturer directly. Keep your purchase receipt as proof of purchase for warranty claims.

Manufacturer: ZHEJIANG XINGXING REFRIGERATION CO.,LTD.
