ScopeAround Digital Otoscope User Manual

Introducere

The ScopeAround Digital Otoscope with IPS Screen (Model SASA160) is designed for clear, real-time visual inspection of the ear canal. This device allows users to perform ear checks instantly without the need for external connections like phones or apps. It is equipped with a high-resolution camera and integrated lighting to provide detailed views, making it suitable for personal and family ear care, including monitoring ear wax and general ear health.

Image: The ScopeAround Digital Otoscope, showing the main unit with its integrated screen, detachable lens with extension cable, various ear picks, specula, alcohol pads, Q-tips, and USB cable.

Caracteristici cheie

• Built-In IPS Screen: Features a clear IPS display for instant viewing without requiring a phone or app connection. Simply power on and view imagini în timp real.
• Cameră de înaltă rezoluție: The 720p HD camera and integrated IPS screen provide sharp, true-to-life images, allowing clear visualization of fine details within the ear canal without glare or distortion.
• Slim 3.9mm Lens with LED Lights: Designed for comfort and safety, the slim lens is gentle for all ages. Six LED lights with three brightness levels ensure optimal illumination for clear viewing.
• Flexible Detachable Lens and Extension Cable: The lens can be detached and connected to an extended cable, offering flexibility for self-inspection or assisting others comfortably.
• Captură foto și video: Capture clear photos and videos of the ear canal. Files are saved on the included 8GB memory card, useful for tracking progress or sharing with healthcare professionals.
• Design ușor de utilizat: Ergonomic grip and intuitive controls make the device easy to handle for both professionals and home users.

Image: Diagram highlighting the integrated screen for easy and efficient ear examinations, providing a clear and detailed view a canalului urechii.

Image: Illustration of the 3.9mm diameter high-resolution HD ear camera, showing how it illuminates the examination area and provides optimal visibility.

Ce este în cutie

• SA160 Digital Otoscope (Main Unit)
• Ear Picks x 4
• Specula x 5
• Alcohol Pads x 4
• 1 Pack of Q-tips
• Cablu prelungitor
• Cablu de încărcare USB
• Card de memorie de 8 GB (preinstalat sau inclus separat)

Image: A visual representation of all items included in the product package, such as the otoscope, various ear picks, specula, alcohol pads, Q-tips, extension cable, USB cable, and user manual.

Înființat

1. Încărcați dispozitivul: Before first use, fully charge the otoscope using the provided USB charging cable. The charging port is located on the device.
2. Introduceți cardul de memorie: Ensure the 8GB memory card is properly inserted into the designated slot on the otoscope. This is necessary for saving photos and videos.
3. Attach Lens/Extension Cable:
   • For direct use, attach the lens probe directly to the main unit.
   • For self-examination or extended reach, connect the lens probe to the extension USB cable, then connect the extension cable to the main unit. Ensure connections are secure.
4. Attach Specula/Ear Picks: Select an appropriate speculum or ear pick and attach it to the tip of the lens probe. Ensure it is securely fitted to prevent accidental detachment during use.

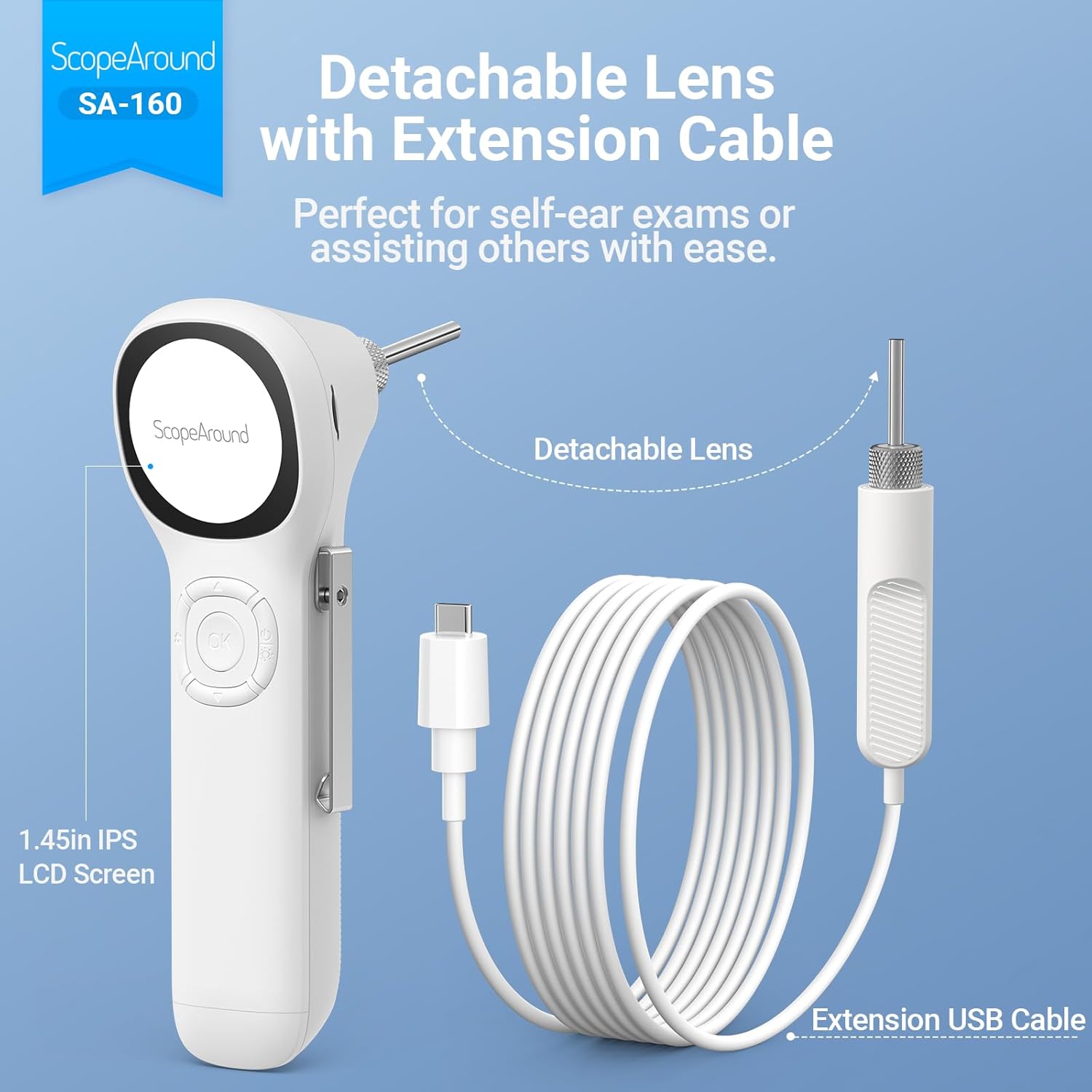

Image: The detachable lens and extension USB cable, illustrating how they connect to the main unit for flexible use, perfect for self-ear exams or assisting others.

Image: A detailed diagram labeling the various components and controls of the ScopeAround Smart Otoscope, including the 1.45-inch screen, settings button, OK button, Up/Down buttons, power button, lens module, capture button, reset, and Type-C port.

Operațiunea

1. Pornire: Press and hold the Power Button to turn on the device. The IPS screen will activate, displaying the live view de la cameră.
2. Reglați luminozitatea: Use the dedicated button (often integrated with the power button or a separate control) to cycle through the three brightness levels of the LED lights for optimal visibility.
3. Perform Examination: Gently insert the speculum-covered lens into the ear canal. Observe the live feed on the IPS screen. Move the otoscope slowly and carefully to get a comprehensive view.
4. Capturați fotografii/videoclipuri:
   • Press the Capture Button to take a still photo.
   • Press and hold the Capture Button to start recording a video. Press again to stop recording.
   • Files are automatically saved to the 8GB memory card.
5. Adjust Magnification/Rotation: If available, use the controls to adjust magnification (e.g., 1.0x, 1.3x, 1.5x) for more detailed views or rotate the image 180 degrees for flexible positioning.
6. Review Media: Access saved photos and videos through the device's menu. You can transfer these files to a computer via the Type-C interface for larger screen viewing and health documentation.
7. Oprire: Press and hold the Power Button to turn off the device after use.

Image: Demonstrates the two primary uses: self-ear checks using the extension cable and assisting others with direct use of the otoscope.

Image: Illustrates the adjustable magnification (1.0x, 1.3x, 1.5x) for detailed views and the 180-degree image rotation feature for flexible positioning during examinations.

Image: Shows a user transferring files from the otoscope to a laptop via the Type-C interface, emphasizing the ease of sharing ear health documentation with professionals.

Întreţinere

• Cleaning the Lens and Specula:
  • After each use, especially when used on different individuals, clean the lens and specula thoroughly.
  • Use the provided alcohol pads or a soft cloth dampened with isopropyl alcohol to wipe the lens and the exterior of the specula.
  • Ensure the lens is free of debris or earwax before storage.
• Curățarea unității principale: Wipe the main unit with a soft, dry cloth. Avoid using abrasive cleaners or submerging the device in water.
• Depozitare: Store the otoscope and its accessories in a clean, dry place, away from direct sunlight and extreme temperatures. Keep all small parts, especially ear picks and specula, organized in their case to prevent loss.
• Îngrijirea bateriei: To prolong battery life, avoid fully discharging the device frequently. Charge the device regularly, even if not in constant use.

Image: Illustrates safe and dangerous methods of ear cleaning, emphasizing the importance of proper technique to avoid ear canal injury and cross-infection.

Image: Close-up of the removable and soft silicone ear pick, highlighting its design for protection and convenience during ear wax removal.

Depanare

Specificații

• Nume model: Otoscope SA160
• Număr de model articol: SASA160
• Marca: ScopeAround
• Culoare: Alb
• Material: Plastic
• Dimensiuni pachet: 8.19 x 4.41 x 2.4 inci
• Greutatea articolului: 9.6 uncii
• Tip sursă de lumină: LED
• Unghiul real al View: 78 de grade
• Mărire maximă: 1.5 x
• Voltage: 3.7 volți (DC)
• Baterii: Este necesară 1 baterie cu litiu polimer (inclusă)
• Dispozitive compatibile: No device needed (standalone operation)
• Prima dată disponibilă: 4 noiembrie 2024

Image: Detailed specifications of the SA-160 camera, including 3.9mm HD ear camera, 6 LED lights, 3 brightness adjustments, 0.39-1.18 inch focal distance, and 78-degree field of view.

Garanție și suport

For warranty information, technical support, or service inquiries, please refer to the official ScopeAround website-ul lor web sau contactați direct serviciul lor de asistență pentru clienți. Păstrați bonul fiscal ca dovadă a achiziției pentru orice reclamații în garanție.

ScopeAround is committed to providing high-quality products and customer satisfaction. For further assistance, please visit the ScopeAround Store on Amazon sau contactați echipa lor de asistență.
