Introducere
Welcome to the user manual for your Offgridtec 5W Mono 12V Solar Panel. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your solar panel. Please read this manual thoroughly before using the product.
Instrucțiuni de siguranță
Instrucțiuni generale de siguranță
- Handle the solar panel with care. Avoid dropping or subjecting it to strong impacts.
- Do not attempt to disassemble or modify the solar panel. This can void the warranty and pose safety risks.
- Ensure all electrical connections are secure and properly insulated to prevent short circuits or electric shock.
- Wear appropriate personal protective equipment (PPE) when handling and installing the panel, including gloves and eye protection.
- Nu călcați pe panoul solar.
- Keep the solar panel away from flammable materials and sources of ignition.
- In case of damage, disconnect the panel immediately and contact customer support.
Produs terminatview
Caracteristici cheie
- High Efficiency Monocrystalline Cells: Over 22.3% efficiency, optimized for 12V systems.
- Construcție durabilă: Features an anodized aluminum frame and extremely resistant ESG solar glass for protection against environmental conditions.
- Integrated Bypass Diodes: Ensures continuous power production even in shaded or low-light conditions.
- Aplicații versatile: Suitable for 12V solar systems in garden houses, mobile applications like RVs, boats, and for powering lighting or monitoring systems.
- Gamă largă de temperatură: Operates effectively from -40 °C to +85 °C.
Componente
The Offgridtec 5W Mono 12V Solar Panel typically includes:
- Panou solar monocristalin
- Junction Box with 2 cable entries and PEG screw connection
- Anodized Aluminum Frame
- Pre-installed connection cables (may vary by package)
Înființat
Ghid de instalare
Instalarea corectă este crucială pentru performanță și siguranță optime.
- Alegeți o locație: Select a location that receives maximum direct sunlight throughout the day, free from shadows. Consider the angle and orientation for your specific latitude.
- Montare: Securely mount the solar panel using appropriate mounting hardware (not included). Ensure the mounting structure is robust enough to withstand wind and other environmental factors. The anodized aluminum frame provides sturdy attachment points.
- Conexiuni electrice:
- Connect the positive (+) and negative (-) terminals of the solar panel to a compatible charge controller.
- Ensure correct polarity to prevent damage to the panel or connected devices.
- Use appropriate gauge wiring for your system to minimize power loss.
- The integrated junction box facilitates secure cable connections.

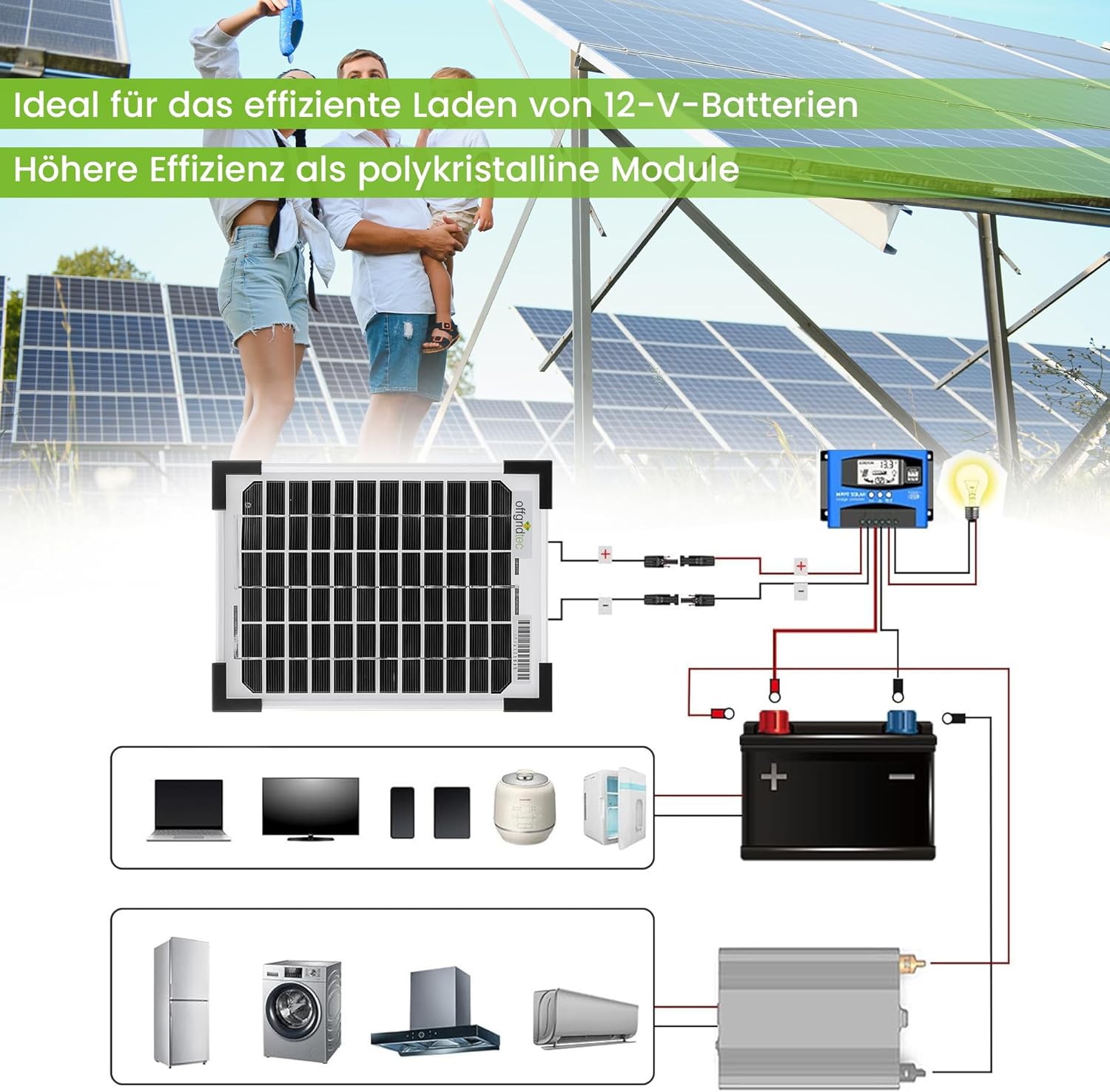

- Integrarea sistemului: Connect the charge controller to your 12V battery bank. Ensure the battery is suitable for solar charging.
- Testare: After installation, verify all connections are secure and test the system to ensure proper charging.
Funcționează
Funcționare zilnică
Once installed, the Offgridtec 5W Mono 12V Solar Panel operates automatically, converting sunlight into electrical energy.
- Expunerea la lumina soarelui: Ensure the panel is exposed to direct sunlight for maximum power generation.
- Controler de încărcare: The charge controller will regulate the voltage and current from the solar panel to safely charge your 12V battery and protect it from overcharging or deep discharge.
- Diode de bypass: The integrated bypass diodes help maintain power output even if a portion of the panel is shaded, ensuring consistent performance.
Întreţinere
Îngrijire și curățare
Regular maintenance ensures the longevity and optimal performance of your solar panel.
- curatenie: Periodically clean the surface of the solar panel with a soft cloth and mild, non-abrasive cleaner to remove dust, dirt, and debris. Avoid harsh chemicals or abrasive materials that could scratch the glass.
- Inspecţie: Regularly inspect the panel for any physical damage, such as cracks in the glass or frame, or loose connections.
- Umbrire: Ensure no new obstructions (e.g., growing trees, new structures) are casting shadows on the panel.
- Conexiuni: Check electrical connections for corrosion or looseness. Tighten if necessary.
Depanare
Probleme comune și soluții
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Fără putere de ieșire | No sunlight, shaded panel, loose connections, faulty charge controller, damaged panel | Ensure direct sunlight, clear obstructions, check and tighten all connections, test charge controller, inspect panel for damage. |
| Putere scăzută de ieșire | Partial shading, dirty panel surface, incorrect panel angle, low light conditions | Clear any shading, clean the panel surface, adjust panel angle for optimal sun exposure, note that output will naturally be lower in cloudy weather. |
| Bateria nu se încarcă | Faulty charge controller, incorrect wiring, battery issues, insufficient solar input | Verify charge controller operation, check wiring polarity and connections, test battery health, ensure adequate sunlight on the panel. |
If you encounter issues not listed here or require further assistance, please contact Offgridtec customer support.
Specificații
Date tehnice
| Caracteristică | Valoare |
|---|---|
| Model | 002960 |
| Putere (Watt) | 5 W |
| Material | Silicon monocristalin |
| Vol. De operaretage | 12 V (optimized for 12V systems, 20V operating voltage) |
| Vol. Maximtage | 17.8 V |
| Eficienţă | Peste 22.3% |

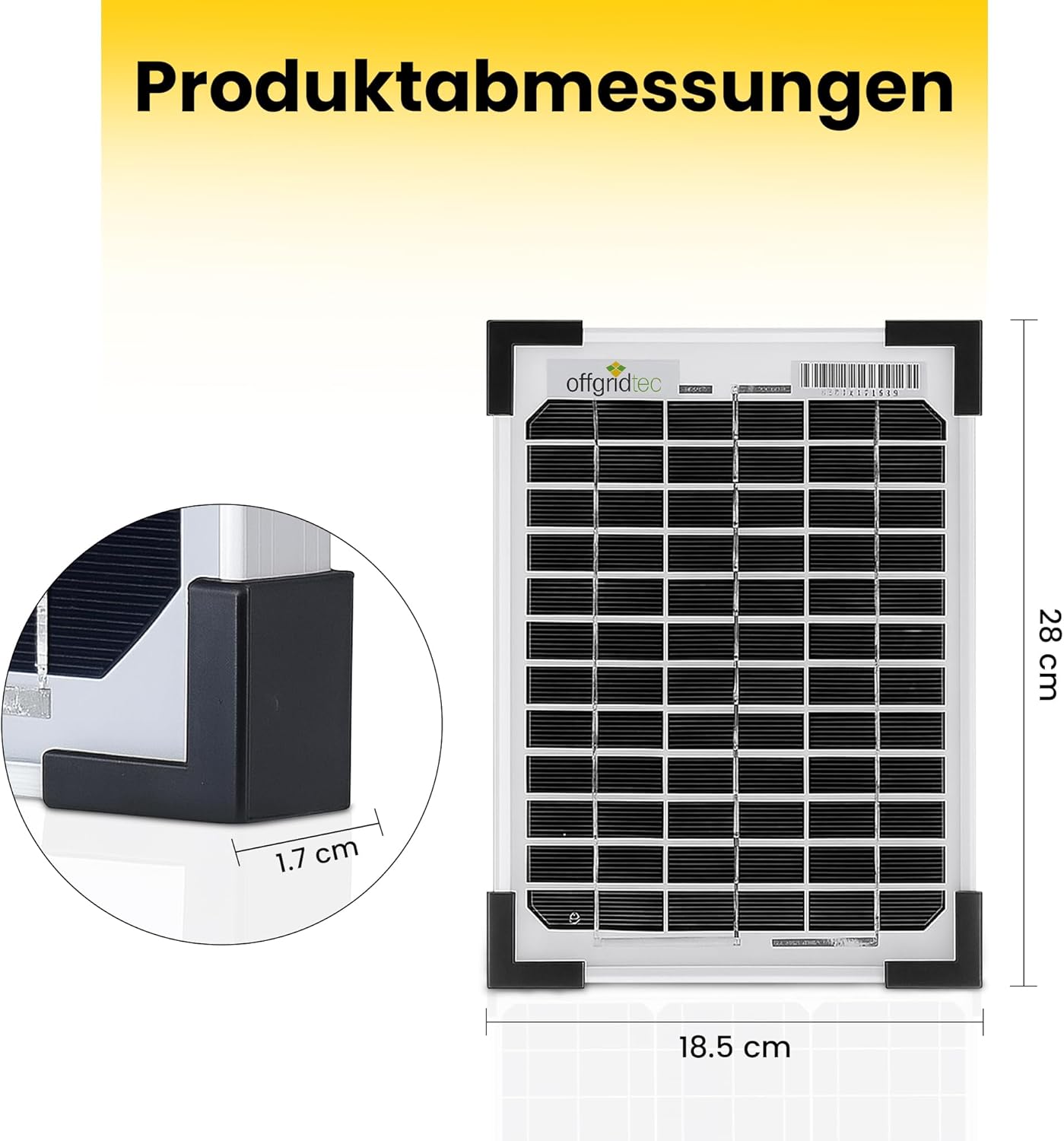

| Dimensiuni (L x l x H) | 28 x 18.5 x 1.7 cm |
| Greutate | 600 g |
| Caracteristici speciale | Highly efficient monocrystalline solar cells, optimized for 12V systems, extremely resistant ESG glass, anodized aluminum frame, integrated bypass diodes. |
garanție
Informații despre garanția produsului
Offgridtec products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty documentation included with your purchase or visit the official Offgridtec webPăstrați dovada achiziției pentru reclamații în garanție.
Sprijin
Asistență pentru clienți
If you have any questions, require technical assistance, or need to report an issue with your Offgridtec 5W Mono 12V Solar Panel, please contact Offgridtec customer support.
Informații de contact:
- Website: www.offgridtec.com
- E-mail: Consultați oficialul website pentru detalii de contact.
- Telefon: Consultați oficialul website pentru detalii de contact.
Vă rugăm să aveți la îndemână numărul modelului (002960) și data achiziției atunci când contactați serviciul de asistență.
