Indesit Refrigerator Left Upper Door Hinge (Reference C00174575) Instruction Manual

1. Produs terminatview

This document provides essential information for the Indesit C00174575 Left Upper Door Hinge. This is a genuine manufacturer replacement part designed for specific Indesit and Ariston refrigerator models. It is crucial to verify compatibility with your appliance before proceeding with installation.

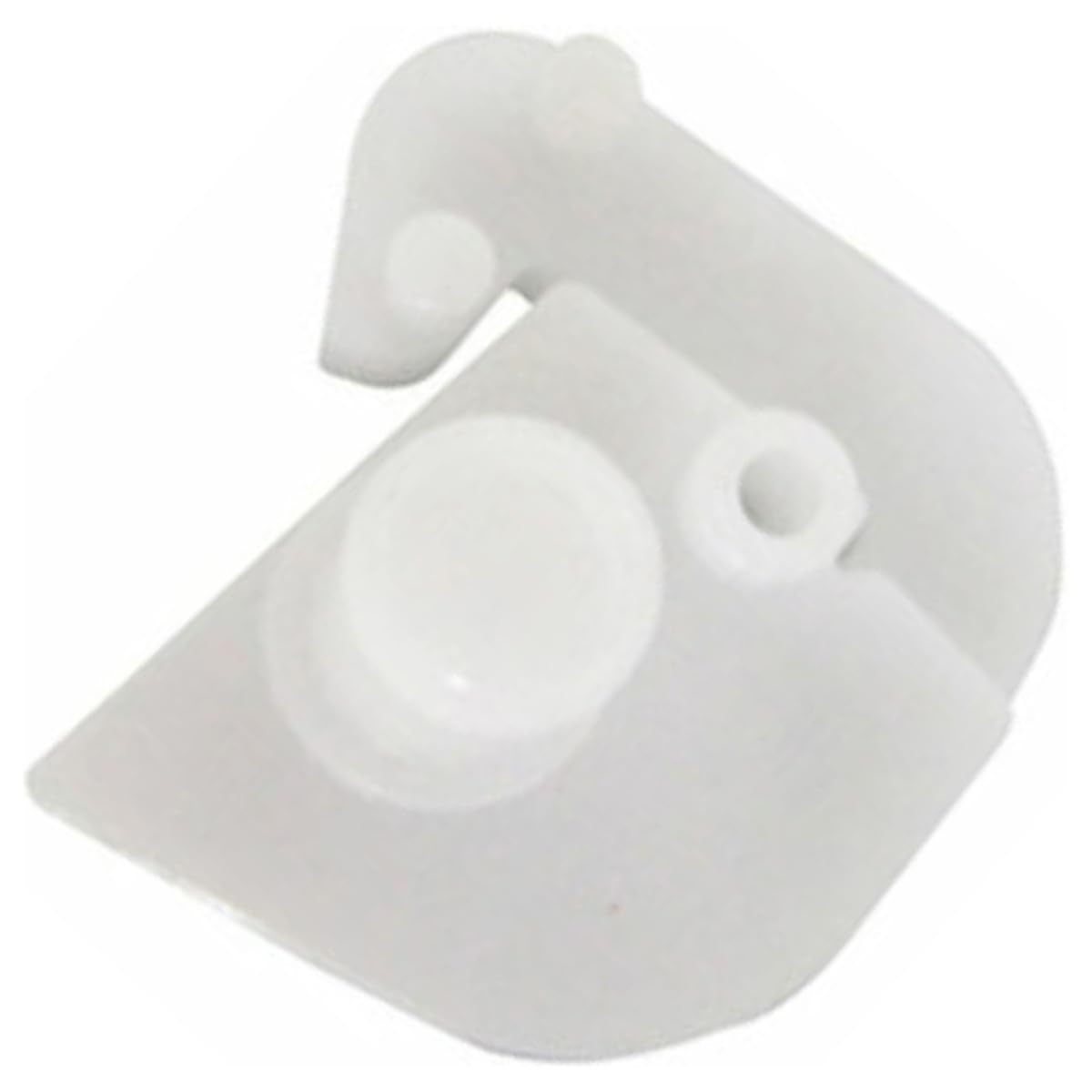

Figura 1: Indesit C00174575 Left Upper Door Hinge. This image displays the design and connection points of the replacement part.

2. Compatibilitate

The C00174575 door hinge is compatible with a range of Indesit and Ariston refrigerator models. It is essential to confirm that this part matches your appliance's specific model number to ensure correct fit and function.

Compatible with ARISTON models including:

• MBA4831, MTM1911F, MBAA 4531 CV (F028556)
• MTB 4011 NF (FR) (F032293), MBA 4831 NF (FR) (F031116)
• MTB 4711 NF (FR) (F030984), ETDF 450 X NF/IS (F021828)
• MT 4011 NF (AG) (F039313), MT 4011 NF (EX) (F027994)
• MT 4511 K (EX) (F027995), MT 4511 NF (AG) (F039314)
• MT 4511 NF (EX) (F027991), MT 4511 NF/IS (F027996)
• MT 4511 SK (EX) (F028300), MTA 4053 NF (TK) (F034609)
• MTA 4058 NF (TK) (F034608), MTA 4059 NF (TK) (F034607)
• MTA 4551 NF (F032574), MTA 4557 NF (TK) (F034151)
• MTA 4558 NF (TK) (F034152), MTA 4559 NF (TK) (F033757)
• MTA 45D8 NF (TK) (F034153), MTB 4000011 NF (TNF K) (F027283)
• MTB 4053 NF (TK) (F027285), MTB 4057 NF (TK) (F027613)
• MTB 4058 NF (TK) (F027284), MTB 4059 NF (TK) (F027614)
• MTB 4511 (FR) (F036738), MTB 4511 NF (F027620)
• MTB 4511 NF (FR) (F030243), MTB 4511 NF (GR) (F029349)
• MTB 4511 NF (TK) (F027286), MTB 4511 TK (F027282)
• MTB 4520 NFE BS (F030218), MTB 4551 NF (F027621)
• MTB 4551 NF (FR) (F027870), MTB 4551 NF (SP) (F028384)
• MTB 4551 NFE (F030010), MTB 4557 NF (TK) (F027615)
• MTB 4558 NF (TK) (F027287), MTB 4559 NF (F027624)
• MTB 4559 NF (TK) (F027616), MTB 45D1 NF (F027622)
• MTB 45D1 NF (FR) (F027871), MTB 45D1 NF (SP) (F028406)
• MTB 45D1 NF (TK) (F027288), MTB 45D1 NF (UK) (F028099)
• MTB 45D1 NF BS (F029554), MTB 45D2 NF (TK) (F027289)
• MTL 0801 F (AG) (F041414), MTM 0801 F (EX) (F054285)
• MTMN 1901 F (EX) (F064011), NMTM 1901 F (EX) (F054278)
• NMTM 1902 F (EX) (F054282)

Compatible with INDESIT models including:

• TA 5 (FR) (F031582), R 48 NF (FR) (F029220)
• MBAA 4531 CV (FR), RA 45 (FR) (F028296), RA45FR
• MT 4511 NF SK EX, MTA 45D2 NFE (TK)
• MTL 0818 F (TK), MTM 08 11 F (TK)
• MTM 1901 F SK (E), MTMN 1901 F SK
• R 44 NF (EU) (F028102), R 45 (F023154)
• R 45 (FR) (F027892), R 45 (GR) (F029853), 45 C...

For a complete and accurate compatibility check, please refer to your appliance's original documentation or consult a qualified technician.

3. Instalare

This door hinge is a replacement component. Installation of refrigerator parts typically requires technical knowledge and specific tools.

1. Siguranța pe primul loc: Always disconnect the refrigerator from the main power supply before attempting any installation or repair.
2. Access the Hinge: Carefully open the refrigerator door to access the existing hinge. Depending on your model, you may need to remove trim panels or covers.
3. Remove Old Hinge: Unscrew and detach the faulty left upper door hinge. Note the orientation and position of all components for reassembly.
4. Install New Hinge: Position the new Indesit C00174575 hinge in the correct orientation. Secure it with the appropriate screws, ensuring it is firmly attached.
5. Testare funcționare ușă: After installation, gently open and close the refrigerator door to ensure smooth operation and proper alignment. Check for any gaps or resistance.
6. Reconectați puterea: Once the hinge is securely installed and the door operates correctly, reconnect the refrigerator to the power supply.

Recomandare: If you are unsure about the installation process, it is highly recommended to seek assistance from a qualified appliance technician to prevent damage to the appliance or personal injury.

4. Specificații

5. Garanție și asistență

For information regarding warranty coverage for this replacement part, please refer to the original purchase documentation or contact the retailer from whom the part was acquired.

For technical support or further assistance with your Indesit appliance, please visit the official Indesit website-ul sau contactați departamentul de servicii pentru clienți.
